24V Cpap air blower BA4028H24B
Voltage 24V
48000rpm/min
Max 12 cfm,5.9 kpa
High Static Pressure (Up to 6kPa) & Stable Air Delivery
Engineered for high static pressure (6kPa), maintaining consistent airflow under resistance—ideal for CPAP therapy and respiratory support equipment.
Low Noise & Long Lifespan (MTTF >20,000 Hours)
Premium dual-ball bearings + balanced rotor ensure quiet operation (<65dB) and 20,000+ hours MTTF, reducing maintenance for 24/7 medical use.
Intelligent PWM Speed Control & Multi-Protection
Supports PWM speed regulation, FG signal feedback, plus over-voltage/over-current/stall protection for safe, precise airflow adjustment in CPAP systems.
Durable PC Housing & Wide Operating Temperature
Rugged fire-retardant PC housing withstands -10°C to +70°C; 24V DC input suits battery-powered portable CPAP and home medical devices.
Technical Specifications

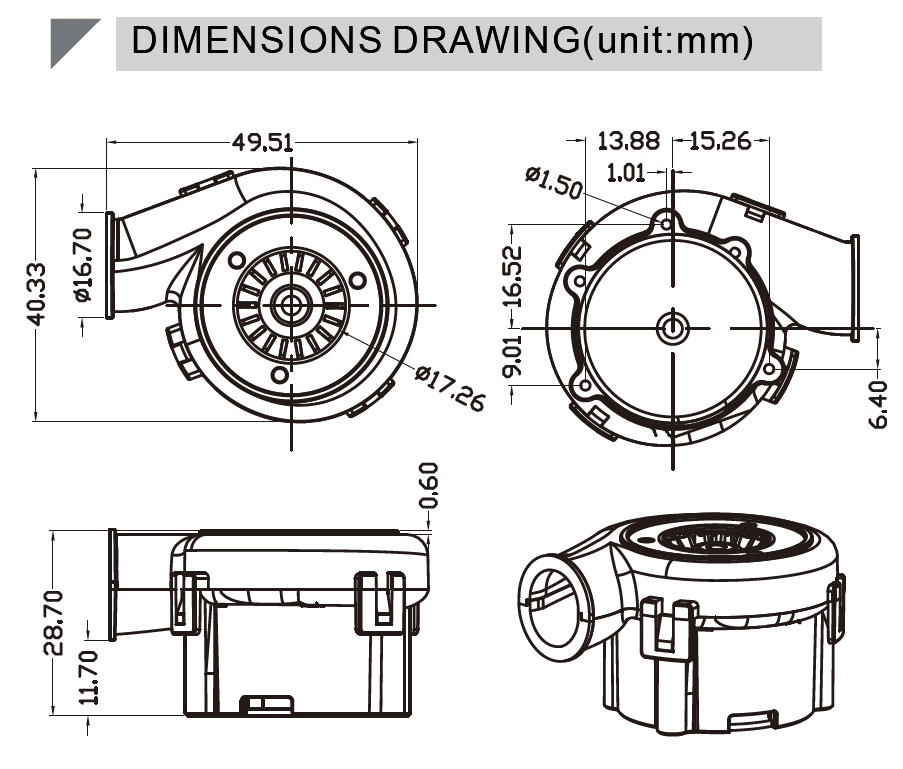

24V Cpap air blower BA4028H24B dimensions drawing
This comprehensive dimensions drawing illustrates the precise structural layout and physical specifications of the 24V CPAP air blower model BA4028H24B. It details critical metrics including outer casing measurements, mounting hole placements, intake and exhaust port diameters, and overall depth. Engineers and product designers can utilize this technical blueprint to seamlessly integrate the compact blower into space-constrained medical devices, portable ventilators, and respiratory therapy equipment without compatibility issues.

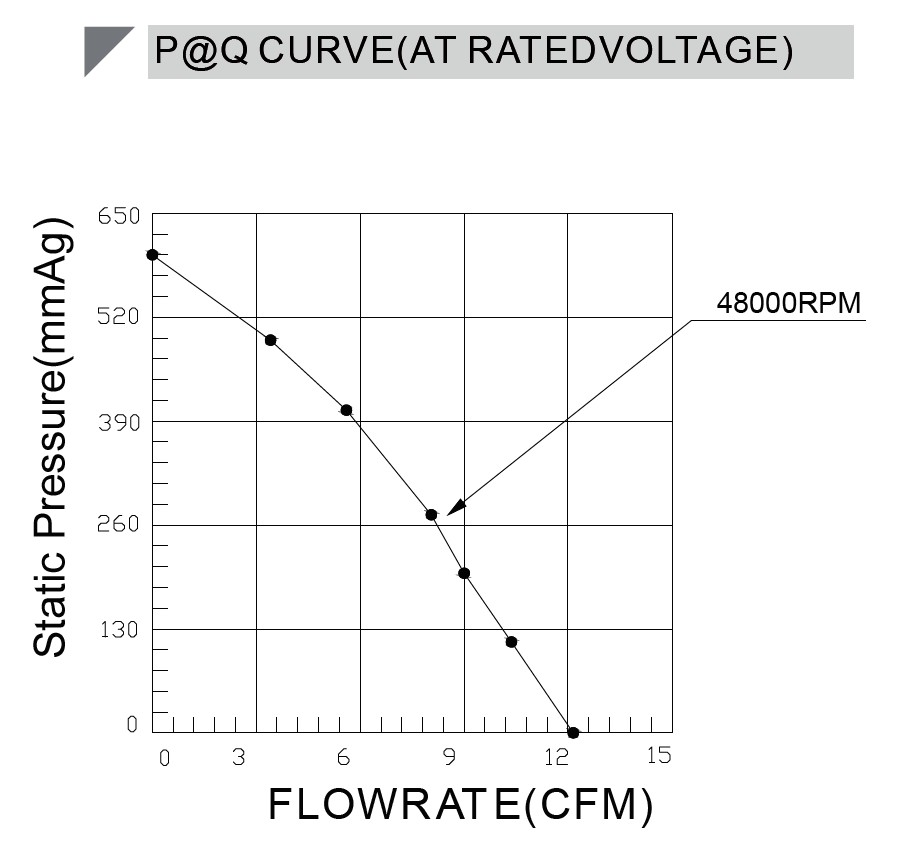

24V Cpap air blower BA4028H24B PQ curve
The performance PQ (Pressure-Flow) curve graph provides an in-depth visual representation of the aerodynamic capabilities and static pressure output relative to airflow rates for the BA4028H24B blower. By examining this curve, professionals can accurately evaluate how the blower performs under various backpressure conditions, ensuring optimal efficiency, stable pneumatic output, and reliable pressure delivery for demanding applications such as CPAP machines and continuous positive airway pressure devices.
Product Overview: High-performance blower fan designed for medical portable ventilators, compact oxygen concentrators, and respiratory therapy devices, ensuring stable airflow and high pressure.
Looking for different sizes or specifications?
Explore our full range of Cpap blower, or choose from similar models below.
Cpap blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
