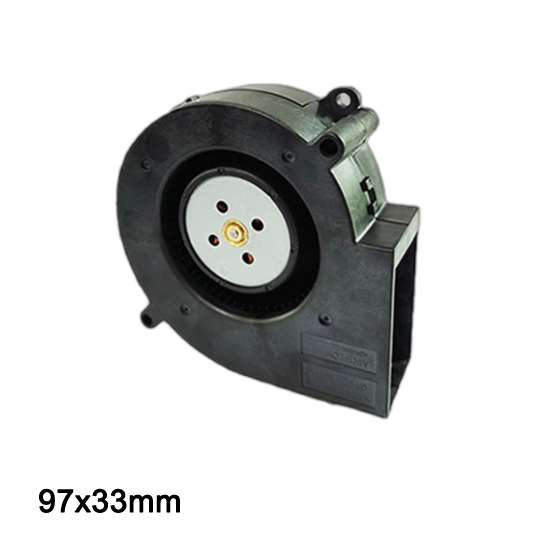

BA9733HV12B-B 8200rpm 12V DC Blower (97x33mm) - Alternative to Sanyo Denki 9BMC12P2G001 / 9BMC12P2G
BA9733HV12B-B 8200rpm 12V DC Blower (97x33mm) - Alternative to Sanyo Denki 9BMC12P2G001 / 9BMC12P2G
Voltage 12V
8200rpm/min
Max 65.3 cfm,1.98 kpa
Request a Sample
Structure Drawing
Technical Specifications

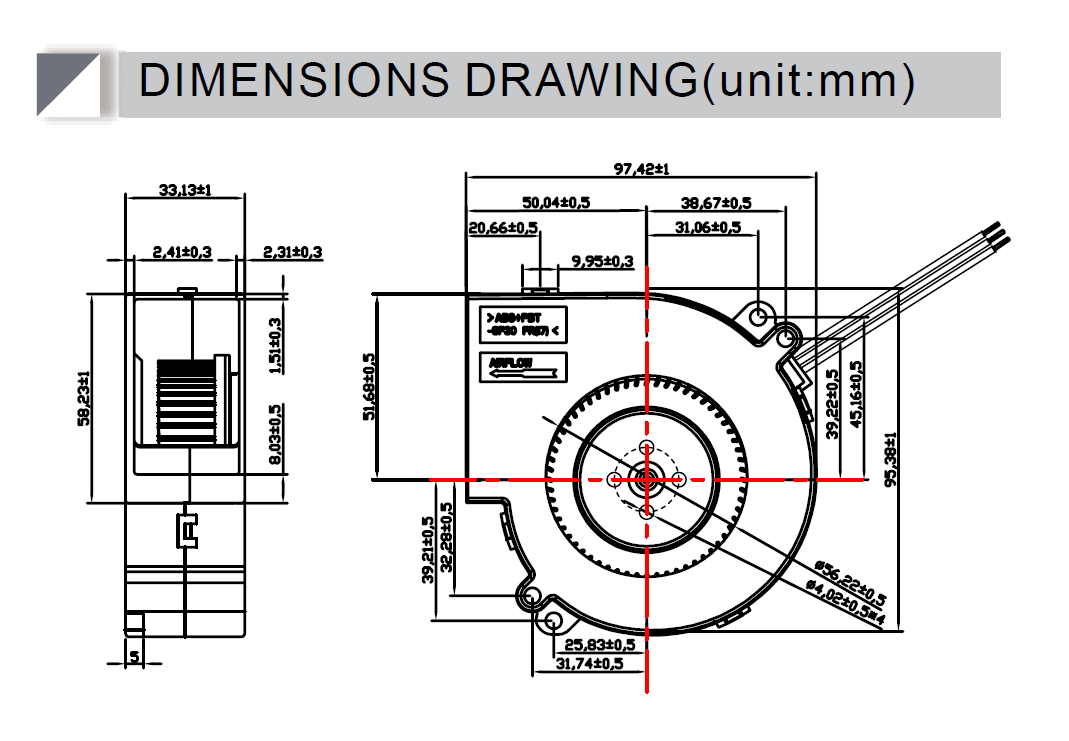

12V Air Blower BA9733HV12B-B 8200rpm Dimensions Drawing
The detailed dimensional drawing provides precise structural specifications for the 12V Air Blower BA9733HV12B-B series. Featuring standard 97x97x33mm dimensions, detailed mounting hole locations, housing thickness, and outlet geometry, it serves as a direct drop-in replacement for Sanyo Denki San Ace 97 9BMC12P2G001 / 9BMC12P2G (down load pdf datasheet here) in complex mechanical assemblies and high-density cooling systems.

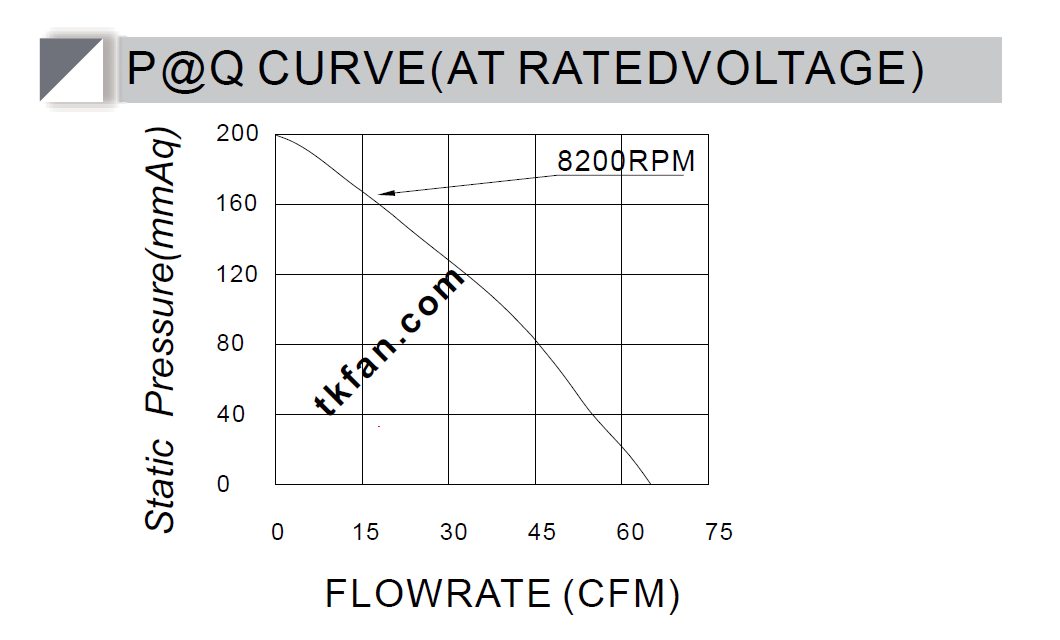

12V Air Blower BA9733HV12B-B 8200rpm P-Q Curve
The Air Performance (P-Q Curve) graph illustrates the relationship between static pressure and airflow volume for the BA9733HV12B-B series. Delivering up to 1.98 kPa (198.77 mmH2O) static pressure and 65.3 CFM airflow, this performance curve matches high-pressure alternatives like the Sanyo Denki 9BMC12P2G001, allowing design engineers to optimize thermal management under high system impedance.
Direct Replacement for Sanyo Denki 9BMC12P2G001 / 9BMC12P2G
TKFAN BA9733HV12B-A provides an equivalent high-static pressure centrifugal airflow solution with matching mechanical footprint and operating voltage.
| Key Specifications | Sanyo Denki San Ace 97 (9BMC12P2G001 / 9BMC12P2G) | TKFAN BA9733HV12B-B | Compatibility |
|---|---|---|---|
| Frame Size | 97 × 95 × 33 mm | 97 × 97 × 33 mm | Drop-in Fit |
| Rated Voltage | 12 VDC | 12 VDC | 100% Direct Match |
| Rated Speed | ~8300 RPM | 8200 RPM | Equivalent |
| Max Airflow | ~65 CFM | 65.3 CFM | Equivalent |
| Max Static Pressure | High Pressure Design | 1.98 kPa / 198.77 mmH2O | Equivalent |
| Control & Signals | PWM / Tachometer (FG) | PWM Control, RD/FG, IP68 Waterproof Optional | Customizable Pinouts |
Air Blower BA9733-B Series Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Air Blower BA9733-B for your equipment design or replacement project.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA9733HV12B | BY | 12 | 10.8~13.2 | 6.2 | 74.4 | 8200 | 1.85 | 65.3 | 198.77 | 7.83 | 69 |
| BA9733HV24B | 24 | 21.6~26.4 | 3.1 | 74.4 | 8200 | 1.85 | 65.3 | 198.77 | 7.83 | 69 | |
