12V Air Blower BA3010HHV12B
Voltage 12V
17000rpm/min
Max 2.5 cfm,0.3 kpa
Request a Sample
Download Datasheet

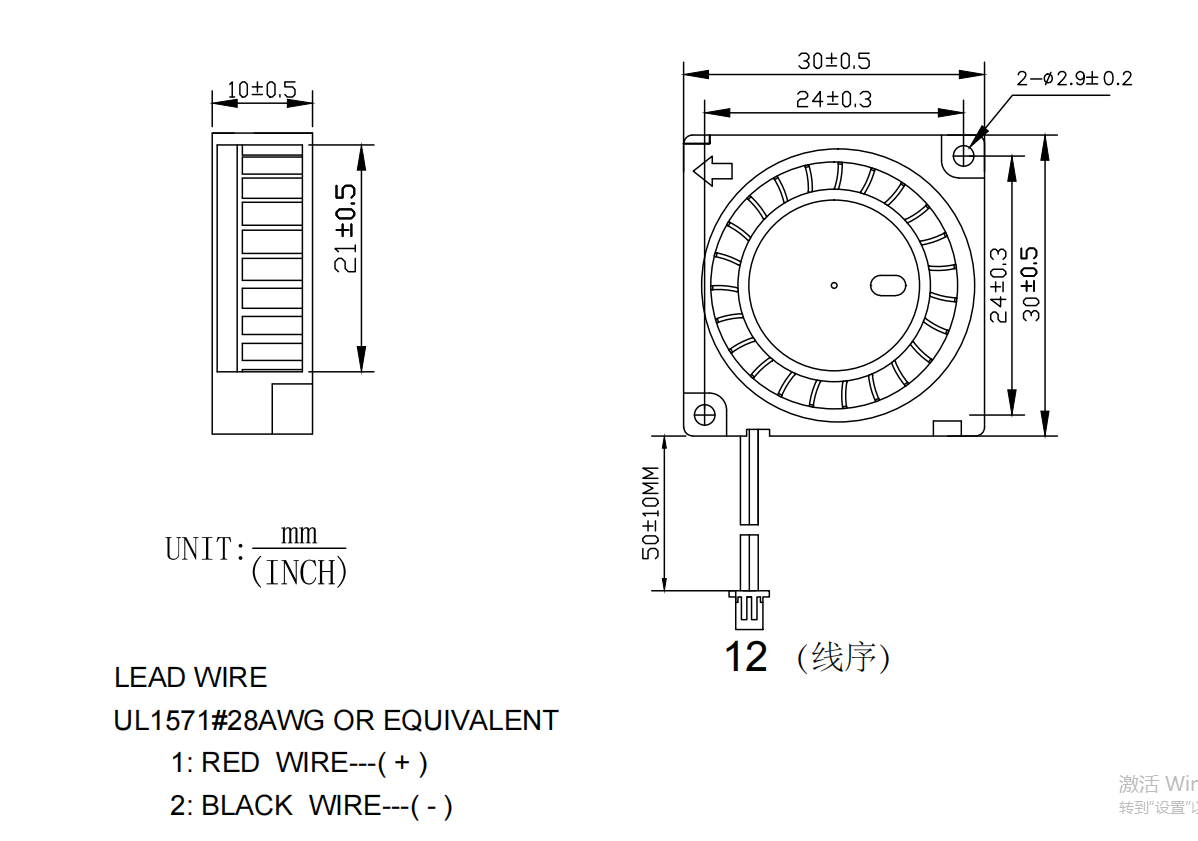

Ultra-Miniature Dimensions (30x30x10mm)
Featuring an incredibly compact 3010 footprint and a 10mm ultra-slim profile, this micro blower seamlessly integrates into highly confined and precision-engineered internal spaces.
Powerful 12V DC Performance
Driven by a standard 12V DC power supply, it delivers a higher rotational speed and greater airflow velocity compared to standard 5V micro fans, ensures optimal thermal dissipation.
High Static Pressure Centrifugal Configuration
Designed with an advanced centrifugal impeller to generate impressive static pressure, allowing it to forcefully push concentrated directional air through dense components.
Acoustically Balanced Low Noise
Precision-balanced blades combined with an optimized scroll housing guide the airflow smoothly, minimizing aerodynamic turbulence and structural vibration for quiet operation.

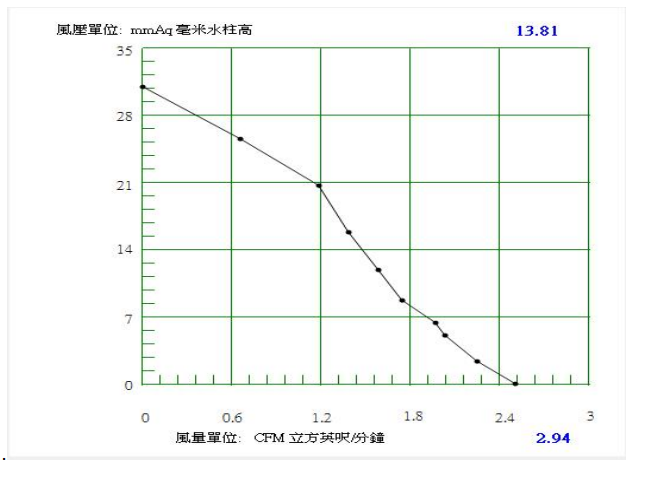

Technical Specifications
Video Showcase
Applications
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
