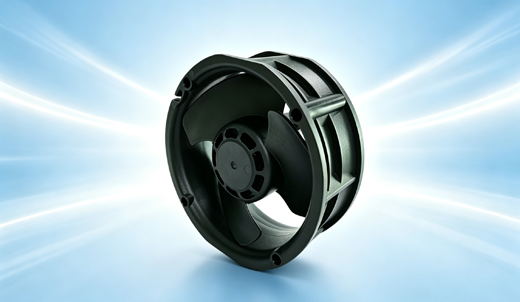

TKFAN Reversible DC Fans
Reversible fans, also known as reversible DC fans, are key components in applications requiring bidirectional air circulation or self-cleaning. TKFAN, a trusted manufacturer of industrial and commercial fans, offers highly reliable reversible fans with flexible control options, designed to meet the diverse needs of modern ventilation systems.
This article details the core features, control methods, and application scenarios of TKFAN reversible fans, helping engineers, purchasing personnel, and industry professionals understand how these fans can improve the operational efficiency and flexibility of their projects.
Core Features of TKFAN Reversible Fans
1. Dual Control Mode (Forward and Reverse)
TKFAN reversible DC fans support two commonly used signal line control methods—PWM signals and FR signals—allowing for seamless switching between forward and reverse rotation. We will demonstrate these two control modes using the popular TKFAN reversible fan model DA9238H12B as an example, ensuring practicality and clarity.
PWM Signal Control (DA9238H12B PWM Model) After connecting the positive and negative power cables, the fan begins to operate normally. The fan's rotation direction is precisely controlled by the PWM duty cycle, employing a clear segmented design for easy operation:
- PWM duty cycle 0%~39%: Fan rotates forward, providing stable airflow to meet daily ventilation needs.
- PWM duty cycle 40%~51%: Fan stops operating, enabling safe switching between rotation directions.
- PWM duty cycle 52%~100%: Fan rotates in reverse, suitable for air exchange or self-cleaning.
FR Signal Control (DA9238H12B FR model)
To simplify operation, the FR signal line provides on/off control of the rotation direction, suitable for scenarios requiring simple switching:
- FR line connected: Fan rotates forward, meeting daily ventilation needs.
- FR line disconnected: Fan rotates in reverse, enabling self-cleaning or reverse air circulation.
A major advantage of the TKFAN reversible DC fan is that the PWM line maintains its speed control function regardless of whether the fan rotates forward or in reverse. This means users can freely adjust the fan speed while switching rotation directions, adapting to different airflow needs without additional equipment.
2. Bidirectional Symmetrical Airflow
Unlike traditional fans, TKFAN reversible fans utilize a special 45-degree blade design, ensuring that the airflow speed during forward rotation is almost identical to that during reverse rotation. This symmetry eliminates bidirectional airflow loss, enabling the fan to operate efficiently in bidirectional ventilation scenarios.
Applications of TKFAN Reversible DC Fans
With its bidirectional rotation and stable airflow performance, TKFAN reversible DC fans are widely used in the following industries and applications:
- Fresh Air Systems: Achieve bidirectional air exchange and maintain indoor air quality
- Self-Cleaning Devices: Reverse rotation removes dust and debris from fan blades and ducts
- Industrial Ventilation: Regulate airflow direction to meet production process requirements
- Air Purification Systems: Improve bidirectional air circulation efficiency
Choose TKFAN to meet your reversible DC fan needs
TKFAN reversible fans combine durability, flexibility, and high performance. Whether you need PWM or FR control, or custom specifications to meet your project requirements, our professional team is ready to provide you with tailored solutions. Contact us today to discuss your needs and get reliable support. For inquiries, please contact: Email: sales@tenkai-group.com Tel: 0086-0755-23126453.
Watch the Demo Video
Watch a live demonstration of the TKFAN Reversible Fan (DA9238H12B) – including power connection, PWM/FR control operation, forward/reverse switching, and real-time airflow performance.
