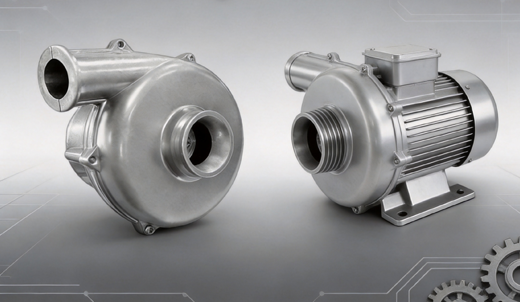

What are Integrated and Non-Integrated Fans?
In the field of DC centrifugal fan manufacturing, integrated and non-integrated fans are two mainstream structural designs, widely used in industrial cooling, medical device air supply, thermal management, and electronic ventilation systems. Many global buyers and engineers often confuse these two types of fans when selecting DC fans. Today, we will comprehensively explain the definitions, structural differences, advantages, application scenarios, and selection tips for integrated and non-integrated fans to help you make accurate purchasing choices.
What is an Integrated Fan?
An integrated fan is a type of DC centrifugal fan that pre-installs drive control circuitry, a power module, and an operation control system. Through a fully integrated hardware configuration, the entire fan unit internally handles motor drive, voltage conversion, and stable operation control.
This built-in integrated design achieves true plug-and-play functionality. Only a simple DC power cord is required, eliminating the need for additional external drive boards, independent control circuits, or secondary circuit modifications. Our integrated fans are equipped with high-performance brushless DC motors, providing stable static pressure, continuous airflow output, low noise, and up to 24 hours of continuous operation. It features easy installation, stable factory calibration parameters, and convenient field application, perfectly adapting to standard cooling equipment without the need for custom circuit development.
What is a non-integrated fan?
Unlike integrated fans, non-integrated fans retain only the fan body, including the brushless DC motor, impeller, housing, and bearing structure. They lack a built-in drive control board, internal control module, and integrated power supply circuitry. All drive control, speed regulation, voltage matching, and operating logic must be implemented through an external, independent drive system.
The purely mechanical design of non-integrated fans offers maximum circuit flexibility. It supports various external control schemes, custom drive circuit matching, PWM speed regulation, independent system integration, and secondary development for customers. Engineers can freely configure external control modules according to system requirements, optimize control logic, and adapt to special customized air supply and high-pressure operating conditions. Our non-integrated series of fans maintains excellent high static pressure, compact size, and reliable mechanical performance based on a bare-metal design.
Key Differences Between Integrated and Non-Integrated Fans
Internal Structure
Integrated Fan: Built-in drive control circuit and integrated power management module, a complete self-operating unit.
Non-Integrated Fan: Purely a mechanical fan body, without an internal control board, requiring an independent external drive.
Installation and Operation
Integrated Fan: Plug and play, direct DC power connection, simple wiring, no additional control accessories required, suitable for rapid system assembly.
Non-Integrated Fan: Requires external driver matching, flexible circuit matching, suitable for customized system integration and in-depth secondary development.
Application Adaptability
Integrated fans are widely used in conventional industrial cooling, small electronic heat dissipation, standard ventilation equipment, and mass-produced finished equipment with fixed operating parameters.
Non-integrated blowers are ideal for high-end customized equipment, medical respiratory equipment, special industrial air supply systems, and projects requiring independent control logic and personalized drive configurations.
Customization Potential
Integrated Blowers: Fixed performance parameters and pre-tested, stable and consistent performance, low need for secondary modifications.
Non-integrated blowers: Offer extremely high customization freedom, with adjustable external control strategies, allowing for optimization of pressure and airflow based on the customer's system.
How to choose the right integrated or non-integrated blower?
If you prioritize convenient plug-and-play functionality, simple field installation, stable and consistent performance, and support for large-scale standard equipment, integrated blowers are your best choice.
If you have an independent R&D team and require customized drive circuits, external PWM control, system integration development, and special high-pressure customized air supply needs, non-integrated blowers with flexible bare-metal designs can better meet your personalized engineering requirements.
As a professional original equipment manufacturer specializing in DC centrifugal fans, DC cooling fans, and high-performance DC blowers, we offer a full range of integrated and non-integrated blowers in various specifications, including 12V models.
