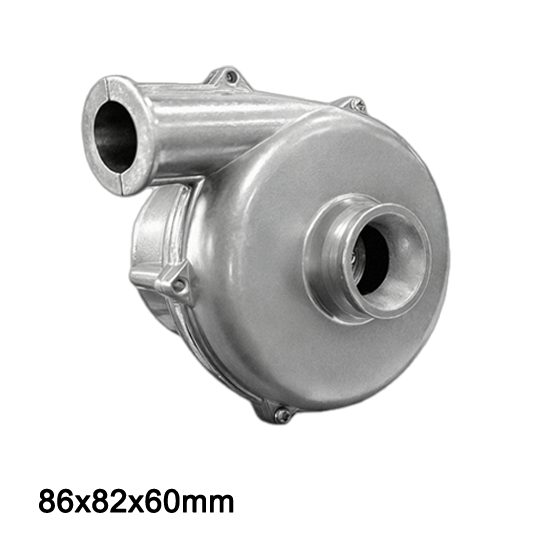

24V Air Blower BA8060H24B-E-Unintegrated
Non-integrated driver 24v
48000rpm/min
Max 25cfm,18kpa

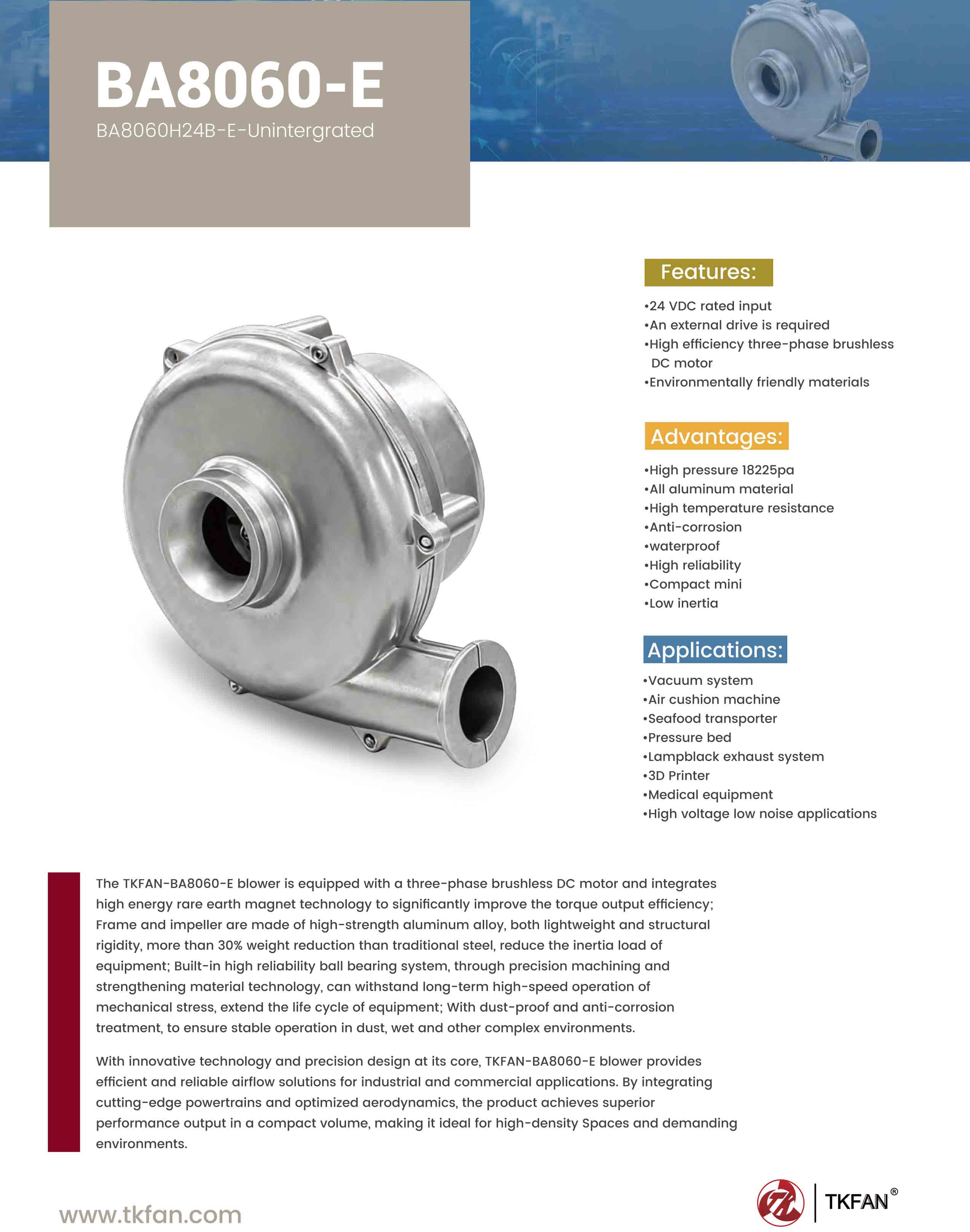

BA8060H24B-E-Unintegrated 24V High Static Pressure Air Blower
Unintegrated driver design centrifugal blower with powerful static pressure output, suitable for customized external control and professional equipment air supply.
Long Lifespan Unintegrated 24V Air Blower BA8060H24B-E
High-precision durable bearing supports 24-hour continuous running, low power consumption and stable operation for industrial thermal management systems.
Customizable 24V Centrifugal Air Blower BA8060H24B-E-Unintegrated
Standard compact dimension design, no integrated control module, easily compatible with external PWM speed regulation and independent drive circuits.
Reliable Heavy Duty 24V Air Blower BA8060H24B-E Unintegrated
Steady 24V DC power supply, excellent vibration resistance and stable performance, widely applied to medical devices, ventilation equipment and electronic cooling.

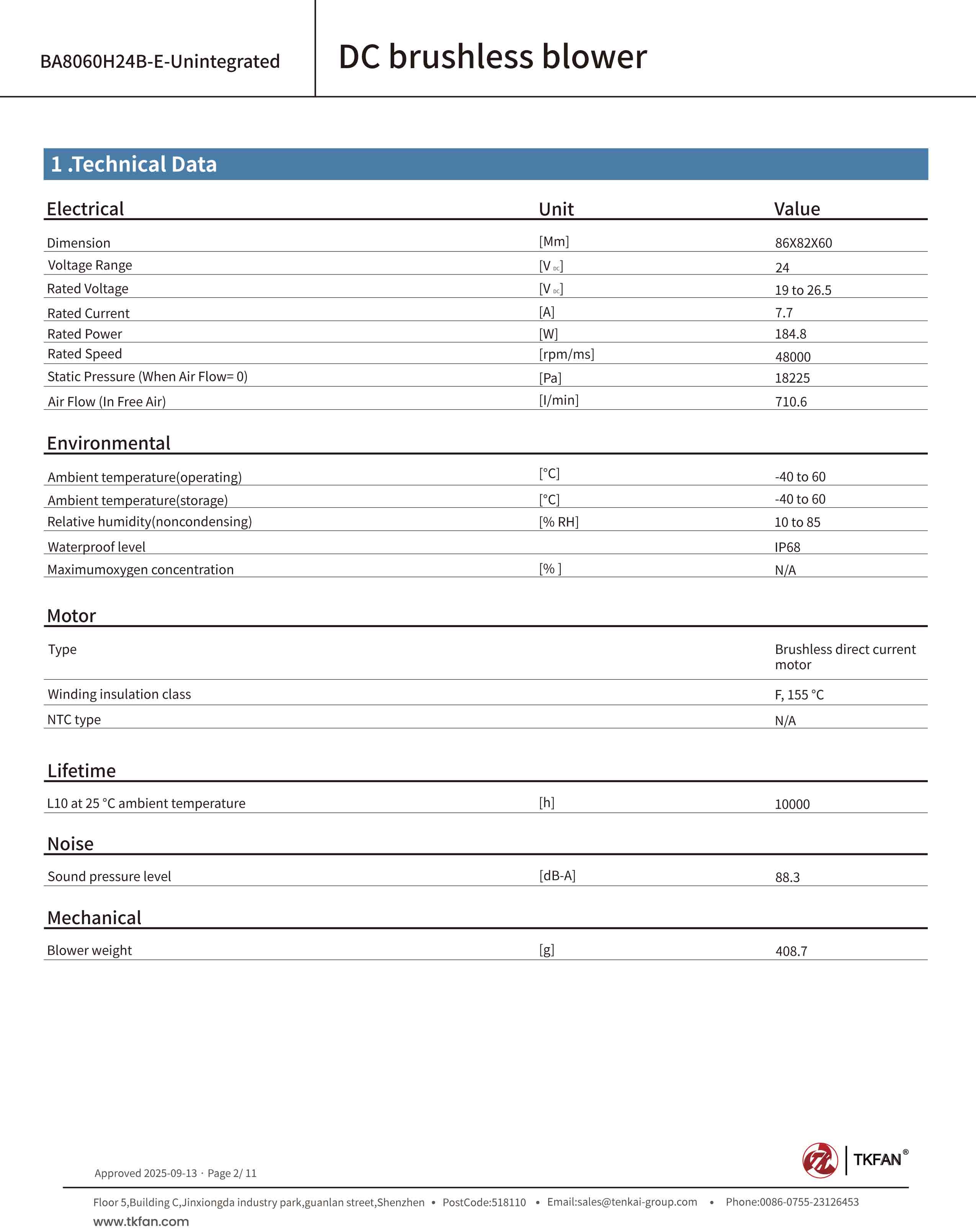

Technical Specifications

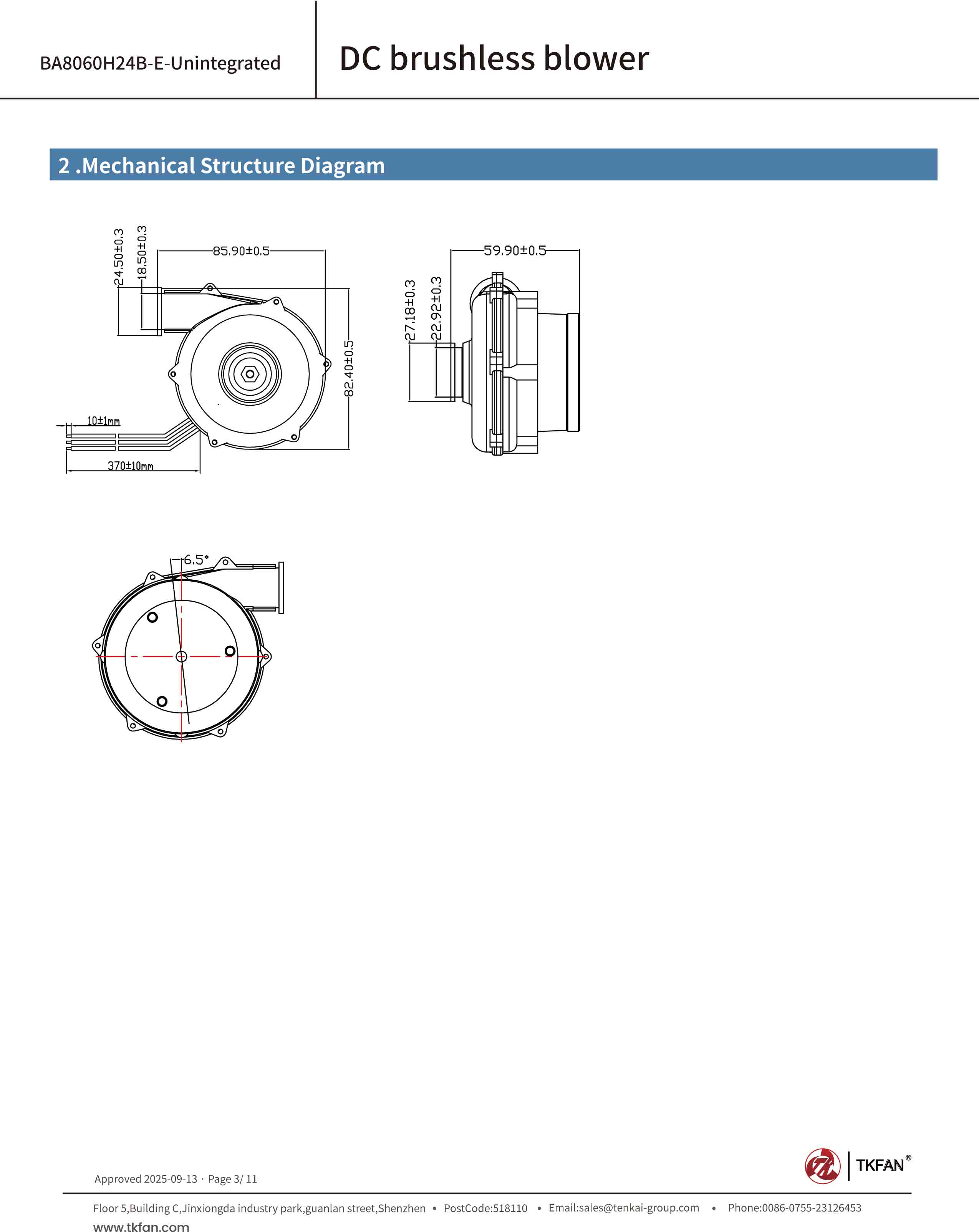

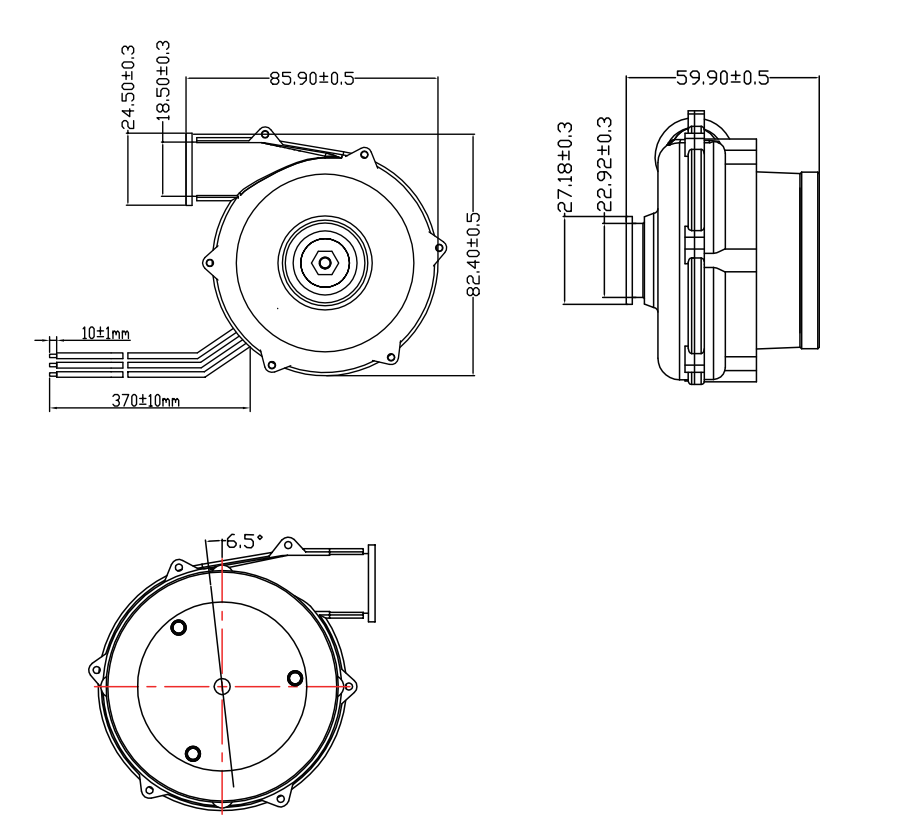

24V Air Blower BA8060H24B-E-Unintegrated Mechanical Structure Diagram
The unintegrated mechanical structure diagram of the 24V Air Blower BA8060H24B-E illustrates its precision-engineered architecture designed for high-pressure pneumatic delivery. Its optimized scroll housing and internal aerodynamic channels minimize turbulence, ensuring exceptional mechanical stability and structural integrity.
Built from durable industrial-grade materials, this unintegrated design provides modular flexibility, excellent vibration resistance, and long-term operational reliability in complex automated systems and medical equipment.

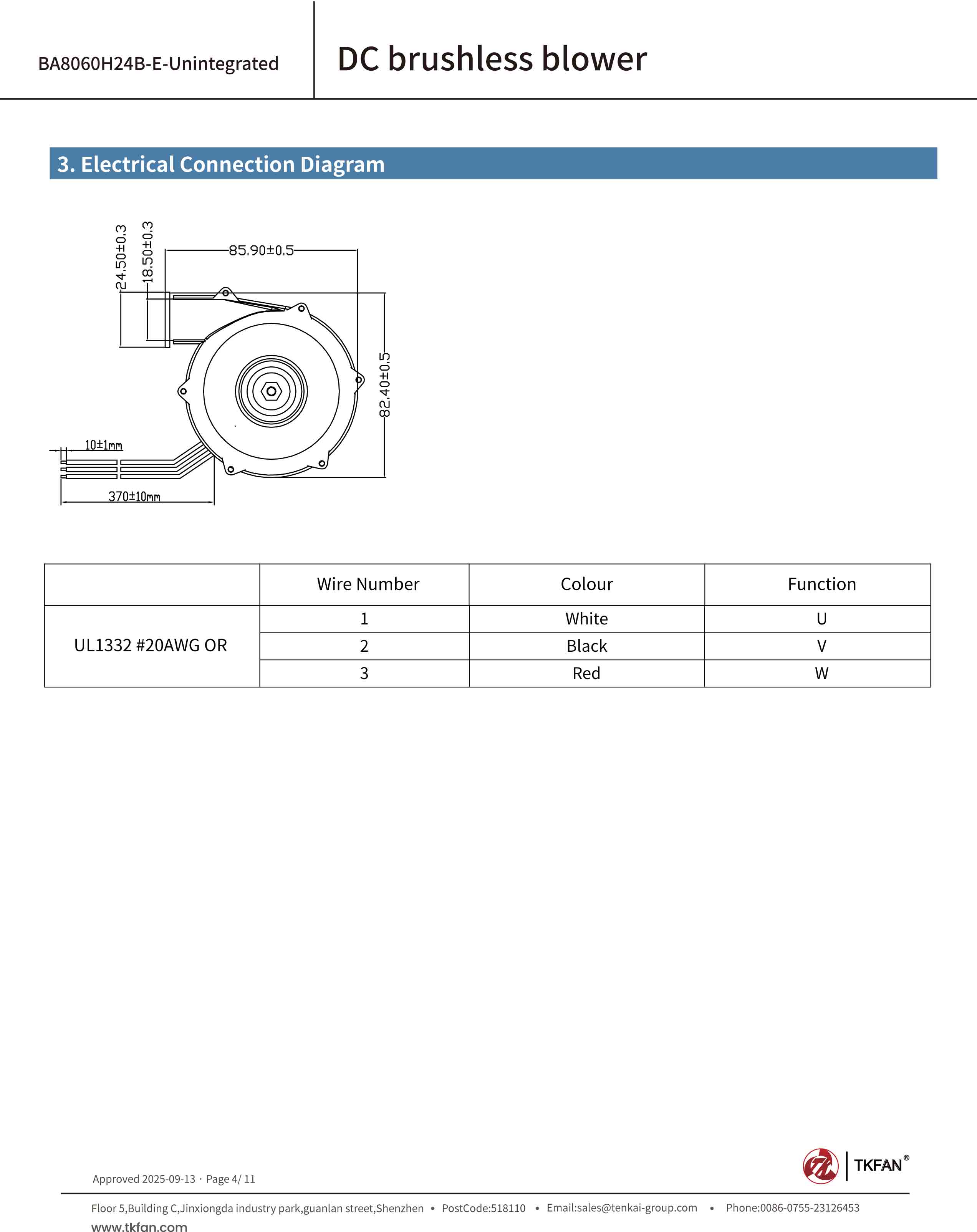

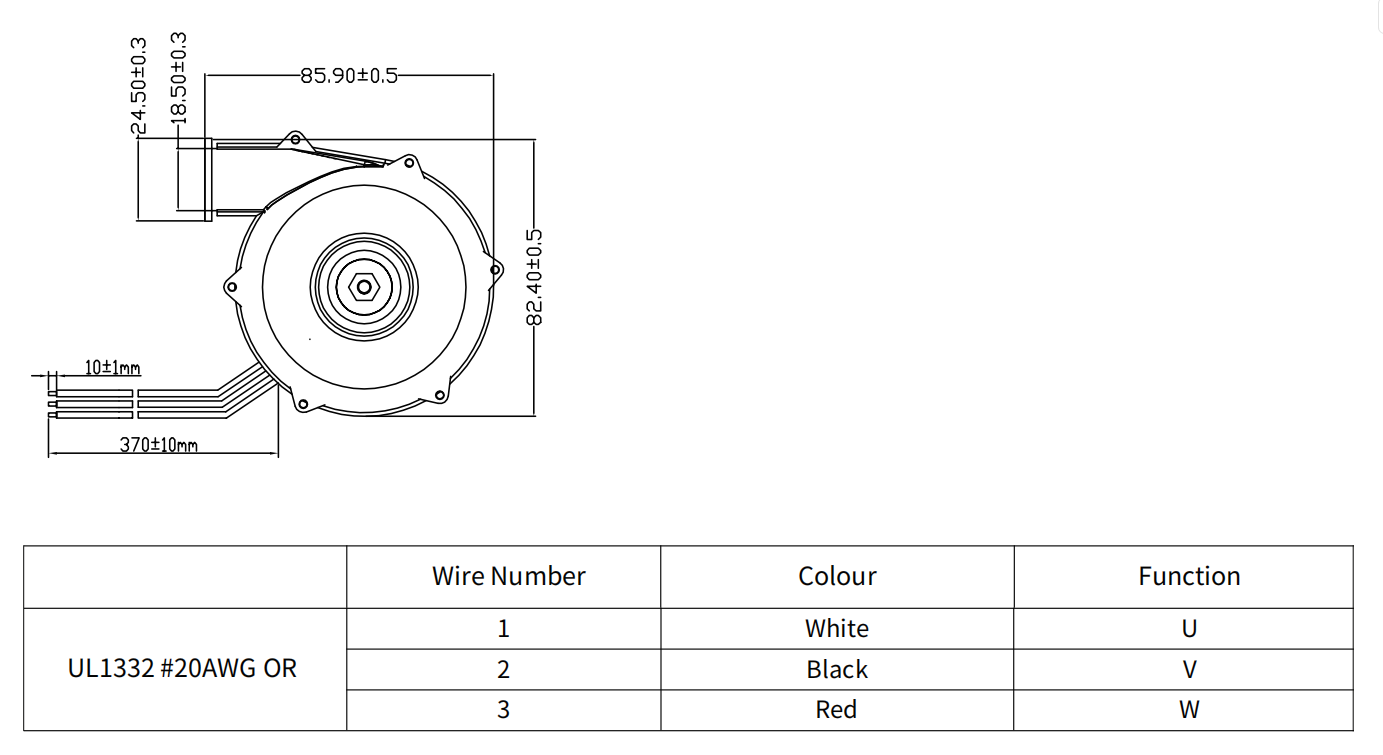

24V Air Blower BA8060H24B-E-Unintegrated Electrical Connection Diagram
The electrical connection diagram for the unintegrated BA8060H24B-E model outlines clear terminal definitions, wiring guidelines, and interface standards required for seamless power distribution and external controller integration.
Designed to support robust DC power inputs and advanced PWM speed control architectures, the built-in protection circuitry guards against voltage surges and reverse polarity, ensuring safe and uninterrupted operation.

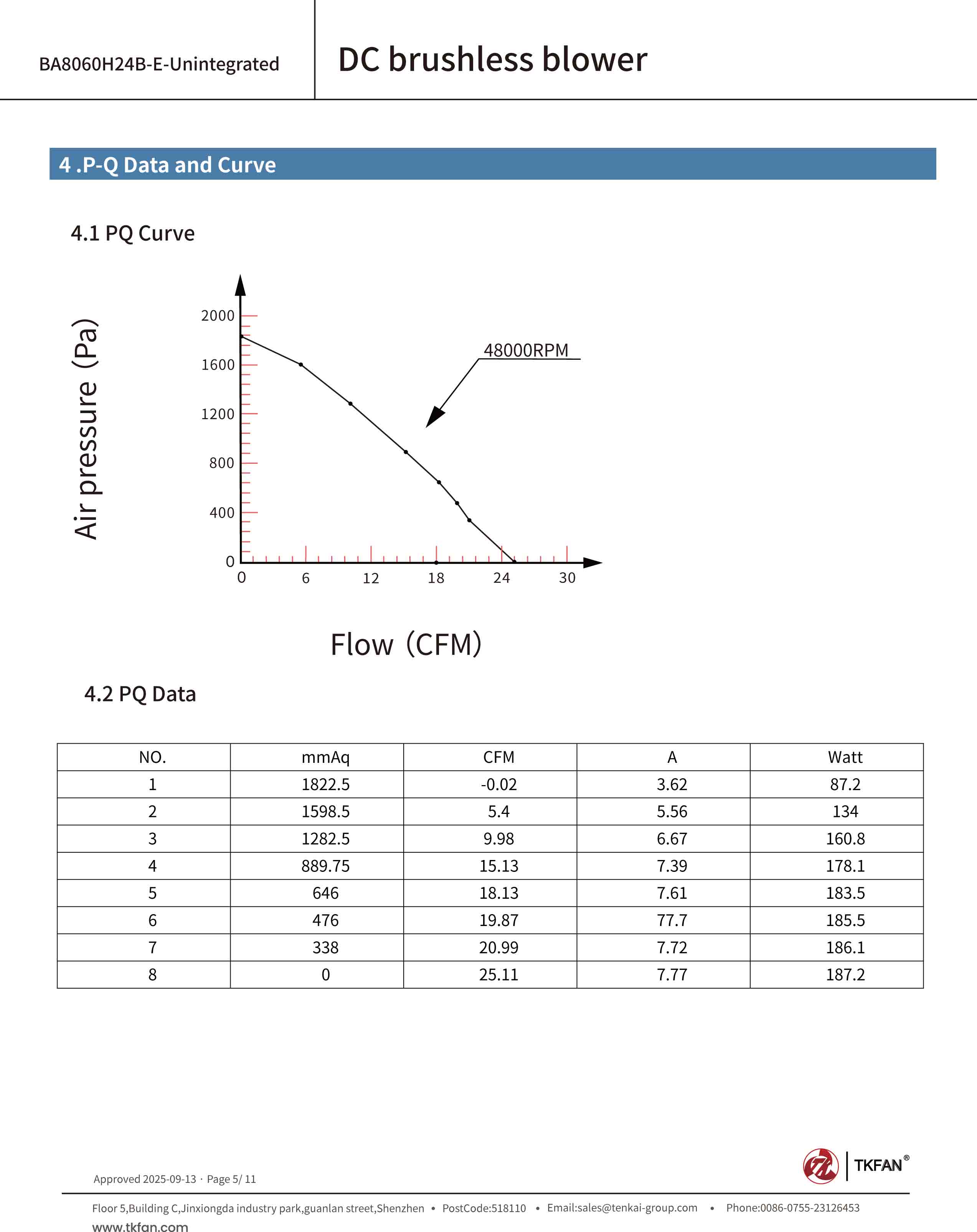

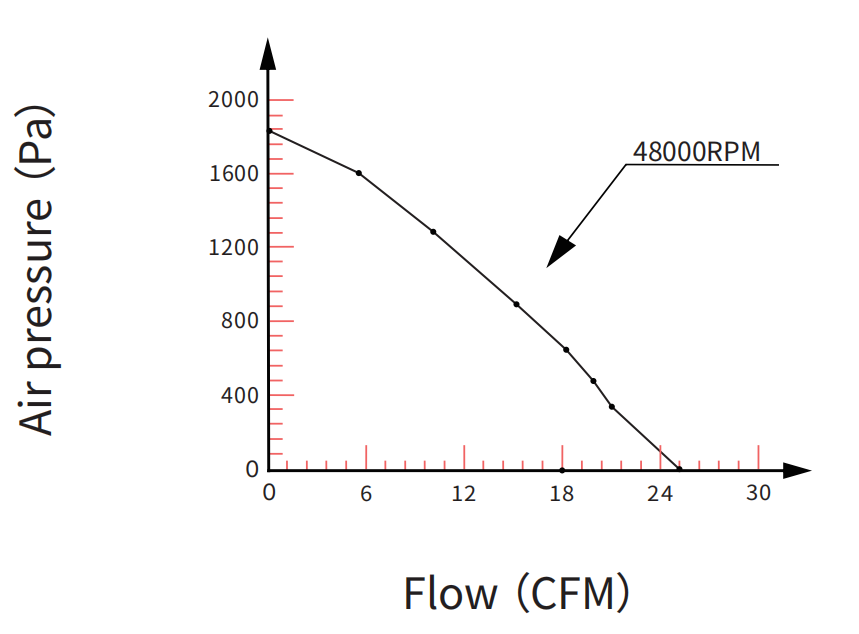

24V Air Blower BA8060H24B-E-Unintegrated P-Q Curve
The Pressure-Flow (P-Q) performance curve showcases the powerful 25kPa high-pressure capabilities of the BA8060H24B-E blower. It highlights the blower's outstanding ability to maintain stable airflow volume against demanding system backpressure and high-resistance pathways.
This comprehensive performance data helps engineers accurately map operating points, ensuring high aerodynamic efficiency, optimized energy utilization, and reliable performance across heavy-duty industrial workloads.
Note: This video demonstrates the operation and performance of the BA8060H24B-E high-pressure blower.
Looking for different sizes or specifications?
Explore our full range of 24V Blower, or choose from similar models below.
24V Blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
