Brushless Motor Driver BA7050-B
Supports 0–5V voltage-based speed control,
PWM speed control,
Selectable 12V/24V voltage.
Request a Sample
Brushless Motor Driver BA7050-B
Brushless Motor Driver BA7050-B
Supports 0–5V voltage-based speed control, PWM speed control, and selectable 12V/24V voltage. (Click image to zoom)
Side View
Driver Board Layout
Backside View

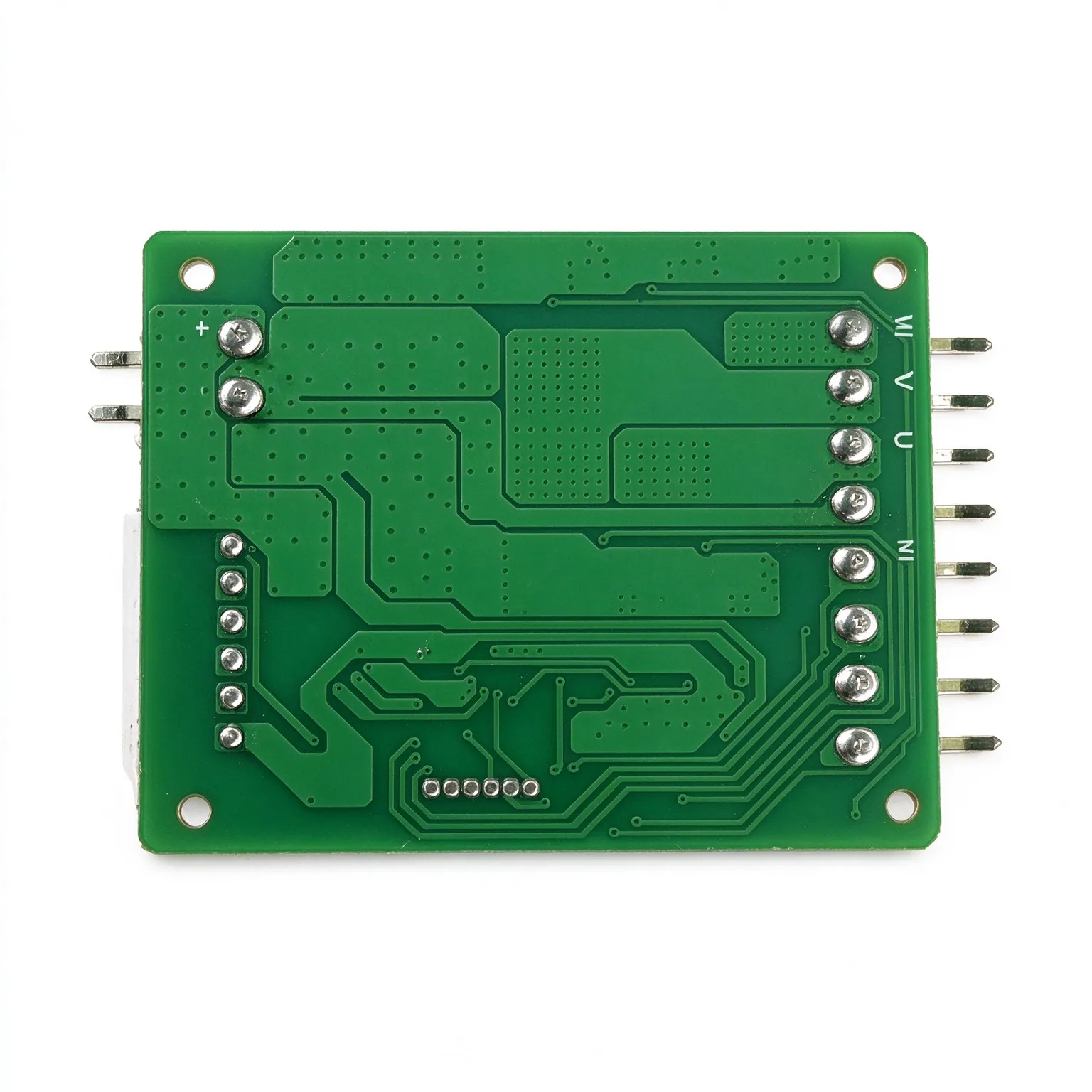

Clean PCB Routing

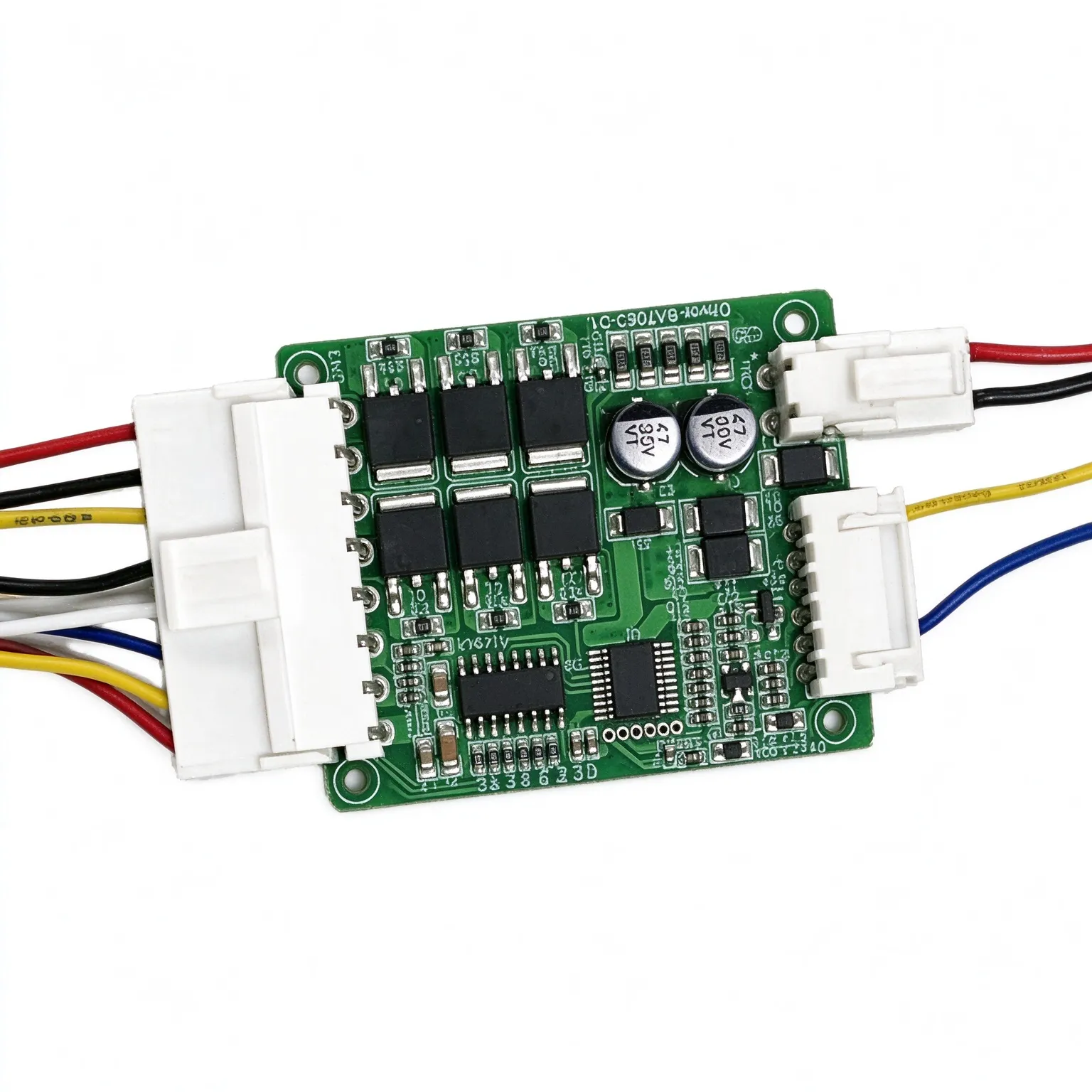

With Wiring Harness
Standard Wire Connection
Detailed View

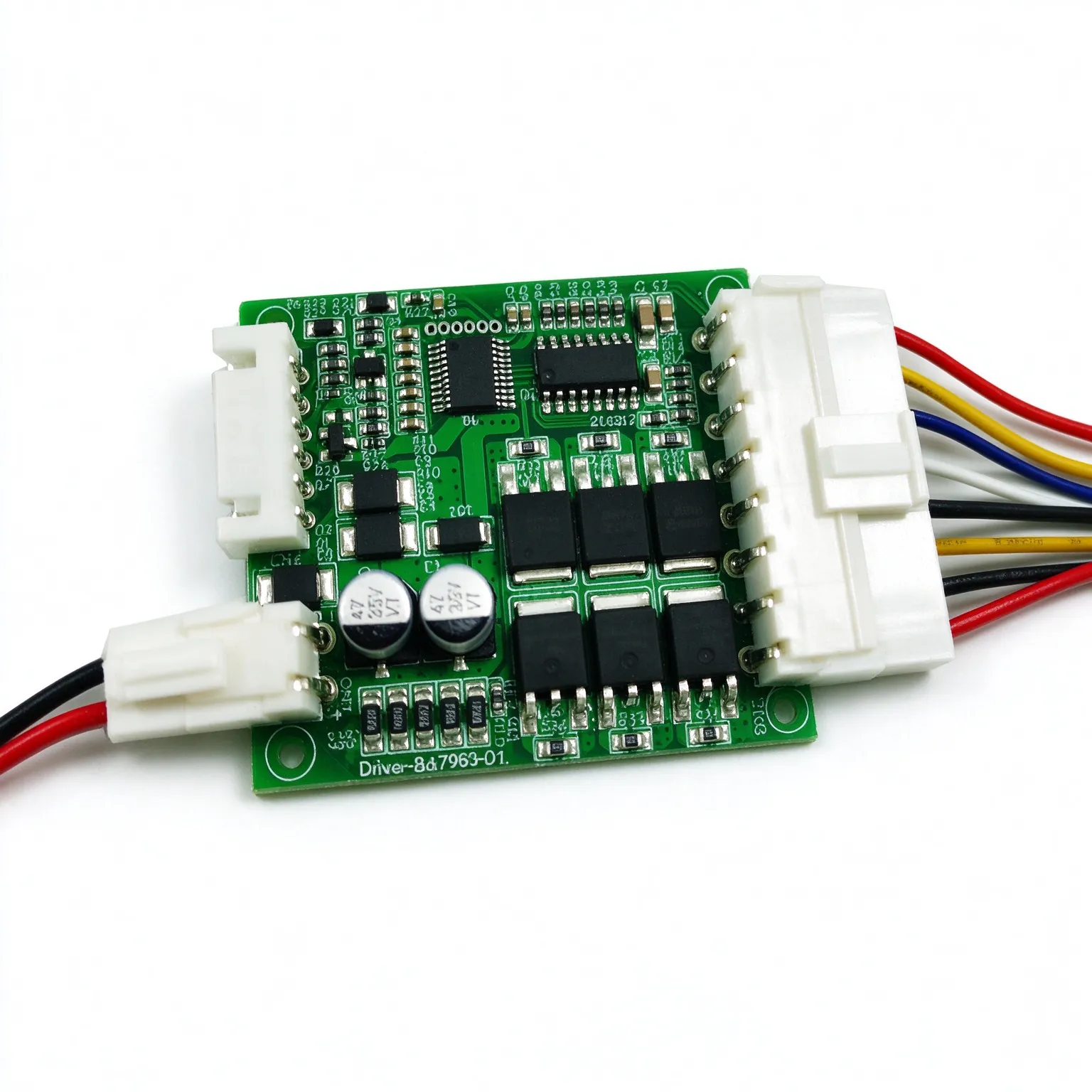

Terminal & Power Setup
In modern electronic engineering, industrial automation, and precision thermal management, the Brushless Motor Driver BA7050-B stands out as a high-performance control solution. Engineered with advanced flexibility, this driver supports 0–5V voltage-based speed control, PWM speed control, and a selectable 12V/24V voltage input range. It delivers smooth, reliable, and energy-efficient motor regulation across demanding applications without requiring complex peripheral circuitry.
Key Application Fields of Brushless Motor Driver BA7050-B
The BA7050-B brushless motor driver is widely integrated across diverse industrial, medical, and commercial systems requiring precise velocity regulation:
- Industrial Cooling & Ventilation Systems: Utilized in high-output blowers, server rack cooling arrays, and HVAC ventilation fans where stable airflow and variable speed control are mandatory.
- Medical Equipment & Respiratory Blowers: Provides whisper-quiet, ultra-reliable motor driving for portable medical devices, oxygen concentrators, and diagnostic air pumps.
- Automated Pumps & Fluid Management: Drives brushless DC pumps in water circulation loops, chemical dosing systems, and automated liquid dispensing units with high precision.
- Robotics & Mechatronic Actuators: Powers compact robotic joints, automated guided vehicle (AGV) cooling modules, and mechanical sub-assemblies requiring responsive speed scaling.
- Laboratory & Test Bench Equipment: Serves as a versatile driver for custom mechanical jigs, centrifugal spinners, and experimental airflow or fluid dynamic test setups.
Customer Pain Points & How BA7050-B Solves Them
1. Voltage Incompatibility Across Systems
Pain Point: Engineers often struggle to find drivers that can easily adapt to changing power infrastructure (such as moving between 12V and 24V environments).
Solution: The BA7050-B features a selectable 12V/24V voltage architecture, allowing seamless integration into diverse power rails without changing driver hardware.
2. Inflexible Speed Control Interfaces
Pain Point: Many standard drivers lock users into a single control method, limiting flexibility when connecting to different controllers or PLCs.
Solution: The driver natively supports both 0–5V voltage-based speed control and digital PWM speed control, giving developers multiple flexible ways to scale motor RPM.
3. Motor Cogging and Unstable Low-Speed Rotation
Pain Point: Poor commutation logic at low speeds causes motor judder, vibration, and acoustic noise.
Solution: Advanced commutation filtering and responsive analog/PWM signal processing ensure linear, smooth, and vibration-free rotation even at low RPM thresholds.
4. Complex Wiring and Difficult Setup
Pain Point: Complicated configuration procedures and cumbersome programming extend prototype development and testing cycles.
Solution: The plug-and-play design of the BA7050-B allows instant configuration via standard analog inputs or PWM signals, drastically reducing installation time and engineering overhead.
Brushless Motor Driver BA7050-B - Frequently Asked Questions (FAQ)
Find professional technical answers regarding operating specifications, speed regulation methods, wiring guidelines, and application tips for the BA7050-B.
Q1: What is the primary function of the Brushless Motor Driver BA7050-B?
The BA7050-B is designed to precisely drive and control brushless DC (BLDC) motors, providing smooth commutation, high energy efficiency, and flexible speed regulation via external analog or digital signals.
Q2: What speed control methods does the BA7050-B support?
It supports two primary speed regulation methods: 0–5V voltage-based speed control (using an analog DC voltage or potentiometer) and digital PWM speed control (using pulse-width modulation square-wave signals).
Q3: How does the selectable 12V/24V voltage feature work?
The driver accommodates flexible power rails, allowing you to operate safely and efficiently within either a 12V DC or 24V DC power environment depending on your system requirements.
Q4: Can I use a standard potentiometer for the 0–5V speed control?
Yes. You can easily connect an external potentiometer to the 0–5V control pin alongside a reference power source to manually adjust the motor speed smoothly from minimum to maximum RPM.
Q5: What is the recommended PWM frequency when using PWM speed control?
For optimal performance and to minimize acoustic motor whine, a PWM frequency range between 1 kHz and 25 kHz is typically recommended, matching standard microcontrollers or signal generators.
Q6: Is the BA7050-B suitable for continuous duty industrial applications?
Yes. Built with high-grade industrial components and robust thermal management characteristics, the BA7050-B is engineered for reliable 24/7 continuous operation in professional environments.
Q7: What safety protections are built into the BA7050-B driver?
The driver incorporates essential protective features including over-current protection, thermal shutdown safeguards, and reverse-voltage filtering to protect both the motor and the power supply.
Q8: How do I wire the control signals alongside the power supply?
Connect your main power rail (12V or 24V) to the VCC and GND terminals. Connect your control source (either a 0–5V analog signal or PWM line) to the designated speed input terminal, ensuring a shared common ground (GND) across all devices.
Q9: Can the BA7050-B drive any standard 3-phase brushless DC motor?
It is compatible with most standard 3-phase sensorless BLDC motors operating within its specified voltage and current handling limits. Always verify your motor's peak current rating against the driver specifications.
Q10: How can I request bulk purchasing or custom engineering modifications for the BA7050-B?
You can click the "GET A QUOTE" button below or reach out directly to our engineering sales team to discuss volume pricing, custom wire harnesses, or specific OEM integration requirements.
GET A QUOTE
Looking for different sizes or specifications?
Explore our full range of Motor driver, or choose from similar models below.
Motor driver
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
