Reversible dc fan DA9238H12B

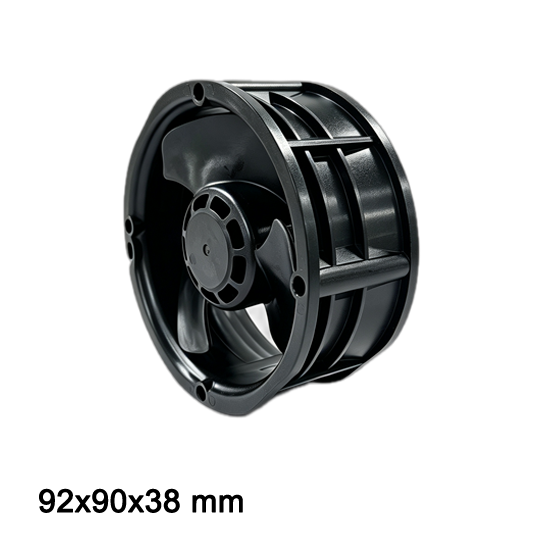

TKFAN DA9238H12B 92mm high performance reversible DC ducted axial fan perspective view

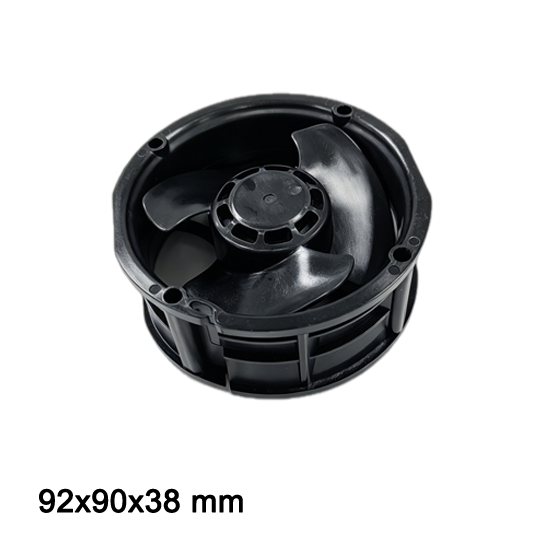

TKFAN DA9238H12B 12V DC cooling duct fan front view showing impeller and blades design

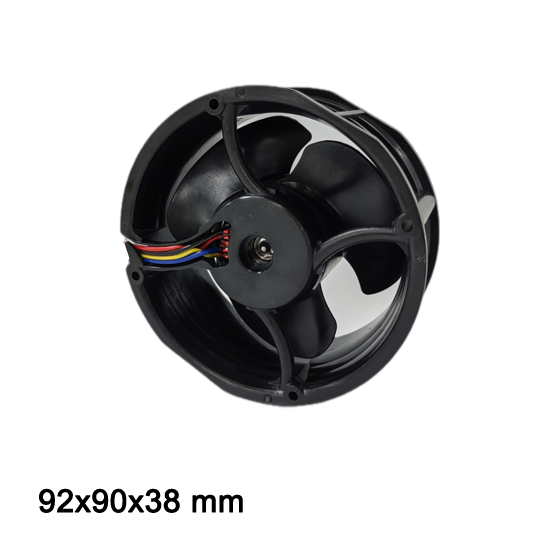

TKFAN DA9238H12B industrial DC duct fan close-up view of lead wire connector and housing frame
Reversible dc fan DA9238H12B
TKFAN DA9238H12B 92mm high performance reversible DC ducted axial fan perspective view
TKFAN DA9238H12B 12V DC cooling duct fan front view showing impeller and blades design
TKFAN DA9238H12B industrial DC duct fan close-up view of lead wire connector and housing frame

Reversible dc fan DA9238H12B

Voltage 12V
5500rpm/min
Max 42.4 cfm,0.15 kpa

Request a Sample

Bi-Directional Reversible Function

Forward cooling + reverse exhaust/defrost/dust cleaning; dual-use in one fan.

High Efficiency BLDC Motor

Energy-saving (70% more efficient than AC), low power consumption, long lifespan.

High Airflow & Low Noise

80–120 CFM, 120–250 Pa static pressure, 42–52 dB(A).

Safety & Reliability

24V SELV, reverse polarity protection, over-current protection.

Technical Specifications

ModelDA9238H12B
Size92*90*38mm
Operating Voltage12 VDC
Rated Current0.2 Amp
Rated Speed5500 RPM
Maximum Flow Rate42.4 CFM
Maximum Static Pressure0.15 kPa

Reversiable dc fan DA9238H12B Dimensions

structure drawing of Reversiable dc fan DA9238H12B

PQ curve for Reversiable dc fan DA9238H12B
