Micro fan DA3010VH05X

Voltage 5V 30*30*10mm
13000rpm/min
Max 4.25 cfm,81pa

Request a Sample

Standard Compact Size

Adopts classic 30×30×10mm standard specification for easy installation. It matches most electronic equipment mounting positions perfectly.

5V Universal Low Voltage Design

Stable 5V DC working voltage ensures safe operation with low power draw. It is highly compatible with various mainstream power supply systems.

Strong Airflow Efficient Heat Dissipation

Optimized fan blade structure provides steady and powerful airflow. It quickly removes excess heat to prevent device overheating effectively.

Low Noise Smooth Running

High-precision assembly minimizes friction and vibration noise. It operates quietly without causing any sound disturbance.

Technical Specifications

ModelDA3010VH05X
Size30*30*10mm
Operating Voltage5 VDC
Rated Current0.24 Amp
Rated Speed13000 RPM
Maximum Flow Rate4.25 CFM
Maximum Static Pressure81 Pa

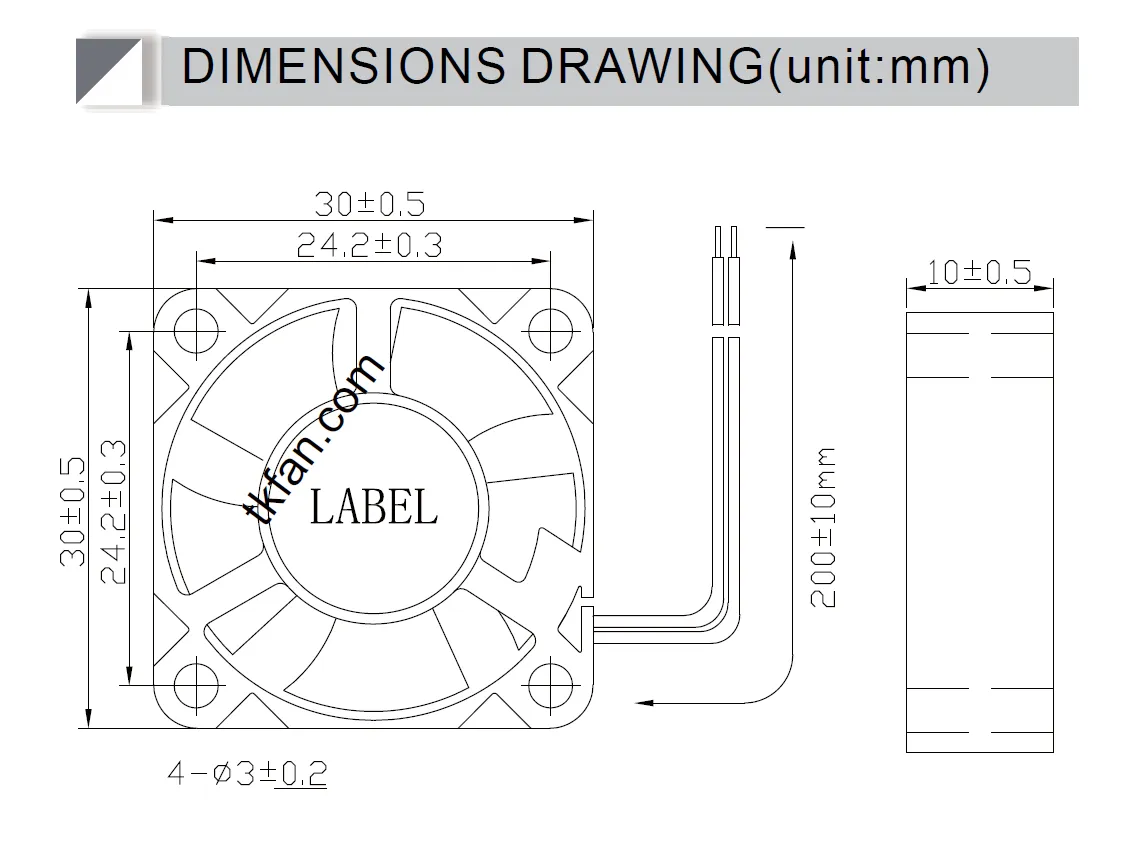

structure drawing of Micro fan DA3010VH05X

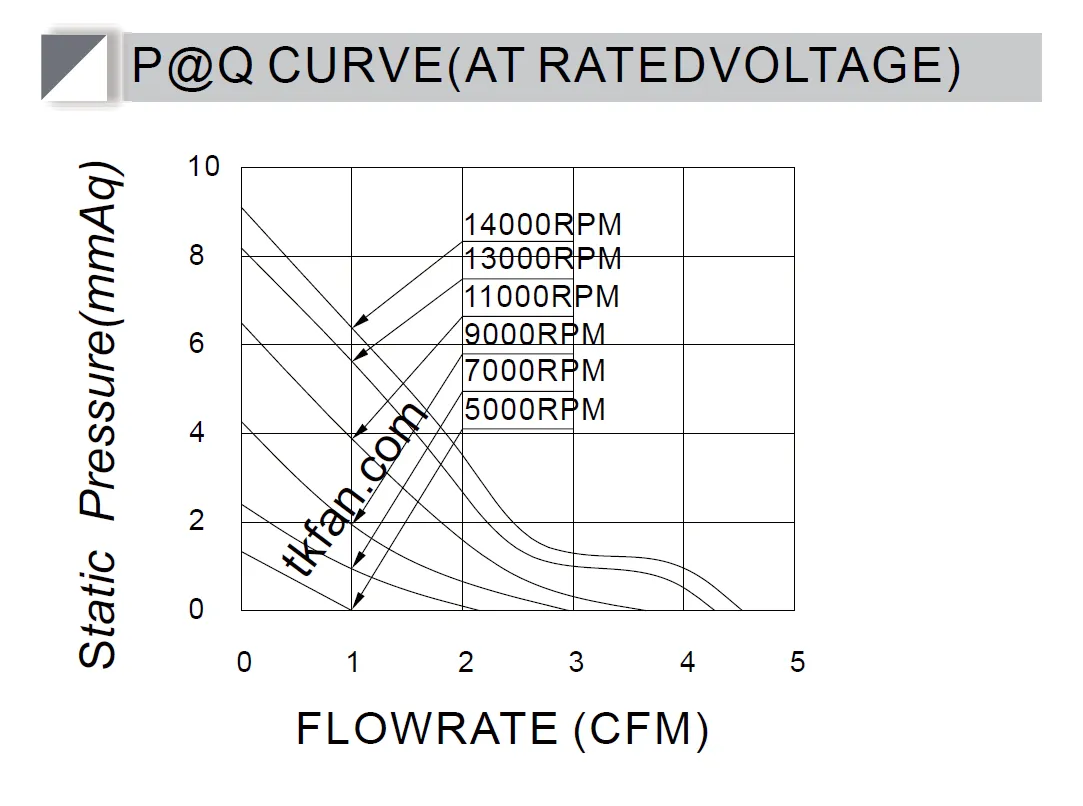

PQ curve for Micro fan DA3010VH05X

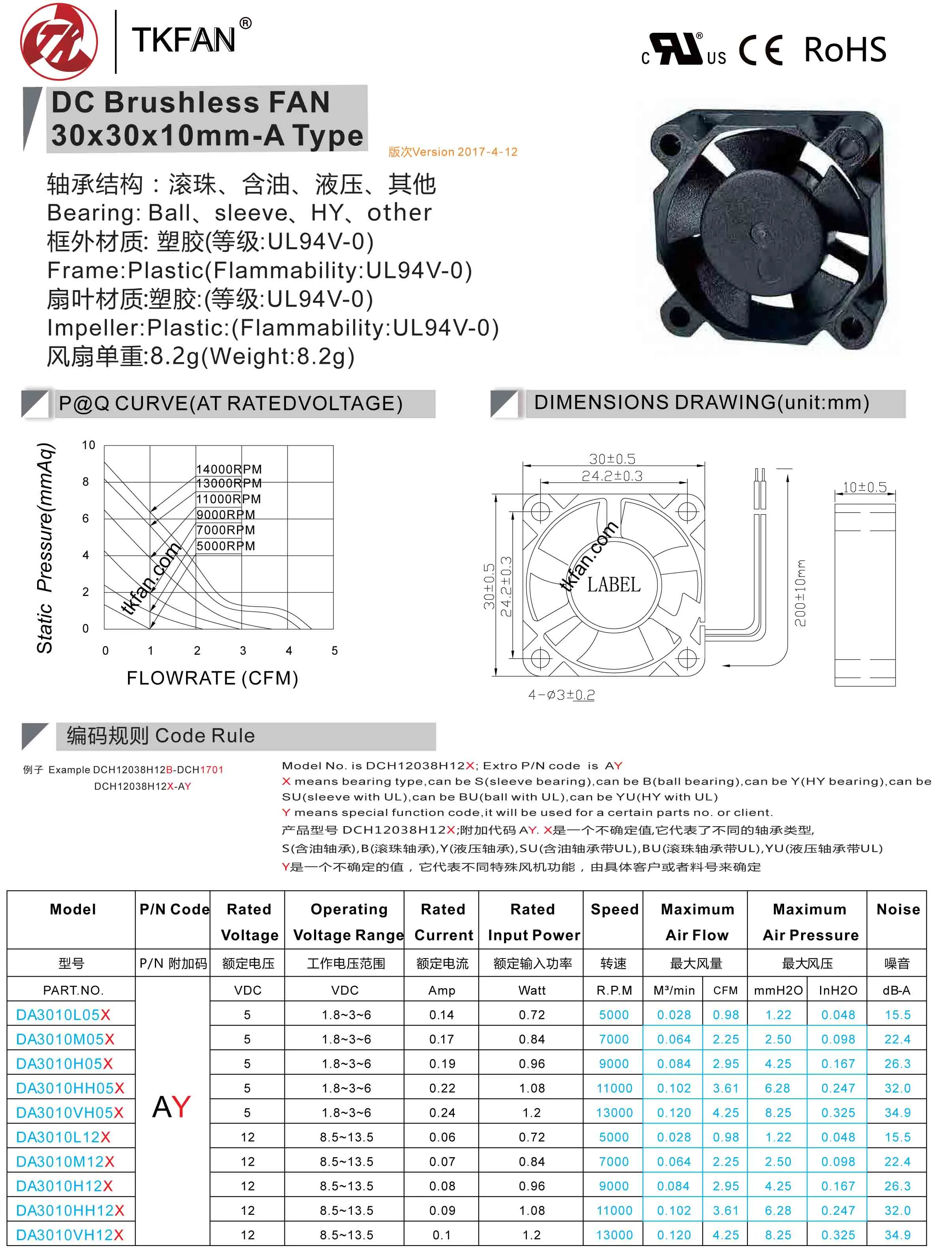

 Micro fan DA3010VH05X Datasheet



Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
