Micro fan DA3007VH05X

Voltage 5V 30*30*7mm
13000rpm/min
Max 4.25 cfm,81pa

Request a Sample

Ultra Thin Slim Design

30×30×7mm ultra-thin size saves installation space greatly. It is easy to install inside slim and compact electronic devices.

5V DC Low Voltage Safety

Adopts universal 5V working voltage with low power consumption. It matches most portable devices and circuit power supply perfectly.

High Wind Pressure Fast Cooling

Optimized fan blade brings sufficient airflow and strong wind pressure. It can quickly exhaust internal heat to prevent equipment overheating.

Low Noise Quiet Operation

High-precision internal structure effectively reduces running noise. It keeps quiet operation without affecting using experience.

Technical Specifications

ModelDA3007VH05X
Size30*30*7mm
Operating Voltage5 VDC
Rated Current0.24 Amp
Rated Speed13000 RPM
Maximum Flow Rate4.25 CFM
Maximum Static Pressure81 Pa

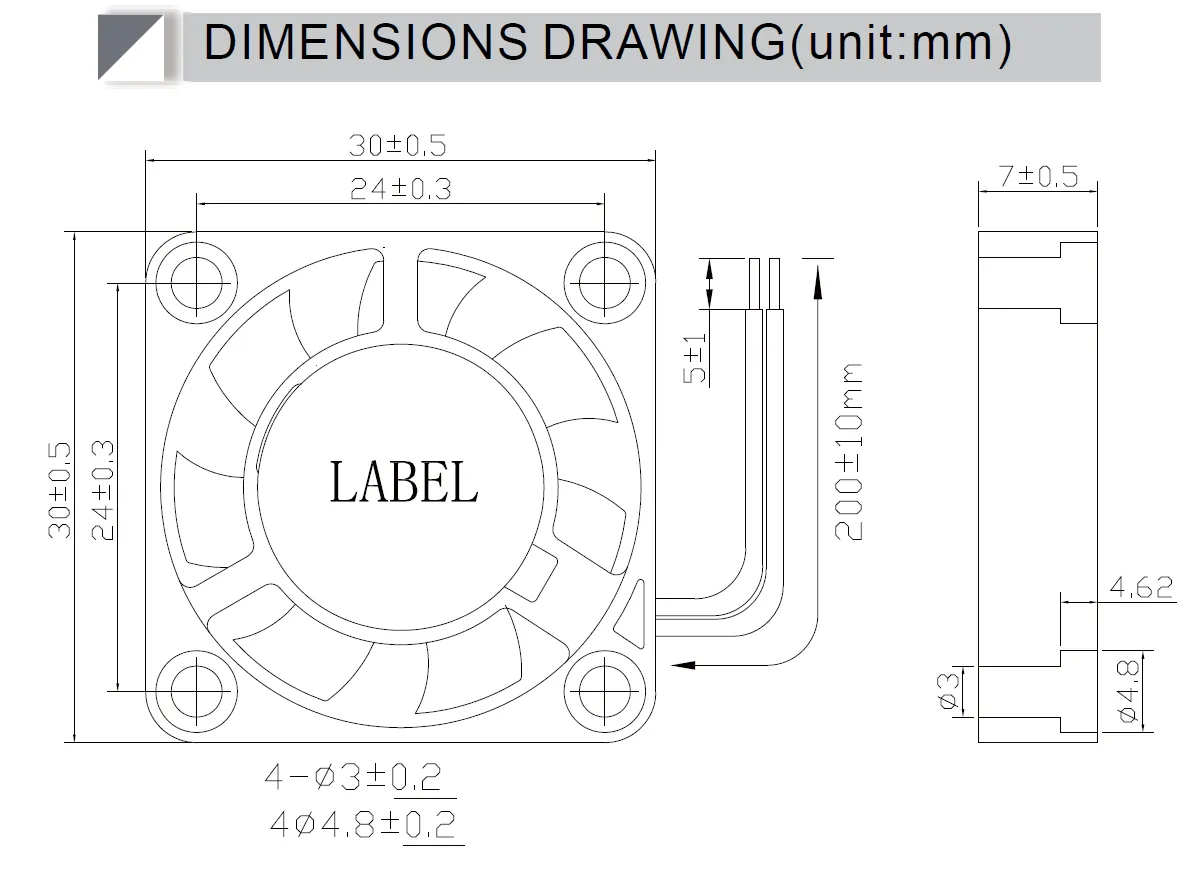

structure drawing of Micro fan DA3007VH05X

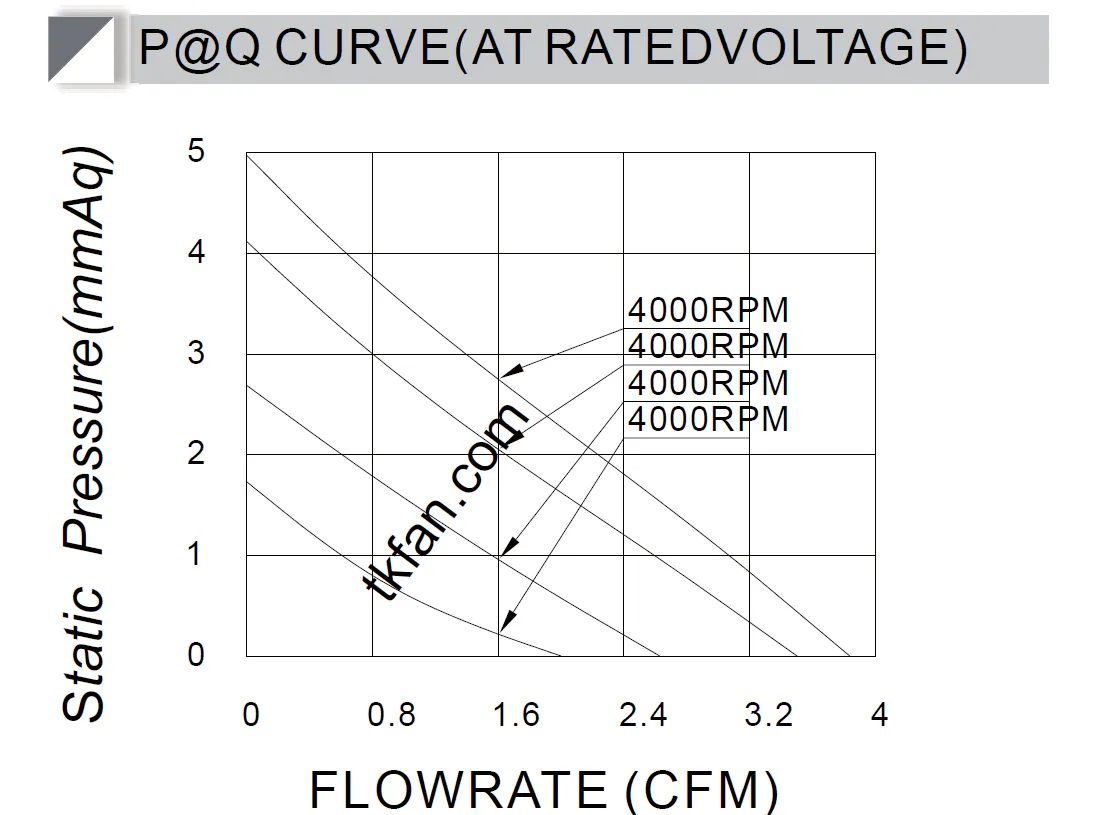

PQ curve for Micro fan DA3007VH05X

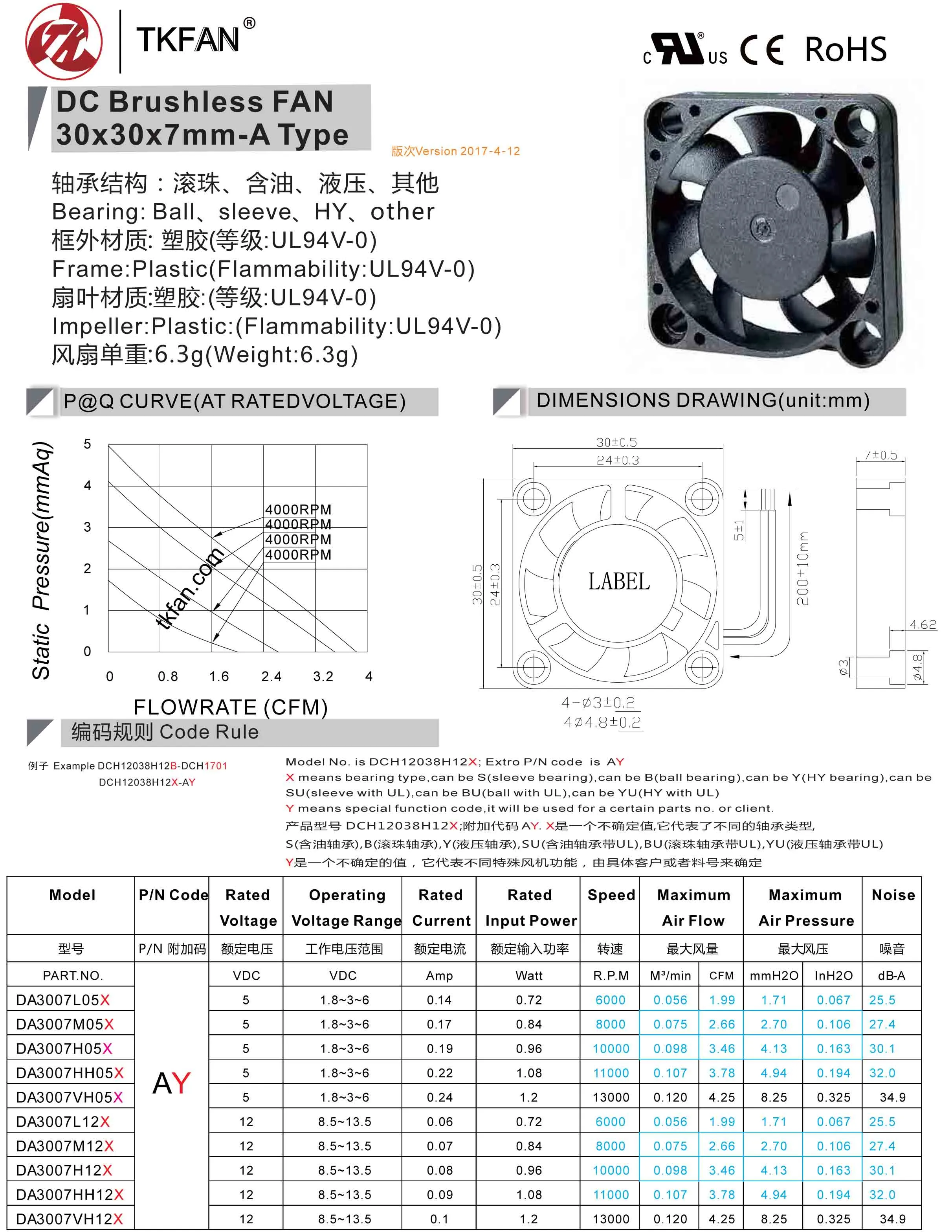

 Micro fan DA3007VH05X Datasheet



Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
