Micro fan DA2507HH05X

Voltage 5V 25*25*7mm
17000rpm/min
Max 2.81 cfm,44pa

Request a Sample

Ultra Thin Compact Structure

Featured with 25x25x7mm ultra slim size, it takes up little installation space. Perfectly fit ultra-thin portable and mini electronic devices.

5V Low Voltage Safe Operation

Adopts standard 5V DC working voltage with low power loss. Compatible with most portable power sources and circuit designs.

Low Noise Smooth Running

Fine internal assembly greatly cuts down operating friction noise. Ensures quiet working experience without noise disturbance.

High Stability Long Lifespan

Built-in high-performance brushless motor with low wear. Supports long-time continuous operation with stable working performance.

Technical Specifications

ModelDA2507HH05X
Size25*25*7mm
Operating Voltage5 VDC
Rated Current0.22 Amp
Rated Speed17000 RPM
Maximum Flow Rate2.81 CFM
Maximum Static Pressure44 Pa

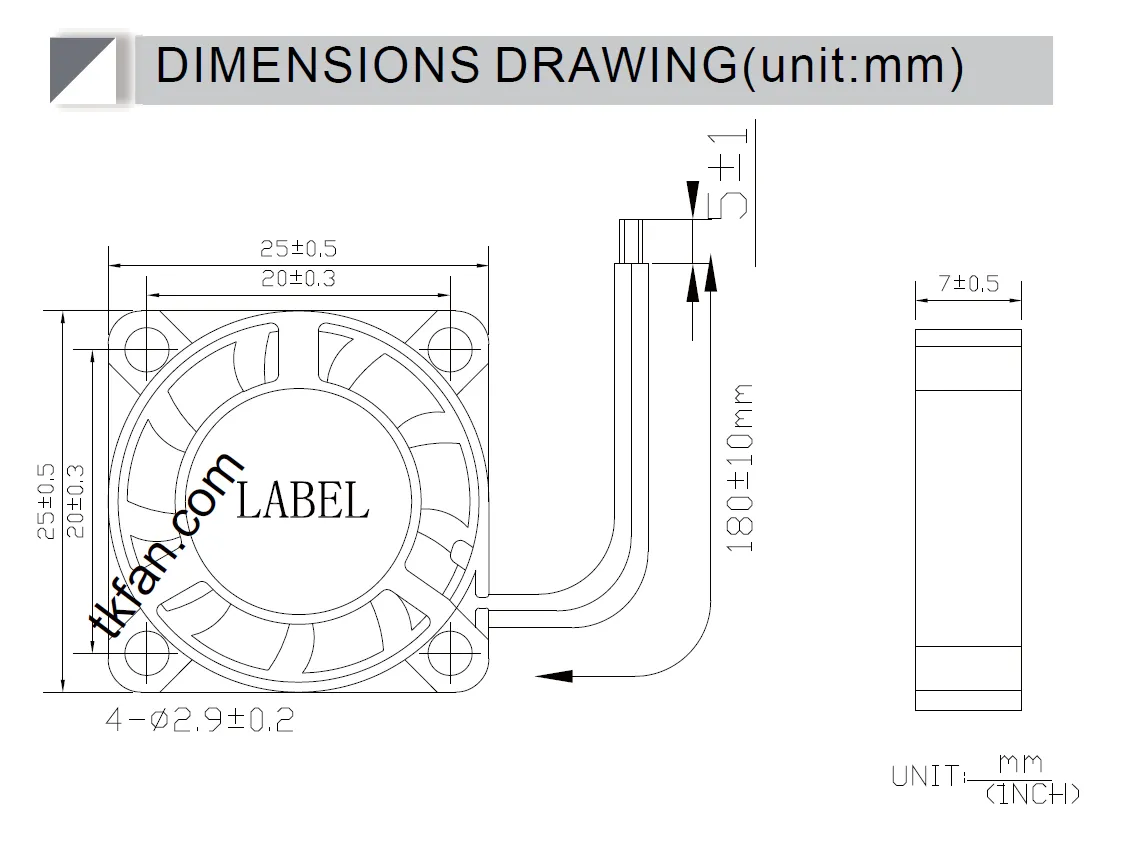

structure drawing of Micro fan DA2507HH05X

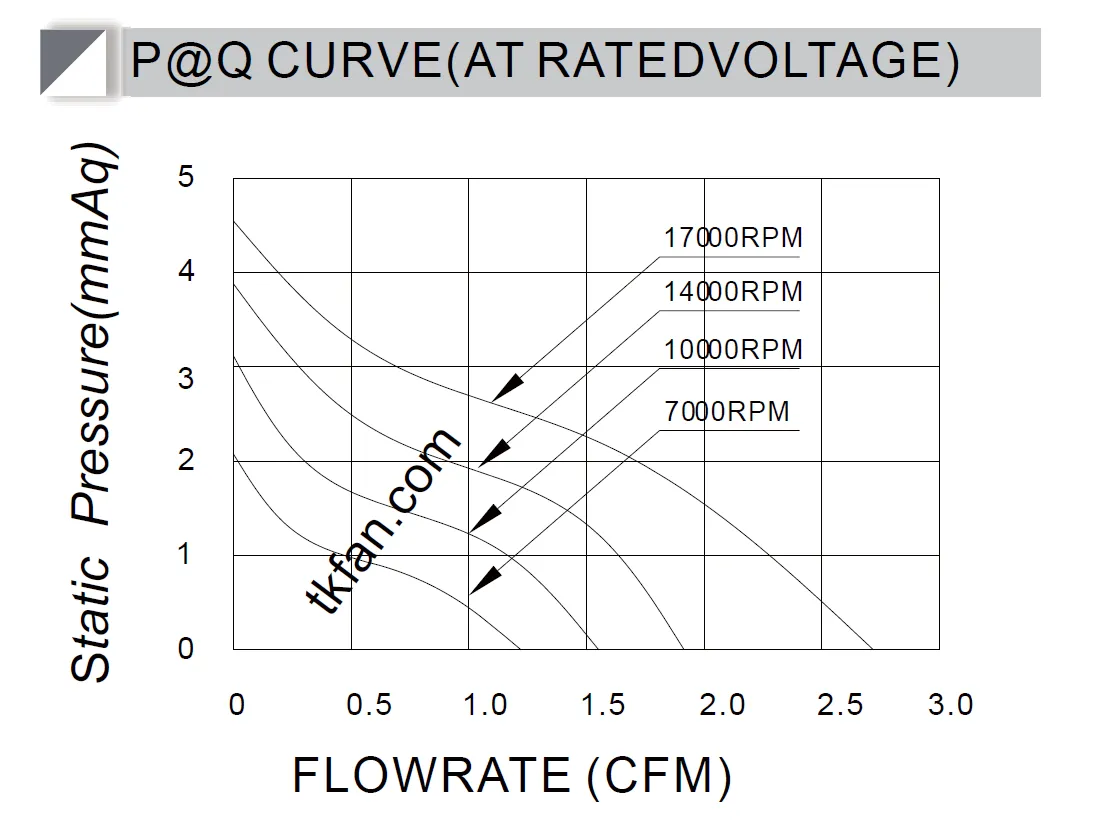

PQ curve for Micro fan DA2507HH05X

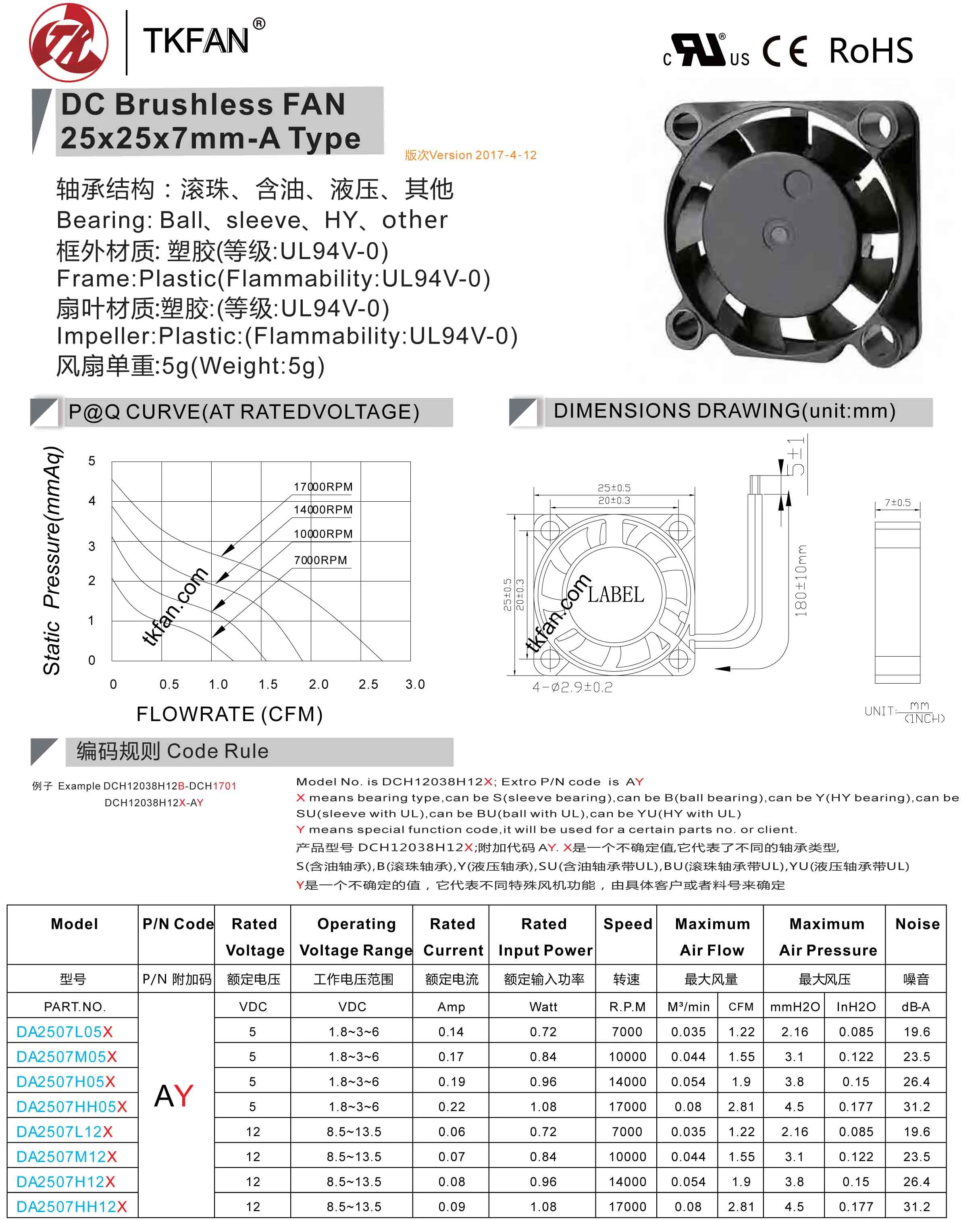

Micro fan DA2507HH05X Datasheet



Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
