3.3V Low Voltage Micro Fan DA1504L33Y-A261008
Voltage 3.3V 15*15*4mm
8000rpm/min
Max 0.0124 cfm
Request a Sample
Download Datasheet
Technical Specifications
3.3V Low Voltage Micro Fan DA1504L33Y-A261008
高性能3.3V超低压微型散热风扇，专为精密便携设备、微型医疗及电子仪器设计。 （点击图片放大）

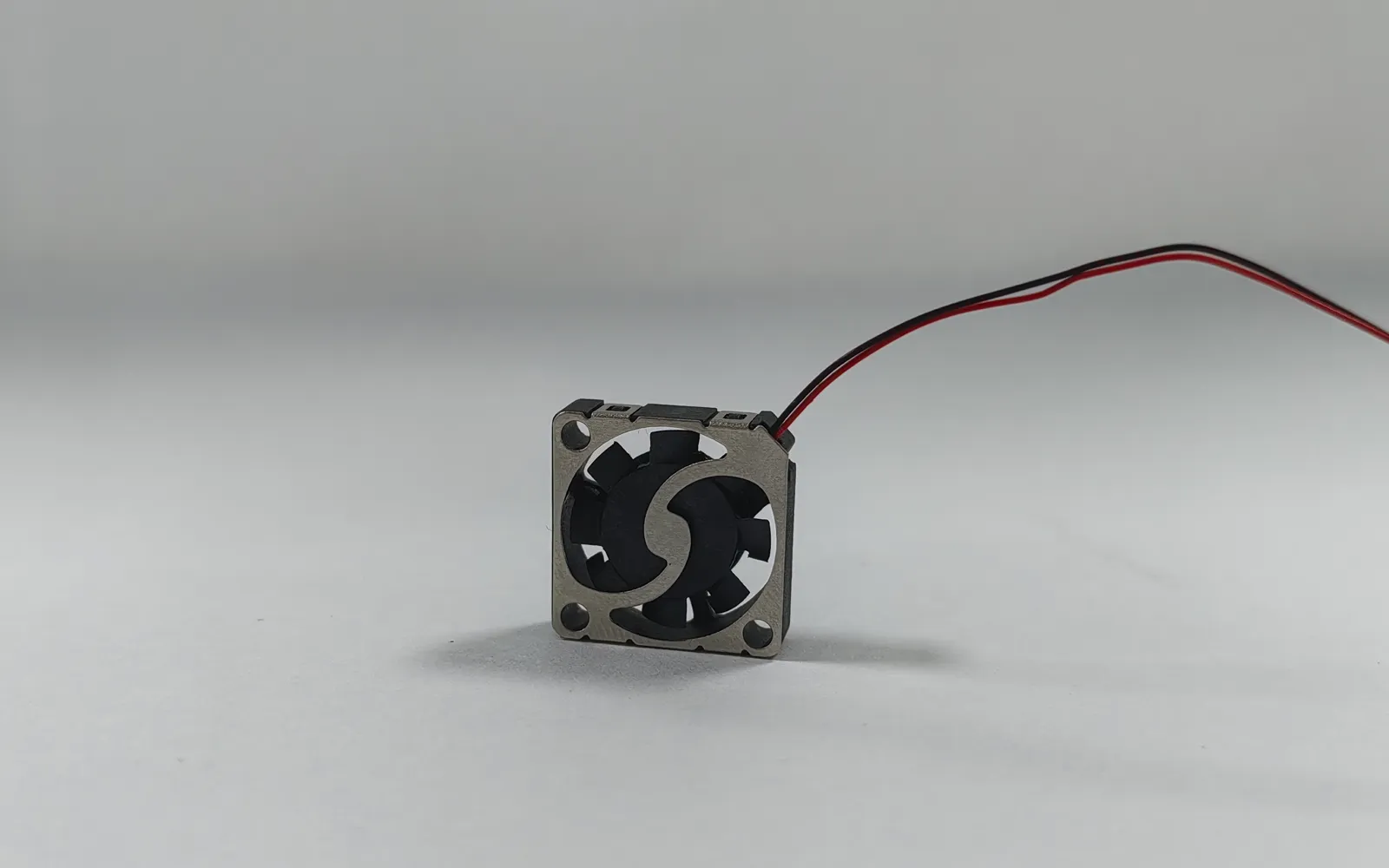

.webp "3.3V Low Voltage Micro Fan DA1504L33Y-A261008 Angle View")

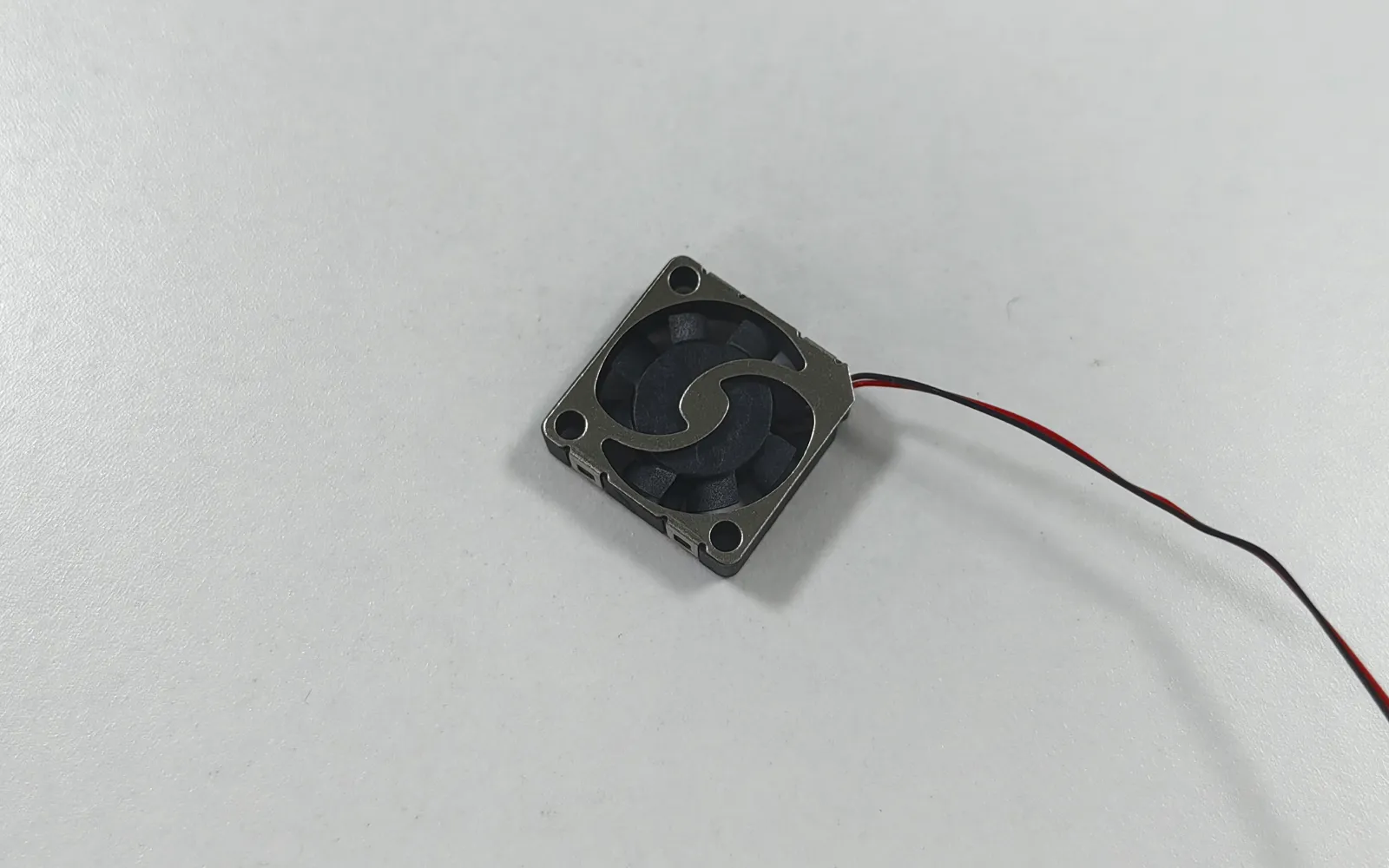

.webp "3.3V Low Voltage Micro Fan DA1504L33Y-A261008 Front View")

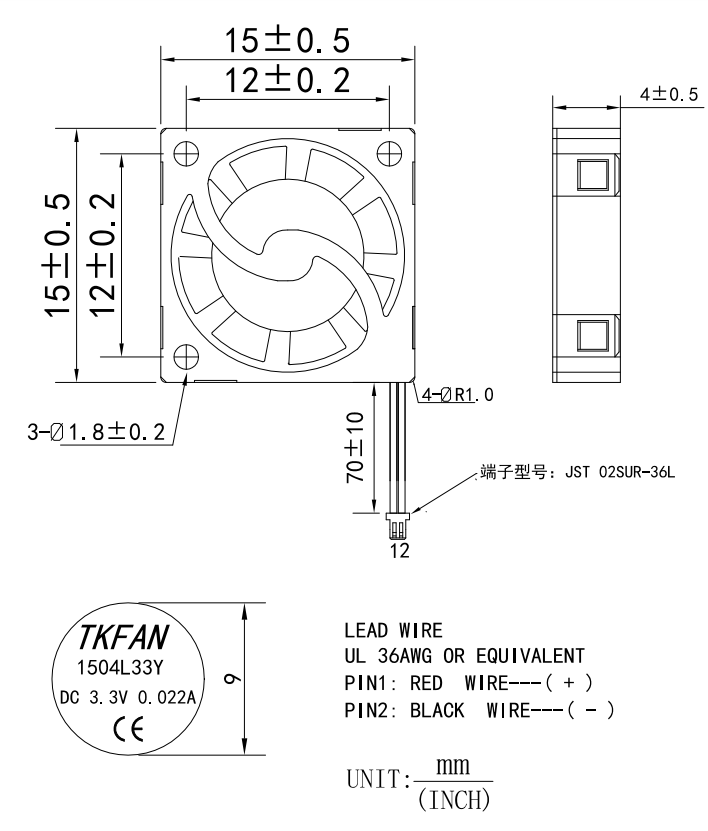

3.3V Low Voltage Micro Fan DA1504L33Y-A261008 dimensions drawing
The precise mechanical layout and dimensions drawing illustrate the exact physical configuration, mounting holes, and outer envelope of the DA1504L33Y-A261008 low voltage micro fan.
- Ultra-Compact Form Factor: Engineered specifically for space-constrained electronics, portable devices, and miniature thermal management modules.
- Mounting Precision: Features exact hole positioning and slim profile specifications to enable seamless drop-in integration without spatial conflicts.
- Robust Construction: Manufactured with high-precision molding and durable materials to withstand tight-tolerance assembly requirements.
× ![Enlarged View]()
