Micro fan DA1504L05X

Voltage 5V 15*15*4mm
20000rpm/min
Max 0.12 cfm,19.6 kpa

Request a Sample

Slim DA1504L05X Micro Fan

15x15x4mm ultra thin size, perfect for limited space installation.

5V Stable DC Cooling Fan

Standard 5V working voltage, steady speed and safe power supply.

Low Noise Mini Axial Fan

Quiet operation without noise interference for smart devices.

Durable DA1504L05X Micro Fan

Fine craft with long lifespan, widely used in wearable electronics.

Technical Specifications

ModelDA1504L05X
Size15*15*4mm
Operating Voltage5 VDC
Rated Current0.03 Amp
Rated Speed20000 RPM
Maximum Flow Rate0.12 CFM
Maximum Static Pressure19.6 Pa

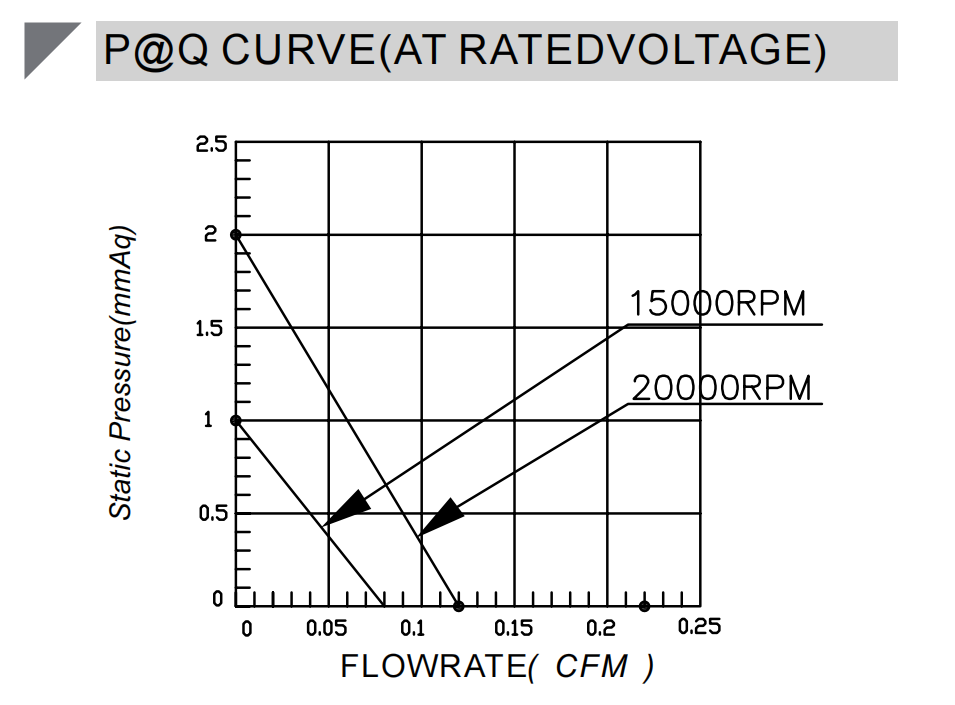

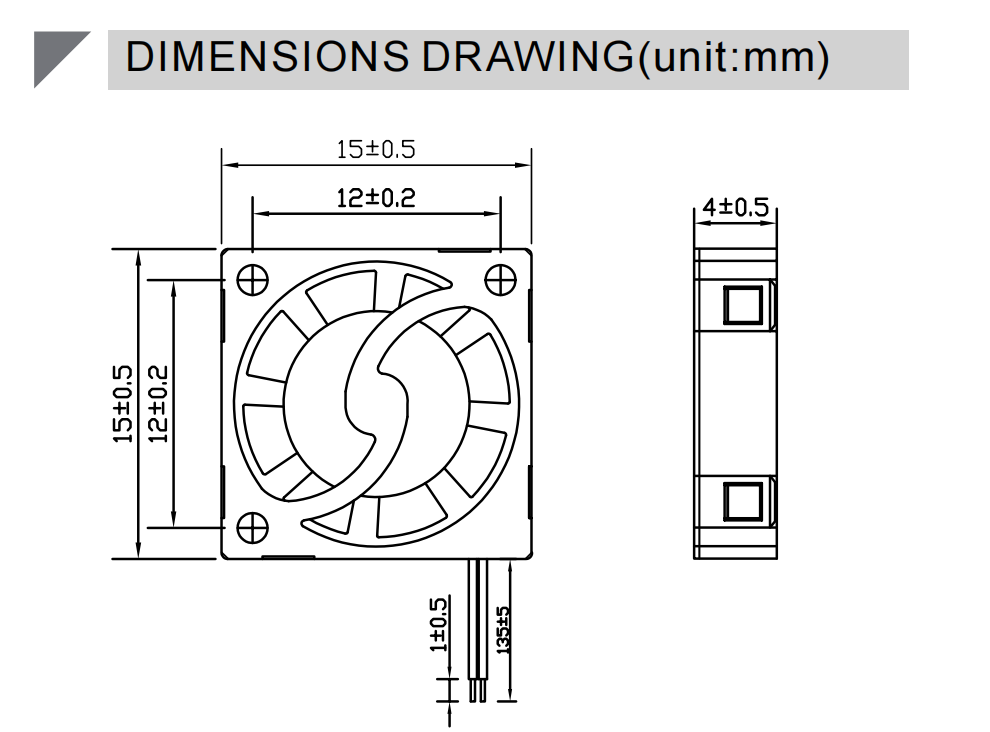

structure drawing of Micro fan DA1504L05XPQ curve for Micro fan DA1504L05X

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
