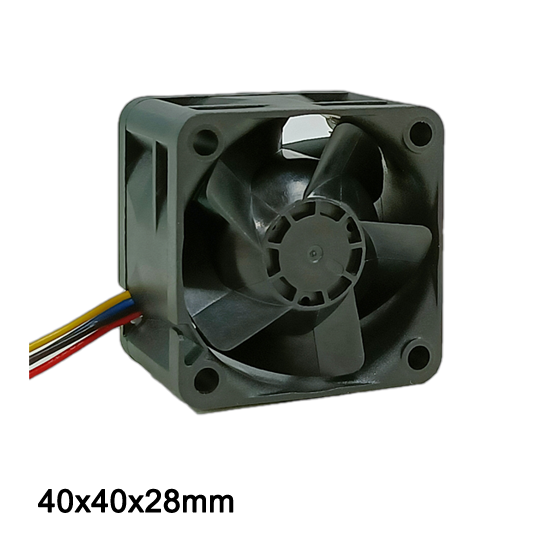

High speed dc fan DA4028VH12X
High speed dc fan DA4028VH12X

High speed dc fan DA4028VH12X

Voltage 12V
32000rpm/min
Max 38.5 cfm,1.6 kpa

Request a Sample

Technical Specifications

ModelDA4028VH12X
Size40*40*28 mm
Operating Voltage12 VDC
Rated Current
2.8 Amp
Rated Speed32000 RPM
Maximum Flow Rate38.5 CFM
Maximum Static Pressure1.6 kpa

structure drawing of High speed dc fan DA4028VH12X

PQ curve for High speed dc fan DA4028VH12X

Video Showcase

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
