DC fan 9HV0612P1J001
Voltage 12V
21700rpm/min
Max 66.4 cfm,1.7 kpa
Request a Sample
Download Datasheet
60x60x38mm 12V Compact Mini DC Fan
Ultra-small lightweight centrifugal blower with steady airflow, perfectly fits narrow installation space of electronic cooling devices.
Low Noise 12V DC dc fan 60x60x38mm
Optimized aerodynamic impeller ensures quiet operation, low vibration and stable wind pressure for continuous equipment cooling.
Long Lifespan Brushless 12V dc fan 60x60x38mm
Adopts high-grade brushless DC motor and durable bearing, supports 24-hour continuous running with low power consumption.
Versatile 12V dc fan 60x60x38mm
Stable 12V DC power supply, easy wiring and simple installation, widely applicable to industrial electronics, medical devices and intelligent equipment.

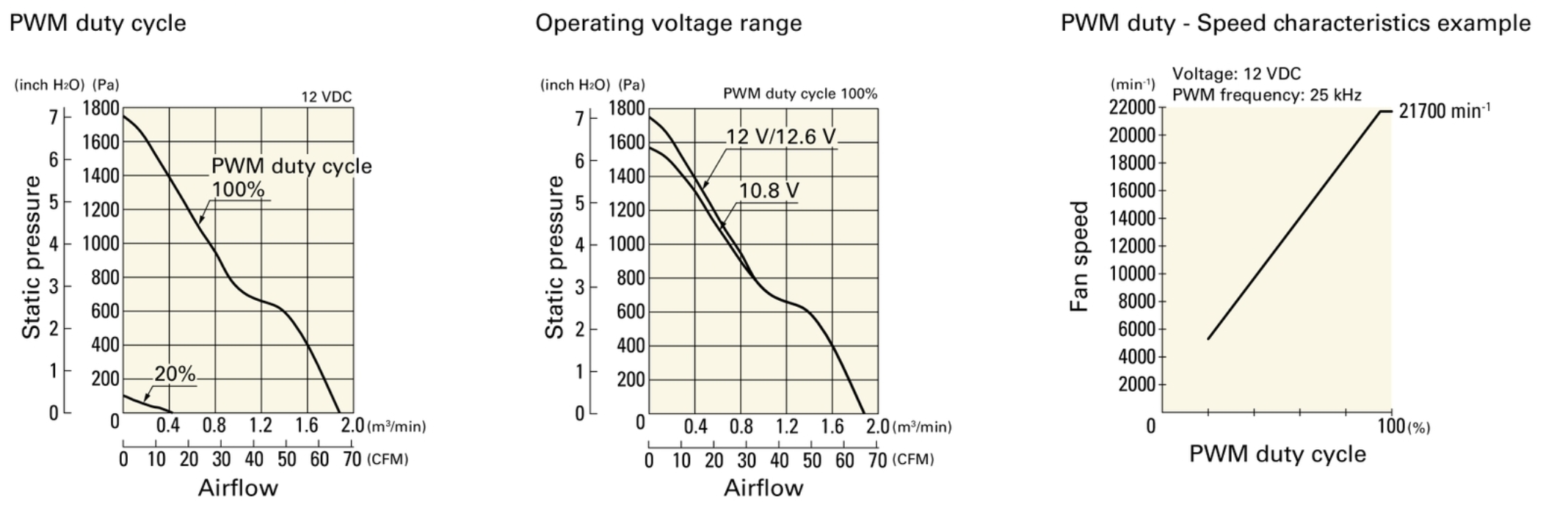

Technical Specifications
Applications for 9HV0612P1J001 High-Pressure Fan
Unmatched Cooling for High-Impedance Systems: The 9HV0612P1J001 is engineered specifically for applications where standard fans struggle to perform. With its massive 1.7 kPa static pressure, this fan is the ideal choice for high-density systems characterized by heavy airflow resistance.
Key Application Scenarios:
- Enterprise Computing & Data Centers: Optimized for 1U/2U servers, network switches, and blade servers where compact space and dense components require forced-air cooling.
- Telecommunications Infrastructure: Reliable thermal management for 5G base stations, outdoor cabinets, and power amplifiers under continuous high-load.
- Industrial Power Equipment: High-efficiency cooling for large-scale inverters, rectifiers, and Uninterruptible Power Supplies (UPS).
- Medical Diagnostic Devices: Integrated cooling for high-power imaging systems (MRI, CT scanners) demanding precise and steady airflow.
- Precision Industrial Automation: Essential for high-speed motor drivers, PLC control cabinets, and industrial laser systems.
Why it fits your application: The combination of 21,700 RPM and a specialized impeller design allows the 9HV0612P1J001 to maintain high flow rates even when faced with dust filters or tightly packed heat sinks. Its PWM speed control ensures cooling intensity is dynamically adjusted to maximize energy efficiency.
Frequently Asked Questions (FAQ) - 9HV0612P1J001
Q1: What are the primary advantages of the 9HV0612P1J001 compared to standard 60mm fans?
A: The 9HV0612P1J001 is a high-static pressure model. Unlike standard fans, it features a specialized motor and blade design that reaches 21,700 RPM, delivering 1.7 kPa of static pressure. This allows it to maintain strong airflow even in extremely dense environments, such as 1U servers or equipment with high-density heat sinks.
Q2: Does this fan support speed control?
A: Yes. This model is equipped with PWM (Pulse Width Modulation) control as standard. This allows the system to dynamically adjust the fan speed based on thermal demand, which helps in reducing overall power consumption and noise levels during low-load periods.
Q3: What type of bearing system does the 9HV0612P1J001 use?
A: It utilizes a high-precision dual ball bearing system. This choice ensures the highest level of reliability and a long service life (typically over 70,000 hours at 40°C), making it suitable for 24/7 continuous industrial operation.
Q4: Can I get this fan with a specific connector or longer lead wire?
A: Absolutely. TKFAN offers full customization for the 9HV0612P1J001. We can customize the lead wire length and install various connectors (such as JST, Molex, or Amphenol) to match your PCB requirements. We can also provide customized signal outputs like FG (Tachometer) or RD (Lock Alarm).
Q5: Is there a water-resistant or dust-proof version available?
A: Yes. We can provide environmental protection upgrades for this model. Depending on your application environment (e.g., outdoor base stations), we can offer IP55 or IP68 rated versions to protect against moisture, salt spray, and dust.
Q6: What is the typical lead time for samples?
A: For standard 9HV0612P1J001 specifications, we can typically provide prototype samples within 48 hours. For customized orders, the lead time may vary depending on the complexity of the modifications.
Video Showcase
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
