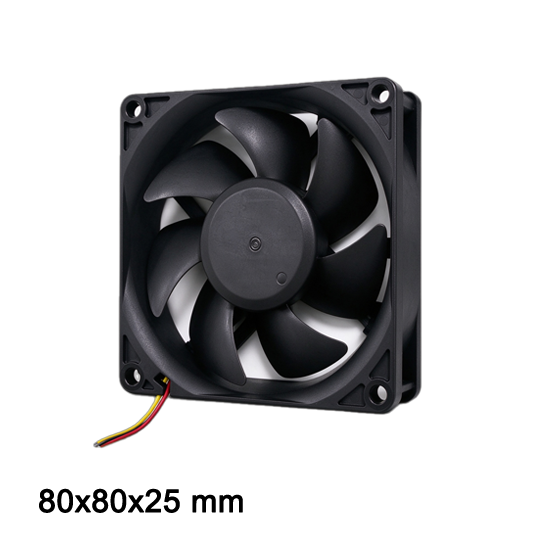

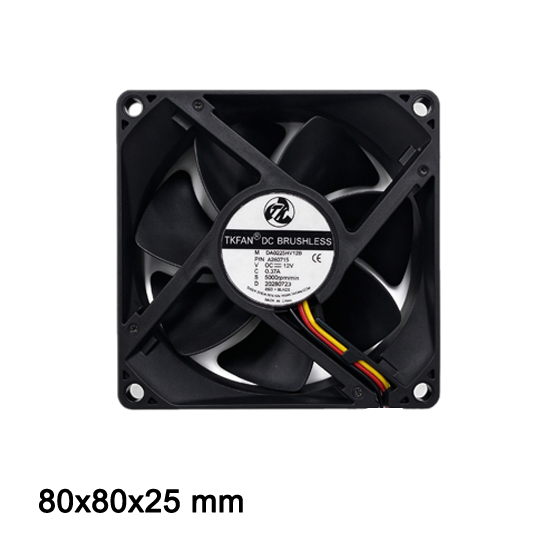

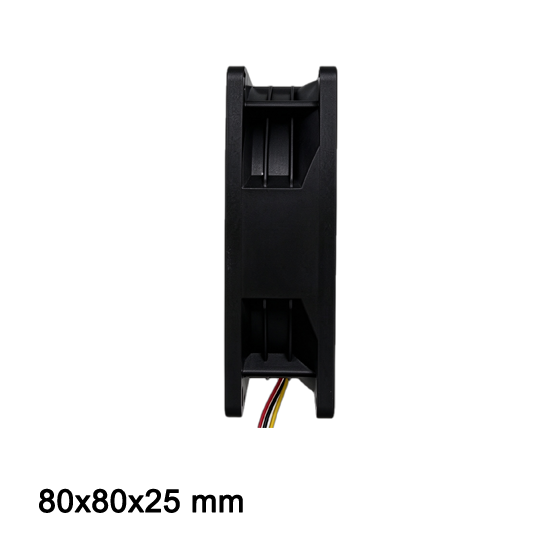

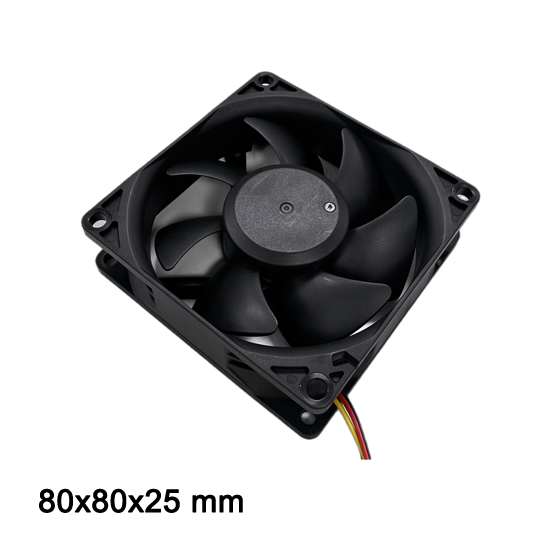

48V DC fan DA8025HV48B-A
Voltage 48V
5000rpm/min
Max 60.5 cfm,0.08 kpa
Request a Sample
Technical Specifications

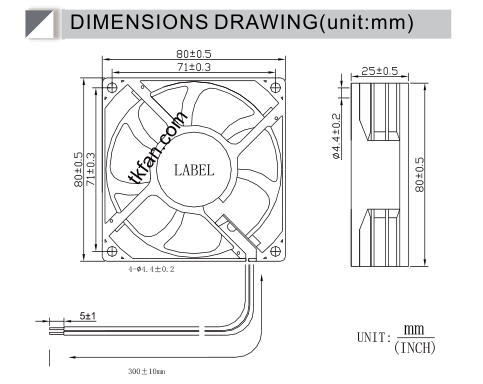

48V DC fan DA8025HV48B-A dimensions drawing
The structural engineering drawing above details the precise mechanical dimensions, mounting hole locations, and structural tolerances of the DA8025HV48B-A 48V DC cooling fan. Designed in a standardized 80mm x 80mm x 25mm frame, this axial fan is specifically built for heavy-duty industrial and thermal management environments where reliable mounting and structural rigidity are paramount.
Key mechanical features and structural specifications include:
- Standard Form Factor: 80 x 80 x 25 mm outer dimensions, offering exceptional versatility and seamless compatibility with standard server racks, power supply enclosures, and industrial control cabinets.
- Precision Mounting Holes: Standardized corner mounting hole spacing, ensuring straightforward, vibration-resistant installation using standard hardware.
- Durable Frame & Impeller Design: Reinforced PBT plastic housing (UL 94V-0 flame-retardant rating) providing high resistance to thermal deformation, mechanical stress, and harsh operating conditions.
- Dual Ball Bearing Assembly: Integrated high-precision dual ball bearing system that reduces friction, supports omnidirectional mounting orientations, and guarantees extended operational life under continuous 24/7 duty cycles.
Engineers and system integrators can utilize these detailed structural dimensions to streamline chassis layout planning and ensure proper clearance, airflow pathing, and thermal dissipation efficiency in OEM/ODM equipment.

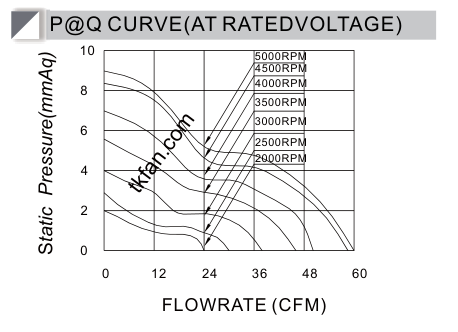

48V DC fan DA8025HV48B-A PQ curve
The Performance Curve (PQ Curve) illustrates the key aerodynamic characteristics of the DA8025HV48B-A 48V DC fan, displaying the inverse relationship between volumetric airflow (Air Volume / CFM) and static head pressure (Static Pressure / mmH₂O or Pa) under a nominal 48V DC operating voltage.
Key performance highlights demonstrated by the PQ curve:
- High-Pressure Air Output: Capable of overcoming high system impedance, making it highly effective for pushing cool air through dense heat sinks, dust filters, and tightly packed electronic enclosures.
- Maximum Airflow Capacity: Delivers exceptional CFM output at free discharge (zero static pressure), allowing rapid hot air extraction from high-power thermal systems.
- Optimized Operating Efficiency Zone: Shows a wide operating region where the fan operates at peak aerodynamic efficiency, maintaining low acoustic noise while optimizing power consumption.
System thermal designers can consult this P-Q curve to accurately match fan pressure output against total enclosure system resistance, ensuring optimal cooling capacity and long-term hardware stability.
DC fan DA8025-A Selection Guide
The DA8025-A series 80x80x25mm DC axial cooling fan provides a versatile selection of performance options across multiple operating voltages (12V, 24V, and 48V DC). Ranging from ultra-quiet, low-speed models (LL/L series) to high-speed, high-static-pressure versions (HV series), this series offers system thermal engineers the flexibility to balance airflow rate, acoustic noise levels, and power consumption according to specific application requirements.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | m³/min | CFM | mmH2O | InH2O | dB-A | ||
| DA8025LL12B | AY | 12 | 7~13.5 | 0.08 | 0.96 | 2000 | 0.69 | 24.4 | 2.0 | 0.08 | 25.8 |
| DA8025L12B | 12 | 7~13.5 | 0.12 | 1.44 | 2500 | 0.89 | 31.4 | 2.8 | 0.11 | 29.1 | |
| DA8025M12B | 12 | 7~13.5 | 0.15 | 1.8 | 3000 | 1.07 | 37.9 | 4.0 | 0.16 | 34.2 | |
| DA8025H12B | 12 | 7~13.5 | 0.25 | 3.0 | 3500 | 1.25 | 44.3 | 5.3 | 0.21 | 36.9 | |
| DA8025HH12B | 12 | 7~13.5 | 0.30 | 3.6 | 4000 | 1.44 | 50.8 | 7.0 | 0.28 | 41.8 | |
| DA8025VH12B | 12 | 7~13.5 | 0.50 | 6.0 | 4500 | 1.63 | 57.6 | 8.5 | 0.33 | 45.4 | |
| DA8025HV12B | 12 | 7~13.5 | 0.63 | 7.56 | 5000 | 1.71 | 60.5 | 8.9 | 0.35 | 46.3 | |
| DA8025M24B | 24 | 18~26.5 | 0.08 | 1.92 | 3000 | 1.07 | 37.9 | 4.0 | 0.16 | 34.2 | |
| DA8025HH24B | 24 | 18~26.5 | 0.16 | 3.84 | 4000 | 1.44 | 50.8 | 7.0 | 0.28 | 41.8 | |
| DA8025HV24B | 24 | 18~26.5 | 0.32 | 7.68 | 5000 | 1.71 | 60.5 | 8.9 | 0.35 | 46.3 | |
| DA8025M48B | 48 | 36~54 | 0.04 | 1.92 | 3000 | 1.07 | 37.9 | 4.0 | 0.16 | 34.2 | |
| DA8025HH48B | 48 | 36~54 | 0.08 | 3.84 | 4000 | 1.44 | 50.8 | 7.0 | 0.28 | 41.8 | |
| DA8025HV48B | 48 | 36~54 | 0.17 | 8.16 | 5000 | 1.71 | 60.5 | 8.9 | 0.35 | 46.3 | |
