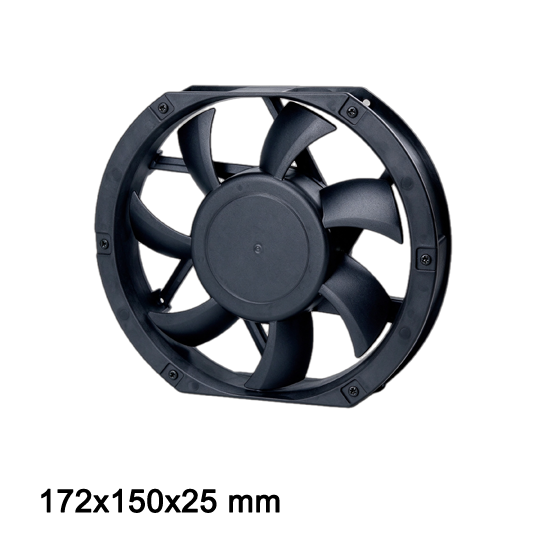

DA17225VH24B-A 24V DC Fan (Delta AFB1524 Series Direct Replacement)
DA17225VH24B-A 24V DC Fan (Delta AFB1524 Series Direct Replacement)
Voltage 24V
4000rpm/min
Max 246 cfm,0.18 kpa
Request a Sample
Structure Drawing
Technical Specifications

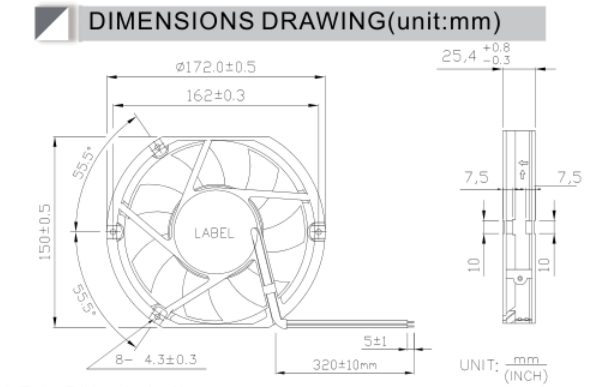

24V DC Fan DA17225VH24B-A Mechanical Dimensions
The mechanical outline drawing illustrates the precise structural dimensions of the DA17225VH24B-A 24V DC fan. Standardized with a compact 172 x 150 x 25 mm frame, this slim-profile axial cooling fan serves as a direct drop-in replacement for Delta AFB1524 series fans, engineered for space-constrained industrial enclosures, power supplies, telecom cabinets, and server racks.
- 100% Drop-in Compatibility: Identical 172mm × 150mm × 25mm mounting dimensions and hole locations as standard Delta 17225 series.
- Mounting Hole Specs: Standardized mounting holes for fast, effortless OEM upgrade and replacement.
- Structural Integrity: High-durability PBT UL94V-0 plastic housing and impeller for superior flame resistance and high-temperature performance.
- Custom Wiring & Pinout: Lead wire lengths, 3rd wire signal options (Tachometer/FG, RD), and custom connectors available upon request.

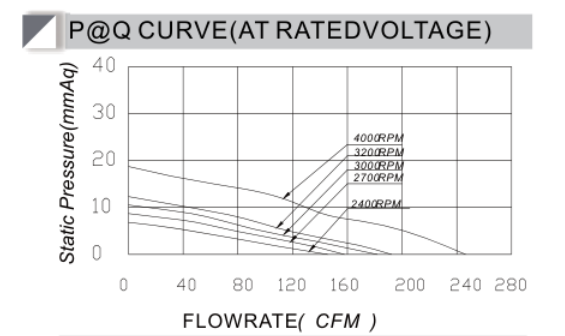

24V DC Fan DA17225VH24B-A Airflow & Pressure Performance
The Airflow vs. Static Pressure (P-Q) performance curve provides essential fluid dynamic characteristics for system thermal design. The DA17225VH24B-A 24V DC fan delivers up to 246 CFM, matching or exceeding Delta equivalent models to overcome high backpressure caused by dense heat sinks or tightly packed enclosures.
- Aerodynamic Efficiency: Optimized 7-blade geometry balances high volumetric airflow with powerful static pressure capability.
- Thermal Workload Stability: Delivers linear and consistent cooling performance across high thermal impedance conditions.
- Acoustic & Power Balance: Precision-balanced motor ensures maximum heat dissipation efficiency with reduced operational vibration and noise.
- Wide Voltage Tolerance: Stable performance output across standard 18V~26.5V DC operating ranges.
Drop-in Replacement Guide
Direct Cross-Reference for Delta AFB1524 Series
Looking for a reliable, cost-effective replacement for Delta AFB1524 cooling fans? The TKFAN DA17225 24V DC series features identical mounting geometry, motor specifications, and connector pinouts for seamless drop-in substitution without mechanical or electrical redesign.
| TKFAN Model | Delta Equivalent Part Number | Voltage | Speed (RPM) | Air Flow (CFM) | Static Pressure (InH₂O) | Compatibility Note |
|---|---|---|---|---|---|---|
| DA17225L24B | AFB1524L / AFB1524L-A | 24 VDC | 2400 | 145.16 | 0.272 | Direct Fit (Low Noise) |
| DA17225HH24B | AFB1524HH / AFB1524HH-AF00 | 24 VDC | 3200 | 192.68 | 0.476 | Direct Fit (Medium/High Flow) |
| DA17225VH24B-A | AFB1524VH / AFB1524VH-A | 24 VDC | 4000 | 246.03 | 0.737 | Direct Fit (Max Performance) |
TKFAN DA17225-A Series Full Selection Guide
The DA17225-A series DC cooling fan (172 x 150 x 25 mm) offers a comprehensive range of voltage options (12V, 24V, and 48V DC) and speed configurations tailored to fit diverse thermal dissipation requirements. From low-noise ambient cooling to extreme industrial high-static-pressure ventilation, this series delivers long-term operating reliability for power systems, inverters, and telecom enclosures.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | m³/min | CFM | mmH₂O | InH₂O | dB-A | ||
| DA17225L12B | AY | 12 | 7.5~13.5 | 0.56 | 6.72 | 2400 | 4.110 | 145.16 | 6.92 | 0.272 | 48.1 |
| DA17225M12B | 12 | 7.5~13.5 | 0.76 | 9.12 | 2700 | 4.508 | 159.2 | 8.79 | 0.346 | 51.0 | |
| DA17225H12B | 12 | 7.5~13.5 | 0.98 | 11.76 | 3000 | 5.313 | 181.22 | 10.47 | 0.412 | 54.1 | |
| DA17225HH12B | 12 | 7.5~13.5 | 1.17 | 14.04 | 3200 | 5.456 | 192.68 | 12.11 | 0.476 | 55.7 | |
| DA17225VH12B | 12 | 7.5~13.5 | 3.00 | 36.00 | 4000 | 6.966 | 246.03 | 18.74 | 0.737 | 62.90 | |
| DA17225L24B | 24 | 18~26.5 | 0.31 | 7.44 | 2400 | 4.110 | 145.16 | 6.92 | 0.272 | 48.1 | |
| DA17225M24B | 24 | 18~26.5 | 0.40 | 9.60 | 2700 | 4.508 | 159.2 | 8.79 | 0.346 | 51.0 | |
| DA17225H24B | 24 | 18~26.5 | 0.50 | 12.00 | 3000 | 5.313 | 181.22 | 10.47 | 0.412 | 54.1 | |
| DA17225HH24B | 24 | 18~26.5 | 0.62 | 14.88 | 3200 | 5.456 | 192.68 | 12.11 | 0.476 | 55.7 | |
| DA17225VH24B | 24 | 18~26.5 | 1.60 | 38.40 | 4000 | 6.966 | 246.03 | 18.74 | 0.737 | 62.90 | |
| DA17225L48B | 48 | 36~54 | 0.17 | 8.16 | 2400 | 4.110 | 145.16 | 6.92 | 0.272 | 48.1 | |
| DA17225M48B | 48 | 36~54 | 0.22 | 10.56 | 2700 | 4.508 | 159.2 | 8.79 | 0.346 | 51.0 | |
| DA17225H48B | 48 | 36~54 | 0.27 | 12.96 | 3000 | 5.313 | 181.22 | 10.47 | 0.412 | 54.1 | |
| DA17225HH48B | 48 | 36~54 | 0.31 | 14.88 | 3200 | 5.456 | 192.68 | 12.11 | 0.476 | 55.7 | |
| DA17225VH48B | 48 | 36~54 | 0.80 | 38.40 | 4000 | 6.966 | 246.03 | 18.74 | 0.737 | 62.90 | |
