Voltage 12V
3600rpm/min
Max 123.9 cfm,0.1 kpa

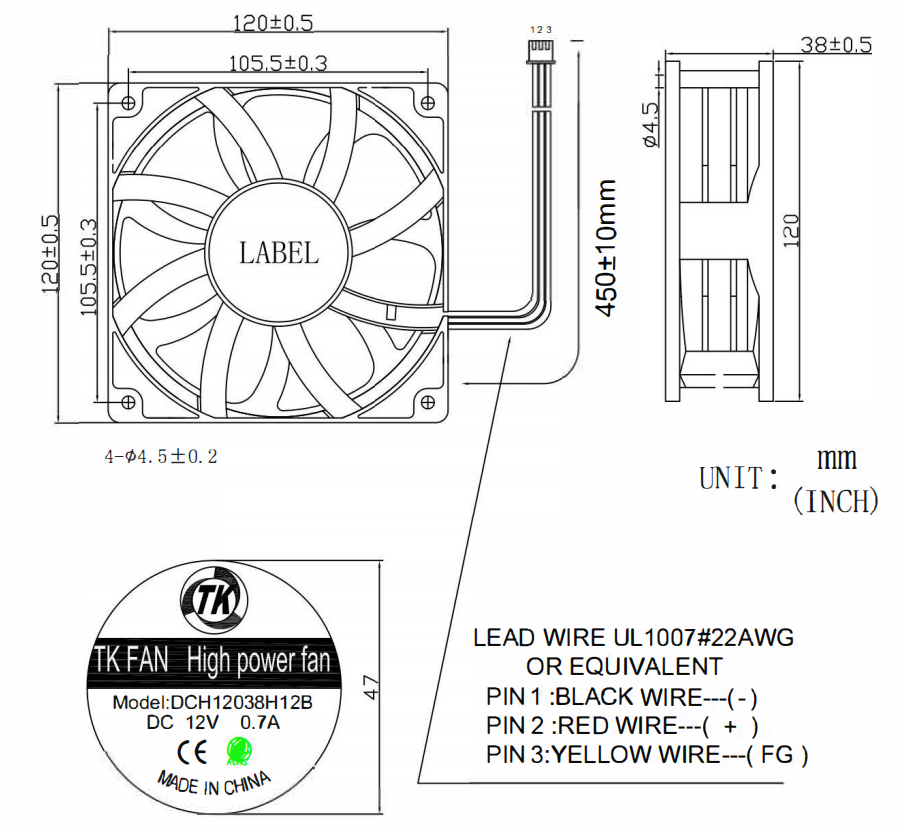

The structural engineering drawing above details the precise mechanical dimensions, mounting hole locations, and structural tolerances of the DCH12038H12B-0201 12V DC cooling fan. Designed in a standardized 120mm x 120mm x 38mm frame, this axial fan is specifically built for heavy-duty industrial and thermal management environments where reliable mounting and structural rigidity are paramount.
Key mechanical features and structural specifications include:
Engineers and system integrators can utilize these detailed structural dimensions to streamline chassis layout planning and ensure proper clearance, airflow pathing, and thermal dissipation efficiency in OEM/ODM equipment.

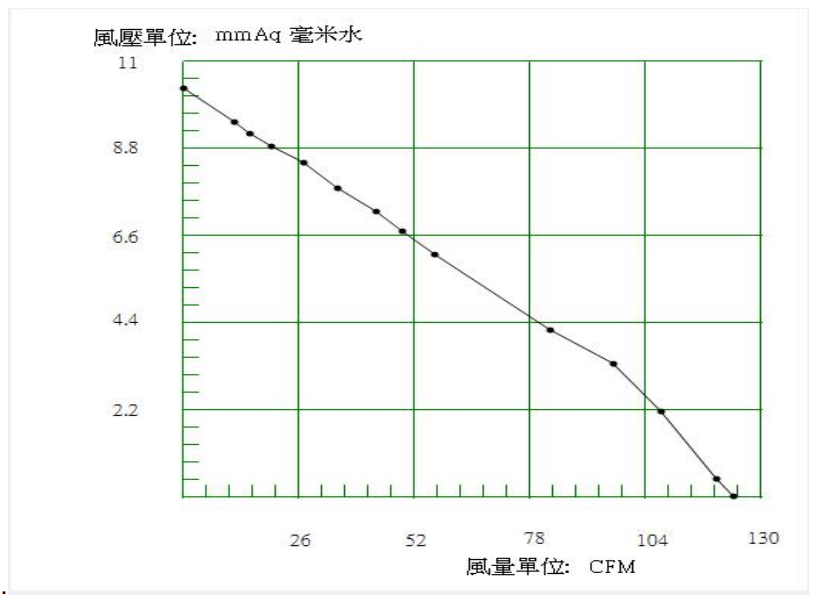

The Performance Curve (PQ Curve) illustrates the key aerodynamic characteristics of the DCH12038H12B-0201 12V DC fan, displaying the inverse relationship between volumetric airflow (Air Volume / CFM) and static head pressure (Static Pressure / mmH₂O or Pa) under a nominal 12V DC operating voltage.
Key performance highlights demonstrated by the PQ curve:
System thermal designers can consult this P-Q curve to accurately match fan pressure output against total enclosure system resistance, ensuring optimal cooling capacity and long-term hardware stability.
Explore our full range of 12v DC fan, or choose from similar models below.
12v DC fan
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
