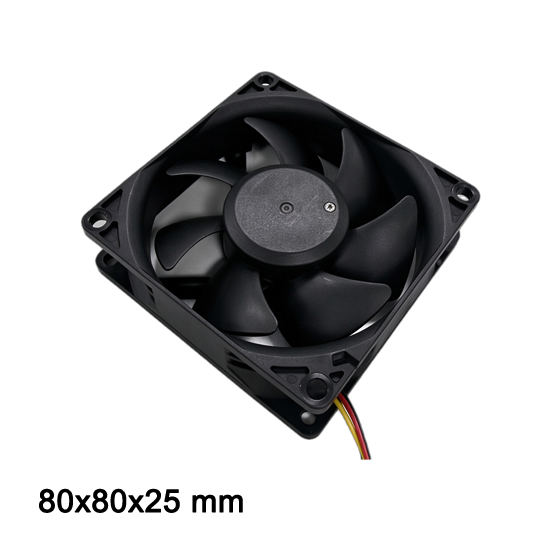

DA8025HV12B-A260715 80mm 25mm thickness DC brushless fan, 30° right side angled product shot

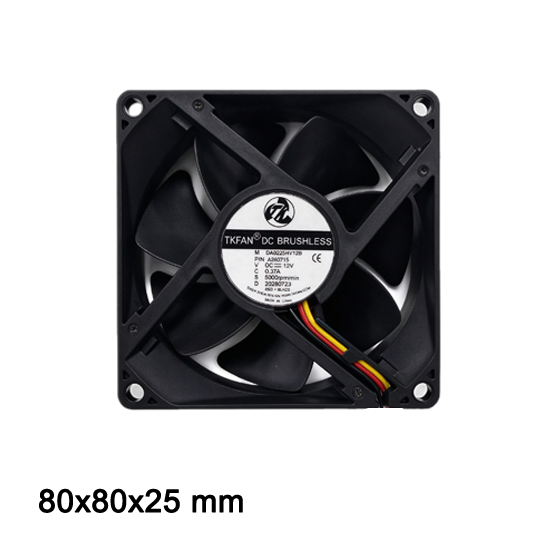

DA8025HV12B-A260715 80×80×25mm 12V DC cooling fan, front view with specification label, TKFAN axial fan

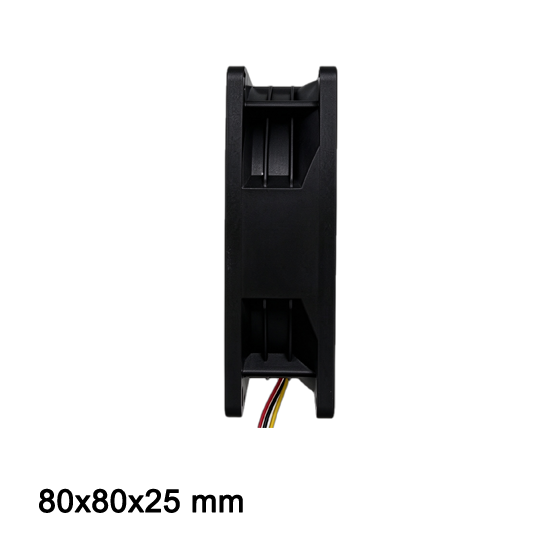

DA8025HV12B-A260715 side view, display 25mm thickness of 80mm DC cooling fan

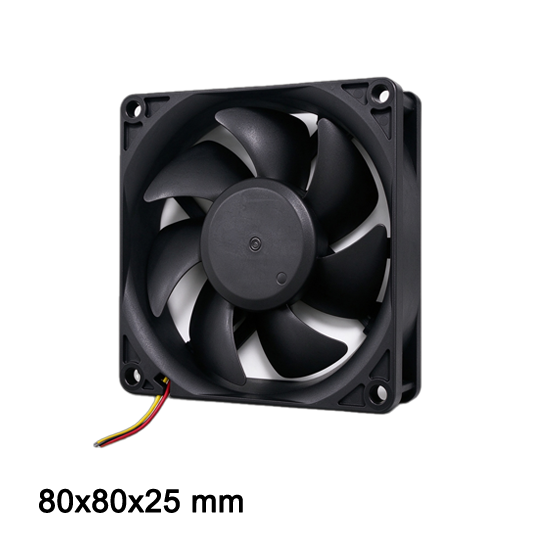

12V DC fan  DA8025HV12B-A260715.png
DA8025HV12B-A260715 80mm 25mm thickness DC brushless fan, 30° right side angled product shot
DA8025HV12B-A260715 80×80×25mm 12V DC cooling fan, front view with specification label, TKFAN axial fan
DA8025HV12B-A260715 side view, display 25mm thickness of 80mm DC cooling fan

12V DC fan DA8025HV12B-A260715

Voltage 12V
5000rpm/min
Max 59.7 cfm,0.09 kpa

Request a Sample
Download Datasheet

Technical Specifications

ModelDA8025HV12B-A260715
Size80*80*25mm
Operating Voltage12 VDC
Rated Current0.37 Amp
Rated Speed5000 RPM
Maximum Flow Rate59.7 CFM
Maximum Static Pressure0.09 kPa
Noise54.2 dBA

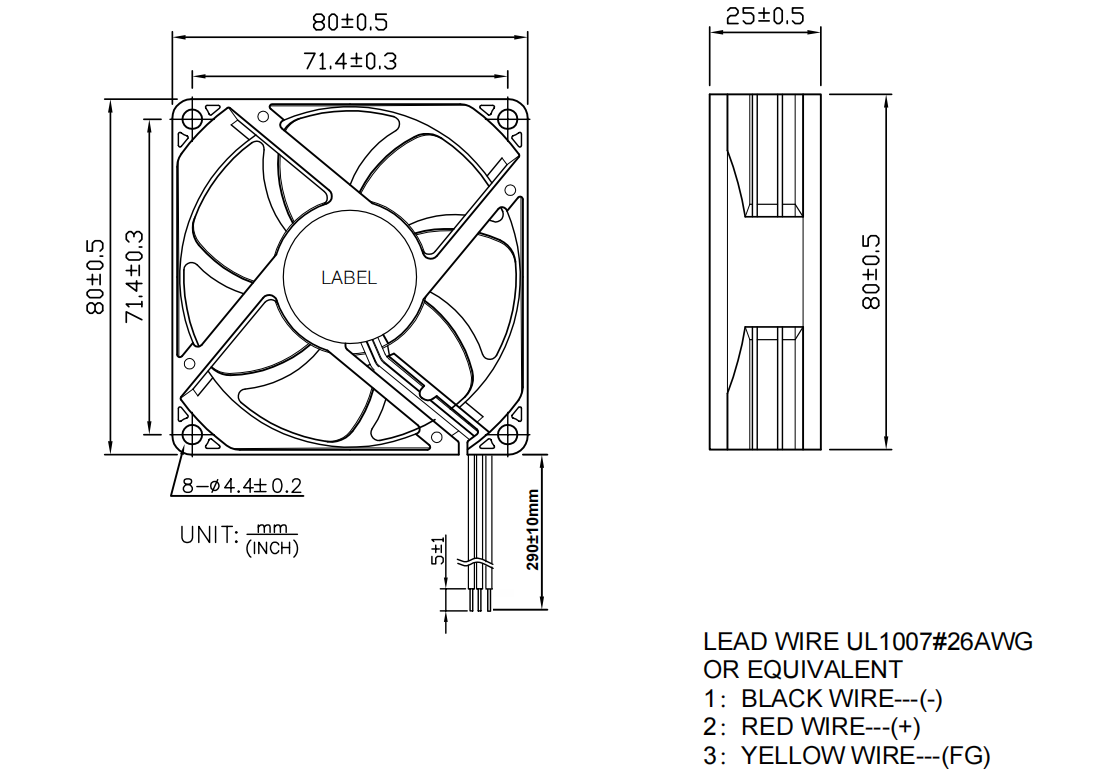

12V DC fan DA8025HV12B-A260715 dimensions drawing

The structural engineering drawing above details the precise mechanical dimensions, mounting hole locations, and structural tolerances of the DA8025HV12B-A260715 12V DC cooling fan. Designed in a standardized 80mm x 80mm x 25mm frame, this axial fan is specifically built for heavy-duty industrial and thermal management environments where reliable mounting and structural rigidity are paramount.

Key mechanical features and structural specifications include:

  • Standard Form Factor: 80 x 80 x 25 mm outer dimensions, offering exceptional versatility and seamless compatibility with standard server racks, power supply enclosures, and industrial control cabinets.
  • Precision Mounting Holes: Standardized corner mounting hole spacing, ensuring straightforward, vibration-resistant installation using standard hardware.
  • Durable Frame & Impeller Design: Reinforced PBT plastic housing (UL 94V-0 flame-retardant rating) providing high resistance to thermal deformation, mechanical stress, and harsh operating conditions.
  • Dual Ball Bearing Assembly: Integrated high-precision dual ball bearing system that reduces friction, supports omnidirectional mounting orientations, and guarantees extended operational life under continuous 24/7 duty cycles.

Engineers and system integrators can utilize these detailed structural dimensions to streamline chassis layout planning and ensure proper clearance, airflow pathing, and thermal dissipation efficiency in OEM/ODM equipment.

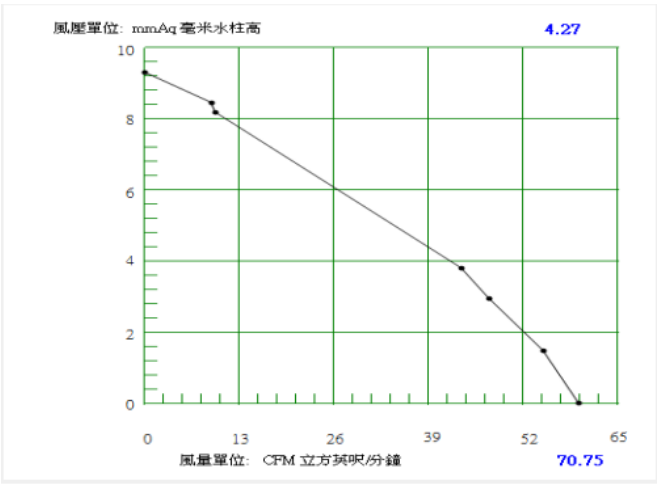

12V DC fan DA8025HV12B-A260715 PQ curve

The Performance Curve (PQ Curve) illustrates the key aerodynamic characteristics of the DA8025HV12B-A260715 12V DC fan, displaying the inverse relationship between volumetric airflow (Air Volume / CFM) and static head pressure (Static Pressure / mmH₂O or Pa) under a nominal 12V DC operating voltage.

Key performance highlights demonstrated by the PQ curve:

  • High-Pressure Air Output: Capable of overcoming high system impedance, making it highly effective for pushing cool air through dense heat sinks, dust filters, and tightly packed electronic enclosures.
  • Maximum Airflow Capacity: Delivers exceptional CFM output at free discharge (zero static pressure), allowing rapid hot air extraction from high-power thermal systems.
  • Optimized Operating Efficiency Zone: Shows a wide operating region where the fan operates at peak aerodynamic efficiency, maintaining low acoustic noise while optimizing power consumption.

System thermal designers can consult this P-Q curve to accurately match fan pressure output against total enclosure system resistance, ensuring optimal cooling capacity and long-term hardware stability.

12V-DC fan-DA8025HV12B-A260715-PQ-curve.png

80mm 12V Brushless DC Fan 5000RPM Cooling Axial Fan Overview & Demo

Watch this comprehensive product demonstration and overview video of the 80mm 12V Brushless DC Cooling Axial Fan (5000RPM, 59.7 CFM with FG) designed specifically for demanding industrial equipment and high-performance electronic enclosures.

In this video demonstration, you will get a close-up look at:

  • Physical Build & Design: A detailed visual inspection of the robust 80x80x25mm frame structure, precision fan blades, and reinforced mounting corners built to withstand rigorous operating conditions.
  • Operational Performance & RPM Test: Live testing showcasing the powerful 5000RPM rotational speed, strong airflow delivery (up to 59.7 CFM), and overall aerodynamic stability under standard 12V DC power input.
  • FG (Frequency Generator) Signal Feature: Explanation and testing demonstration of the built-in Frequency Generator (Tachometer output) function, which allows real-time fan speed monitoring and fault detection by system host controllers.
  • Acoustic Profile: Real-world operational sound observation, balancing high air delivery with optimized noise levels suitable for professional server rooms, automation panels, and communication gear.

This video provides practical insights for engineers and procurement specialists looking to evaluate airflow output, wiring configurations, and mounting compatibility for their next thermal management project.
