DA6038VH12B-B - Equivalent / Replacement for Sanyo Denki San Ace 60 9HV0612P1J001
DA6038VH12B-B - Equivalent / Replacement for Sanyo Denki San Ace 60 9HV0612P1J001
Voltage 12V
21700rpm/min
Max 66.8 cfm,1.4 kpa
Technical Specifications
Direct Equivalent / Replacement for Sanyo Denki 9HV0612P1J001
Looking for a high-performance alternative to Sanyo Denki San Ace 60 (9HV0612P1J001)? The DA6038VH12B-B offers equivalent cooling capabilities, identical 60x60x38mm form factor, 21,700 RPM ultra-high speed, and robust static pressure for high-density servers, telecom equipment, and industrial enclosures.
Cross-Reference Comparison
| Specification | TKFAN DA6038VH12B-B | Sanyo Denki 9HV0612P1J001 |
|---|---|---|
| Dimensions | 60 × 60 × 38 mm | 60 × 60 × 38 mm |
| Rated Voltage | 12 VDC | 12 VDC |
| Rated Speed | 21,700 RPM | 22,000 RPM |
| Max Airflow | 66.8 CFM | 67.8 CFM |
| Max Static Pressure | 1.4 kPa | 1.45 kPa |
| Features | PWM Speed Control, Tachometer Signal, Custom Harness Available | PWM Control, Tachometer Sensor |

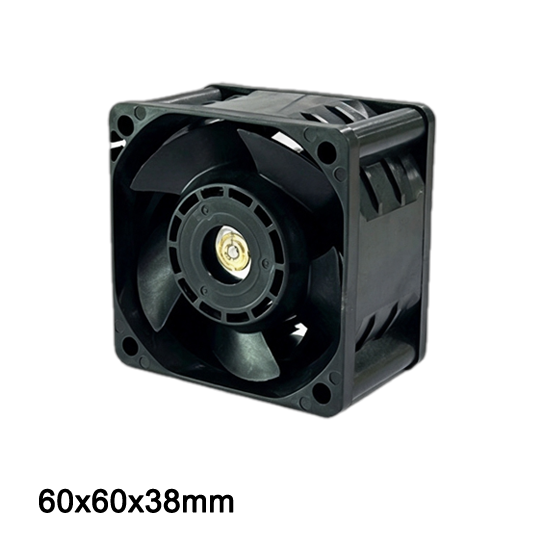

Demonstration of DA6038VH12B-B high-pressure 12V 60x60x38mm axial fan in operation.
REQUEST SANYO ALTERNATIVE QUOTE & SAMPLES
Looking for different sizes or specifications?
Explore our full range of 12v DC fan, or choose from similar models below.
12v DC fan
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
