12V DC fan DA14025M12B-B261009
Voltage 12V
2000rpm/min
Max 101.2 cfm,0.02 kpa
Request a Sample
Download Datasheet
Technical Specifications
12V DC fan DA14025M12B-B261009

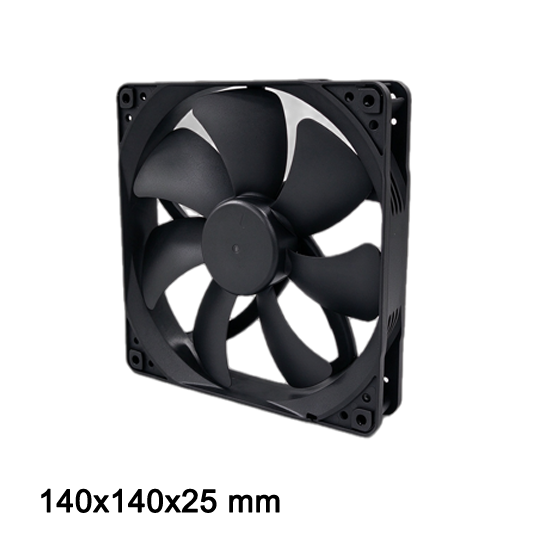

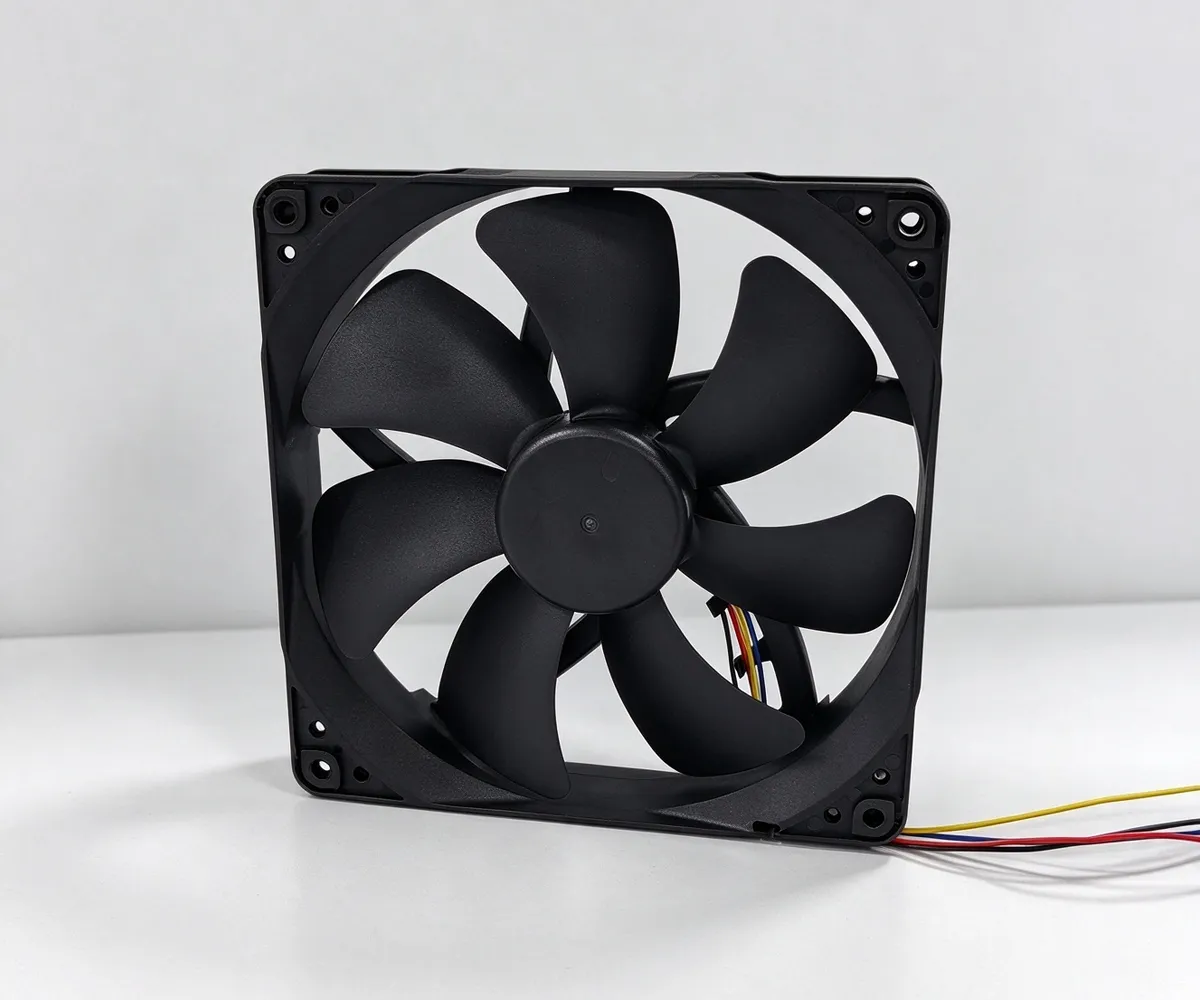

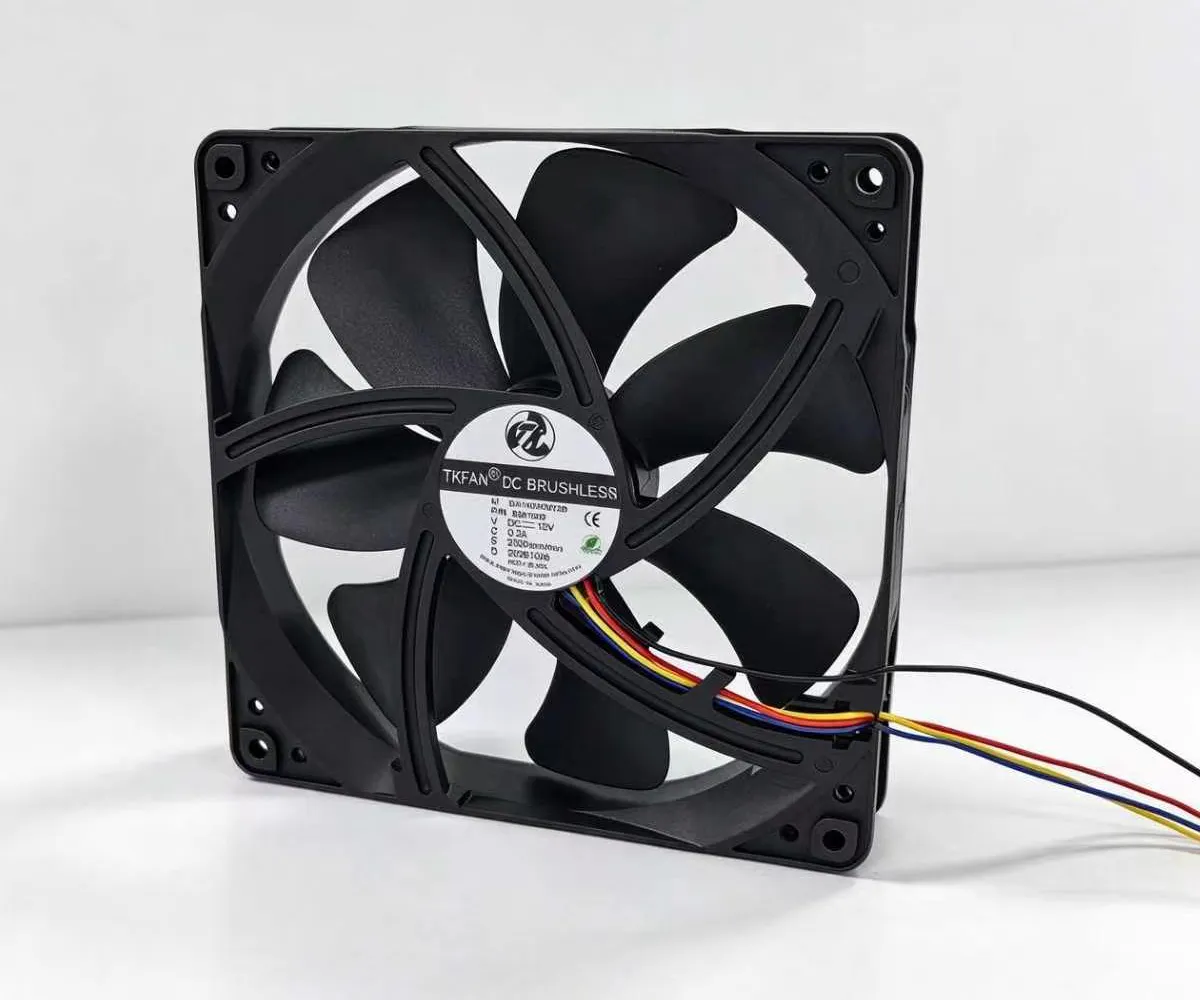

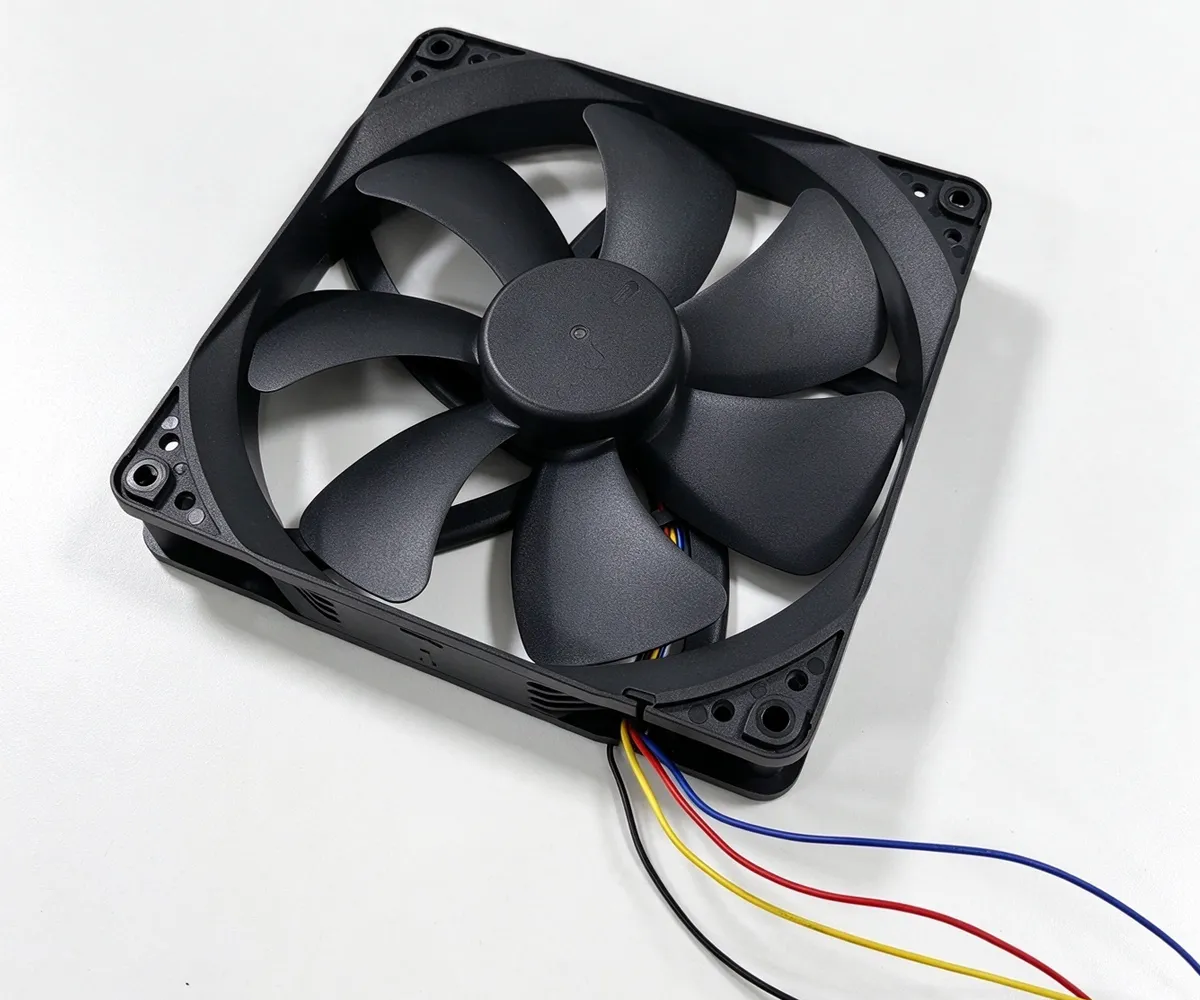

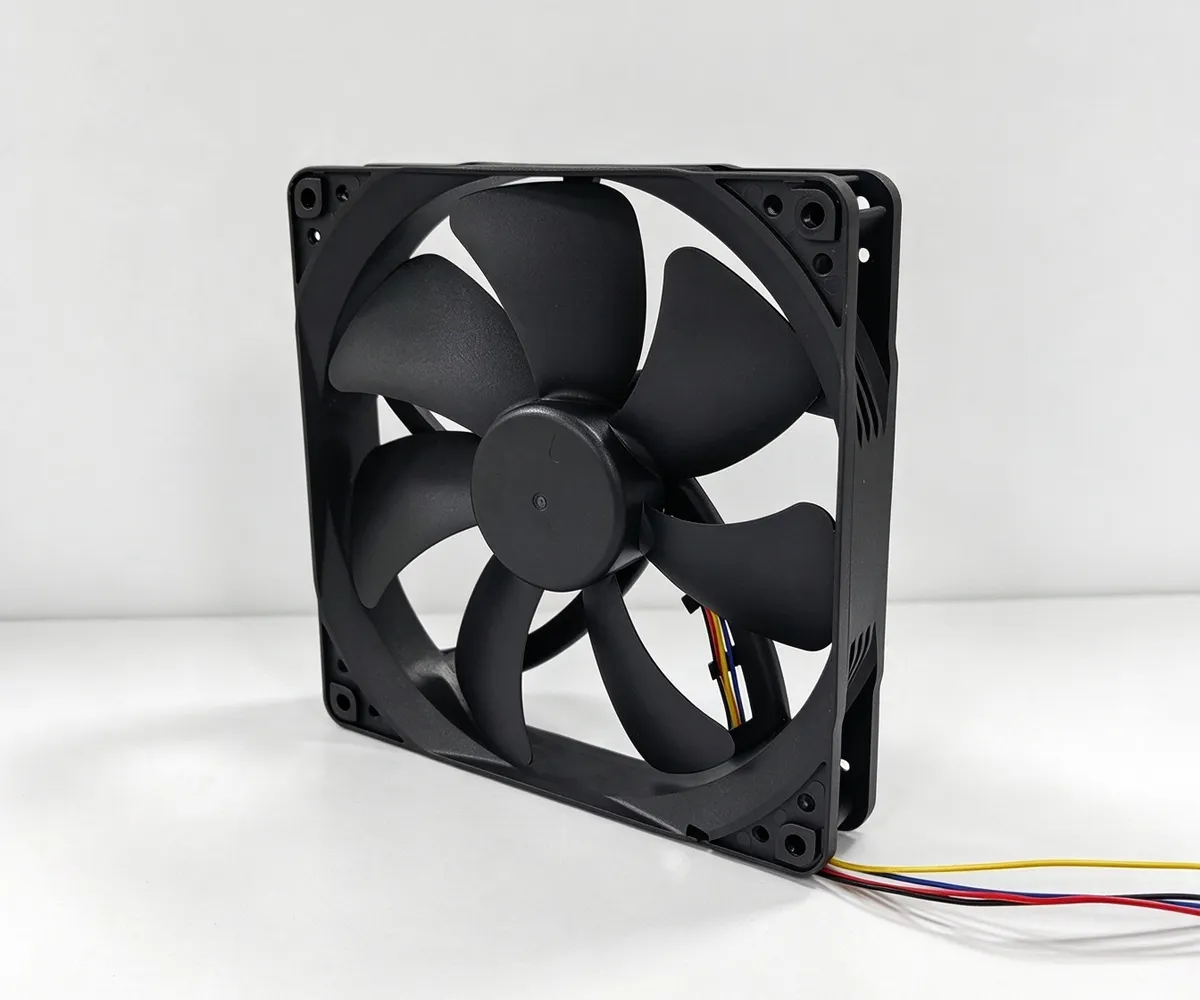

High-performance 12V DC cooling fan engineered for efficient thermal management and reliable airflow. (Click image to enlarge)

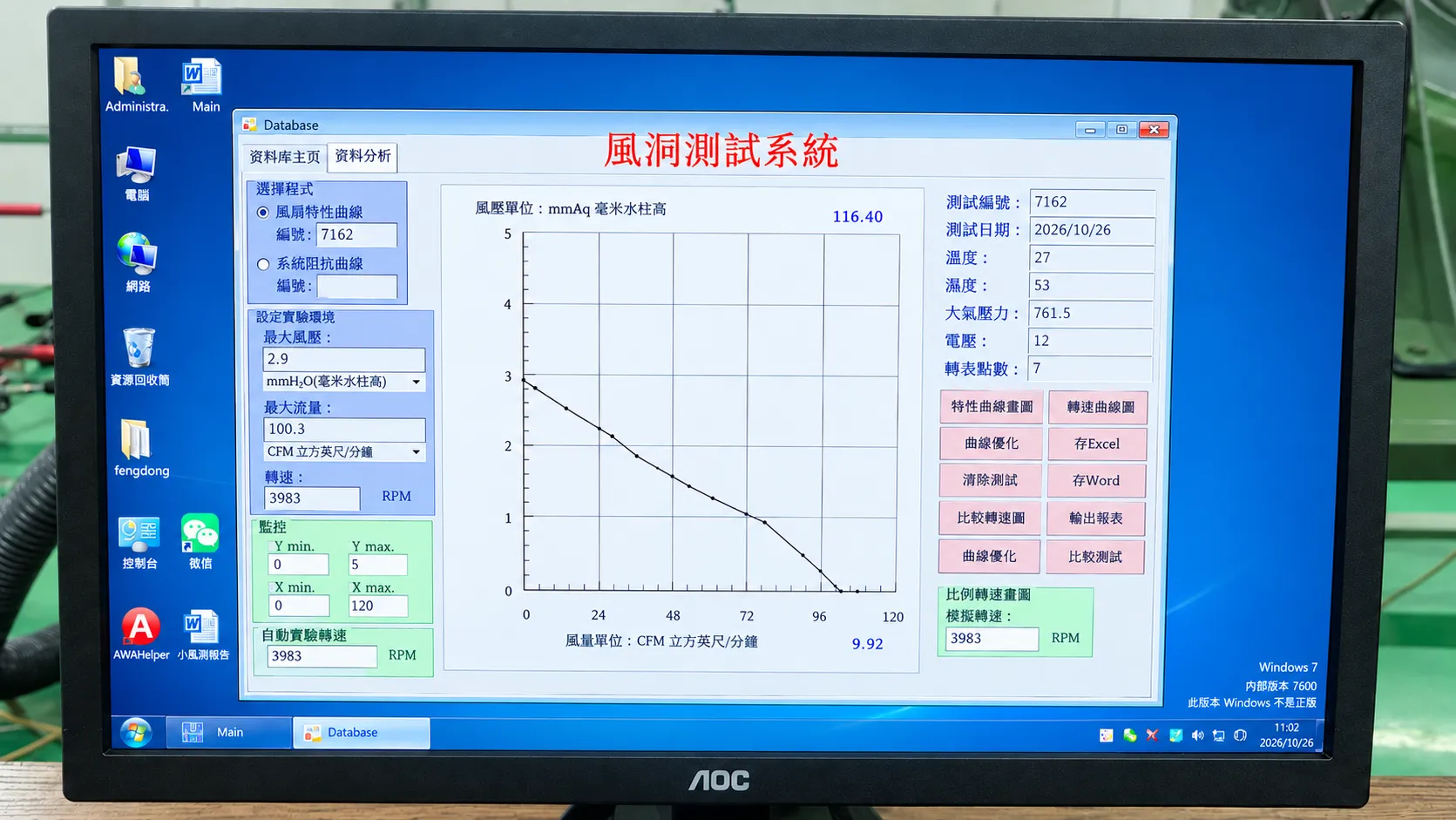

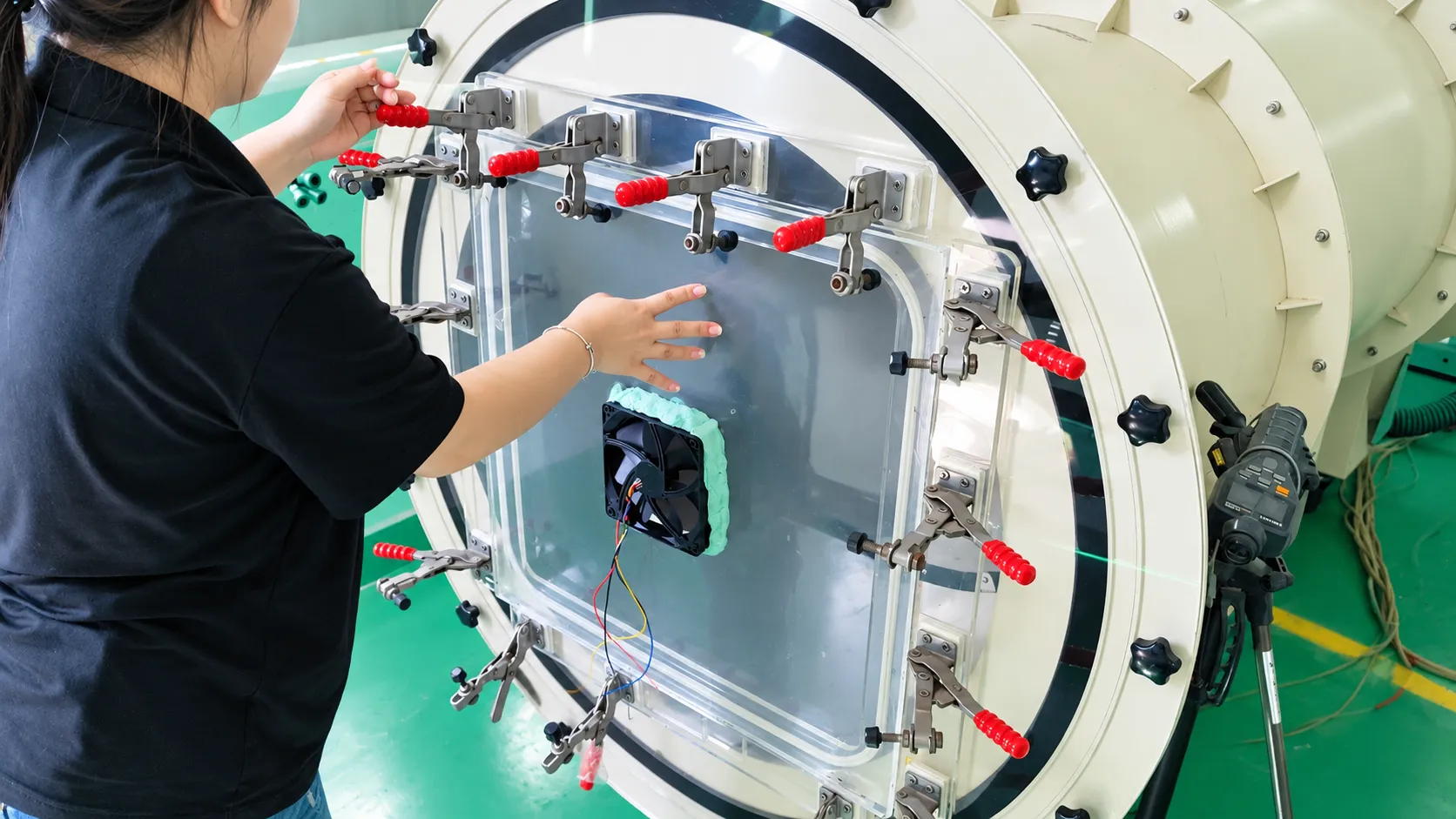

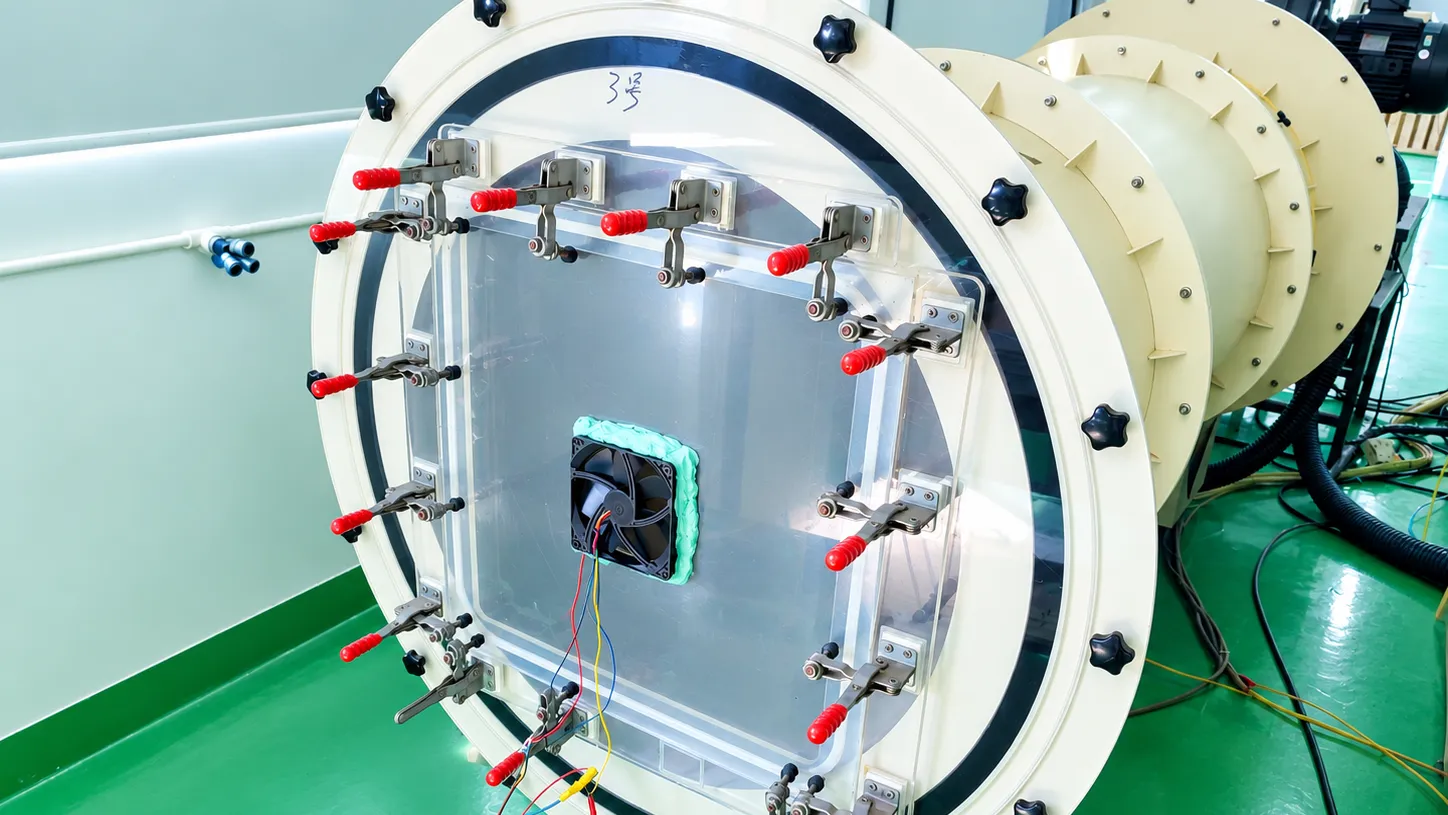

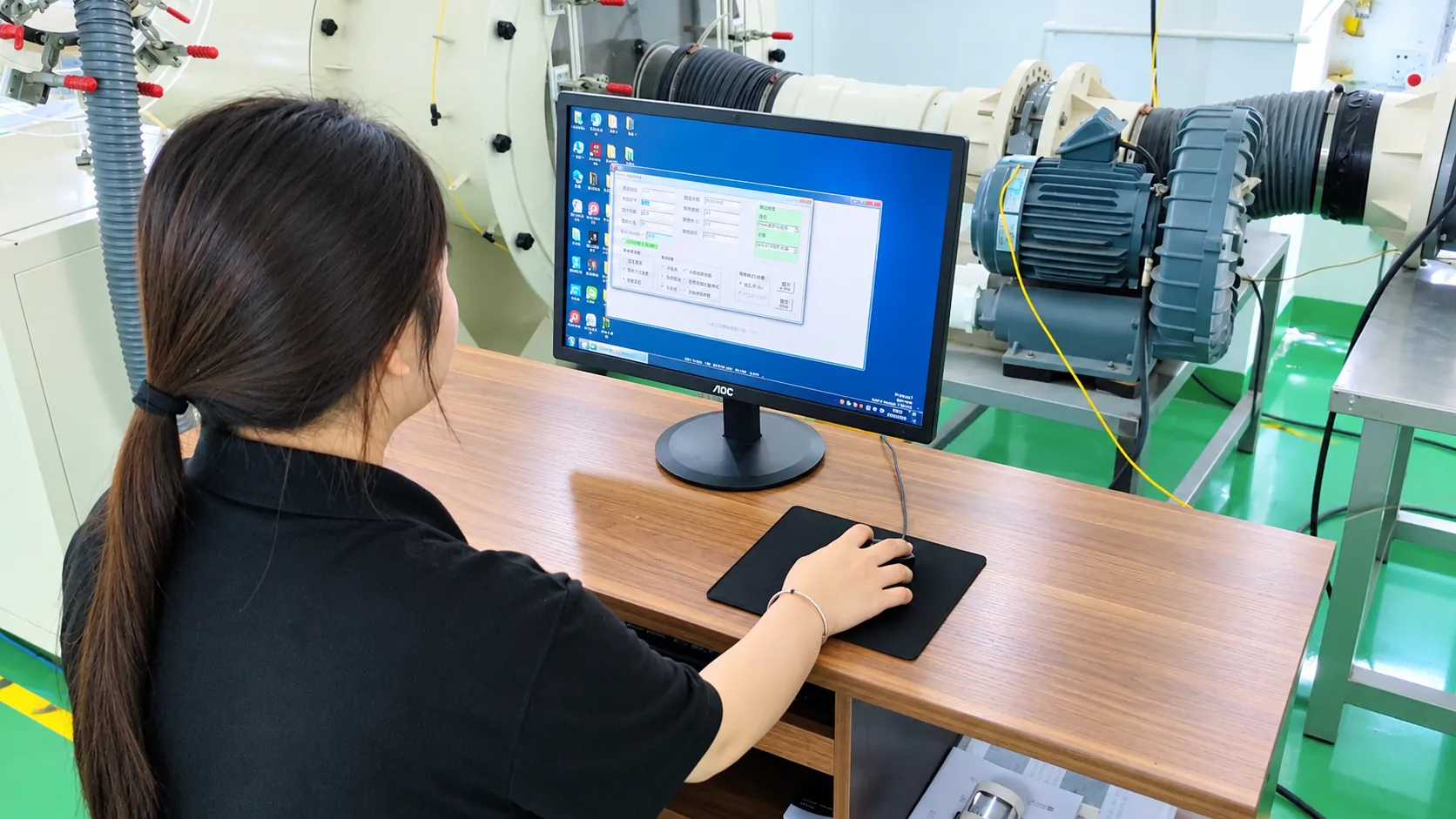

12V DC fan DA14025M12B-B261009 Wind Tunnel Test
Professional aerodynamic performance validation using automated wind tunnel system to accurately measure static pressure, airflow rate, and PQ curve characteristics. (Click image to enlarge)

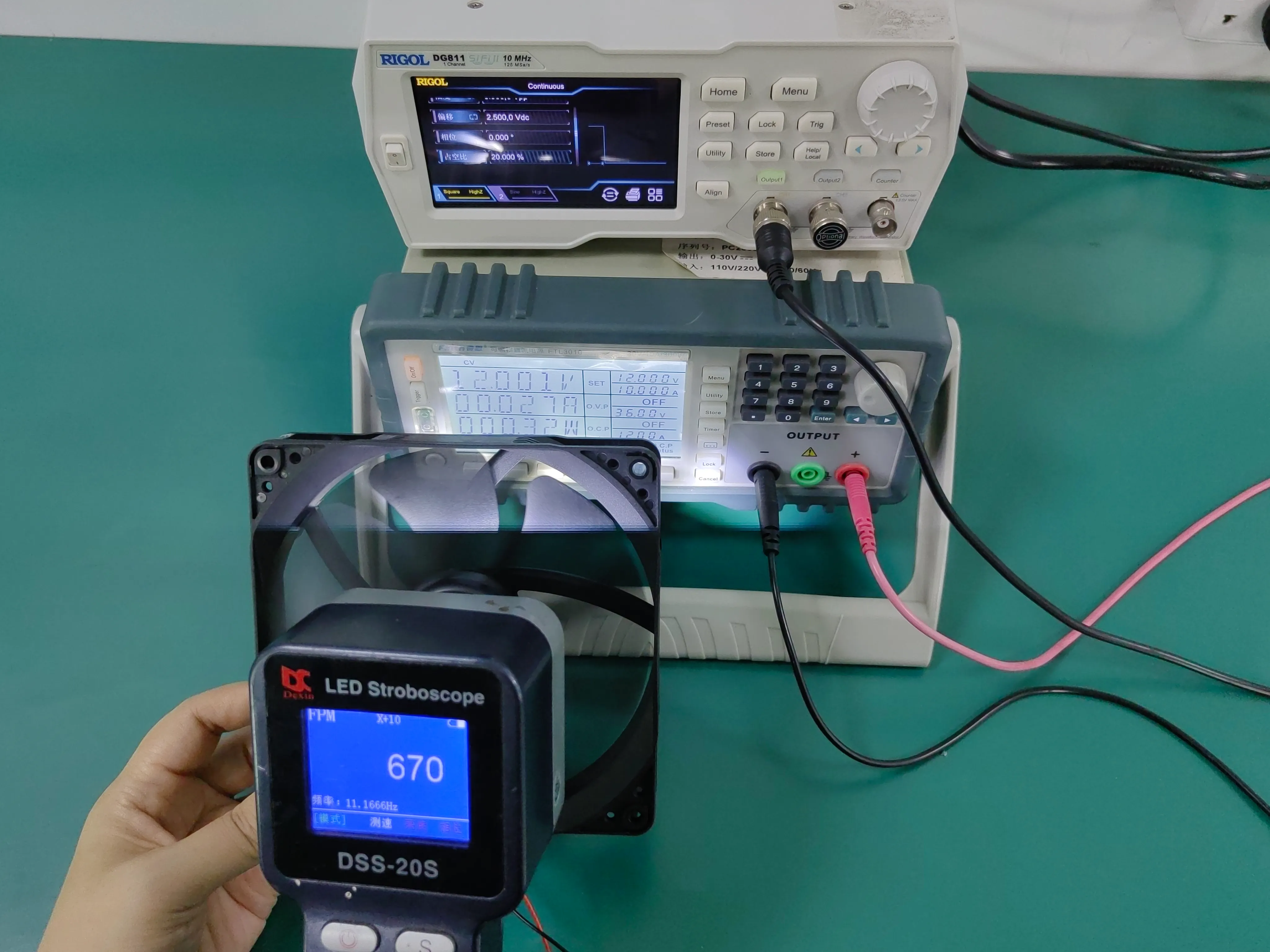

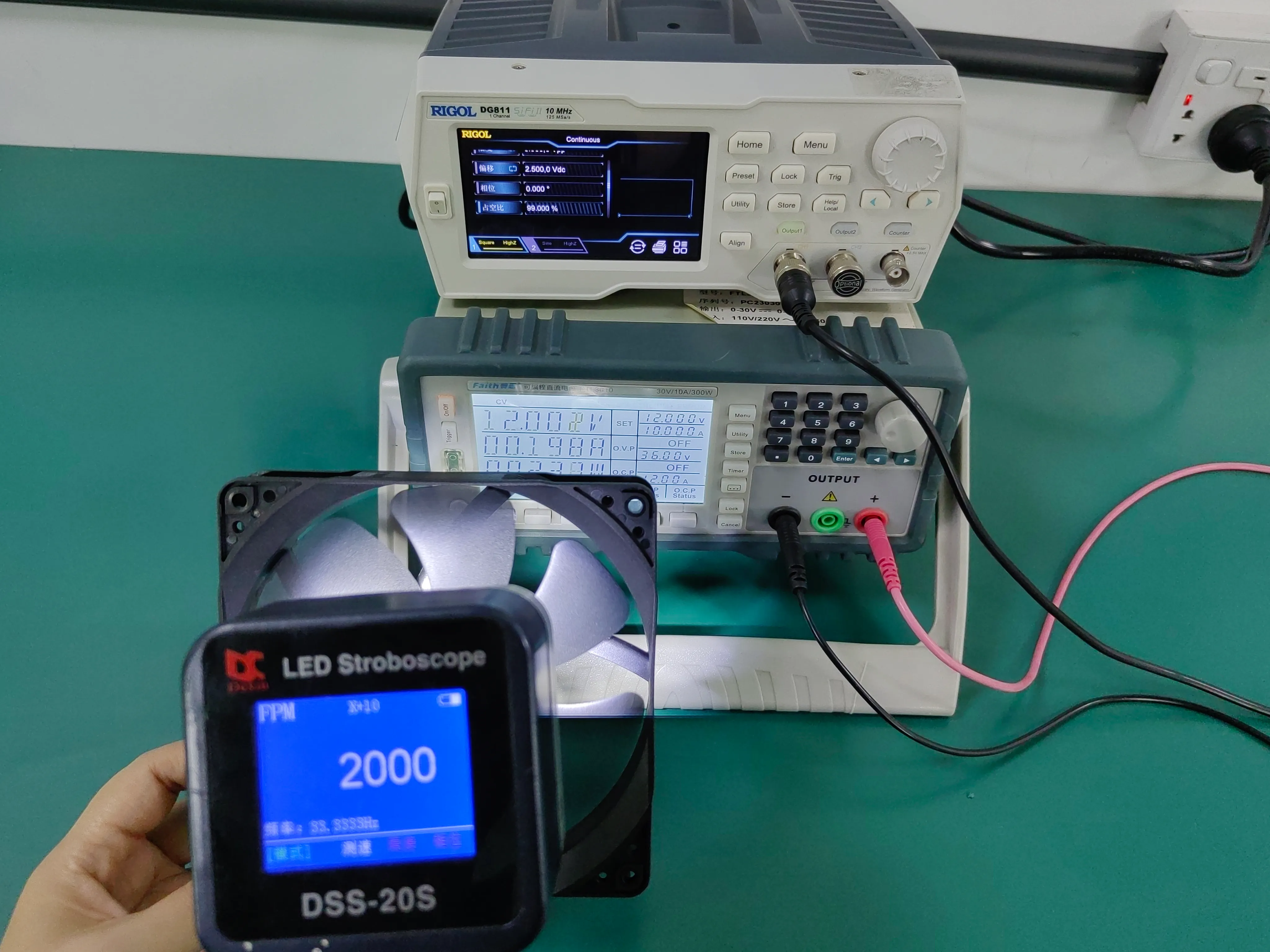

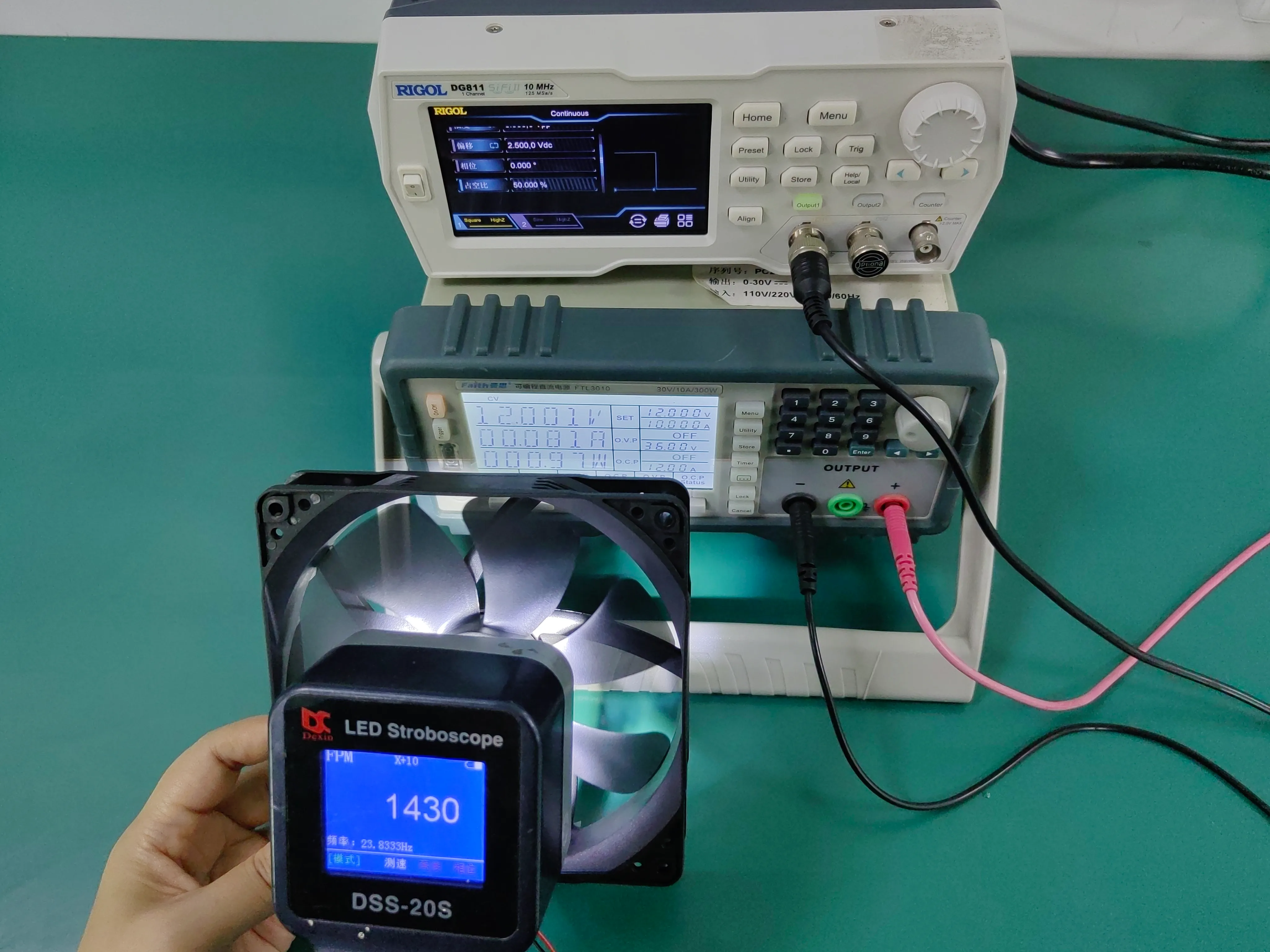

12V DC fan DA14025M12B-B261009 Speed Test & FG Signal Frequency Test

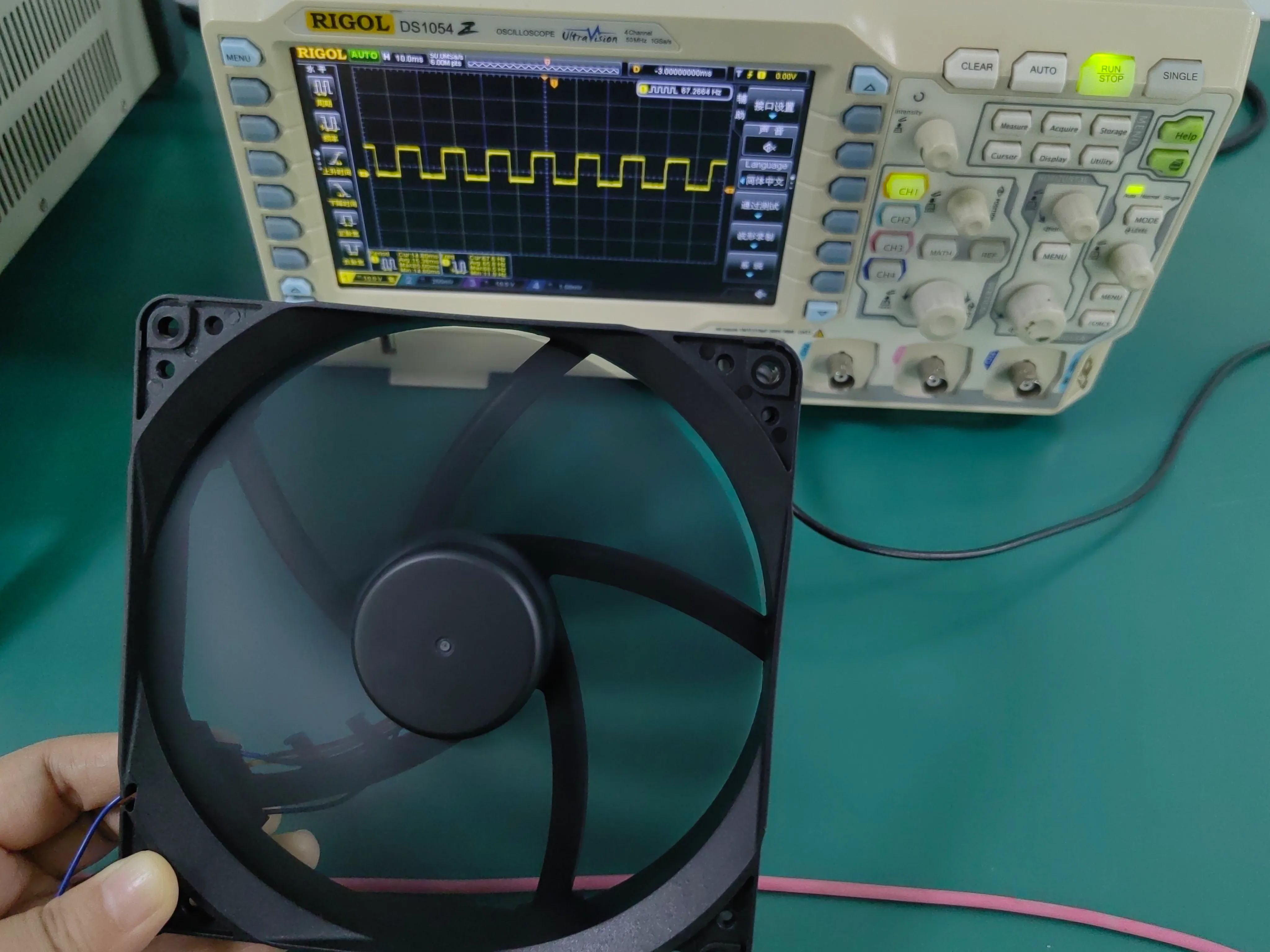

Comprehensive testing results demonstrating real-time rotation speed measurements across different PWM duties and precise FG signal waveform response. (Click image to enlarge)

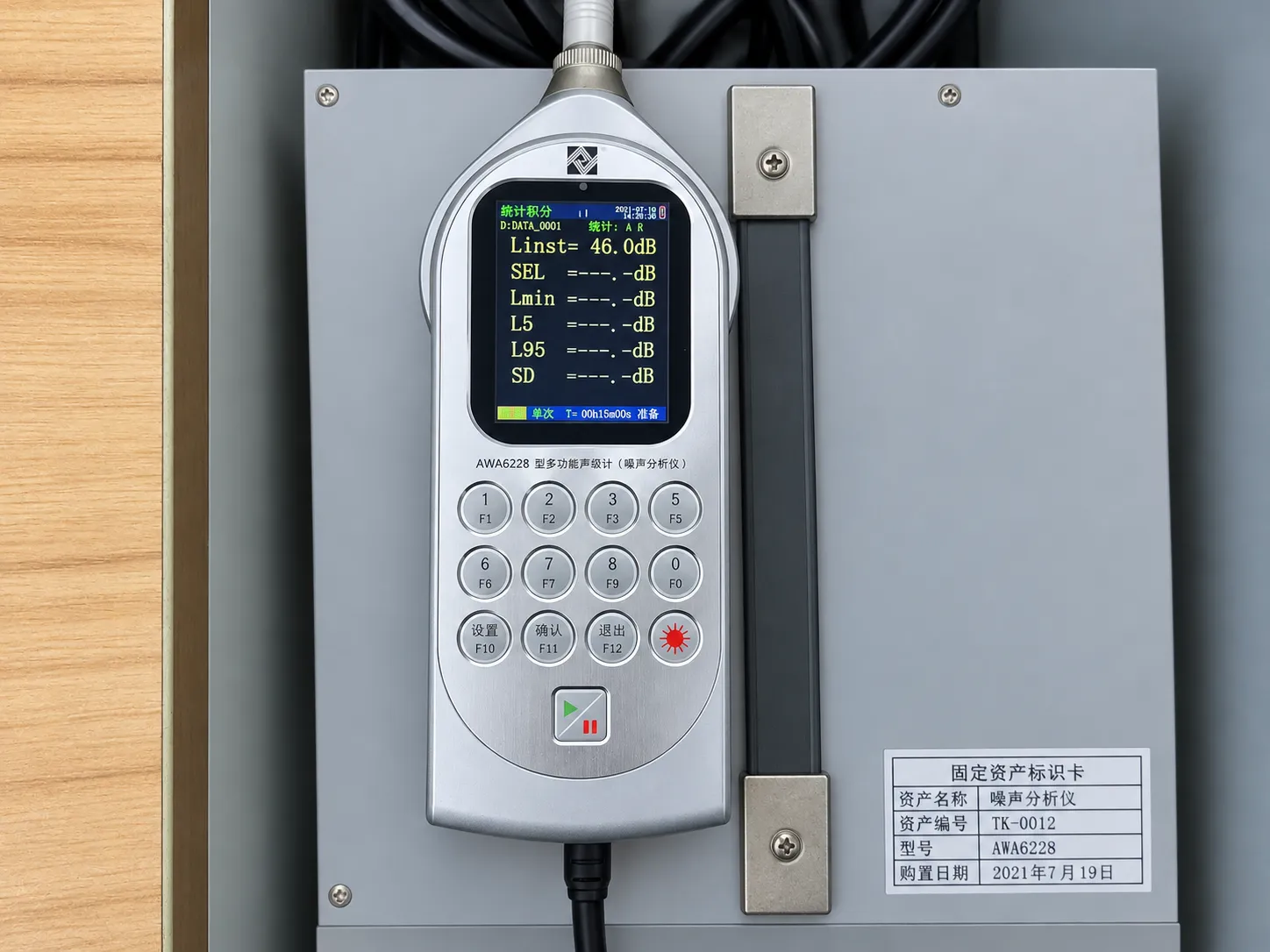

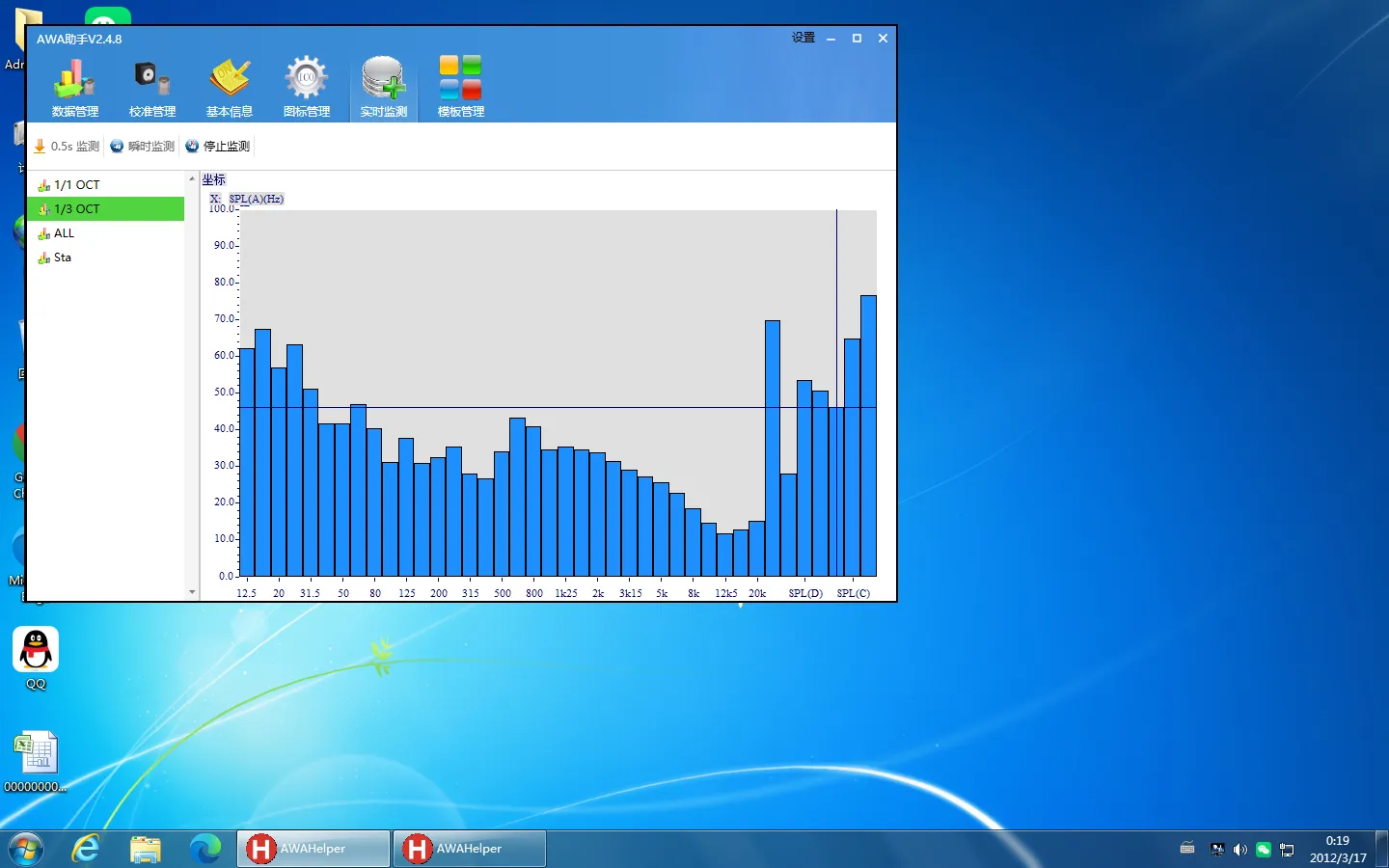

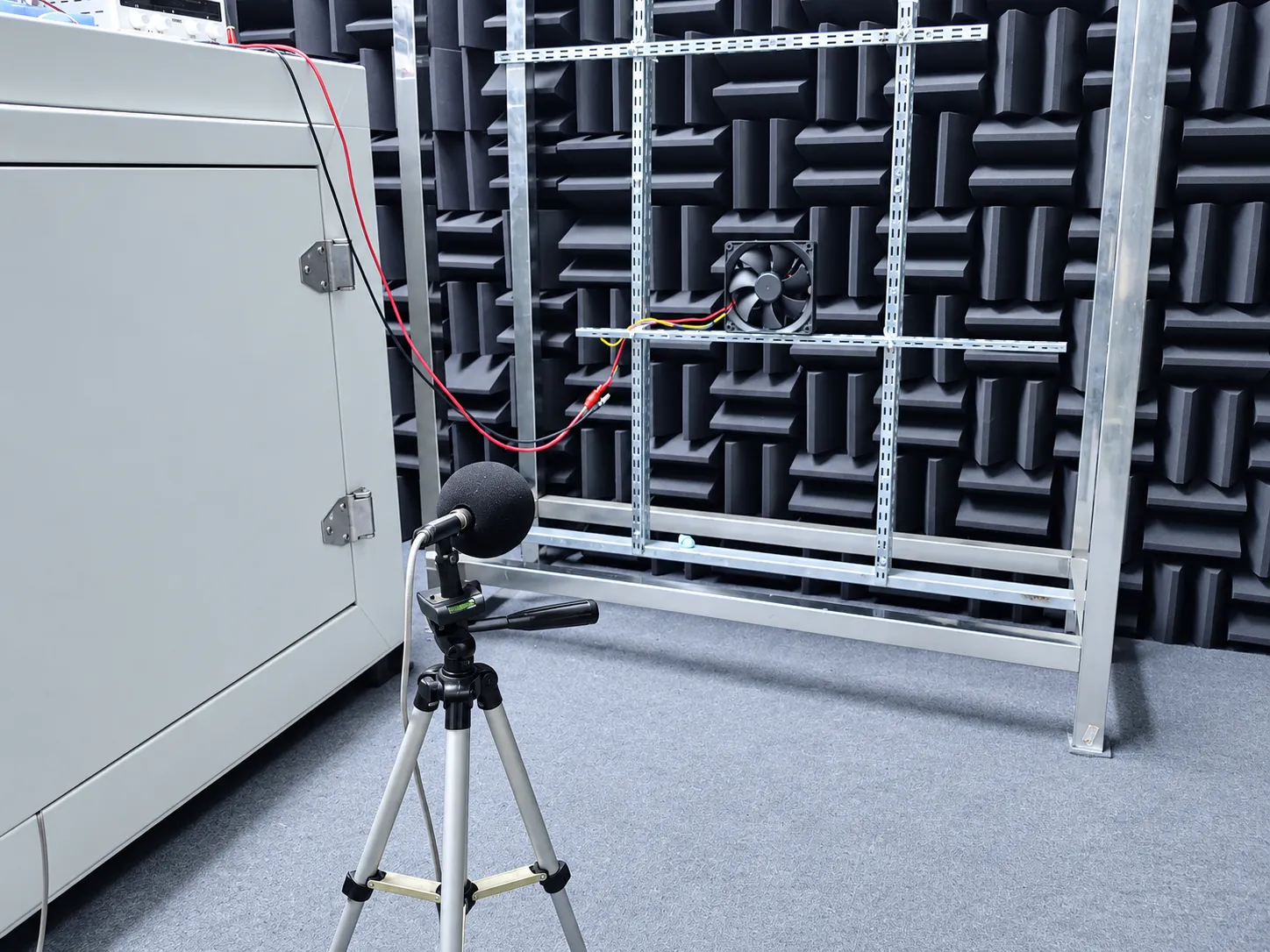

12V DC fan DA14025M12B-B261009 Noise Test

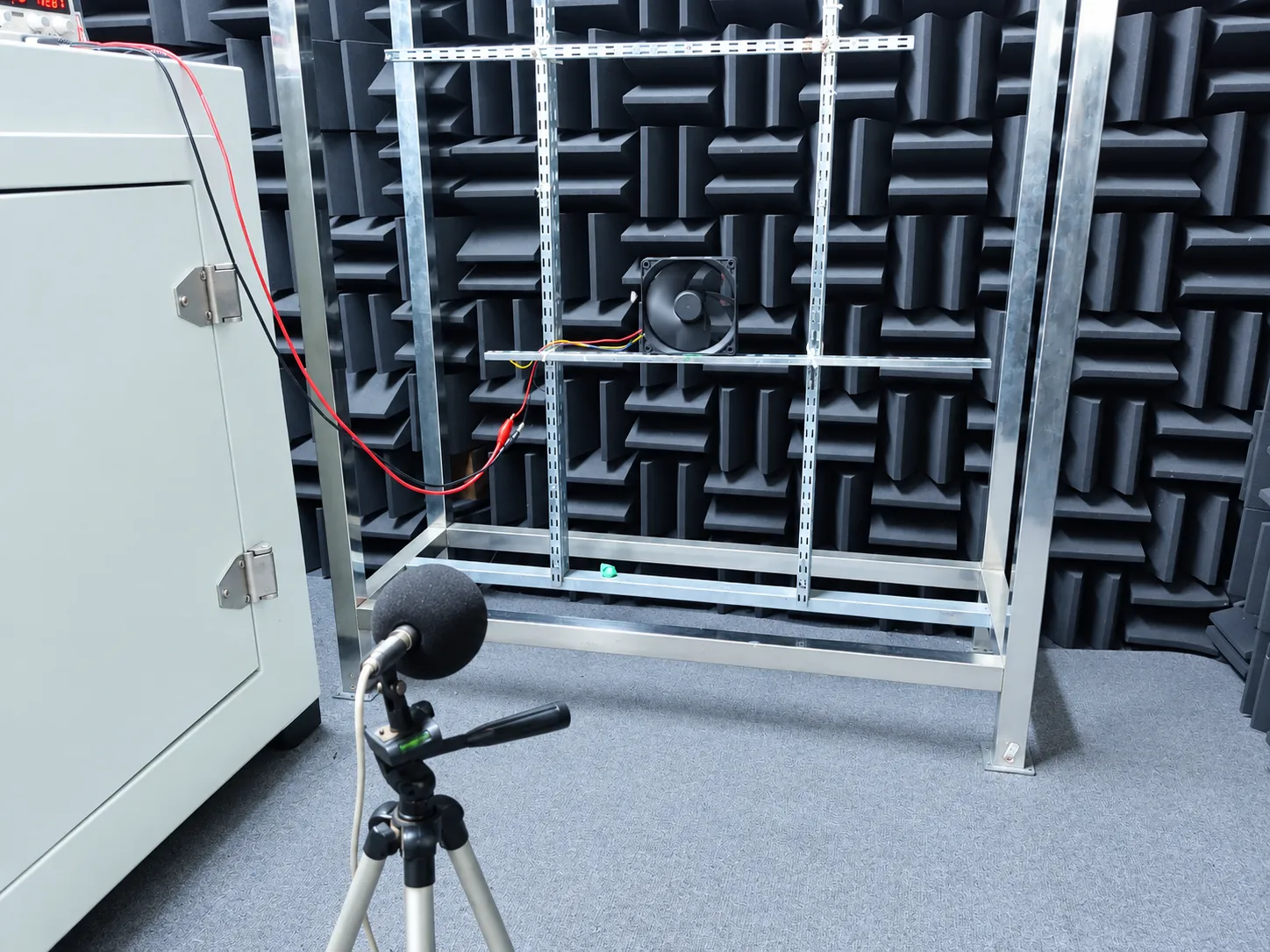

Acoustic performance and noise level testing conducted in a professional anechoic chamber to evaluate sound pressure level and spectrum characteristics. (Click image to enlarge)

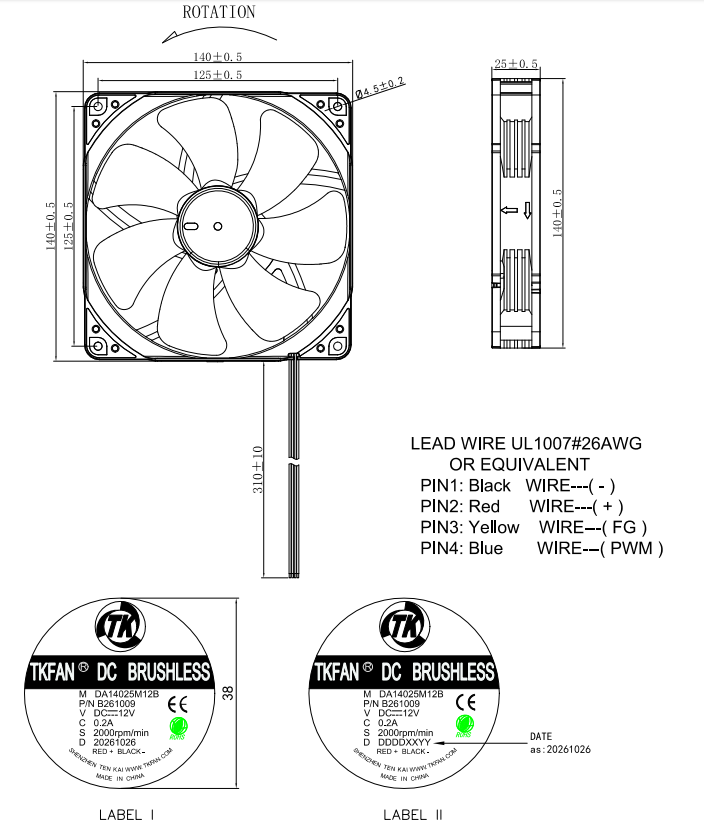

12V DC fan DA14025M12B-B261009 dimensions drawing
This technical dimension drawing illustrates the precise physical specifications, outline measurements, mounting hole pitches, and wire routing details of the DA14025M12B-B261009 12V DC micro cooling fan.
Design & Installation Highlights:
- Space-Saving Profile: Engineered to fit seamlessly into ultra-thin enclosures and compact electronic devices.
- Precise Tolerances: Accurate mechanical layout ensures hassle-free integration during assembly and structural design.
- Standard Mounting: Standardized screw hole placement facilitates secure and reliable fixture.

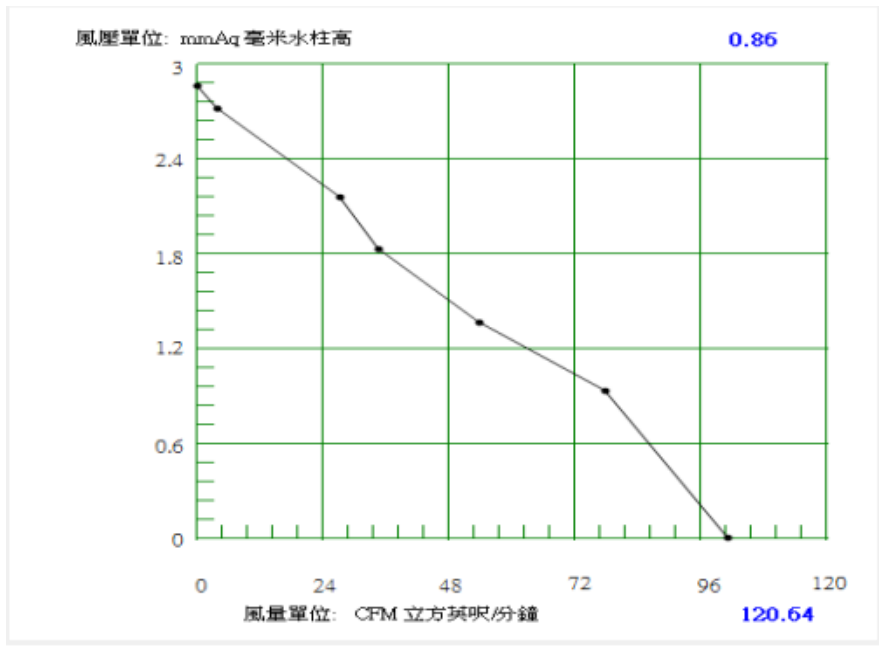

12V DC fan DA14025M12B-B261009 PQ curve
The PQ performance curve (Static Pressure vs. Airflow) demonstrates the aerodynamic capabilities and operating efficiency of the 12V DC fan under varying load conditions.
Performance Characteristics:
- Efficient Air Delivery: Provides reliable cooling performance and stable airflow output across restrictive channels.
- Optimal Operating Point: Assists engineers in identifying the ideal balance between static pressure and flow rate.
- Low Noise Balance: Designed to maintain high aerodynamic efficiency while keeping acoustic output to a minimum.
12V DC fan DA14025M12B-B261009 Video
Watch the comprehensive video demonstration of the DA14025M12B-B261009 140mm 12V DC axial cooling fan operating under real testing conditions.
Key Features & Demonstration Highlights:
- High Airflow Output: Delivers up to 100 CFM ventilation capability for industrial and server applications.
- PWM Speed Regulation: Demonstrates precise speed control across full RPM ranges up to 2000 RPM.
- FG Speed Monitoring Signal: Real-time frequency feedback output for accurate rotation monitoring.
