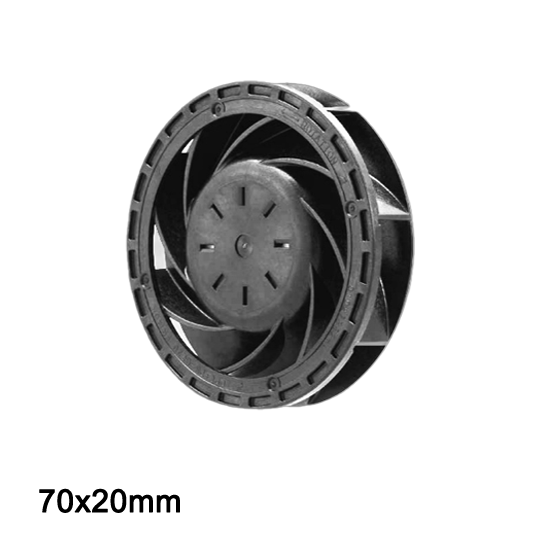

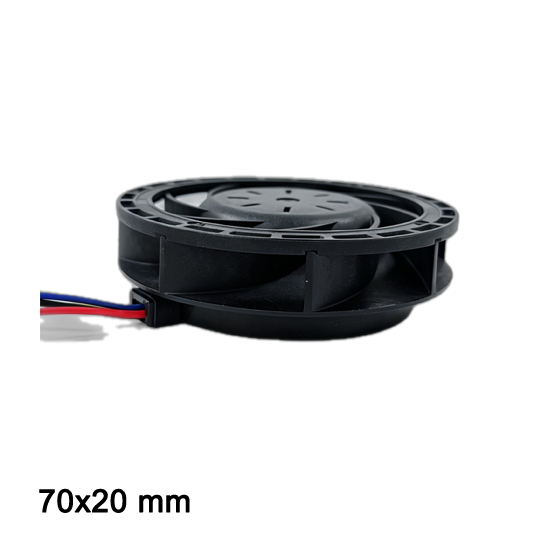

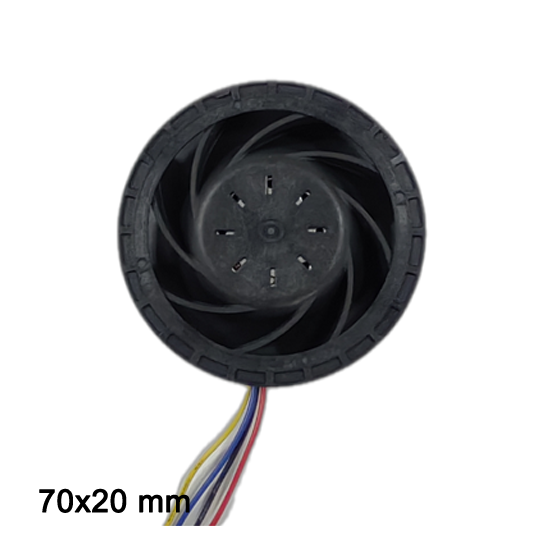

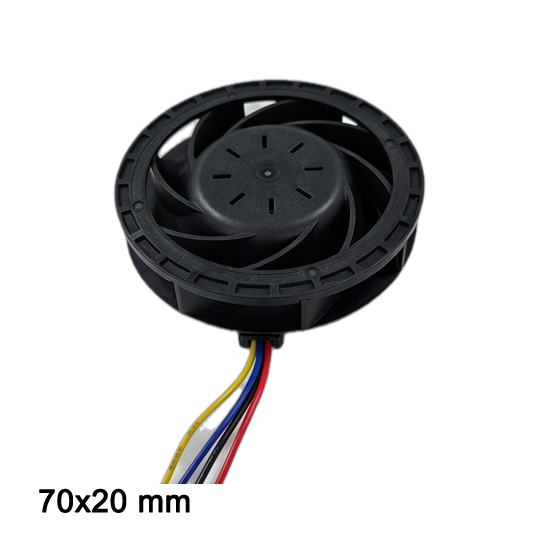

Waterproof centrifugal fan CA7020H24B-A
Waterproof centrifugal fan CA7020H24B-A
Voltage 24V
9200rpm/min
Max 42.8 cfm,0.47 kpa
Request a Sample
Structure Drawing
Technical Specifications
Centrifugal fan CA7020-A Selection Guide
Compare voltage, dimension, speed, air flow and static pressure to select the most suitable centrifugal fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| CA7020H12X | AY | 12 | 7.5~13.5 | 1 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 |
| CA7020H24X | 24 | 18~26.5 | 0.5 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 | |
| CA7020H48X | 48 | 36~54 | 0.25 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 | |
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
