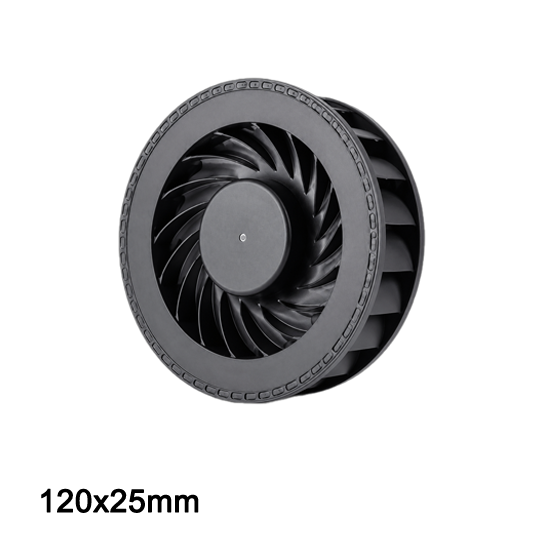

Waterproof centrifugal fan CA12025H24X
Waterproof centrifugal fan CA12025H24X
Voltage 24V
3000rpm/min
Max 68.14 cfm,0.17 kpa
Request a Sample
Technical Specifications
Centrifugal Fan CA12025-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal Fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M³/min | CFM | mmH2O | InH2O | ||||||||
| PART.NO. | - | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CA12025M12X | AY | 12 | 7.5~13.5 | 0.6 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 |
| CA12025H12X | 12 | 7.5~13.5 | 0.8 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH12X | 12 | 7.5~13.5 | 1.2 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M24X | 24 | 18~26.5 | 0.3 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H24X | 24 | 18~26.5 | 0.4 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH24X | 24 | 18~26.5 | 0.6 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M48X | 48 | 36~54 | 0.15 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H48X | 48 | 36~54 | 0.2 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH48 | 48 | 36~54 | 0.32 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
Video Showcase
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
