High speed centrifugal fan CA7025H12B

Voltage 10.8V
11100rpm/min
Max 32.3 cfm,0.44 kpa

High Speed Air Delivery

Powerful high rotating speed generates strong airflow and high static pressure to realize fast heat dissipation for enclosed equipment.

Stable 12V DC Power Supply

Standard 12V voltage matches most electronic devices, runs steadily with low power loss and stable working status.

Rugged Long Service Design

Reinforced internal structure resists vibration and abrasion, capable of durable long-time continuous operation.

Low Noise & Wide Application

Optimized blade design ensures quiet operation, ideal for household appliances, industrial instruments and portable devices cooling.

Technical Specifications

ModelCA7025H12B
Size70*70*25 mm
Operating Voltage10.8 VDC
Rated Current1.5 Amp
Rated Speed11100 RPM
Maximum Flow Rate32.3 CFM
Maximum Static Pressure0.44 kPa

High speed centrifugal fan CA7025H12B

High-performance high speed centrifugal fan CA7025H12B engineered for rapid heat dissipation and strong static pressure airflow. Product dimension and detail photos. (Click image to enlarge)

The high speed centrifugal fan CA7025H12B is a compact 70mm x 25mm blower designed for high rotational speed, strong static pressure, and efficient spot cooling in dense electronic equipment. The gallery above presents its main product profile, front impeller intake, digitally verified 70mm outer diameter and 25mm thickness, and rear mounting structure with secure connector harness—offering a complete visual and dimensional reference for engineering integration.

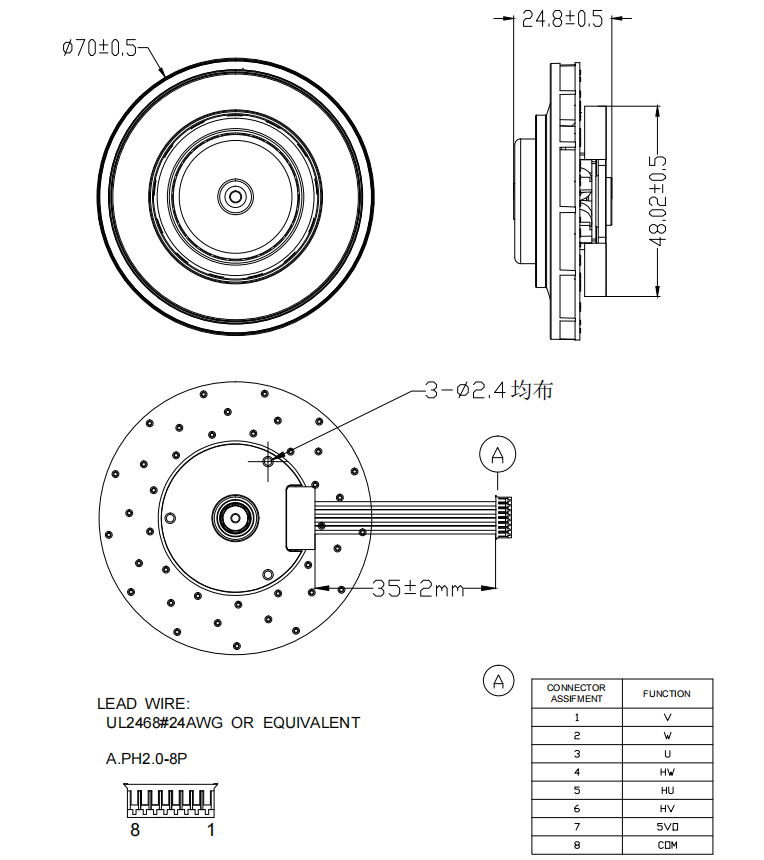

Mechanical dimensions drawing of the high speed centrifugal fan CA7025H12B

High speed centrifugal fan CA7025H12B Mechanical dimensions drawing

This mechanical dimensions drawing illustrates the precise sizing, mounting hole locations, and overall structural profile of the CA7025H12B high-speed centrifugal fan. Designed for compact integration, it provides engineers with exact specifications to ensure seamless installation into custom enclosures, cooling modules, and high-performance electronic systems.

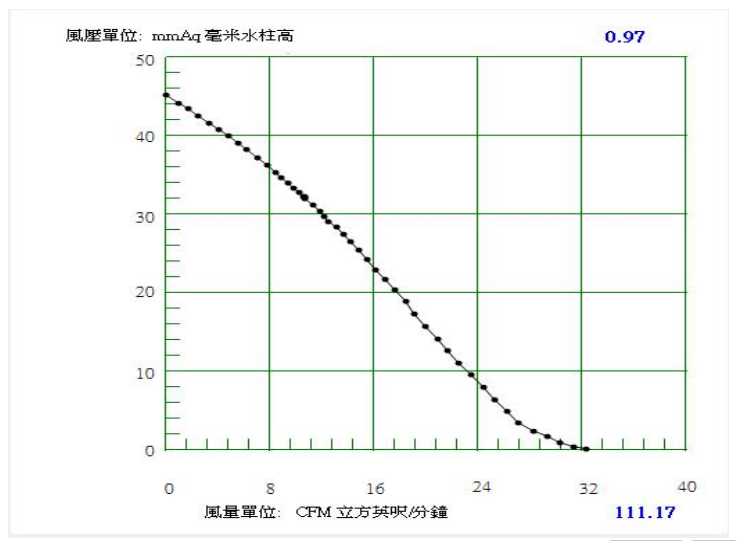

High speed centrifugal fan CA7025H12B PQ curve

The PQ (Pressure-Flow) curve characterizes the aerodynamic performance of the CA7025H12B high-speed centrifugal fan across various operational points. It maps static pressure against airflow volume, helping system designers evaluate performance under different back-pressure conditions to optimize cooling efficiency and airflow delivery.

PQ performance curve of the high speed centrifugal fan CA7025H12B
