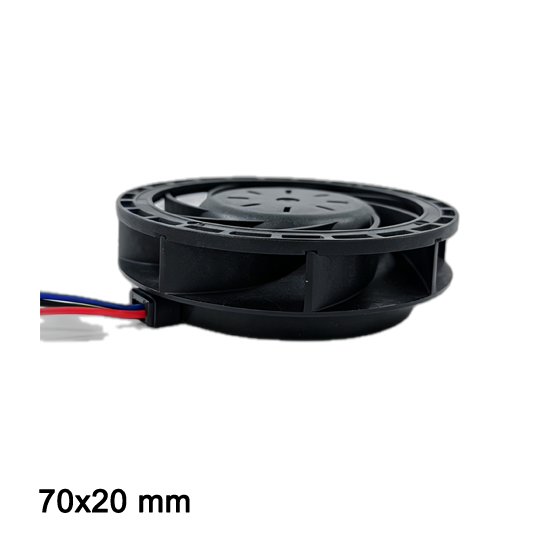

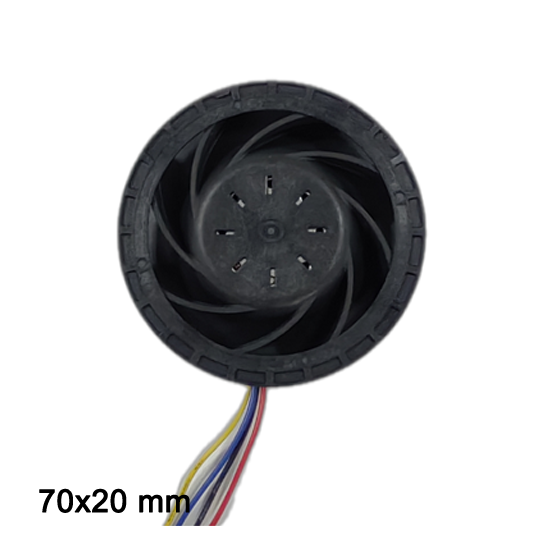

High speed centrifugal fan CA7020H48X
High speed centrifugal fan CA7020H48B-A 1.png
High speed centrifugal fan CA7020H48B-A 2.png
High speed centrifugal fan CA7020H48B-A 3.png
High speed centrifugal fan CA7020H48X
High speed centrifugal fan CA7020H48B-A 1.png
High speed centrifugal fan CA7020H48B-A 2.png
High speed centrifugal fan CA7020H48B-A 3.png

High speed centrifugal fan CA7020H48B-A

Voltage 48V
9200rpm/min
Max 42.8 cfm,0.47 kpa

Request a Sample
Structure Drawing

Silent operation design

The optimized air duct and motor structure significantly reduce operating noise, making it suitable for offices, homes, and precision equipment environments where quiet operation is required.

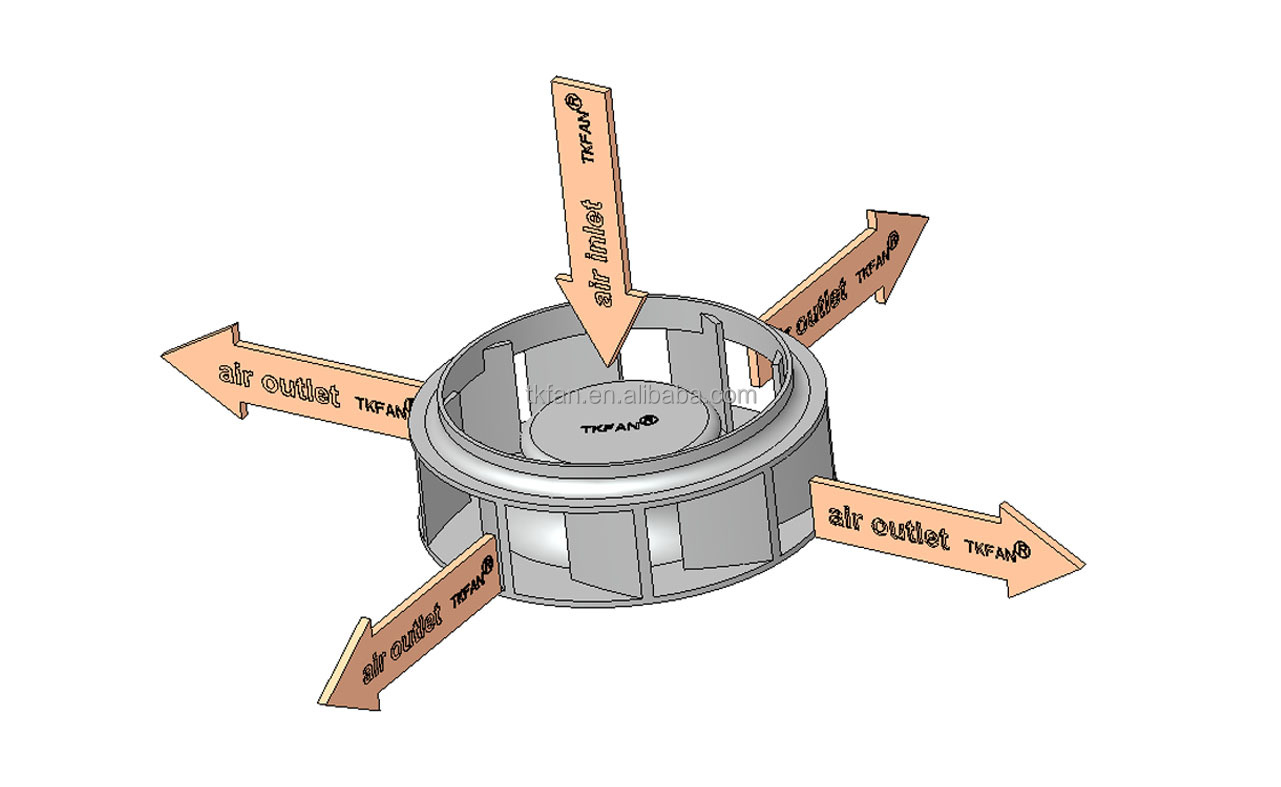

High-pressure centrifugal structure

It adopts a centrifugal blower design, which has stronger air pressure and better air gathering effect, enabling efficient directional heat dissipation and ventilation in small spaces.

Brushless motor drive

It features a built-in BLDC brushless motor, ensuring smooth operation without spark interference, low power consumption, long lifespan, and support for continuous operation over extended periods.

High-efficiency heat dissipation and ventilation

With stable airflow and high heat dissipation efficiency, it can quickly remove heat accumulated in the equipment, avoid high-temperature frequency reduction or component aging, and improve the overall stability of the machine.

Technical Specifications

ModelCA7020H48B-A
Size70*20 mm
Operating Voltage48 VDC
Rated Current0.25 Amp
Rated Speed9200 RPM
Maximum Flow Rate42.8 CFM
Maximum Static Pressure0.47 kPa
Noise60.8 dBA
High speed centrifugal fan CA7020H48B-A Dimensions drawing.png

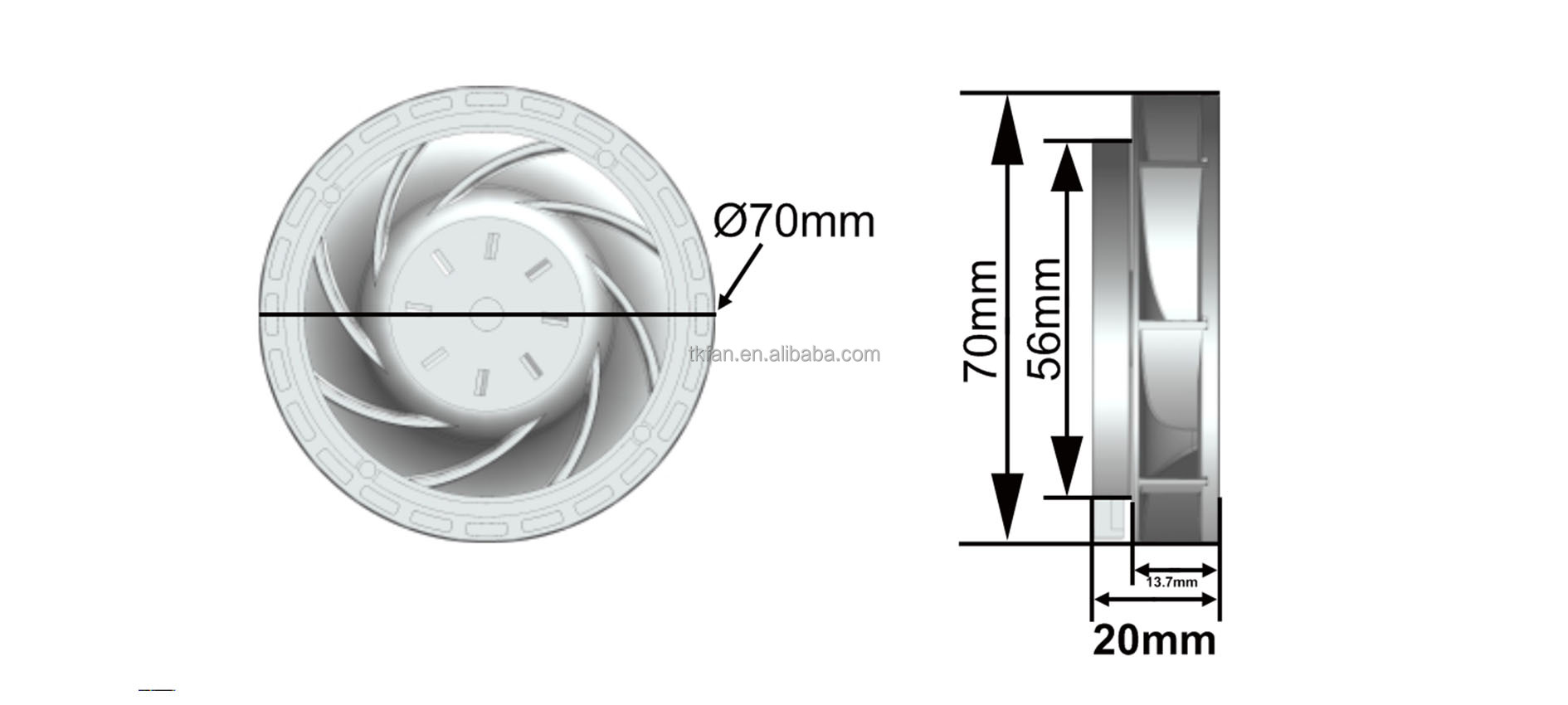

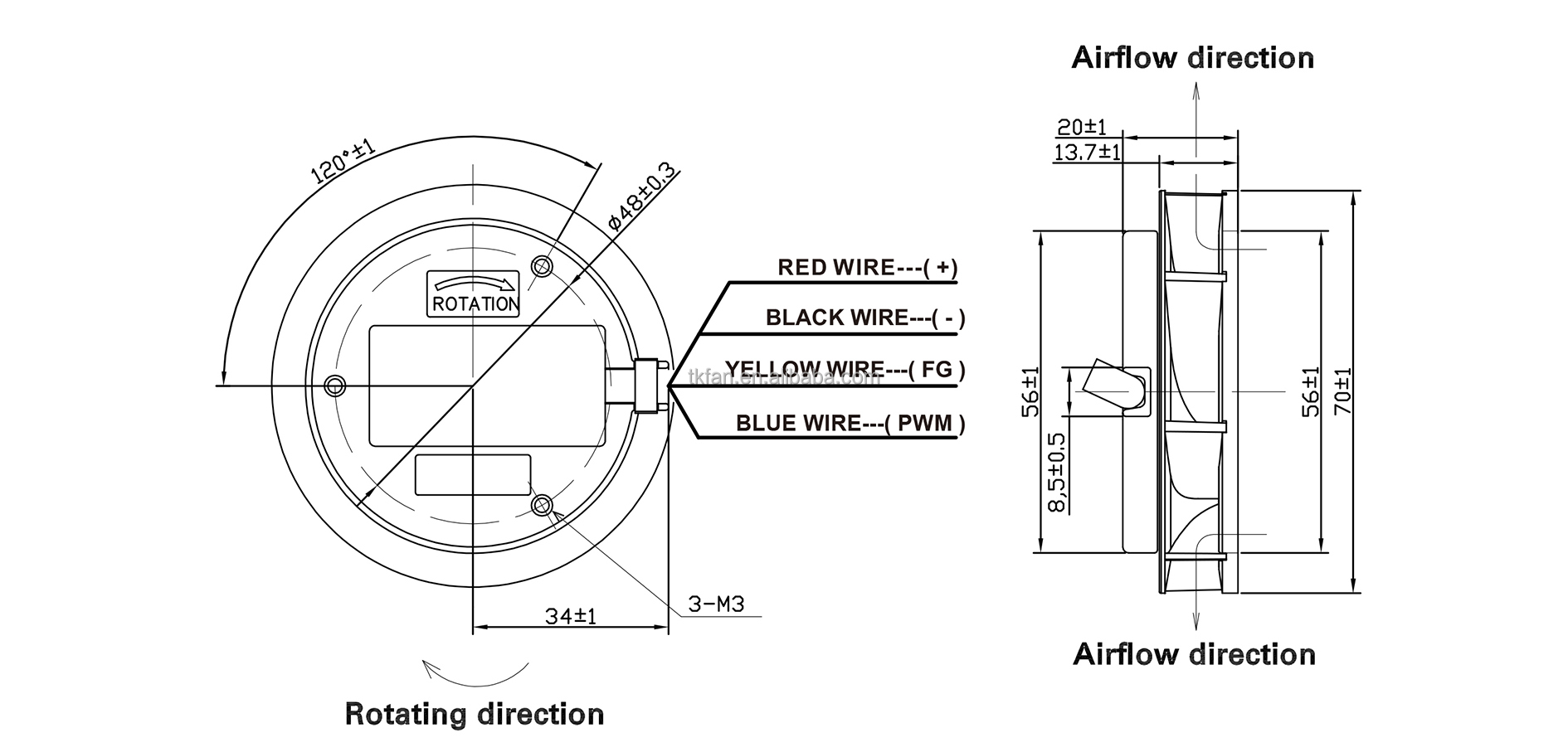

High speed centrifugal fan CA7020H48B-A Mechanical dimensions drawing

Detailed mechanical outline and precise mounting hole specifications for the CA7020H48B-A high-speed centrifugal fan. Designed for compact electronic enclosures, servers, and high-performance thermal systems, ensuring seamless mechanical integration, structural stability, and reliable installation.

High speed centrifugal fan CA7020H48B-A PQ curve

The performance curve (PQ curve) illustrates the relationship between static pressure and air flow for the CA7020H48B-A centrifugal fan. It provides essential engineering data to evaluate aerodynamic efficiency, system resistance handling, and optimal operating points under various back-pressure conditions.

High speed centrifugal fan CA7020H48B-A PQ Curve.png

Centrifugal fan CA7020-A Selection Guide

Compare voltage, dimension, speed, air flow and static pressure to select the most suitable centrifugal fan for your equipment design.

ModelP/N CodeRated VoltageOperating Voltage RangeRated CurrentRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise
VDCVDCAmpWattR.P.MM³/minCFMmmH2OInH2OdB-A
CA7020H12X AY 127.5~13.511292001.2142.848.11.8960.8
CA7020H24X 2418~26.50.51292001.2142.848.11.8960.8
CA7020H48X 4836~540.251292001.2142.848.11.8960.8
