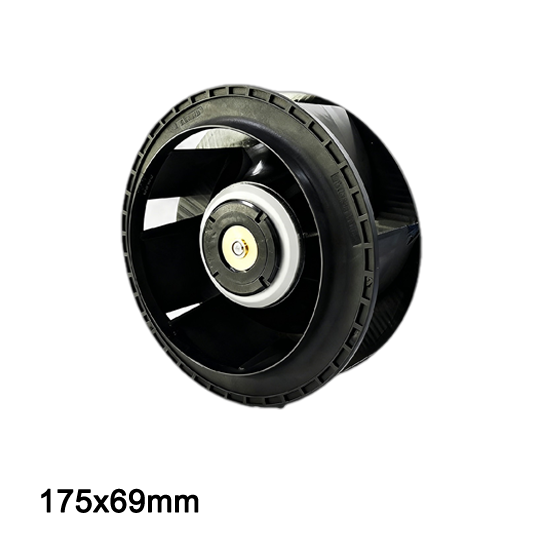

High speed centrifugal fan CA17569HV48B-B
High speed centrifugal fan CA17569HV48B-B
Voltage 48V
5700rpm/min
Max 666 cfm,1 kpa
Request a Sample
Structure Drawing
Technical Specifications

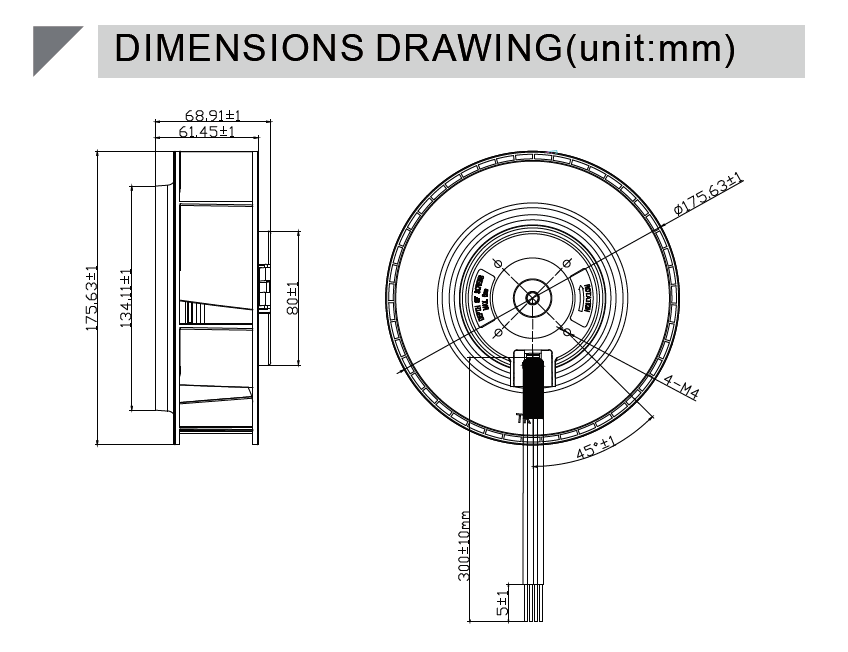

High speed centrifugal fan CA17569HV48B-B dimensions drawing
The comprehensive mechanical outline drawing illustrates the precise physical specifications and mounting parameters of the CA17569HV48B-B high-speed centrifugal fan.
- Standard 175x69mm Dimensions: Expertly designed to fit standard high-performance industrial equipment housings without spatial interference.
- Precision Mounting Layout: Built with exact screw-hole alignment and optimized structural flanges for easy installation and secure mechanical retention.
- Rugged Build Quality: Constructed with industrial-grade materials to withstand continuous high-speed rotation and severe thermal stresses.

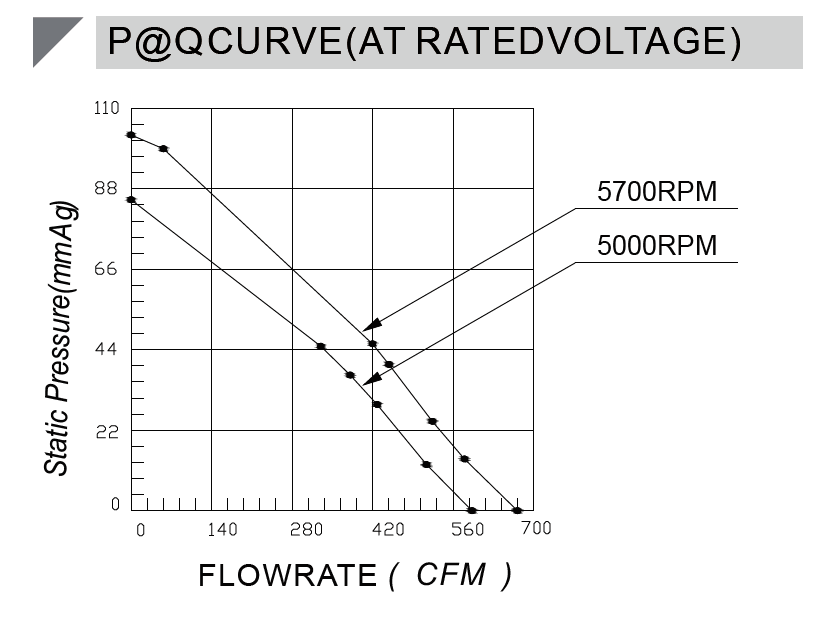

High speed centrifugal fan CA17569HV48B-B PQ curve
The Airflow vs. Static Pressure (PQ curve) profile highlights the aerodynamic excellence and high-pressure performance of this high-speed 48V centrifugal fan.
- High Static Pressure Performance: Reaches a peak static pressure of 102.1 mmH2O (1 kPa), making it optimal for high-impedance cooling paths.
- High Air Volume Delivery: Generates up to 666 CFM (18.85 m³/min) of maximum air volume at a high operating speed of 5700 RPM.
- Optimized Efficiency: Designed for demanding applications such as high-density server enclosures, telecommunication power systems, and industrial ventilation.
Centrifugal fan CA17569-B Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal fan CA17569-B for your equipment design.
| Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| CA17569VH24B | 24 | 18 ~26.5 | 5.0 | 120 | 5000 | 16.7 | 589.7 | 85.7 | 3.38 | 79 |
| CA17569HV24B | 24 | 18 ~26.5 | 7.6 | 182.4 | 5700 | 18.85 | 666 | 102.1 | 4.02 | 82.9 |
| CA17569VH48B | 48 | 36 ~54 | 2.5 | 120 | 5000 | 16.7 | 589.7 | 85.7 | 3.38 | 79 |
| CA17569HV48B | 48 | 36 ~54 | 3.8 | 182.4 | 5700 | 18.85 | 666 | 102.1 | 4.02 | 82.9 |
High speed centrifugal fan CA17569HV48B-B Video Presentation
Watch the live video demonstration of the High speed centrifugal fan CA17569HV48B-B to see its powerful performance, build quality, and operational dynamics in action.
- High Airflow Output: Showcases the massive 666 CFM air volume delivery and robust industrial capability.
- PWM Speed Control: Demonstrates precise speed regulation and smooth 5700RPM high-speed operation.
- Application Insight: Provides a clear visual reference of the 48V 175mm centrifugal blower's physical footprint and robust engineering.
