220mm AC centifugal fan
- 220mm AC centrifugal blower
- High static pressure
- Low noise stable operation
- Long service life
- Custom available
Request a Sample

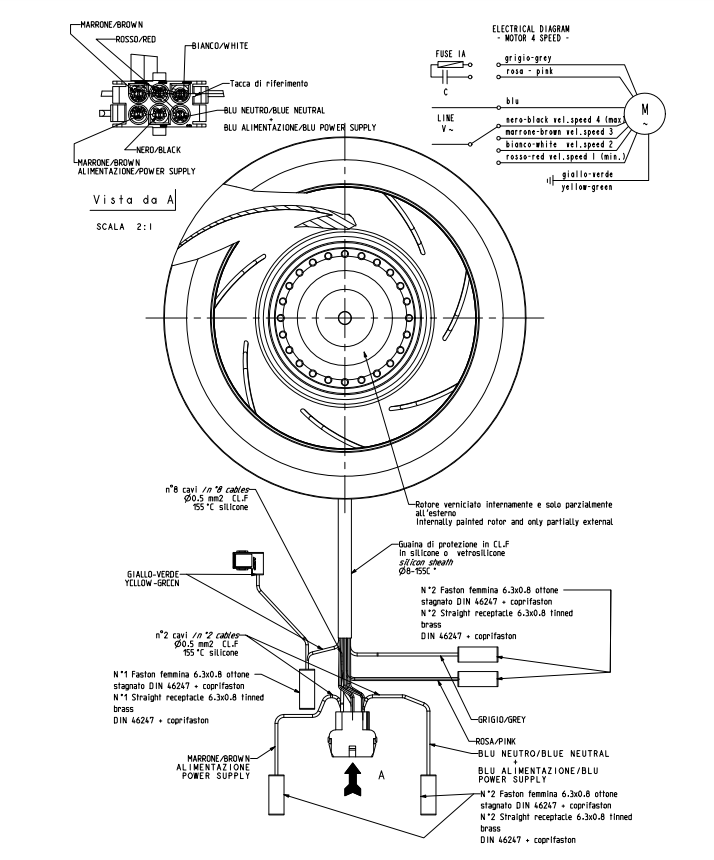

TKFAN 220mm AC Centrifugal Fan: Impeller Structure and Wiring Schematic
This detailed structural layout highlights the backward-curved impeller design and precision engineering of our 220mm AC centrifugal fan. Optimized through advanced computational fluid dynamics, the aerodynamically balanced impeller maximizes air delivery while minimizing turbulence. The integrated wiring schematic clearly illustrates standard terminal connections, grounding configurations, and safety protections, ensuring seamless, secure electrical integration into high-capacity industrial ventilation and HVAC systems.

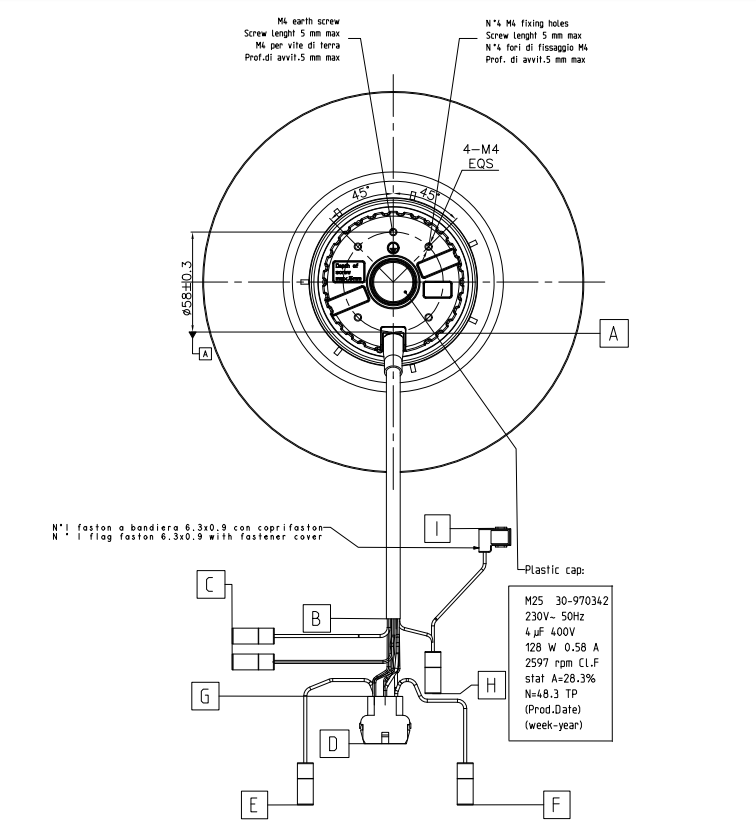

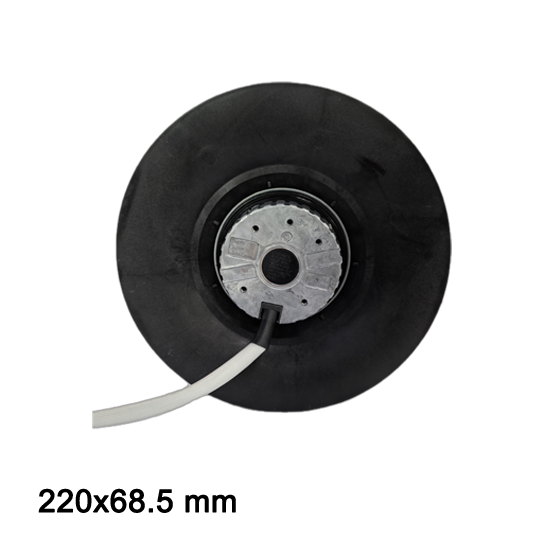

TKFAN 220mm AC Centrifugal Fan: Rear View and Wiring
The rear profile view showcases the robust external rotor motor housing, sturdy mounting flange, and professional wiring harness arrangement. Engineered for continuous 24/7 heavy-duty operations, the rear structure provides exceptional thermal dissipation capabilities and secure conduit entry options. Designed to withstand harsh industrial environments, it guarantees stable long-term performance under demanding grid voltage conditions.

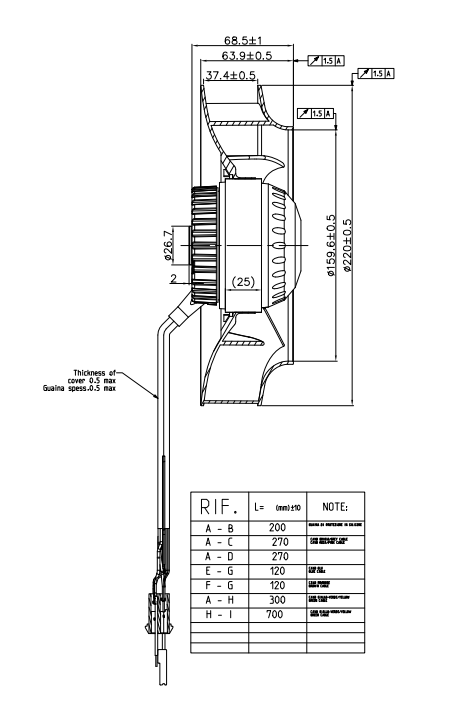

TKFAN 220mm AC Centrifugal Fan: Side Cross-Sectional Dimensions
Featuring precise mechanical cross-sectional measurements, this technical layout outlines the exact depth, scroll housing curvature, and mounting hole positions of the 220mm AC centrifugal fan. These accurate dimensional specs help mechanical engineers integrate the blower seamlessly into compact enclosures, server racks, and specialized air-handling equipment without spatial interference.

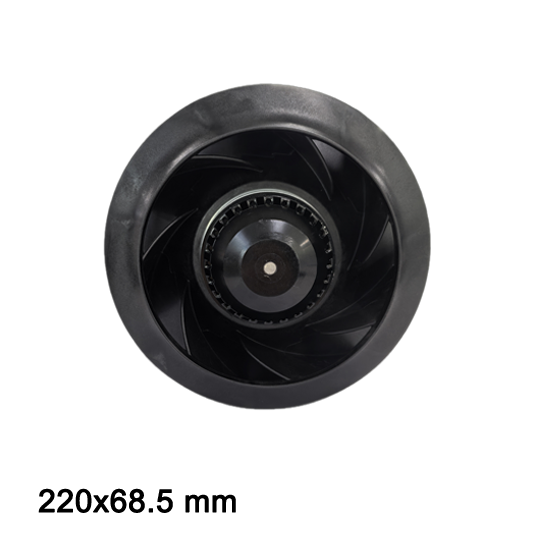

TKFAN 220mm AC Centrifugal Fan: Front View
The front intake profile displays the optimized inlet ring and sturdy protective grille integration, designed to ensure smooth, unobstructed airflow entry while preventing foreign object ingress. Built for high-pressure output and reliable operational stability, this front perspective highlights the premium finish and rugged build quality characteristic of TKFAN industrial ventilation solutions.
× ![]()
Looking for different sizes or specifications?
Explore our full range of AC centrifugal fan, or choose from similar models below.
AC centrifugal fan
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
