Voltage 48V
9200rpm/min
Max 42.8 cfm,0.47 kpa

Request a Sample
Structure Drawing

Industrial-Grade 48V Stable Voltage

Operating on standard 48V DC power, this fan ensures excellent voltage adaptability and anti-interference performance for long-term stability in harsh industrial environments.

High-Speed Efficient Cooling

The high-speed core mechanics of CA7020H48B-A generate powerful, concentrated airflow that rapidly dissipates intensive heat, significantly boosting overall system efficiency.

Optimized Airflow & Low Noise Operation

The precision-engineered centrifugal impeller ensures high airflow volume while effectively minimizing air turbulence and vibration, achieving a perfect balance between superior cooling and quiet operation.

Durable Construction & Extended Lifespan

Built with premium bearings and wear-resistant materials, this fan is crafted for longevity, effectively lowering maintenance frequency and total cost of ownership for your equipment.

Technical Specifications

ModelCA7020H48B-A
Size70*20 mm
Operating Voltage48 VDC
Rated Current0.25 Amp
Rated Speed9200 RPM
Maximum Flow Rate42.8 CFM
Maximum Static Pressure0.47 kPa
Noise60.8 dBA

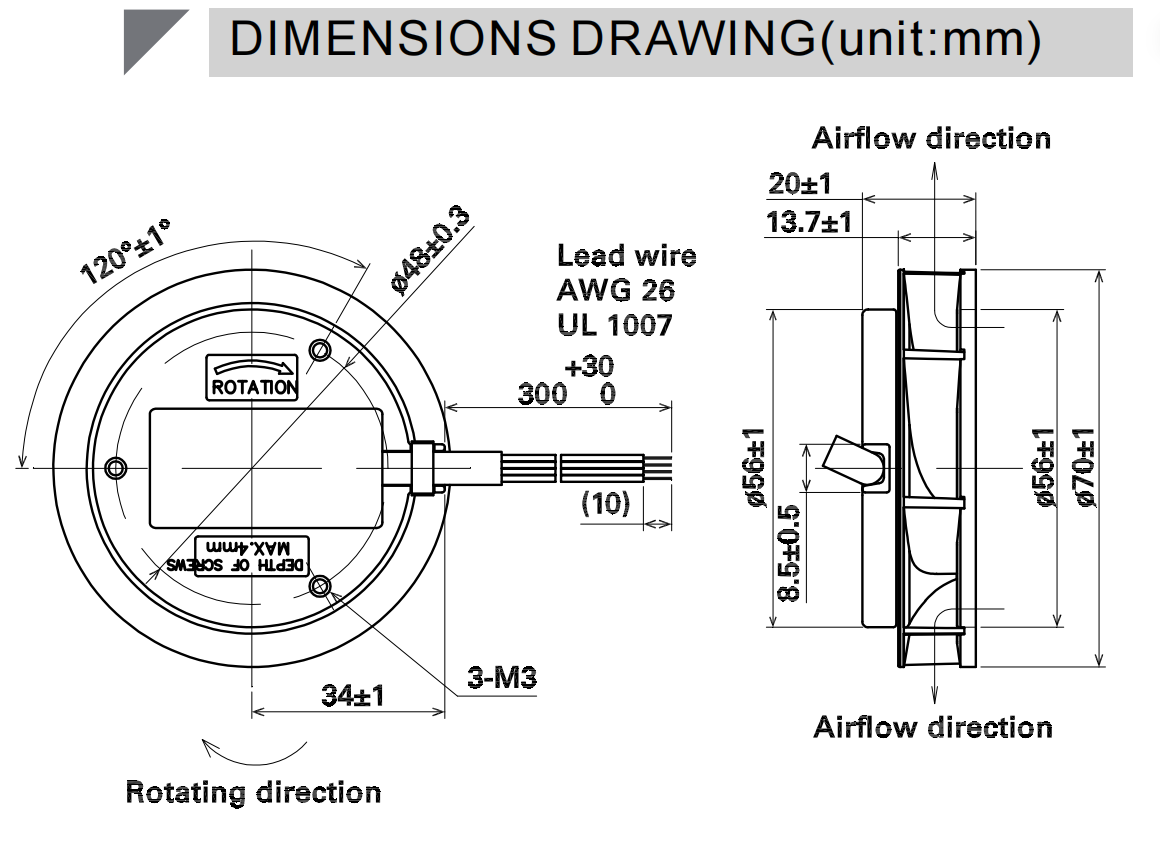

48v Centrifugal fan CA7020H48B-A Mechanical dimensions drawing

48v Centrifugal fan CA7020H48B-A Mechanical dimensions drawing

Detailed mechanical dimensions and outline specifications of the CA7020H48B-A centrifugal fan. Designed with precision mounting holes and a compact form factor to ensure seamless integration into tight enclosures, servers, and high-performance electronic cooling systems.

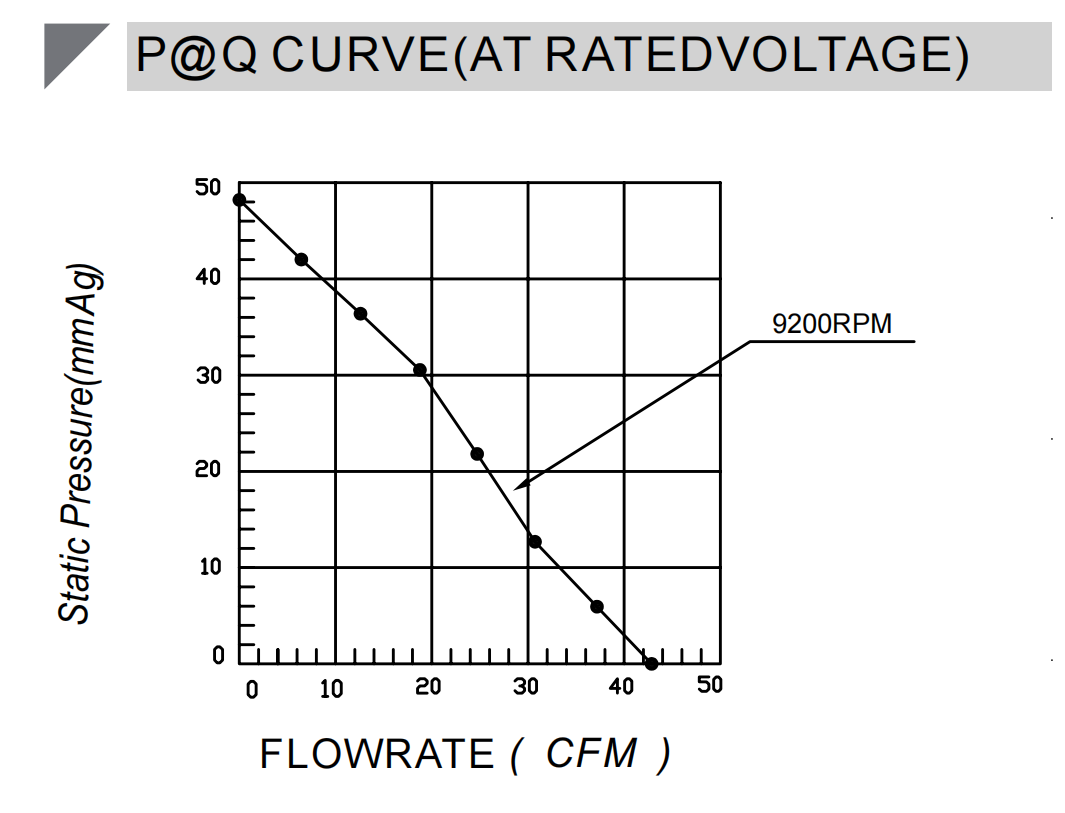

48v Centrifugal fan CA7020H48B-A PQ curve

The performance PQ (Pressure-Flow) curve illustrates the precise aerodynamic relationship between static pressure and airflow capacity. It highlights the fan's robust performance, high static pressure output, and stable airflow efficiency under varying system resistance conditions.

48v Centrifugal fan CA7020H48B-A PQ curve

Centrifugal fan CA7020-A Selection Guide

Compare voltage, dimension, speed, air flow and static pressure to select the most suitable centrifugal fan for your equipment design.

ModelP/N CodeRated VoltageOperating Voltage RangeRated CurrentRated Input PowerSpeedMaximum Air FlowMaximum Air PressureNoise
VDCVDCAmpWattR.P.MM³/minCFMmmH2OInH2OdB-A
CA7020H12BAY127.5~13.511292001.2142.848.11.8960.8
CA7020H24B2418~26.50.51292001.2142.848.11.8960.8
CA7020H48B4836~540.251292001.2142.848.11.8960.8
