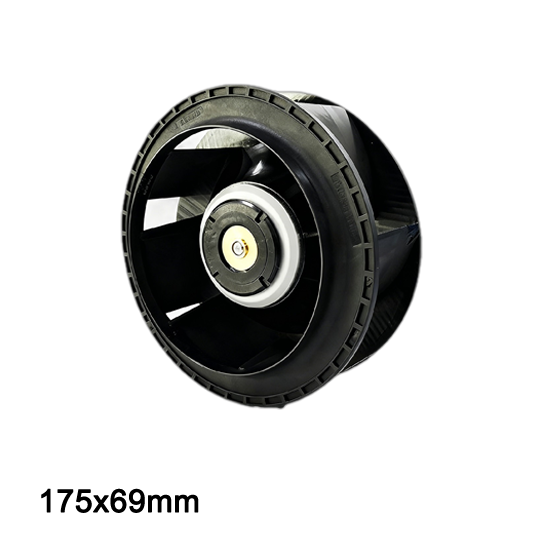

48V DC Centrifugal Fan CA17569HV48B-B (Equivalent to SANYO 9TGA48P0G001)
48V DC Centrifugal Fan CA17569HV48B-B (Equivalent to SANYO 9TGA48P0G001)
Voltage 48V
5700rpm/min
Max 666 cfm,1 kpa
Request a Sample
Structure Drawing
Technical Specifications

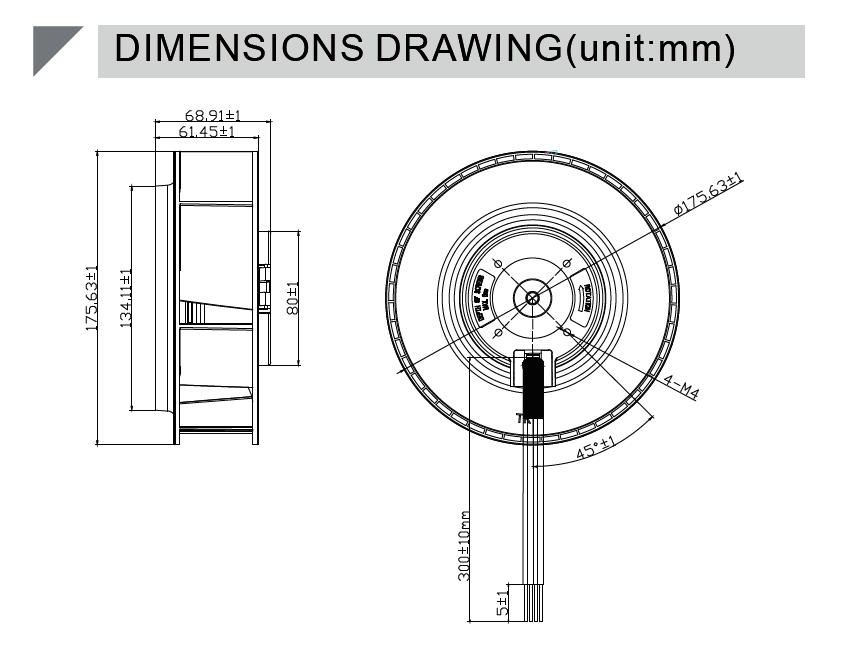

48V DC Centrifugal Fan CA17569HV48B-B (Equivalent to SANYO 9TGA48P0G001) dimensions drawing
The precise mechanical layout and dimensions drawing illustrate the exact physical configuration of the CA17569HV48B-B centrifugal fan.
- Standard 175x69mm Form Factor: Designed with exact mechanical envelope specifications to provide a seamless, direct drop-in replacement for SANYO San Ace 9TGA48P0G001 and 9TGA48P0G series.
- Mounting Interface: Features precise hole positioning and structural mounting flanges, allowing straightforward retrofitting without altering existing system chassis or air ducts.
- Durable Structure: Built using heavy-duty materials tailored to withstand demanding industrial vibrations and high-stress operating environments.

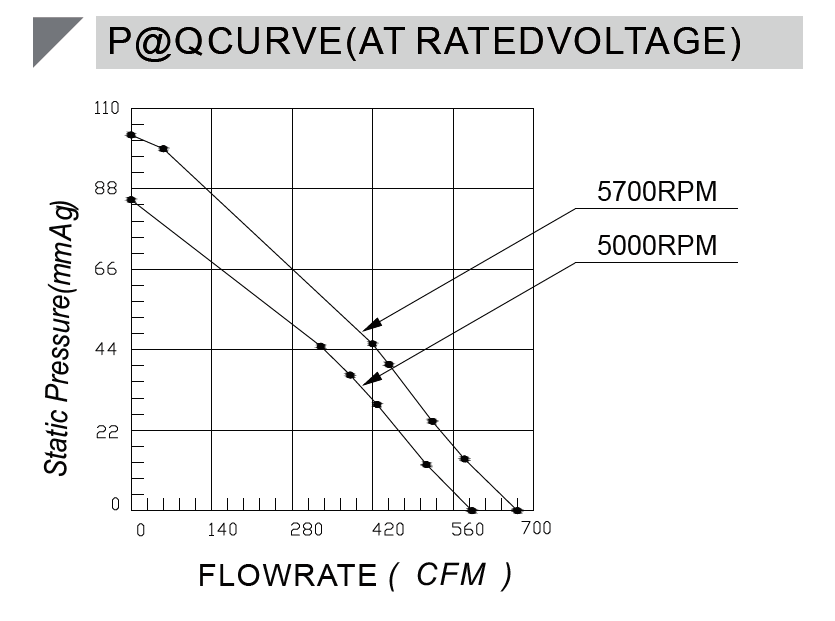

48V DC Centrifugal Fan CA17569HV48B-B (Equivalent to SANYO 9TGA48P0G001) PQ curve
The Airflow vs. Static Pressure (PQ curve) demonstrates the optimized aerodynamic efficiency and high-pressure performance of the CA17569HV48B-B 48V blower.
- High Static Pressure Capacity: Reaches an exceptional maximum static pressure of 102.1 mmH2O (1 kPa), making it ideal for high-impedance cooling systems and dense server racks.
- High Air Volume Delivery: Delivers up to 666 CFM (18.85 m³/min) of maximum airflow at a rated speed of 5700 RPM.
- Equivalent Curve Alignment: Delivers performance curves matching the SANYO 9TGA48P0G001 standard, ensuring reliable heat dissipation in telecommunications, data centers, and heavy-duty industrial equipment.
Direct Replacement for SANYO 9TGA48P0G001 / 9TGA48P0G
Searching for a high-performance alternative to SANYO DENKI San Ace 9TGA48P0G001 (9TGA48P0G)? The CA17569HV48B-B is engineered as a direct drop-in replacement featuring identical 175x69mm dimensions, 48V DC input, 666 CFM airflow, and 1 kPa static pressure.
| Specification | SANYO Denki Model | TKFAN Alternative |
|---|---|---|
| Model Number | 9TGA48P0G001 / 9TGA48P0G | CA17569HV48B-B |
| Rated Voltage | 48 VDC | 48 VDC |
| Max Air Flow | 666 CFM (18.85 m³/min) | 666 CFM (18.85 m³/min) |
| Rated Speed | 5700 RPM | 5700 RPM |
| Static Pressure | 102.1 mmH2O (1 kPa) | 102.1 mmH2O (1 kPa) |
| Compatibility | Original OEM | 100% Drop-in Equivalent |
*Disclaimer: SANYO and SANYO DENKI are registered trademarks of their respective owners. Model numbers are referenced for compatibility purposes only.
