CA15035HV48X DC Centrifugal Fan – Equivalent / Replacement for Sanyo Denki San Ace 9TN48P1H01
CA15035HV48X DC Centrifugal Fan – Equivalent / Replacement for Sanyo Denki San Ace 9TN48P1H01
Voltage 48V
3700rpm/min
Max 159 cfm,0.36 kpa
Request a Sample
Structure Drawing
Technical Specifications
Direct Replacement / Equivalent for Sanyo Denki San Ace 9TN48P1H01
The CA15035HV48X 48V DC centrifugal fan is designed as a direct drop-in replacement and cross-reference alternative for the Sanyo Denki San Ace 9TN48P1H01 (150x35mm series). It delivers equivalent high static pressure performance, mounting dimensions, and airflow characteristics for seamless system integration.

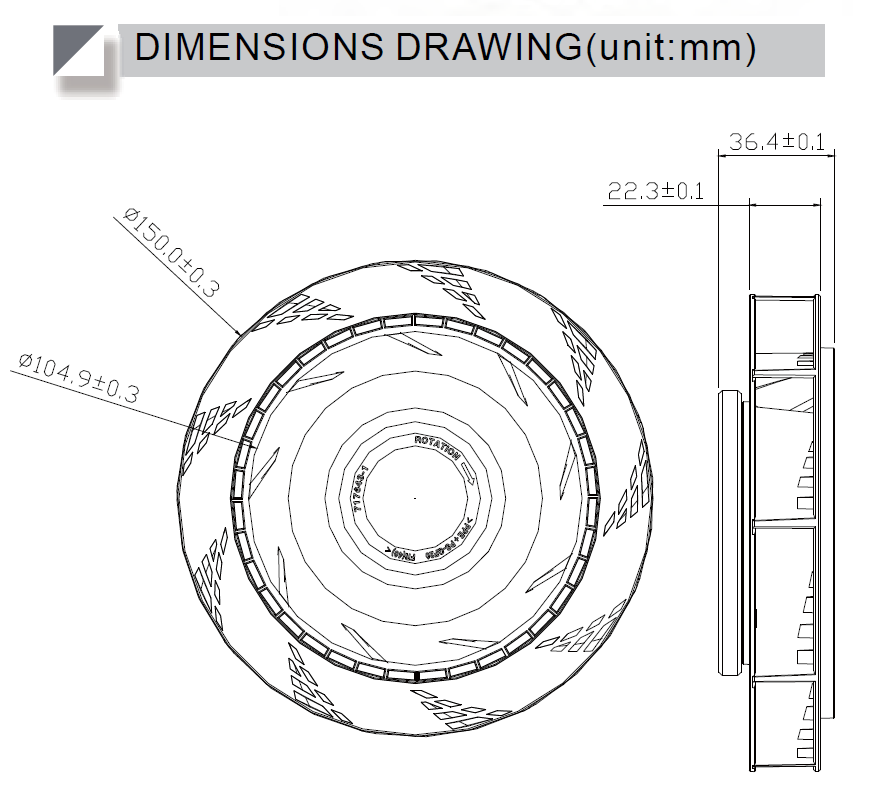

Centrifugal Fan CA15035-A Dimensions Drawing (Sanyo Denki 9TN48P1H01 Equivalent)
Detailed mechanical dimensions drawing of the CA15035-A series centrifugal fan (150x35mm). Drop-in mounting compatible with Sanyo Denki 9TN48P1H01, highlighting mounting holes, casing outline, and outlet specifications.

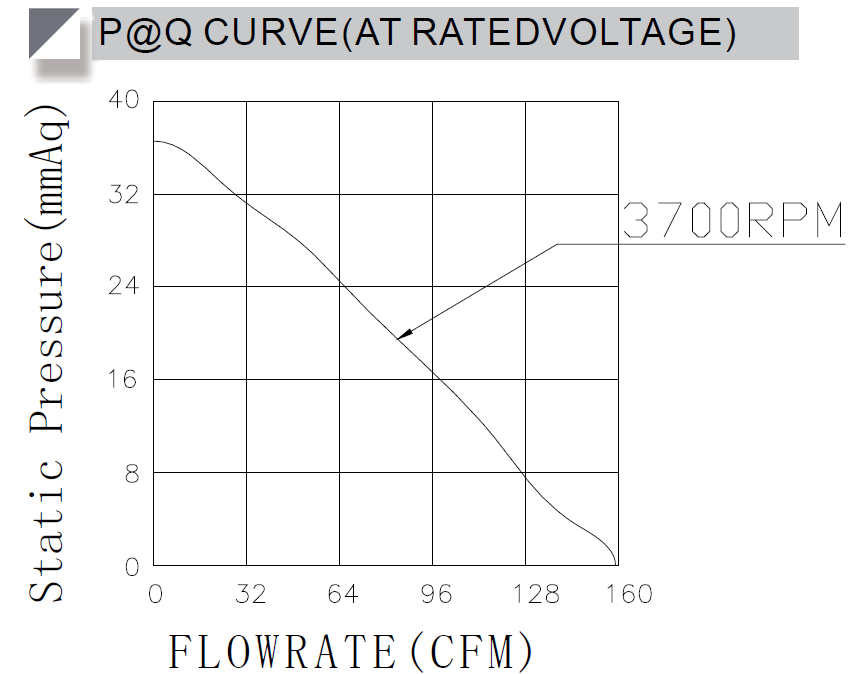

Centrifugal Fan CA15035-A PQ Curve Performance
Performance P-Q (Airflow vs. Static Pressure) characteristic curve for the CA15035-A / CA15035HV48X centrifugal fan, demonstrating airflow up to 159.15 CFM and static pressure performance comparable to San Ace 9TN48P1H01.
Centrifugal Fan CA15035-A Selection & Replacement Guide
Technical specification table to assist in selecting the optimal CA15035-A centrifugal fan model or replacing Sanyo Denki 9TN48P1H01 / 24V / 48V models based on voltage, input power, speed, airflow, and static pressure.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | Cross Reference | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |||
| PART.NO. | AY | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | Target Model |
| CA15035HV24X | 24 | 18~26.5 | 0.77 | 18.48 | 3700 | 4.504 | 159.15 | 36.56 | 1.439 | 64.3 | 24V Equivalent | |
| CA15035HV48X | 48 | 36~54 | 0.385 | 18.48 | 3700 | 4.504 | 159.15 | 36.56 | 1.439 | 64.3 | Sanyo Denki 9TN48P1H01 | |
