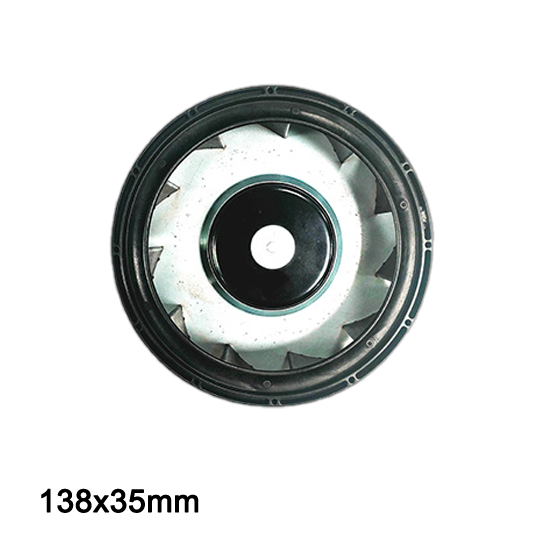

48v Centrifugal fan CA13835VH48X
Voltage 48V
6000rpm/min
Max 166 cfm,0.39 kpa
Request a Sample
Technical Specifications
Centrifugal fan CA13835-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal Fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| CA13835H12X | AY | 12 | 7.5 ~13.5 | 0.42 | 5.04 | 2650 | 2.29 | 81.0 | 5.7 | 0.22 | 50.6 |
| CA13835HH12X | 12 | 7.5 ~13.5 | 1.2 | 14.4 | 4000 | 3.33 | 117.7 | 19.4 | 0.76 | 64.9 | |
| CA13835HV12X | 12 | 7.5 ~13.5 | 2.4 | 28.8 | 5000 | 3.95 | 139.4 | 28.1 | 1.11 | 69.7 | |
| CA13835VH12X | 12 | 7.5 ~13.5 | 3.8 | 45.6 | 6000 | 4.7 | 166.0 | 39.6 | 1.56 | 75.3 | |
| CA13835H24X | 24 | 18 ~26.5 | 0.21 | 5.04 | 2650 | 2.29 | 81.0 | 5.7 | 0.22 | 50.6 | |
| CA13835HH24X | 24 | 18 ~26.5 | 0.6 | 14.4 | 4000 | 3.33 | 117.7 | 19.4 | 0.76 | 64.9 | |
| CA13835HV24X | 24 | 18 ~26.5 | 1.2 | 28.8 | 5000 | 3.95 | 139.4 | 28.1 | 1.11 | 69.7 | |
| CA13835VH24X | 24 | 18 ~26.5 | 1.9 | 45.6 | 6000 | 4.7 | 166.0 | 39.6 | 1.56 | 75.3 | |
| CA13835H48X | 48 | 36 ~54 | 0.11 | 5.04 | 2650 | 2.29 | 81.0 | 5.7 | 0.22 | 50.6 | |
| CA13835HH48X | 48 | 36 ~54 | 0.3 | 14.4 | 4000 | 3.33 | 117.7 | 19.4 | 0.76 | 64.9 | |
| CA13835HV48X | 48 | 36 ~54 | 0.6 | 28.8 | 5000 | 3.95 | 139.4 | 28.1 | 1.11 | 69.7 | |
| CA13835VH48X | 48 | 36 ~54 | 0.95 | 45.6 | 6000 | 4.7 | 166.0 | 39.6 | 1.56 | 75.3 | |
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
