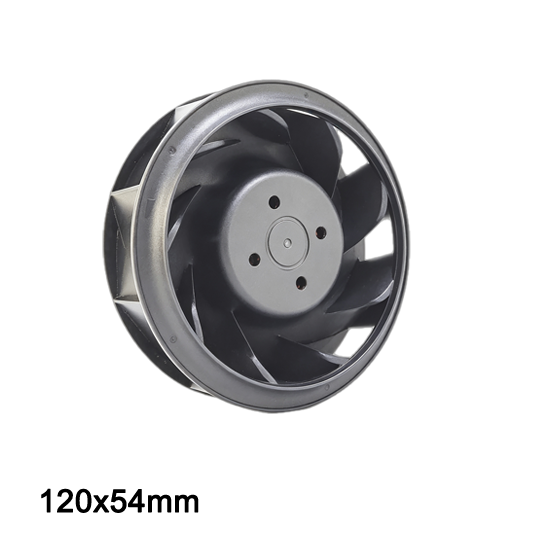

48v Centrifugal fan CA12051H48X
Voltage 48V
6000rpm/min

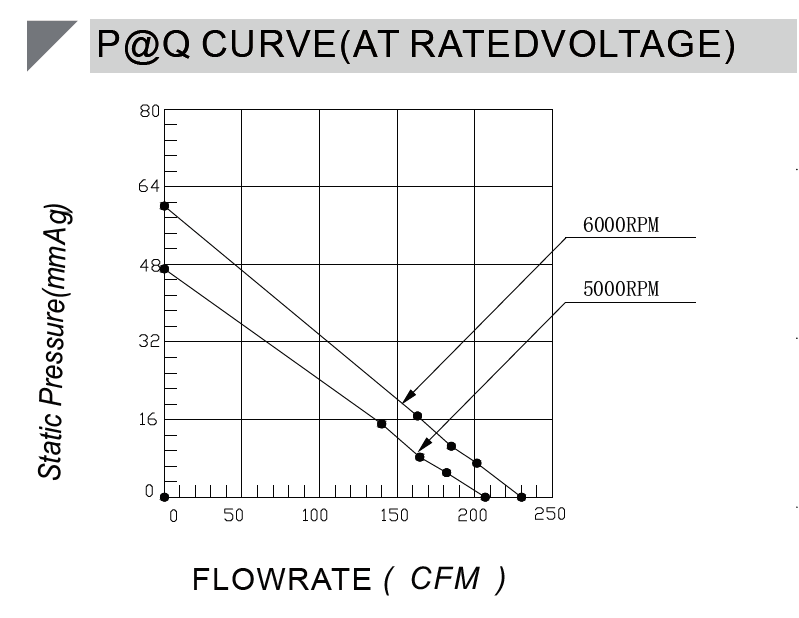

Max 230.1 cfm,0.6 kpa
Request a Sample
Technical Specifications
Centrifugal fan CA12051-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal Fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M³/min | CFM | mmH2O | InH2O | ||||||||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | - | - | dB-A | |||
| CA12051M12X | AY | 12 | 7.5 ~ 13.5 | 3.2 | 37.5 | 5000 | 5.85 | 206.7 | 47.1 | 1.86 | 69.0 |
| CA12051H12X | 12 | 7.5 ~ 13.5 | 5.6 | 67.2 | 6000 | 6.51 | 230.1 | 60.0 | 2.36 | 74.9 | |
| CA12051M24X | 24 | 17.5 ~ 26.5 | 1.6 | 37.5 | 5000 | 5.85 | 206.7 | 47.1 | 1.86 | 69.0 | |
| CA12051H24X | 24 | 17.5 ~ 26.5 | 2.8 | 67.2 | 6000 | 6.51 | 230.1 | 60.0 | 2.36 | 74.9 | |
| CA12051M48X | 48 | 36 ~ 54 | 0.8 | 37.5 | 5000 | 5.85 | 206.7 | 47.1 | 1.86 | 69.0 | |
| CA12051H48X | 48 | 36 ~ 54 | 1.4 | 67.2 | 6000 | 6.51 | 230.1 | 60.0 | 2.36 | 74.9 | |
