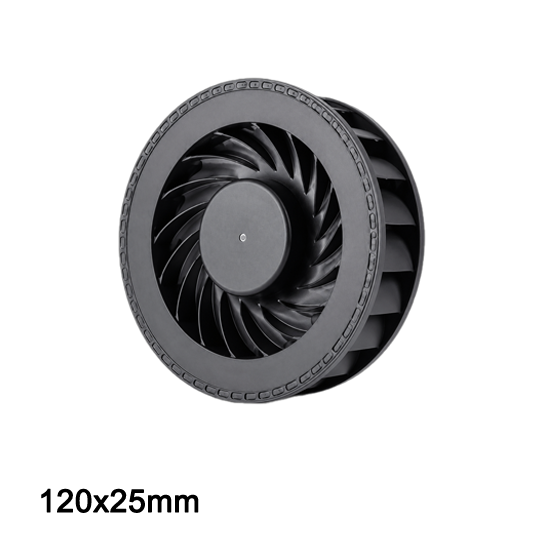

48v Centrifugal fan CA12025HH48X
Voltage 48V
3500rpm/min
Max 69.69 cfm,0.21 kpa
Request a Sample
Telecom & Industrial Grade 48V DC Drive
Deeply engineered for nominal 48V DC systems, it perfectly matches the power supply standards of telecom base stations, server cabinets, and large industrial control systems, offering excellent voltage fluctuation resistance and electromagnetic compatibility (EMC).
"HH" Class Ultra-High Pressure & Forced Ventilation
As an "HH" ultra-high-speed class model, this fan unleashes staggering static pressure and concentrated airflow within a compact 12025 size, instantly penetrating high-density chip heatsinks for powerful forced air duct ventilation.
Space-Saving Profile with High Cooling Efficiency

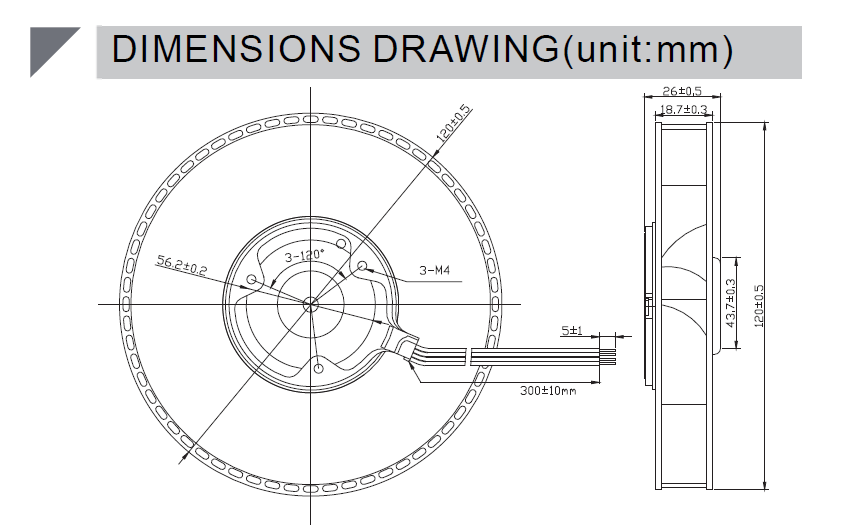

The standard 120x120x25mm compact profile allows flexible routing and installation inside highly space-constrained 1U or 2U equipment, delivering localized convection efficiency that far exceeds traditional axial fans within a minimized footprint.
Intelligent Control & Multiple Safety Protection Mechanisms
Integrated with an intelligent driver chip, the fan supports customizable PWM precise speed control, FG speed signal feedback, and RD locked-rotor alarm functions, alongside built-in reverse polarity and over-current protection to safeguard the main system.

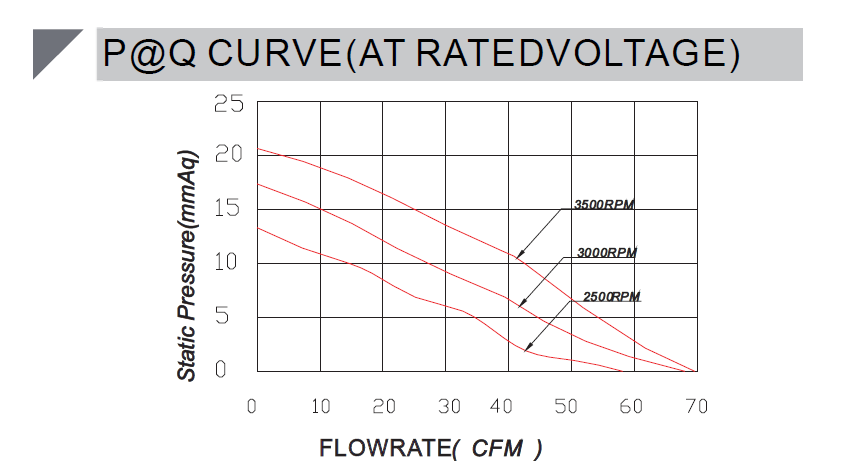

Technical Specifications
Centrifugal Fan CA12025-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal Fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M³/min | CFM | mmH2O | InH2O | ||||||||
| PART.NO. | - | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CA12025M12X | AY | 12 | 7.5~13.5 | 0.6 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 |
| CA12025H12X | 12 | 7.5~13.5 | 0.8 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH12X | 12 | 7.5~13.5 | 1.2 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M24X | 24 | 18~26.5 | 0.3 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H24X | 24 | 18~26.5 | 0.4 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH24X | 24 | 18~26.5 | 0.6 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M48X | 48 | 36~54 | 0.15 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H48X | 48 | 36~54 | 0.2 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH48X | 48 | 36~54 | 0.32 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
