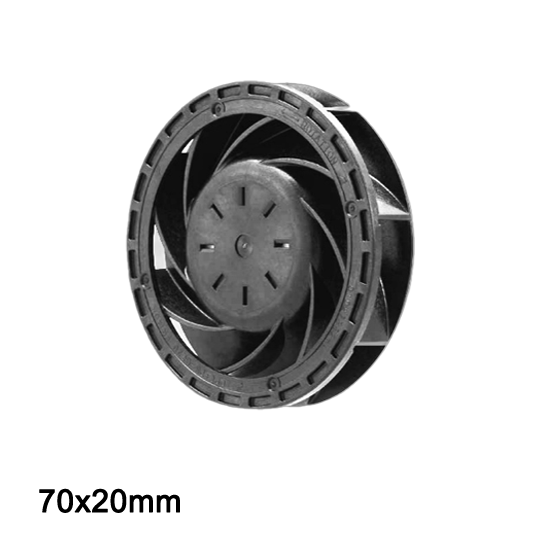

24v Centrifugal fan CA7020H24X
Voltage 24V
9200rpm/min

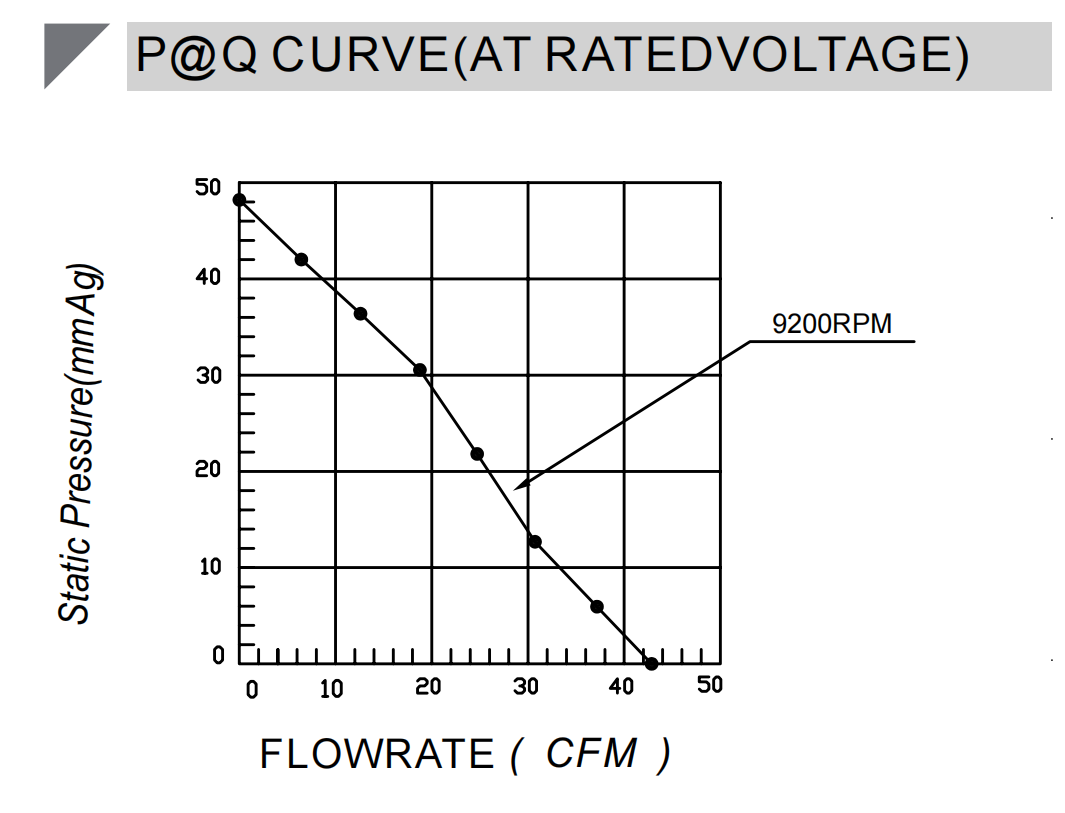

Max 42.8 cfm,0.47 kpa
Request a Sample
High-Precision Two-Plane Dynamic Balancing
Engineered with advanced two-plane dynamic balancing technology, the CA7020H24X minimizes structural vibration at high speeds, significantly reducing operational noise and eliminating mechanical resonance within the host equipment.
Energy-Efficient 24V Brushless DC Motor
Utilizing a high-efficiency 24V premium brushless DC motor, the CA7020H24X ensures precise speed control, minimal heat generation, and low power consumption, which drastically extends the battery life of portable and mobile applications.
Premium Japanese NMB Bearings for Ultra-Long Lifespan
Equipped with authentic Japanese NMB dual-ball bearings and an optimized thermal dissipation design, this centrifugal fan boasts an outstanding operational lifespan of up to 50,000 to 70,000 hours, significantly lowering maintenance and device replacement costs.
Medical-Grade Materials & Safe Bio-compatibility
All internal components along the airflow path are molded from certified premium materials that comply with strict ISO 10993 biocompatibility standards, ensuring zero toxic outgassing or chemical odors even during continuous full-speed operation.

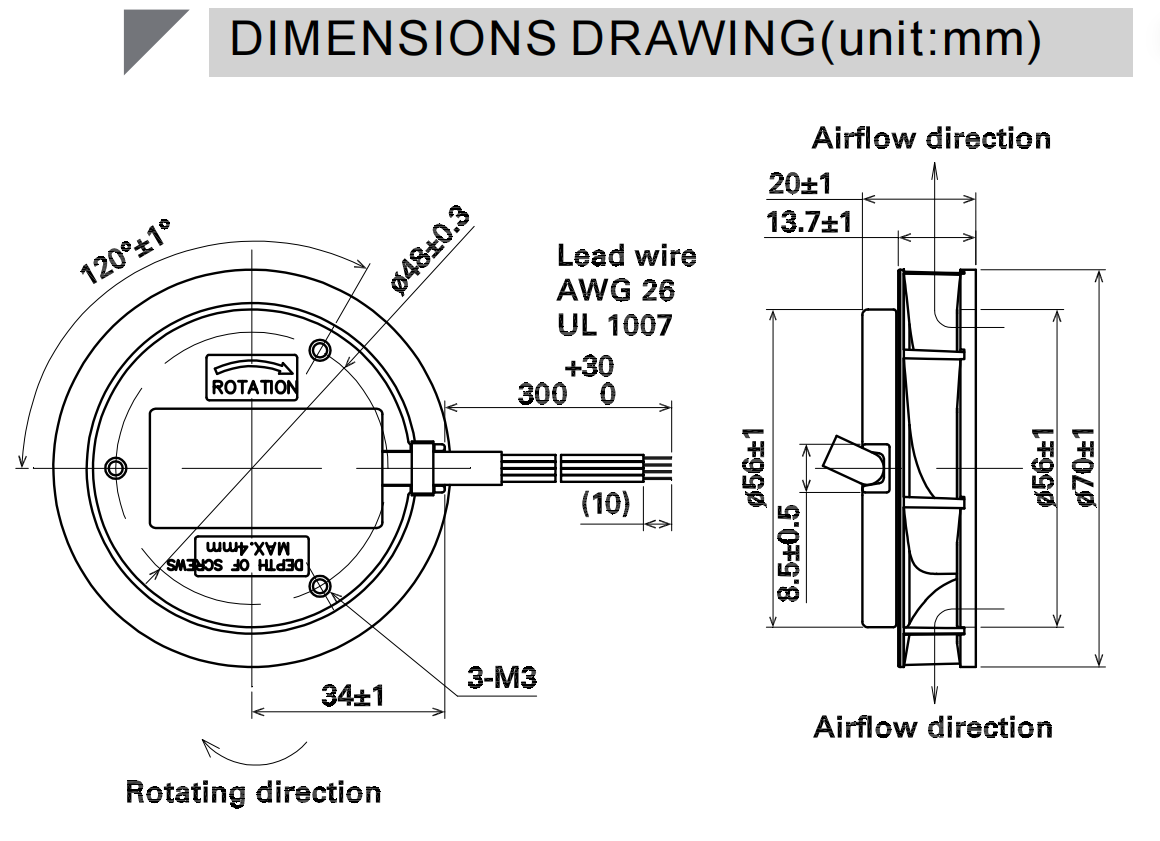

Technical Specifications
Video Showcase
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
