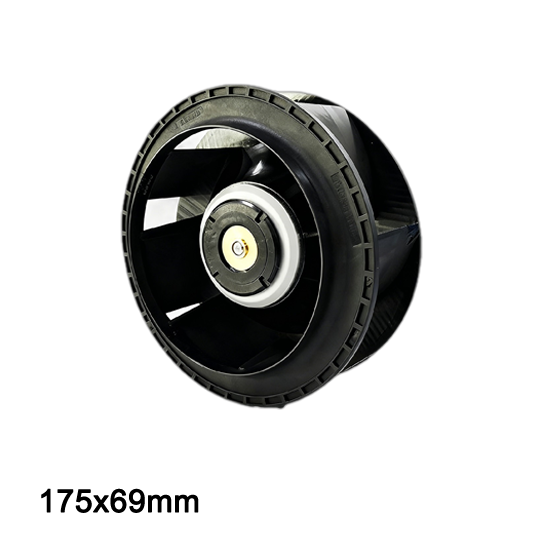

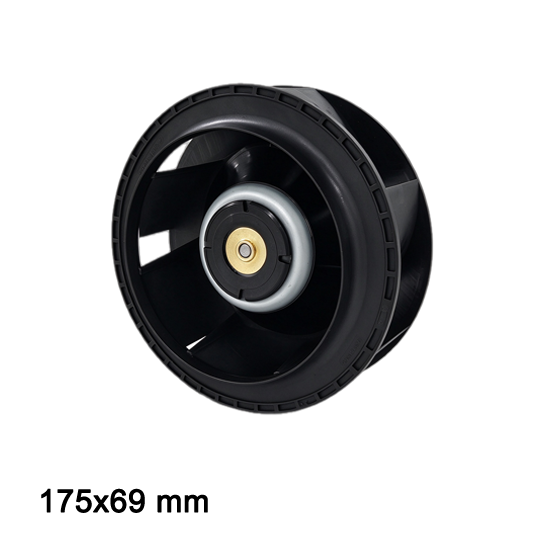

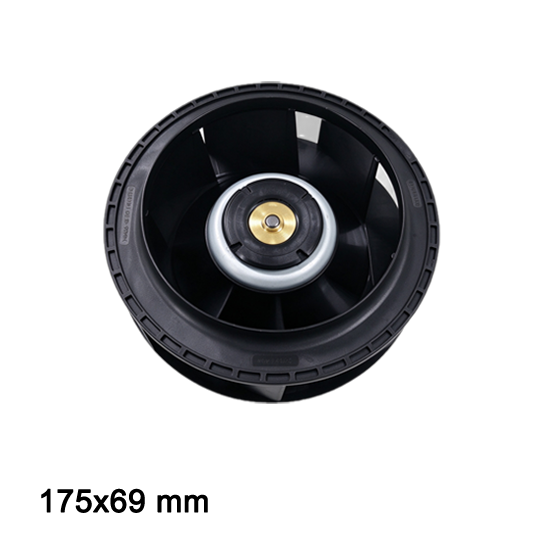

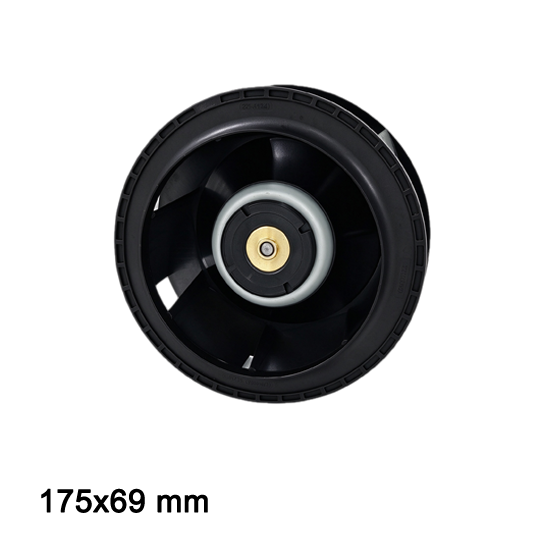

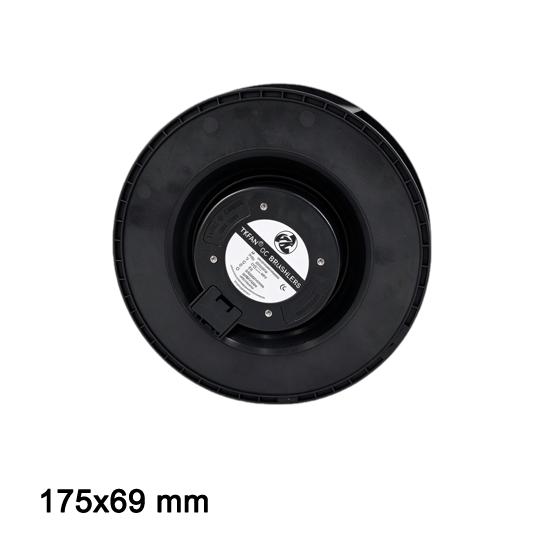

24V DC Centrifugal Fan CA17569HV24X-B (SANYO 9TGA24P0H001 Equivalent)
24V DC Centrifugal Fan CA17569HV24X-B (SANYO 9TGA24P0H001 Equivalent)
Voltage 24V
5700rpm/min
Max 666 cfm,1 kpa
Request a Sample
Structure Drawing
Technical Specifications

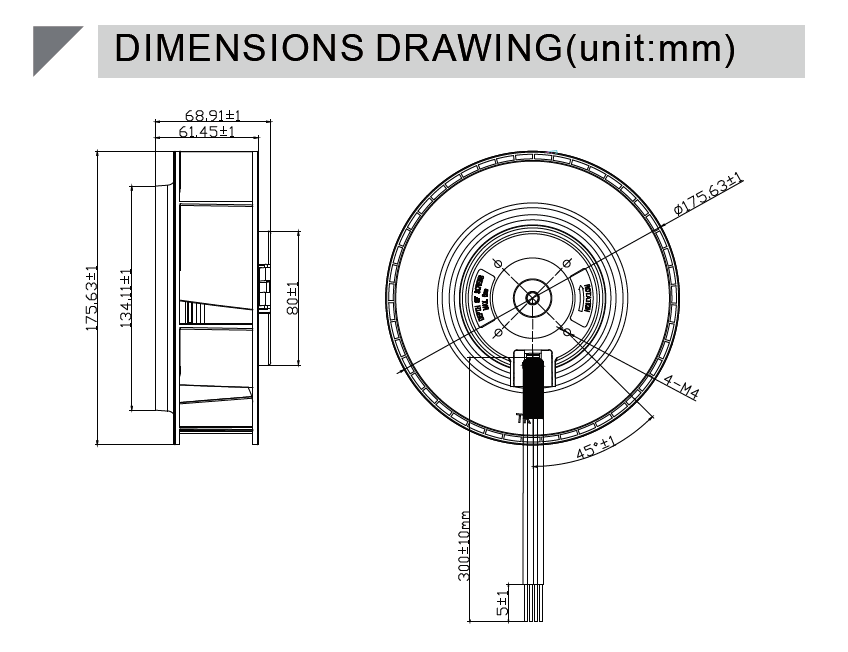

24V DC Centrifugal Fan CA17569HV24X-B (SANYO 9TGA24P0H001 Equivalent) dimensions drawing
The mechanical dimensional drawing illustrates the precise physical specifications and mounting interface of the CA17569HV24X-B centrifugal fan.
- Frame & Size: Engineered with standard 175x69mm dimensions, providing a 100% mechanical drop-in replacement for SANYO San Ace 9TGA24P0H001/9TGA24P0H series.
- Mounting Compatibility: Features identical mounting hole spacing and structural housing design to ensure quick, seamless installation without modifying existing equipment enclosures.
- Construction: Built with robust industrial-grade materials designed to withstand high operational vibration and demanding thermal environments.

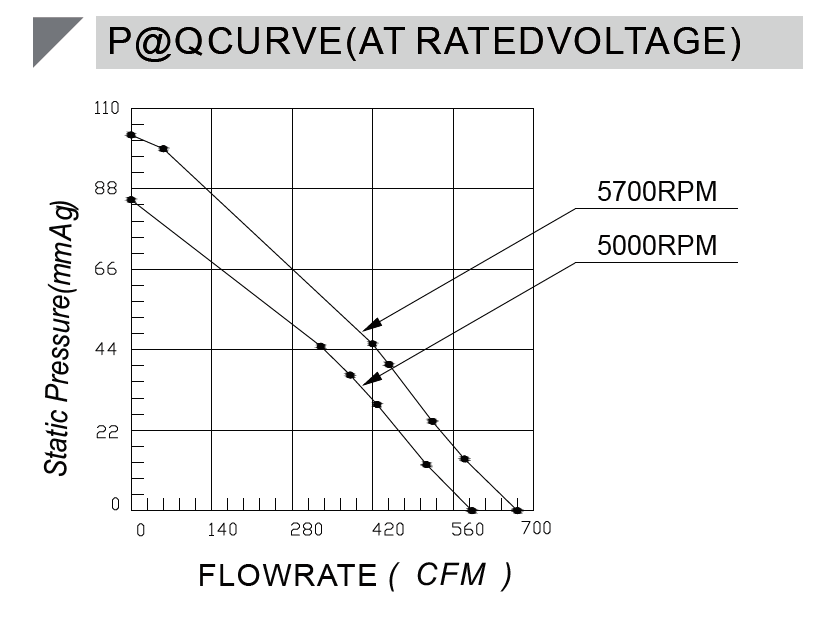

24V DC Centrifugal Fan CA17569HV24X-B (SANYO 9TGA24P0H001 Equivalent) PQ curve
The Airflow vs. Static Pressure performance curve (PQ curve) highlights the superior aerodynamic efficiency of the CA17569HV24X-B DC centrifugal fan.
- High Static Pressure Performance: Delivers a maximum static pressure of 102.1 mmH2O (1 kPa), making it ideal for systems with high airflow resistance and dense cooling passages.
- Maximum Air Volume: Generates up to 666 CFM (18.85 m³/min) air volume at a rated speed of 5700 RPM for exceptional cooling performance.
- Optimized Efficiency: Equivalent curve characteristics match SANYO 9TGA24P0H001, providing continuous high-pressure performance in telecommunication power supplies, server enclosures, and industrial HVAC applications.
Direct Replacement for SANYO 9TGA24P0H001 / 9TGA24P0H
Looking for a reliable, cost-effective replacement for SANYO DENKI San Ace 9TGA24P0H001 (9TGA24P0H)? Our CA17569HV24X-B is engineered as a direct drop-in alternative with identical 175x69mm dimensions, 24V DC operating voltage, 666 CFM airflow, and 1 kPa static pressure.
| Specification | SANYO Denki Model | TKFAN Alternative |
|---|---|---|
| Model Number | 9TGA24P0H001 / 9TGA24P0H | CA17569HV24X-B |
| Rated Voltage | 24 VDC | 24 VDC |
| Max Air Flow | 666 CFM (18.85 m³/min) | 666 CFM (18.85 m³/min) |
| Rated Speed | 5700 RPM | 5700 RPM |
| Static Pressure | 102.1 mmH2O (1 kPa) | 102.1 mmH2O (1 kPa) |
| Compatibility | Original OEM | 100% Drop-in Equivalent |
*Disclaimer: SANYO and SANYO DENKI are registered trademarks of their respective owners. Model numbers are referenced for compatibility purposes only.
Centrifugal Fan CA17569-B Series Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the ideal replacement centrifugal fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| CA17569VH24B | BY | 24 | 18 ~26.5 | 5.0 | 120 | 5000 | 16.7 | 589.7 | 85.7 | 3.38 | 79 |
| CA17569HV24B (9TGA24P0H Equivalent) | 24 | 18 ~26.5 | 7.6 | 182.4 | 5700 | 18.85 | 666 | 102.1 | 4.02 | 82.9 | |
| CA17569VH48B | 48 | 36 ~54 | 2.5 | 120 | 5000 | 16.7 | 589.7 | 85.7 | 3.38 | 79 | |
| CA17569HV48B | 48 | 36 ~54 | 3.8 | 182.4 | 5700 | 18.85 | 666 | 102.1 | 4.02 | 82.9 | |
Frequently Asked Questions
Q: Is CA17569HV24B-B a direct alternative to SANYO 9TGA24P0H001?
A: Yes, CA17569HV24X-B matches the physical dimensions, operating voltage (24V DC), airflow (666 CFM), and mounting specs of SANYO 9TGA24P0H001 and 9TGA24P0H series fans.
Q: Can I get samples for testing compatibility?
A: Yes, prototypes and testing samples are available within 48 hours for engineering evaluation.
