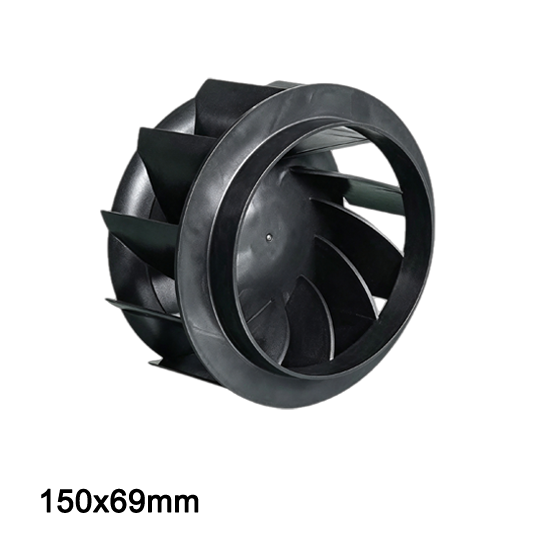

24v Centrifugal fan CA15069H24X-A
24v Centrifugal fan CA15069H24X-A

24v Centrifugal fan CA15069H24X-A

Voltage 24V
1450rpm/min
Max 124.77 cfm,0.05 kpa

Request a Sample

Technical Specifications

ModelCA15069H24X-A

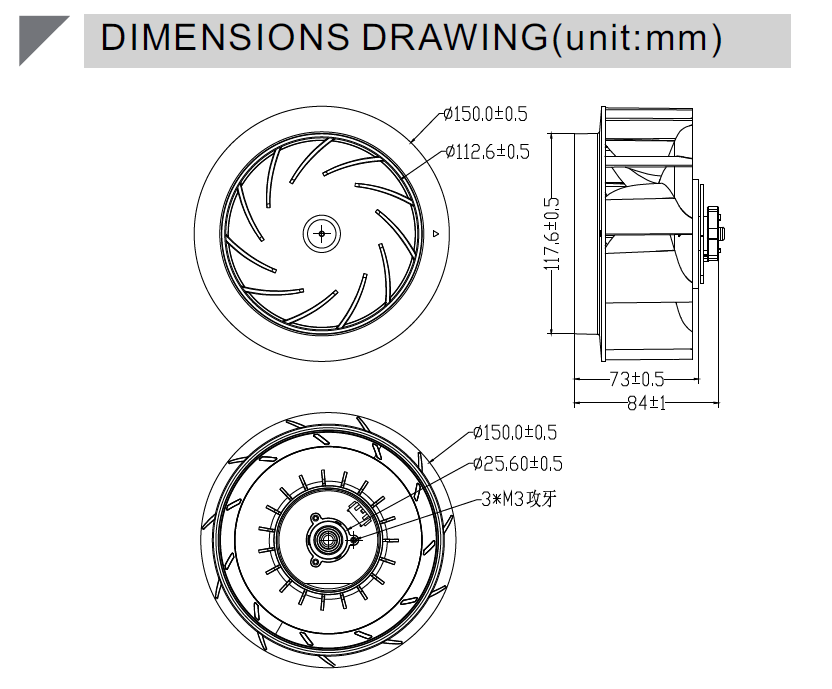

Size150*69 mm
Operating Voltage24 VDC
Rated Current0.23 Amp
Rated Speed1450 RPM

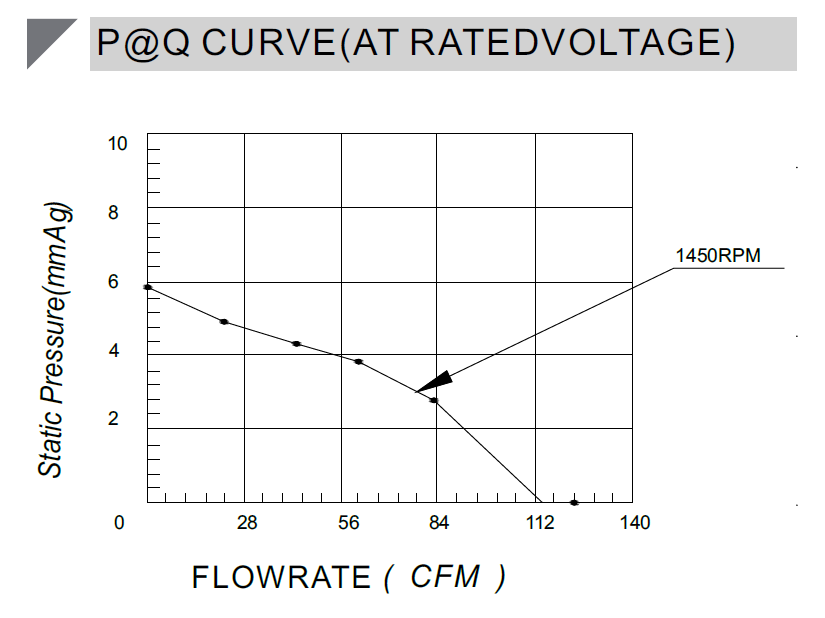

Maximum Flow Rate124.77 CFM
Maximum Static Pressure0.05 kPa





Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
