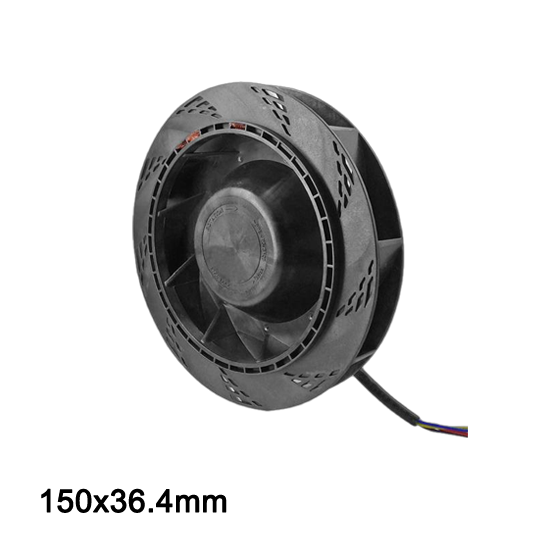

24V Centrifugal Fan CA15035HV24B-A (Sanyo Denki 9TN24P1H01 Equivalent)
24V Centrifugal Fan CA15035HV24B-A (Sanyo Denki 9TN24P1H01 Equivalent)
Voltage 24V
3700rpm/min
Max 148.4 cfm,0.35 kpa
Optimized 150x36.4mm Compact Frame
Slim yet powerful centrifugal design fits easily into enclosures, cabinets, and equipment where space is limited.
24V DC Brushless Motor (BLDC)
Energy-efficient, low power consumption, long lifespan (≥50,000hrs), safe low-voltage operation.
High Static Pressure & Steady Airflow
Balanced impeller delivers strong airflow under resistance, perfect for ducting, cooling, and ventilation.
Low Noise & Durable Construction
Quiet operation, dual ball bearings, rugged housing, suitable for continuous industrial use.
Technical Specifications
Direct Replacement & Equivalent for Sanyo Denki 9TN24P1H01
The CA15035HV24B-A centrifugal fan is designed as a high-performance cross-reference and drop-in replacement for the Sanyo Denki San Ace 150 9TN24P1H01 DC centrifugal blower. It matches the original dimensions, mounting holes, 24V DC operating voltage, and airflow characteristics for seamless hardware integration.

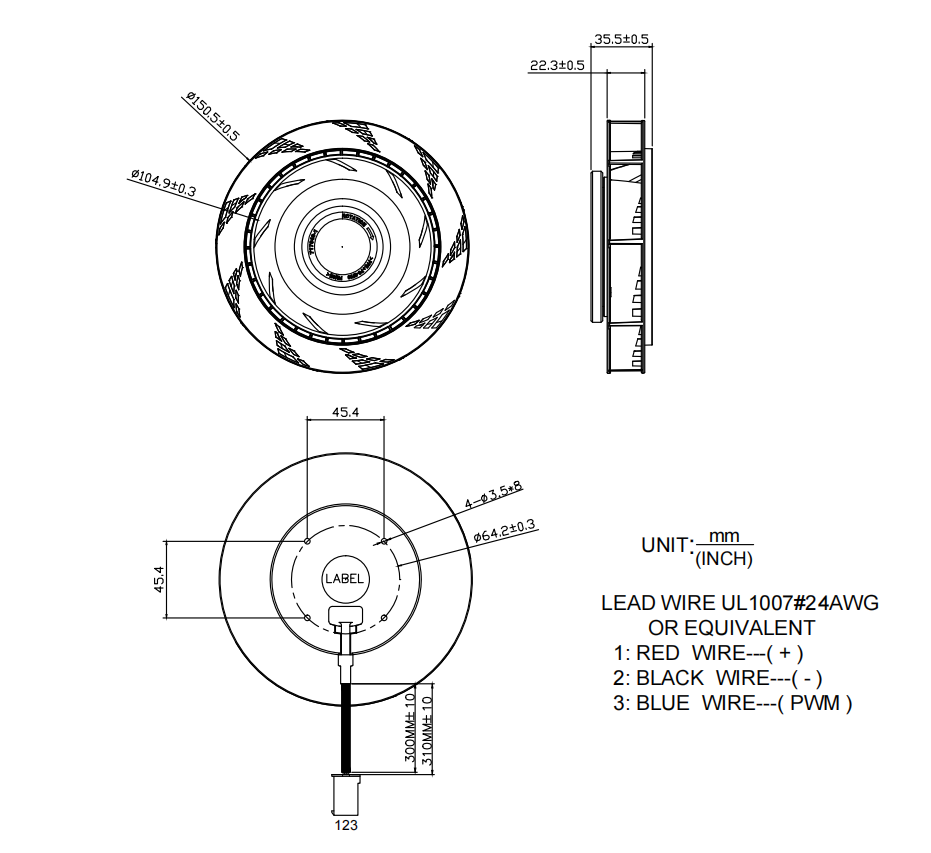

Centrifugal Fan CA15035-A Dimensions Drawing (9TN24P1H01 Equivalent)
Detailed mechanical dimensions drawing of the CA15035-A series centrifugal fan (compatible with Sanyo Denki 9TN24P1H01 mounting specs), highlighting mounting holes, casing outline, and outlet specifications for installation integration.

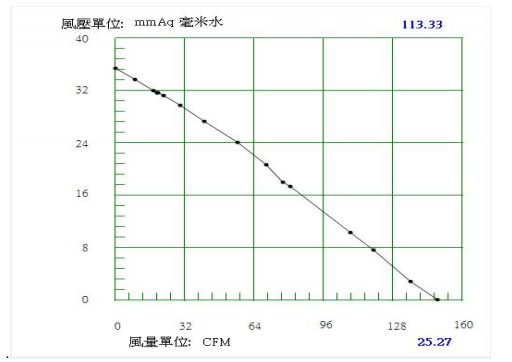

Centrifugal Fan CA15035-A PQ Curve & Airflow Performance
Performance P-Q (Airflow vs. Static Pressure) characteristic curve for the CA15035-A centrifugal fan, illustrating operating efficiency across various system backpressures compared to Sanyo 9TN24P1H01 models.
Centrifugal Fan CA15035-A Selection Guide & Cross Reference Table
Technical specification table to assist in selecting the optimal CA15035-A centrifugal fan model as a replacement for Sanyo Denki San Ace 9TN24P1H01 based on voltage, input power, speed, airflow, static pressure, and noise ratings.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| PART.NO. | AY | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CA15035HV24X | 24 | 18~26.5 | 0.77 | 18.48 | 3700 | 4.504 | 159.15 | 36.56 | 1.439 | 64.3 | |
| CA15035HV48X | 48 | 36~54 | 0.385 | 18.48 | 3700 | 4.504 | 159.15 | 36.56 | 1.439 | 64.3 | |
