24v Centrifugal fan CA13835H24B
Voltage 24V
2650rpm/min
Max 81 cfm,0.006 kpa
Request a Sample

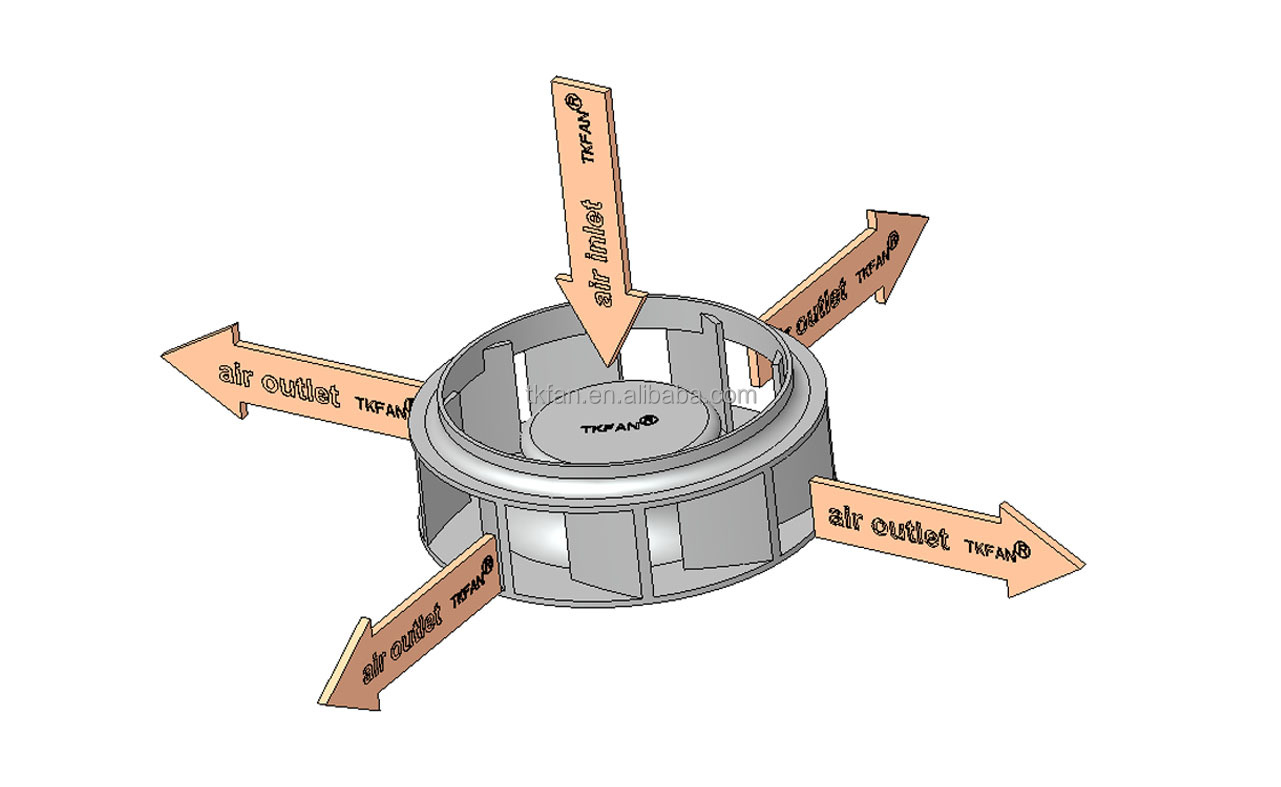

Centrifugal Structure → High Air Pressure, Directional Airflow
Higher air pressure than ordinary axial fans, penetrating filters, air ducts, and heat sink fins, suitable for scenarios requiring forced airflow and positive pressure exhaust.
24V DC Low Voltage, Safe and Stable
Industrial safe voltage, no risk of electric shock, minimal voltage drop over long lines, suitable for industrial control, built-in equipment, and new energy equipment.
Low Noise, Smooth Operation
Optimized impeller and dynamic balance design maintains low noise even under high airflow, suitable for office, home, and commercial equipment.

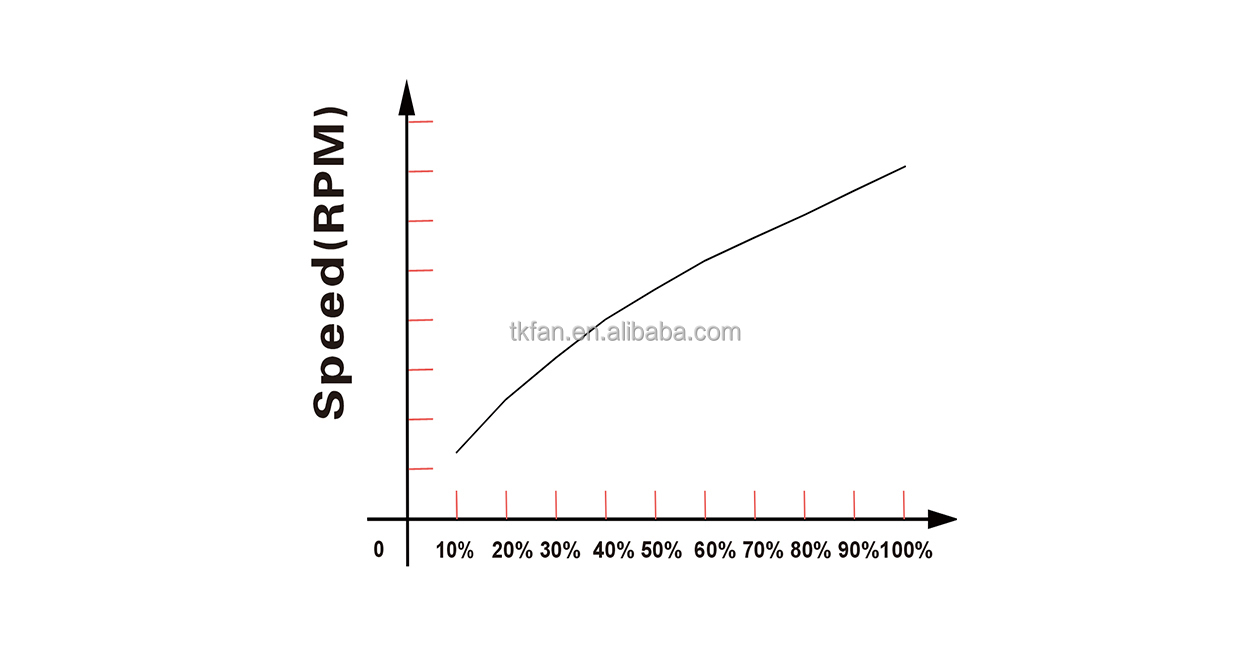

Supports PWM Speed Control / FG Speed Measurement (Optional)
Achieves intelligent temperature control, energy saving, and noise reduction, meeting the intelligent needs of high-end equipment.

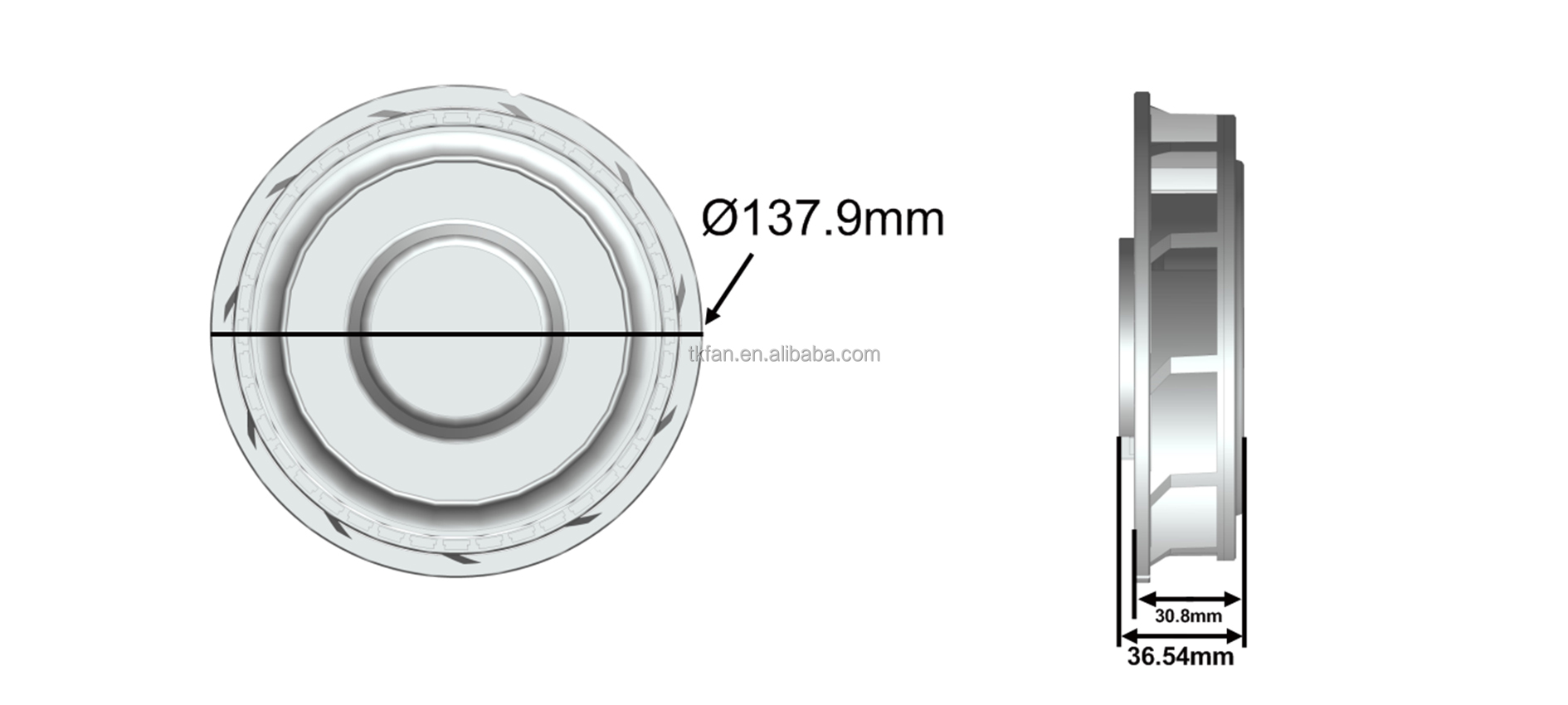

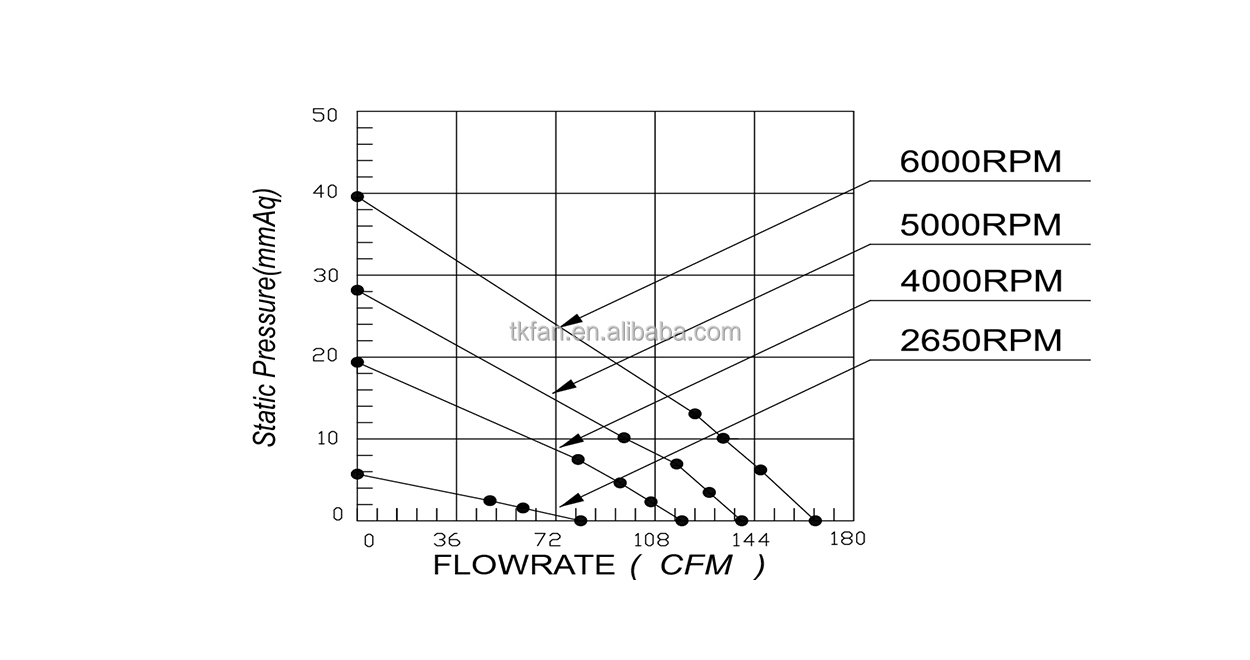

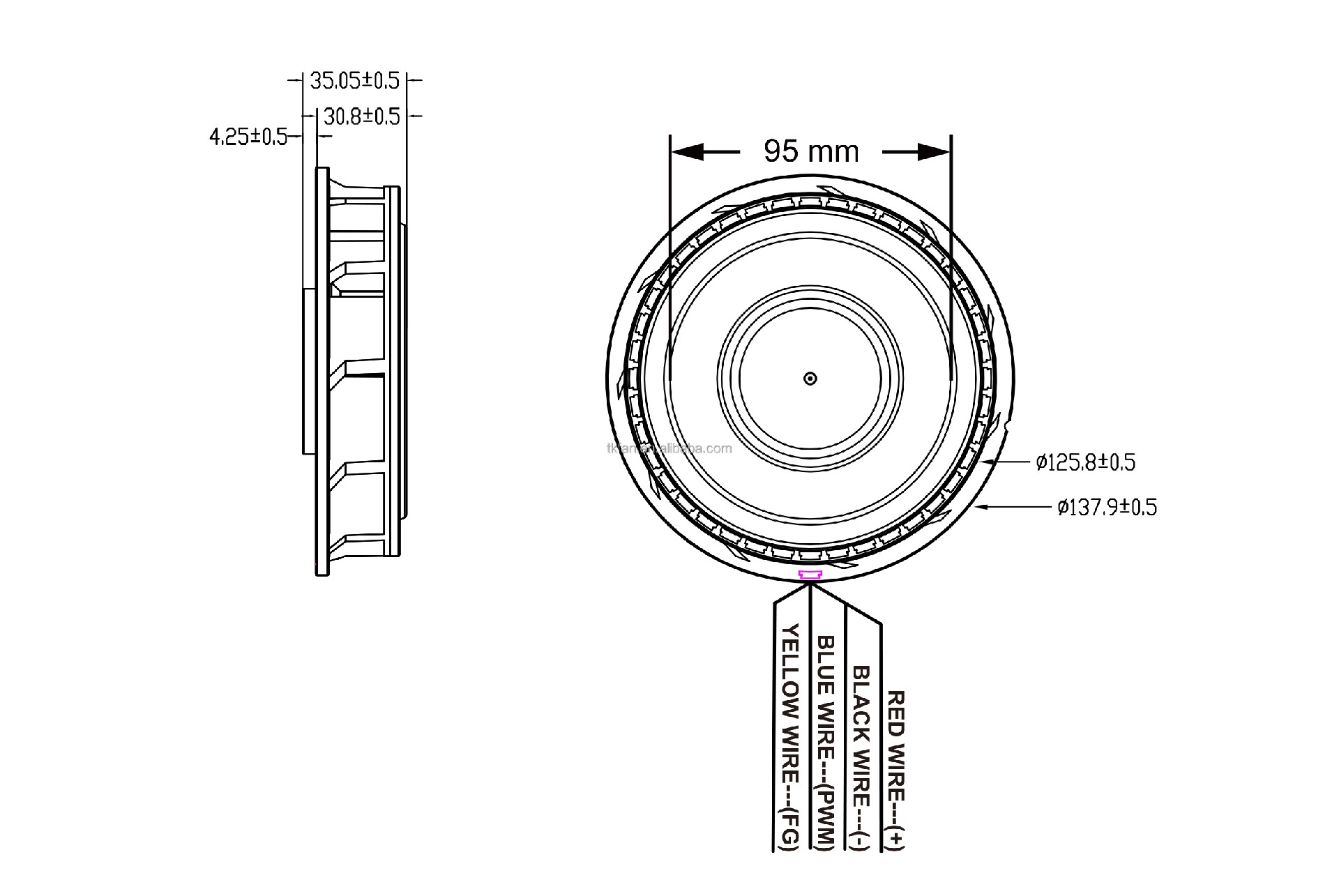

Technical Specifications
Video Showcase
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
