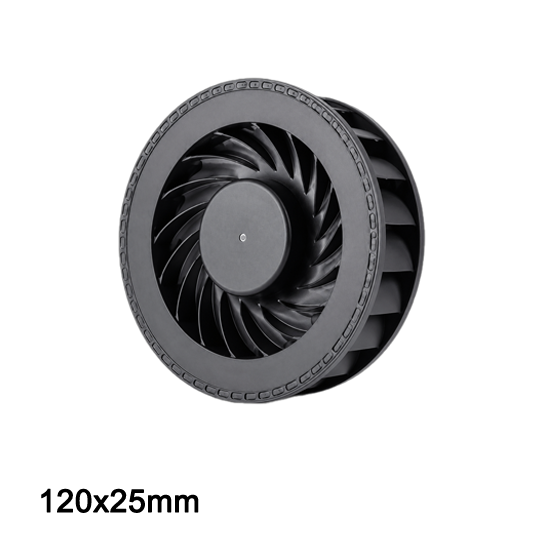

24v Centrifugal fan CA12025H24X
Voltage 24V
3000rpm/min
Max 68.14 cfm,0.17 kpa
Request a Sample
High Static Pressure for Targeted Cooling
Specifically designed for air duct environments that need to overcome high resistance, this centrifugal blower generates exceptional high static pressure to deliver powerful airflow precisely to core heating components, significantly boosting overall system cooling efficiency.
Industrial-Grade 24V DC Efficient Drive
Deeply optimized for standard 24V industrial power systems, it maintains extremely low power consumption and excellent current stability even under heavy workloads, making it ideal for automation equipment and continuous production lines.
Compact 12025 Dimensions with High Space Efficiency

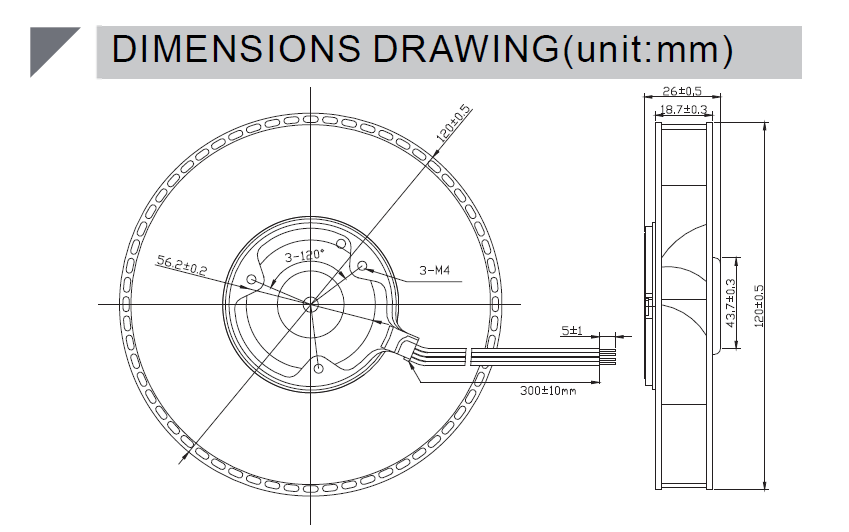

Featuring a standard compact profile of 120x120x25mm, it delivers localized exhaust pressure far exceeding that of axial fans of the same size while perfectly fitting into space-constrained cabinets and compact equipment.
Broad Industrial Compatibility & Smart Customization
Widely applicable to server racks, 3D printers, automotive ventilation, machine tool control cabinets, and projector cooling, with flexible options for PWM speed control, FG signal feedback, and various connector terminals based on customers' circuit designs.
Technical Specifications
Centrifugal Fan CA12025-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal Fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M³/min | CFM | mmH2O | InH2O | ||||||||
| PART.NO. | - | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CA12025M12X | AY | 12 | 7.5~13.5 | 0.6 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 |
| CA12025H12X | 12 | 7.5~13.5 | 0.8 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH12X | 12 | 7.5~13.5 | 1.2 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M24X | 24 | 18~26.5 | 0.3 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H24X | 24 | 18~26.5 | 0.4 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH24X | 24 | 18~26.5 | 0.6 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M48X | 48 | 36~54 | 0.15 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H48X | 48 | 36~54 | 0.2 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH48 | 48 | 36~54 | 0.32 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
