24v Centrifugal fan CA10025HH24X-B
Voltage 24V
5000rpm/min

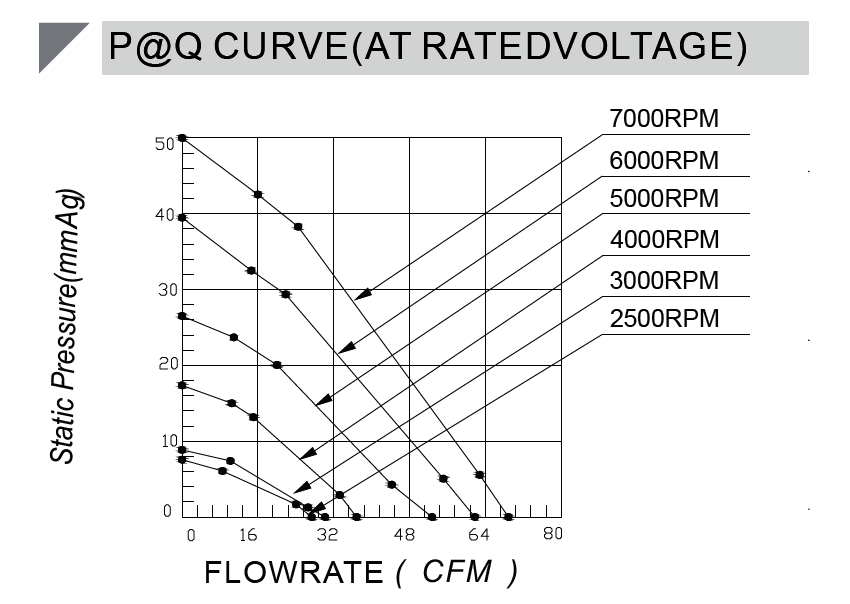

Max 52.1 cfm,0.26 kpa
Request a Sample
Stable Industrial-Grade 24V DC Operation
Equipped with an industrial-grade 24V DC brushless motor, it boasts excellent anti-interference capabilities and wide voltage adaptability, ensuring the fan runs continuously and stably in long-term, high-load industrial automation or telecom power systems.
"HH" Class Ultra-High Speed Cooling Efficiency
Belonging to the "HH" ultra-high speed configuration series, this fan maximizes heat dissipation under extreme workloads by accelerating impeller rotation paired with precision aerodynamic engineering, drastically boosting overall cooling efficiency.
Dynamic Balance Calibration & Extended Lifespan
Every single fan undergoes strict impeller dynamic balance testing combined with premium bearing craftsmanship, effectively suppressing housing vibration and noise at high speeds, which safeguards reliable system operation while significantly extending operational lifespan.
Multiple Electrical Protections & Low Power Consumption
Built-in intelligent protection chips against over-current, locking, and reverse polarity effectively prevent circuit burnout caused by accidental power failures or miswiring, while optimizing motor energy efficiency to maintain low power consumption while delivering robust performance.

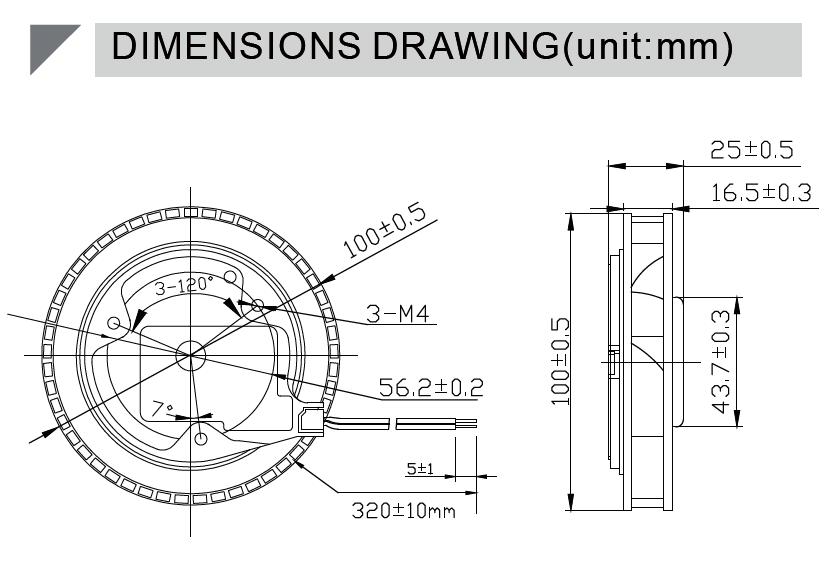

Technical Specifications
Video Showcase
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
