12v Centrifugal fan CA7025H12B

Voltage 10.8V
11100rpm/min
Max 32.3 cfm,0.44 kpa

Compact Size & Strong Air Performance

Mini 70×25mm compact structure outputs stable airflow and superior static pressure to handle daily ventilation and heat dissipation tasks efficiently.

12V DC Low Power Operation

Adopts universal 12V DC voltage design with low energy consumption, achieving smooth and reliable operation for various electronic devices.

Low Noise Comfortable Running

Optimized impeller design reduces running noise greatly while maintaining outstanding cooling efficiency all the time.

Easy Installation & Wide Compatibility

Lightweight and space-saving design allows simple mounting, perfectly suitable for home appliances, industrial facilities and mini equipment cooling.

Technical Specifications

ModelCA7025H12B
Size70*70*25 mm
Operating Voltage10.8 VDC
Rated Current1.5 Amp
Rated Speed11100 RPM
Maximum Flow Rate32.3 CFM
Maximum Static Pressure0.44 kPa

12v Centrifugal fan CA7025H12B

High-performance 12v centrifugal fan CA7025H12B engineered for efficient thermal management and reliable airflow. (Click image to enlarge)

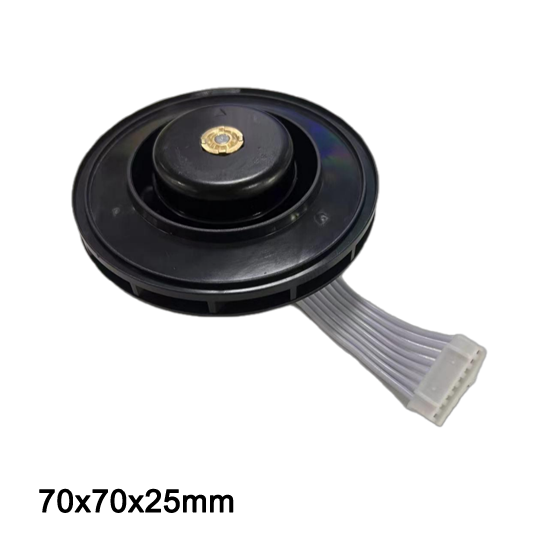

12v centrifugal fan CA7025H12B main product photo showing 7025 centrifugal blower with wire harness
Front impeller air inlet view of the 12v centrifugal fan CA7025H12B 7025 blower
Digital caliper verifying the 70mm outer diameter of the 12v centrifugal fan CA7025H12B
Digital caliper measuring the 25mm thickness of the 12v centrifugal fan CA7025H12B blower
Back view of the 12v centrifugal fan CA7025H12B 7025 blower with connector harness and mounting holes

The CA7025H12B is a precision-engineered 12V centrifugal blower designed for high-efficiency cooling and demanding pneumatic systems. The gallery above highlights its compact outer profile, digitally verified 70mm outer diameter and 25mm thickness, front impeller intake, and rear mounting structure with secure multi-wire connector harness—providing complete visual reference for engineering integration.

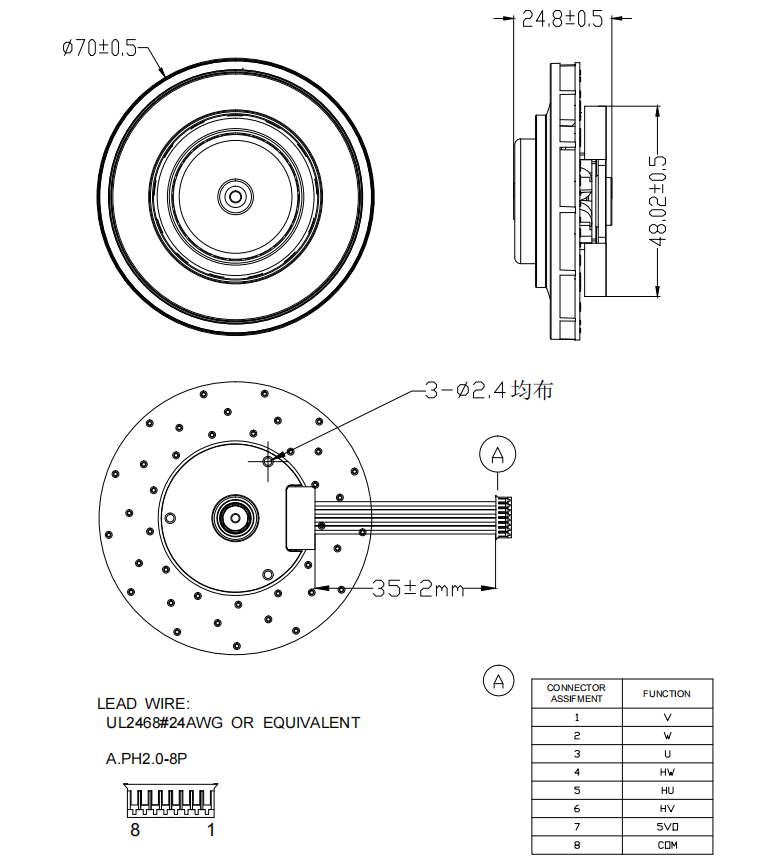

Structure drawing of 12v Centrifugal fan CA7025H12B

12v Centrifugal fan CA7025H12B Mechanical dimensions drawing

This detailed mechanical dimensions drawing outlines the precise outer profile, mounting hole placements, overall thickness, and interface configurations of the 12V centrifugal fan CA7025H12B. Engineered specifically for high-efficiency cooling and precision ventilation applications, it provides engineers with exact spatial reference data to ensure seamless mechanical compatibility, effortless integration, and reliable structural mounting within compact device enclosures.

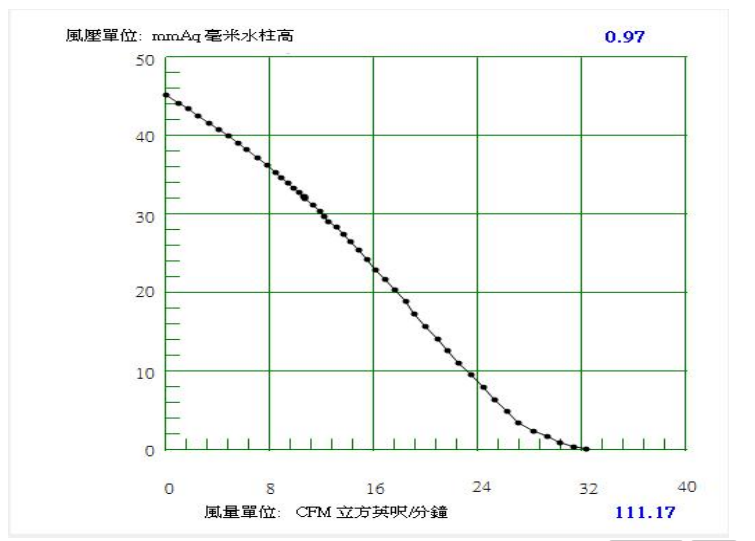

12v Centrifugal fan CA7025H12B PQ curve

The PQ performance curve illustrates the aerodynamic efficiency and pressure-flow characteristics of the CA7025H12B blower under varying static pressures and air volumes. It highlights the fan's robust capability to maintain steady airflow delivery and optimal cooling performance even when encountering high-resistance internal barriers or dense fin arrays, meeting demanding thermal management requirements.

PQ curve for 12v Centrifugal fan CA7025H12B
