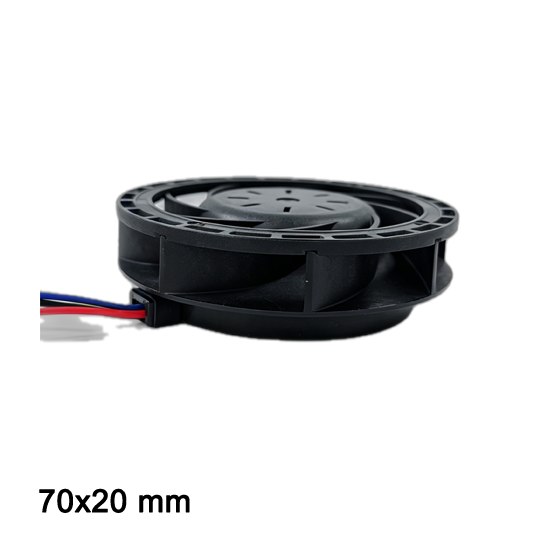

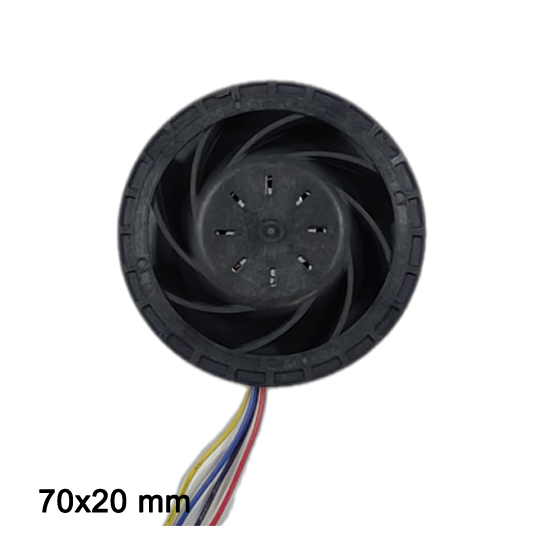

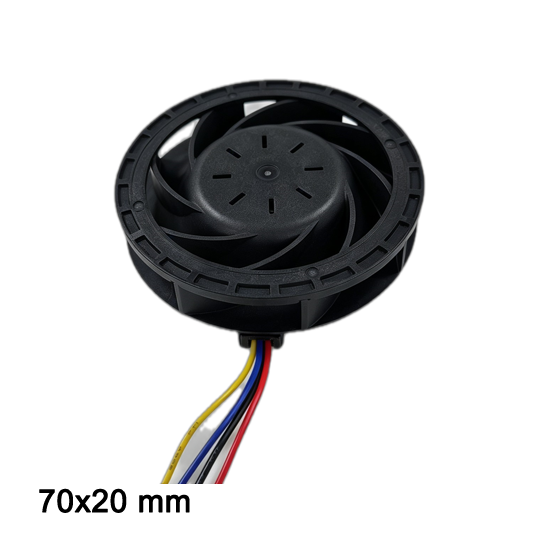

CA7020H12B 12V Centrifugal Fan (Direct Replacement for SANYO Denki 9TD12P6G001 / 9TD12P6G)
CA7020H12B 12V Centrifugal Fan (Direct Replacement for SANYO Denki 9TD12P6G001 / 9TD12P6G)
Voltage 12V
9200rpm/min
Max 42.8 cfm,0.47 kpa
Silent operation design
The optimized air duct and motor structure significantly reduce operating noise, making it suitable for offices, homes, and precision equipment environments where quiet operation is required.
High-pressure centrifugal structure
It adopts a centrifugal blower design, which has stronger air pressure and better air gathering effect, enabling efficient directional heat dissipation and ventilation in small spaces.
Brushless motor drive
It features a built-in BLDC brushless motor, ensuring smooth operation without spark interference, low power consumption, long lifespan, and support for continuous operation over extended periods.
High-efficiency heat dissipation and ventilation
With stable airflow and high heat dissipation efficiency, it can quickly remove heat accumulated in the equipment, avoid high-temperature frequency reduction or component aging, and improve the overall stability of the machine.

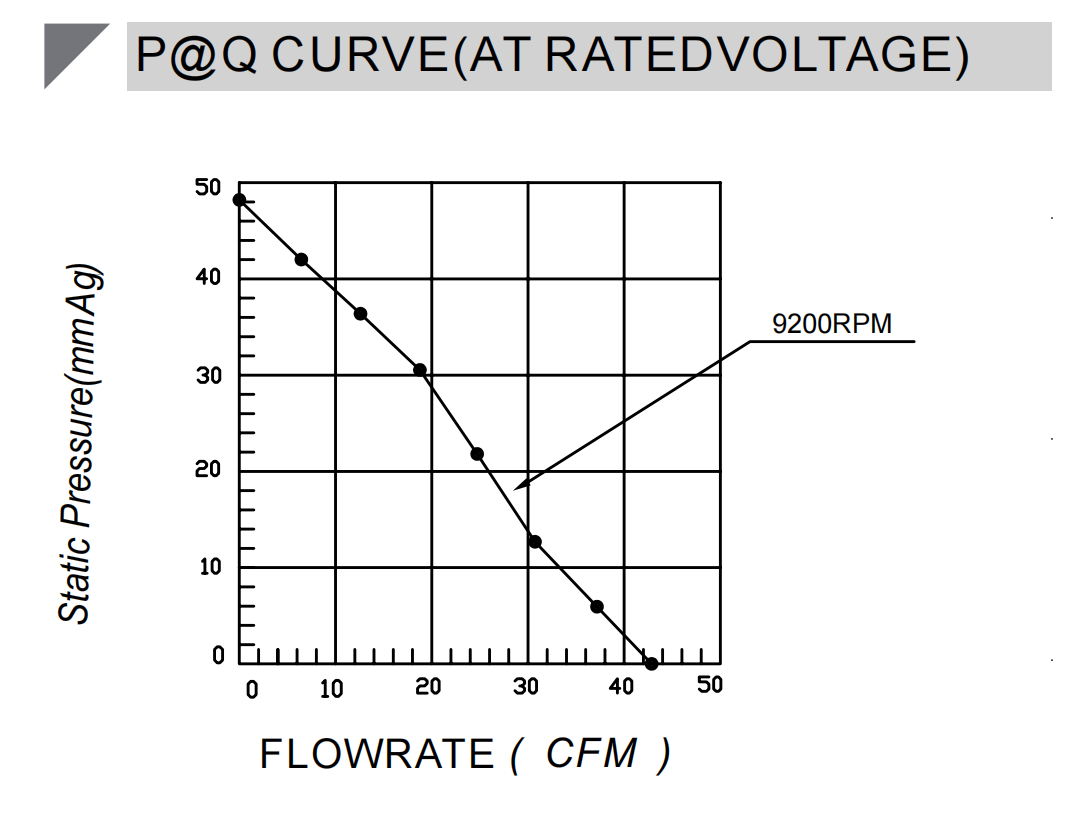

Technical Specifications
This is an operation video for the 12V centrifugal fan CA7020H12B
Direct Cross-Reference & Replacement Notice:

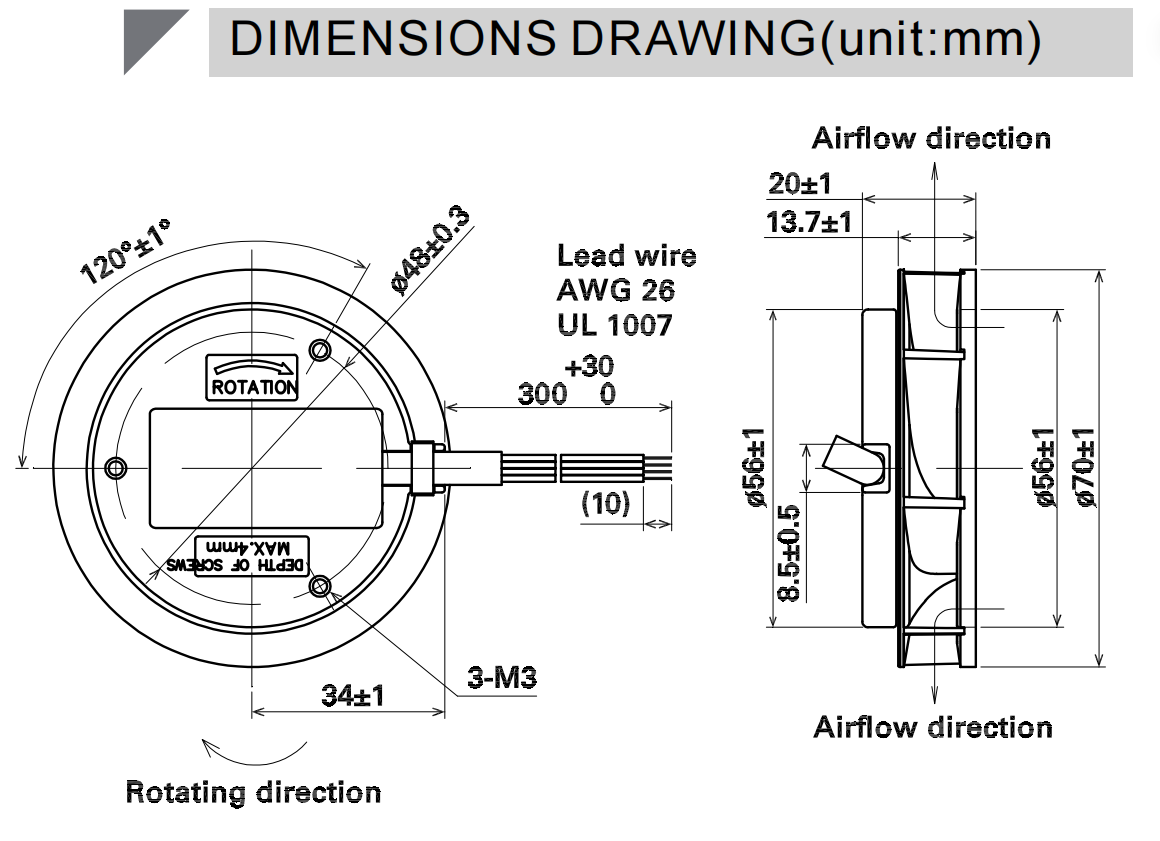

The CA7020H12B (70x70x20mm) is designed as a high-performance, cost-effective direct replacement for the SANYO Denki San Ace 70 9TD12P6G001 (9TD12P6G series). It features identical mounting dimensions, electrical specifications (12V DC), airflow rate, and static pressure for seamless integration into your existing equipment.
Centrifugal fan CA7020-A Selection Guide
Compare voltage, dimension, speed, air flow and static pressure to select the most suitable 70mm DC centrifugal fan for SANYO replacement or custom OEM equipment designs.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| CA7020H12X | AY | 12 | 7.5~13.5 | 1 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 |
| CA7020H24X | 24 | 18~26.5 | 0.5 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 | |
| CA7020H48X | 48 | 36~54 | 0.25 | 12 | 9200 | 1.21 | 42.8 | 48.1 | 1.89 | 60.8 | |
Looking for different sizes or specifications?
Explore our full range of 12v Centrifugal fan, or choose from similar models below.
12v Centrifugal fan
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
Contact Our Engineers
