12v Centrifugal fan CA12028H12B-A
12v Centrifugal fan CA12028H12B-A

12v Centrifugal fan CA12028H12B-A

Voltage 12V
6500rpm/min
Max 24.93 cfm,0.31 kpa

Request a Sample

Technical Specifications

ModelCA12028H12B-A
Size120*28 mm
Operating Voltage12 VDC
Rated Current0.7 Amp
Rated Speed6500 RPM
Maximum Flow Rate24.93 CFM
Maximum Static Pressure0.31 kPa

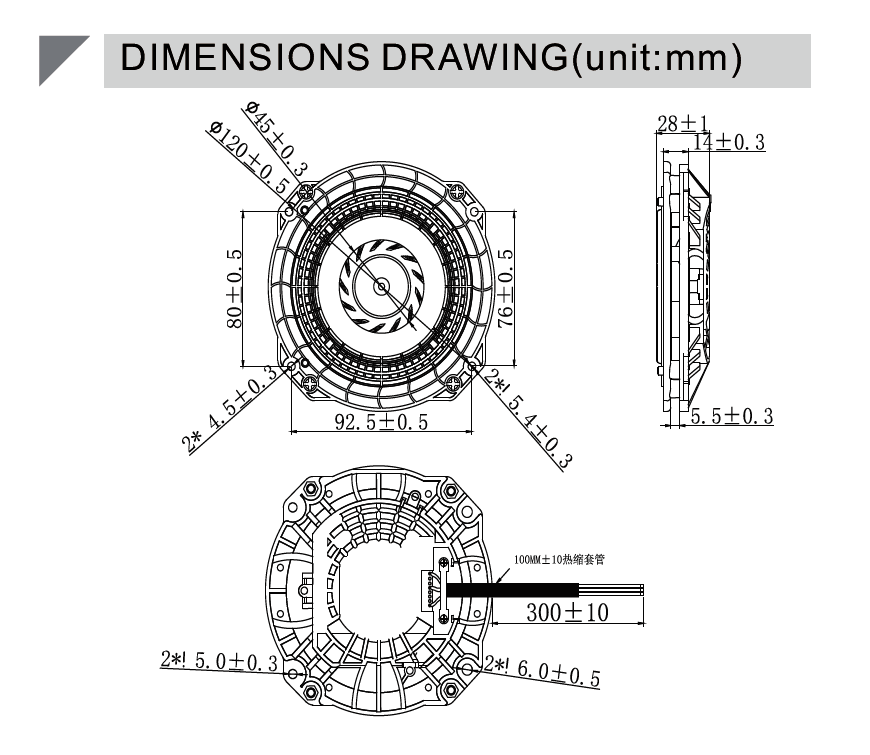

12v Centrifugal fan CA12028H12B-A dimensions drawing.png

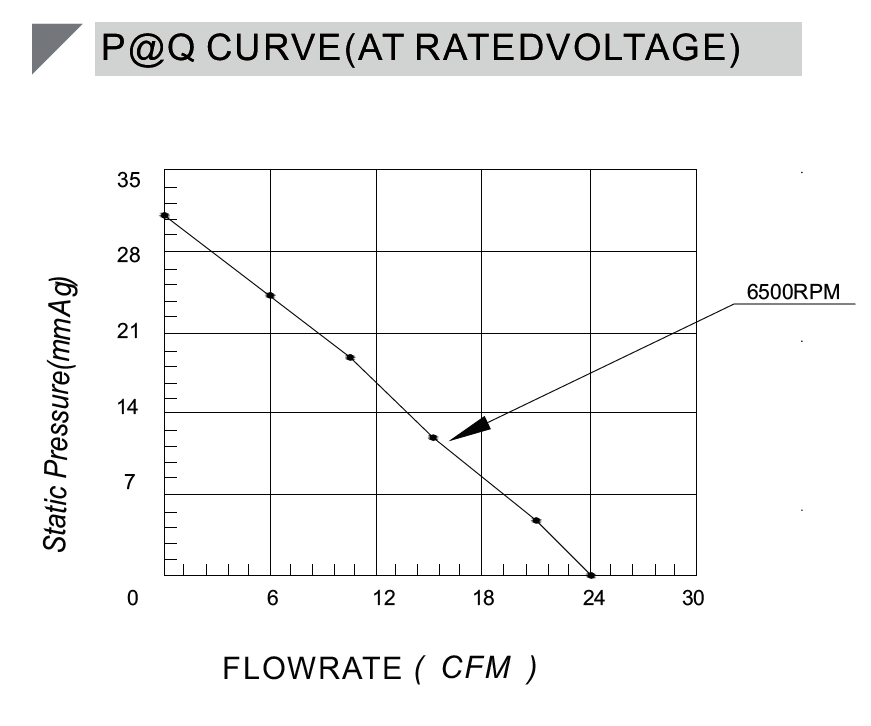

12v Centrifugal fan CA12028H12B-A P-Q curve.png
