12v Centrifugal fan CA12025HH12X
Voltage 12V
3500rpm/min
Max 69.69 cfm,0.21 kpa
Request a Sample
High Static Pressure for Powerful Cooling
Featuring an optimized centrifugal impeller design, it generates powerful static pressure and concentrated airflow within a compact 12025 space, easily penetrating high-density heatsinks or narrow air ducts to keep core equipment operating at peak efficiency.
"HH" Class Ultra-High Speed & Airflow
Engineered as an "HH" class high-speed and high-efficiency model, this fan delivers exceptional rotational performance and massive airflow output, specifically designed for industrial-grade equipment and high-power electronic systems with demanding cooling requirements.
Precise 12V DC Drive & Comprehensive Protection
Deeply optimized for nominal 12V DC power systems, it features low start-up voltage and energy-efficient power consumption, integrated with reverse polarity and locked-rotor protection to prevent damages caused by circuit anomalies.
Highly Adaptable Design & Flexible Customization

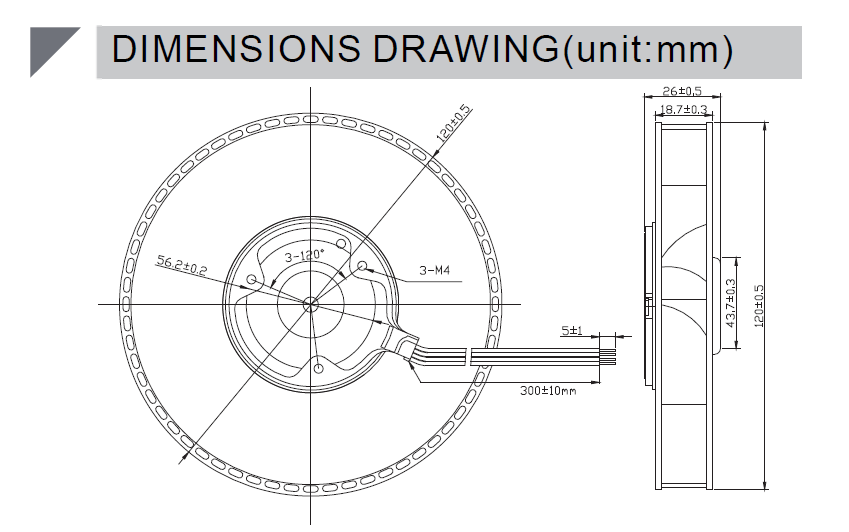

The rugged, eco-friendly housing and standard 120x25mm dimensions make it widely applicable to servers, 3D printers, automotive electronics, chargers, and air ventilation systems, with customizable lead wires, connectors, and PWM speed control available upon request.
Technical Specifications
Centrifugal Fan CA12025-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect Centrifugal Fan for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M³/min | CFM | mmH2O | InH2O | ||||||||
| PART.NO. | - | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A |
| CA12025M12X | AY | 12 | 7.5~13.5 | 0.6 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 |
| CA12025H12X | 12 | 7.5~13.5 | 0.8 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH12X | 12 | 7.5~13.5 | 1.2 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M24X | 24 | 18~26.5 | 0.3 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H24X | 24 | 18~26.5 | 0.4 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH24X | 24 | 18~26.5 | 0.6 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
| CA12025M48X | 48 | 36~54 | 0.15 | 7.2 | 2500 | 1.622 | 57.29 | 13.95 | 0.549 | 45 | |
| CA12025H48X | 48 | 36~54 | 0.2 | 9.6 | 3000 | 1.929 | 68.14 | 17.74 | 0.698 | 49.6 | |
| CA12025HH48X | 48 | 36~54 | 0.32 | 14.4 | 3500 | 1.973 | 69.69 | 21.18 | 0.833 | 53.5 | |
