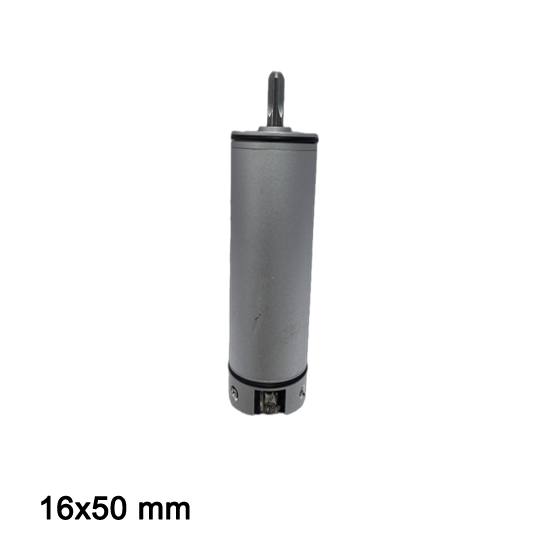

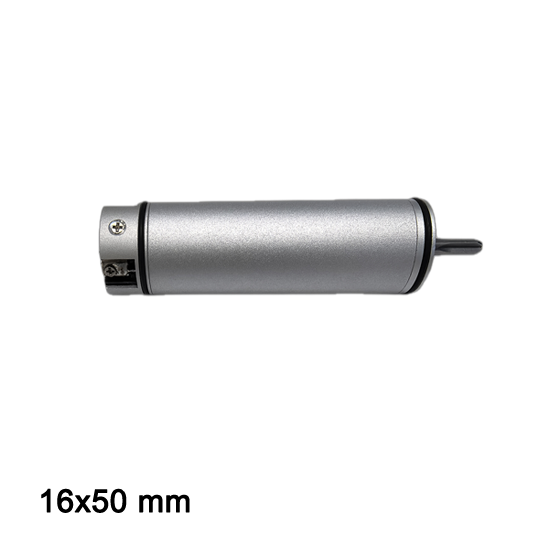

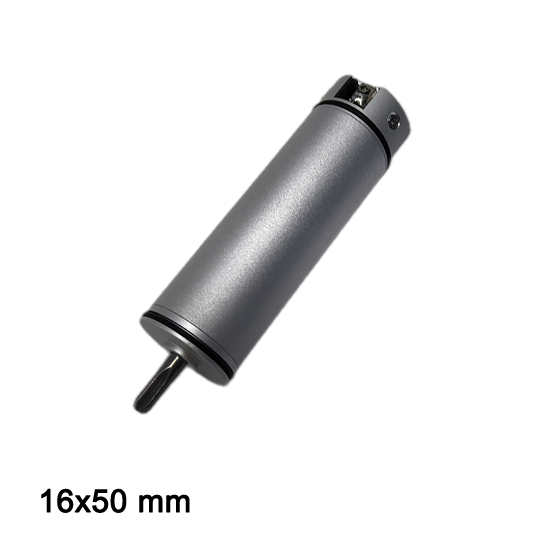

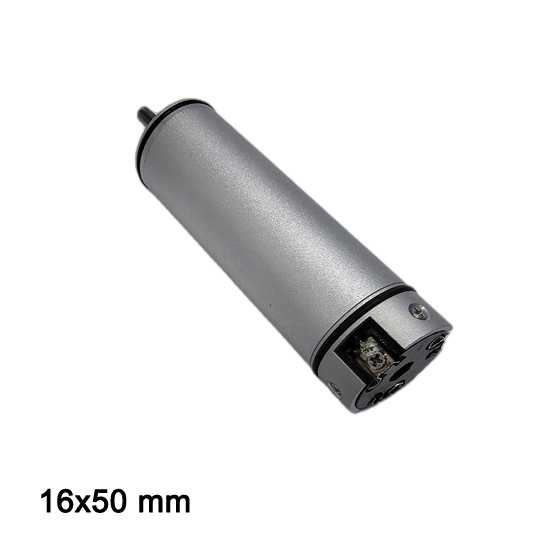

DC Brushless Motor 1650NR-01A-24.0
Voltage 24V
16*50mm
31000rpm/min
Request a Sample
Structure Drawing
Technical Specifications
Brushless DC motor 1650NR-01A-24.0; teardown photos of an electric grinder.

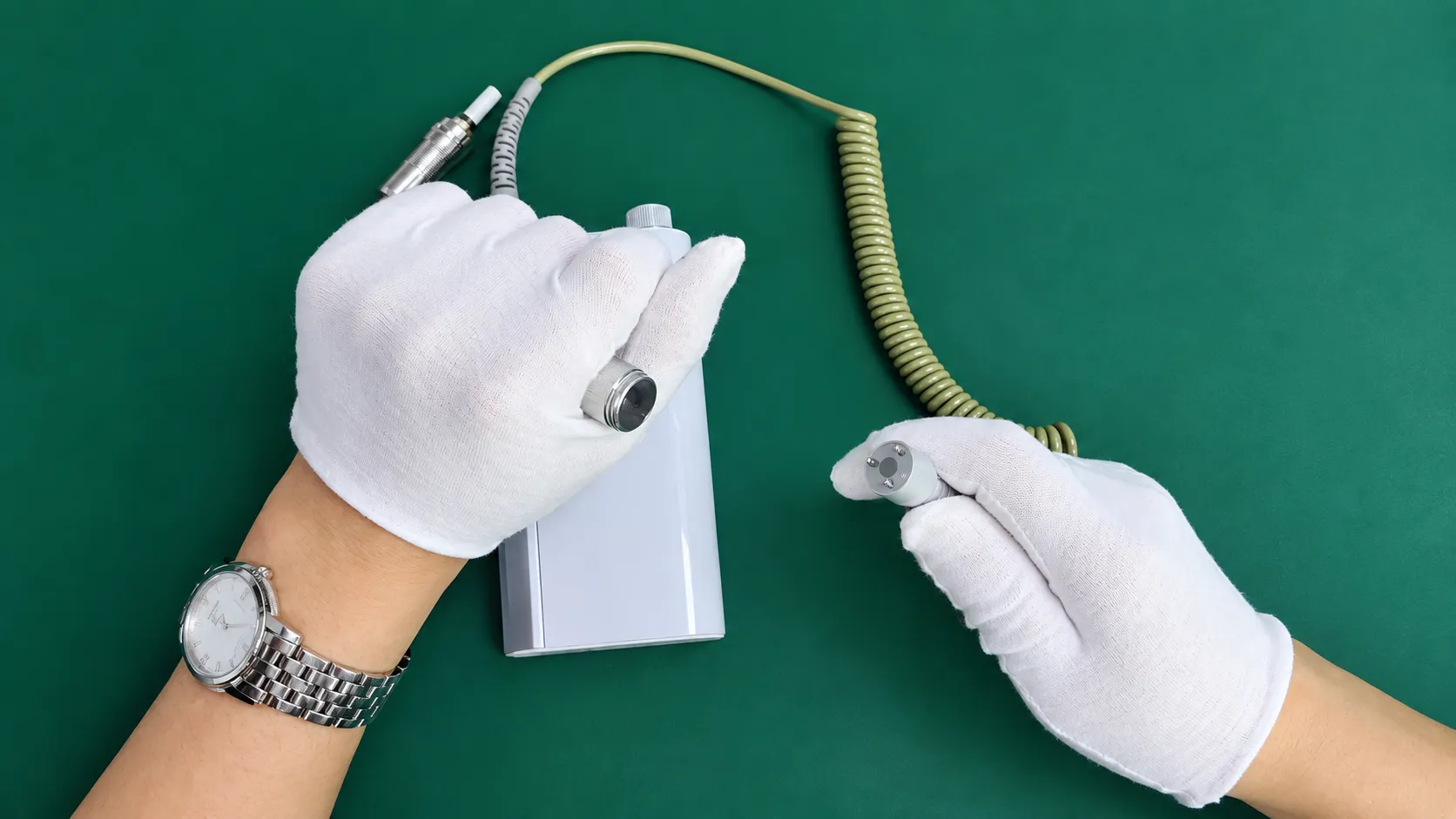

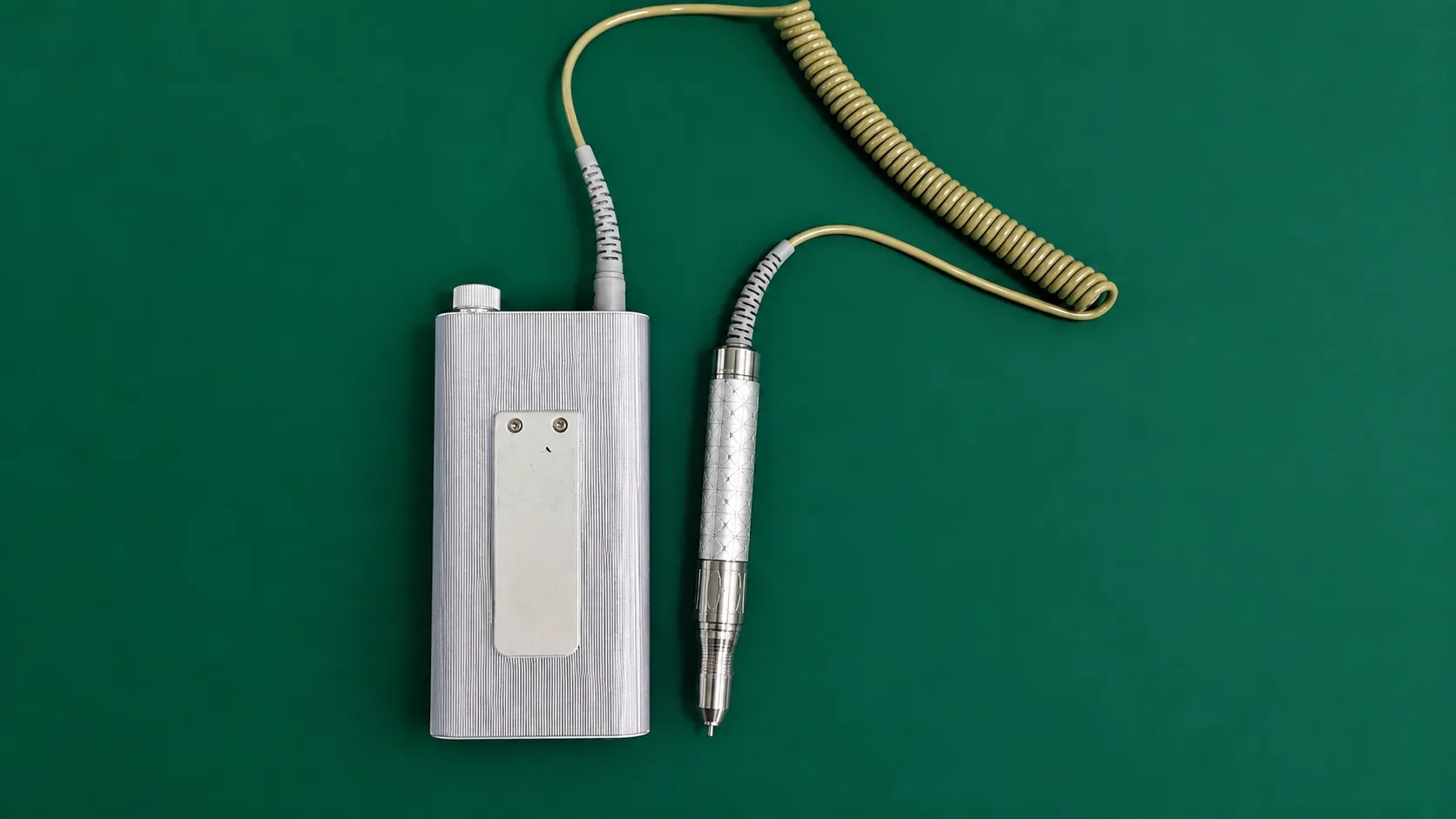

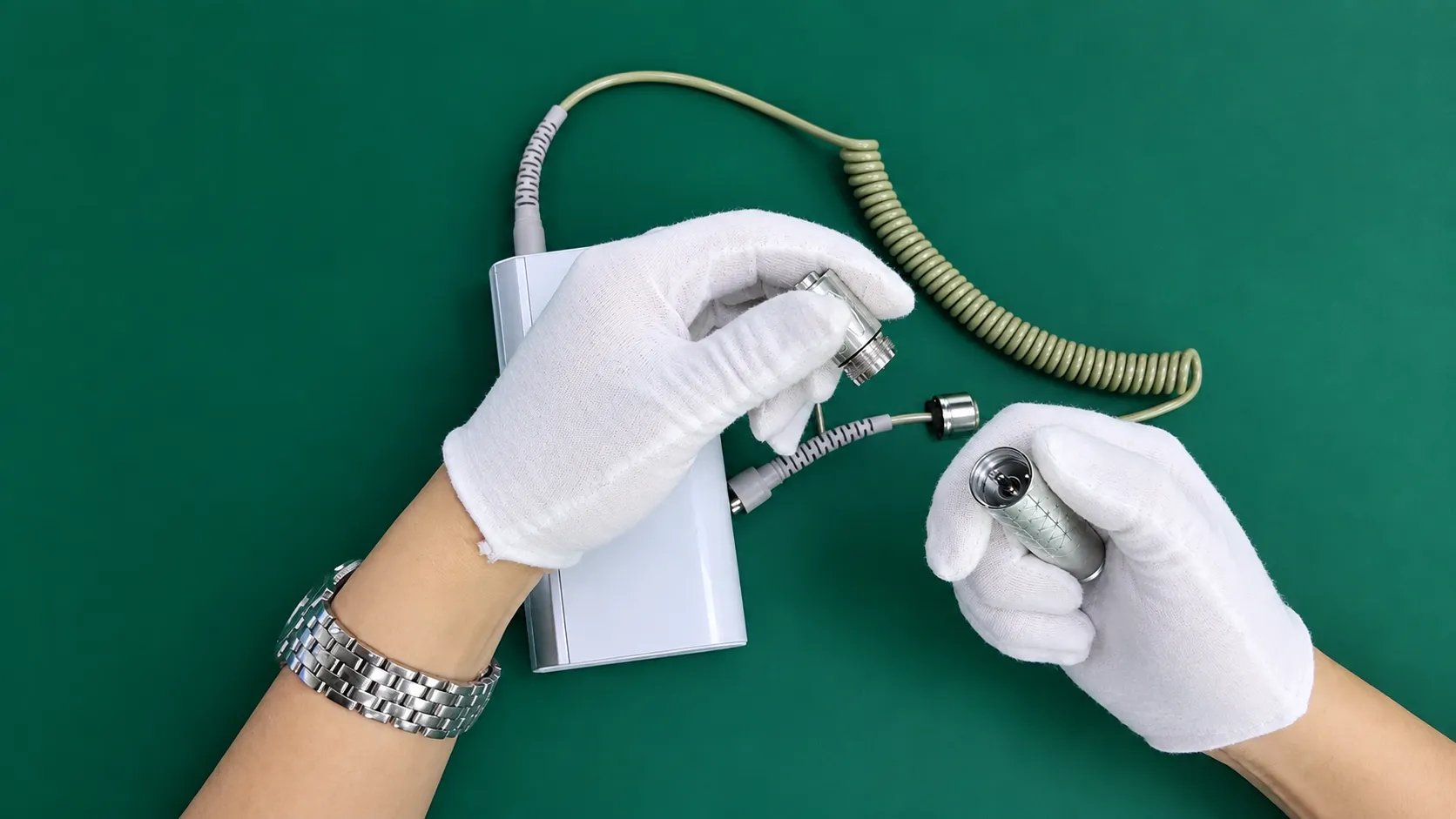

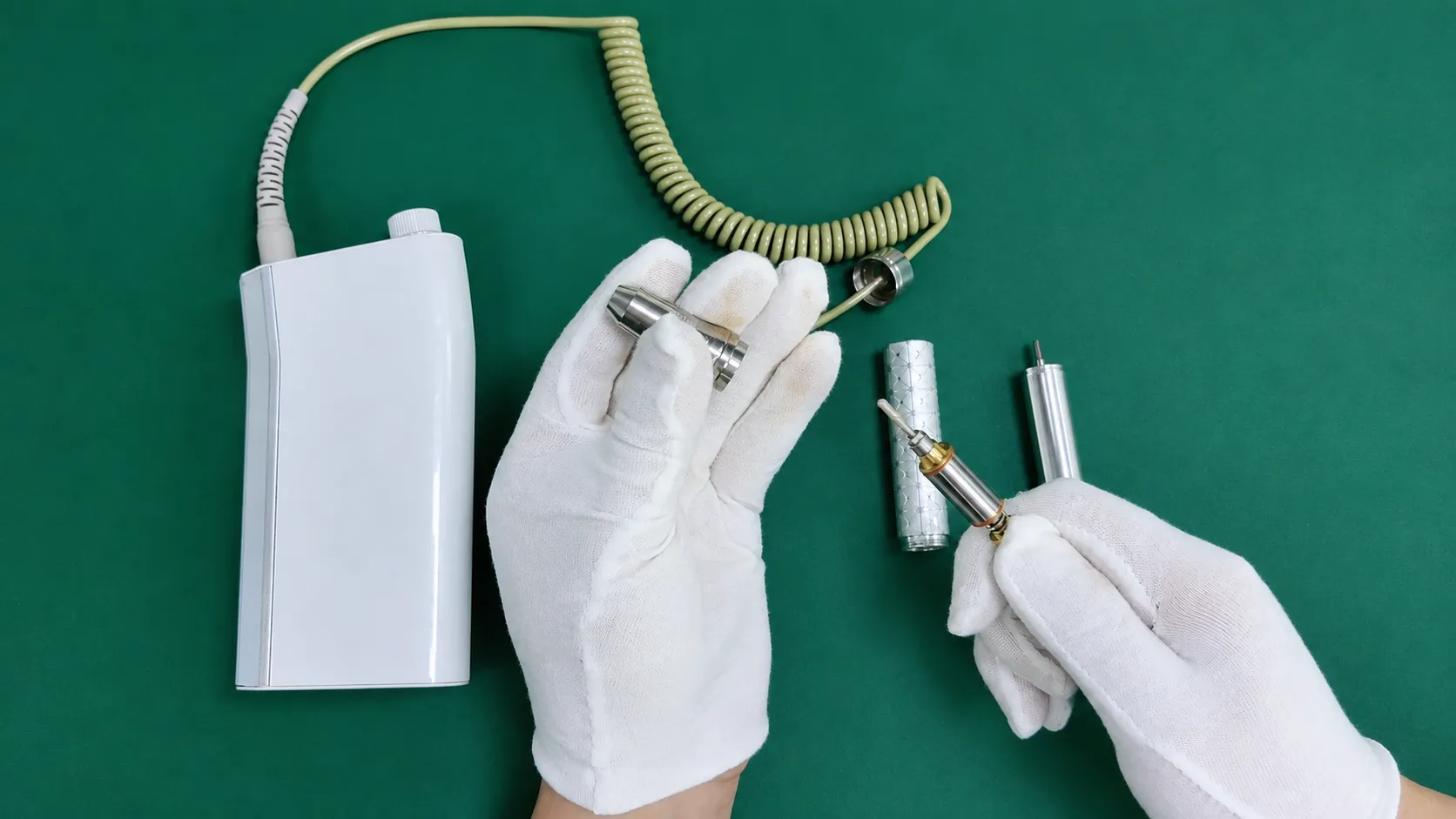

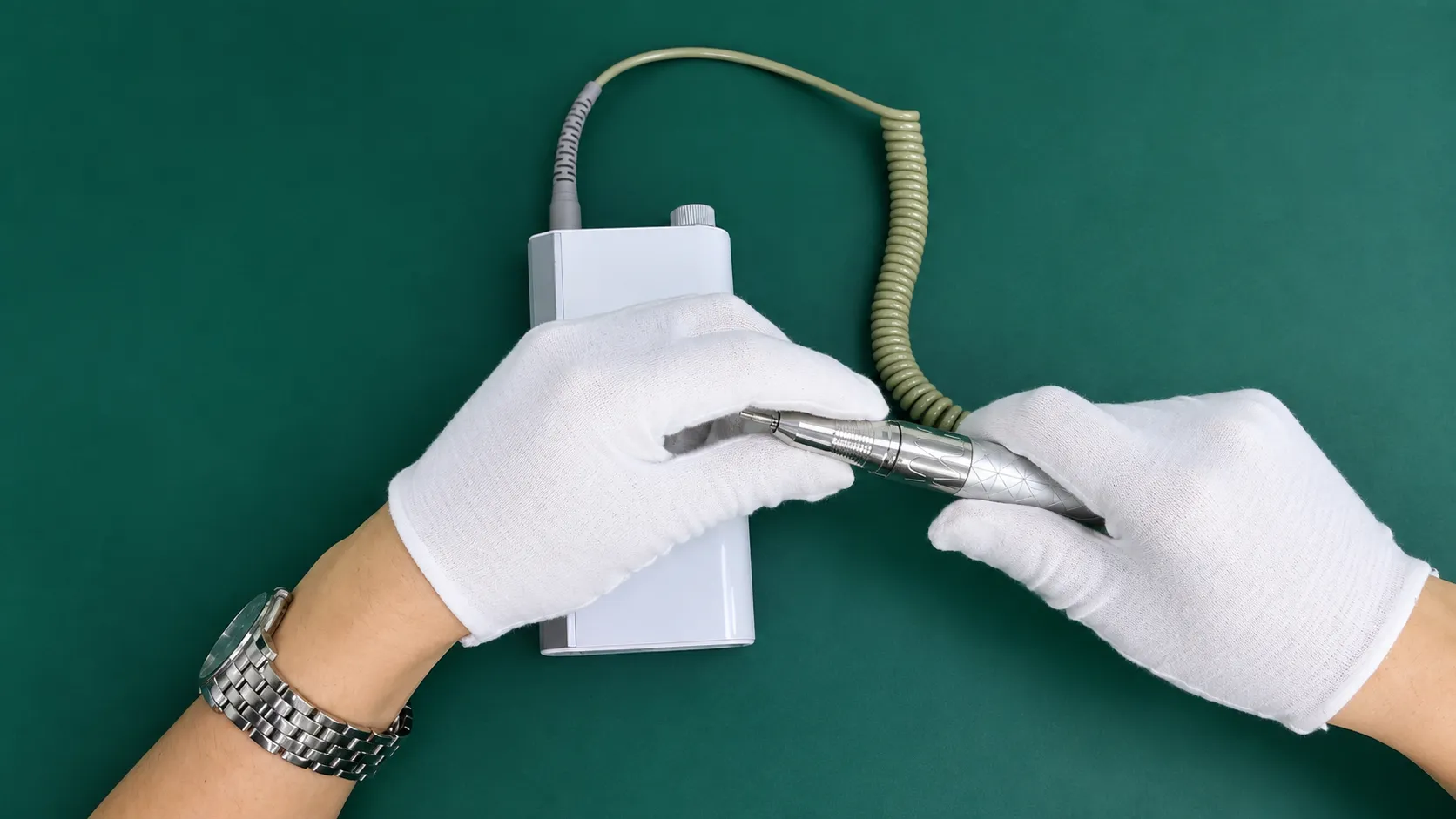

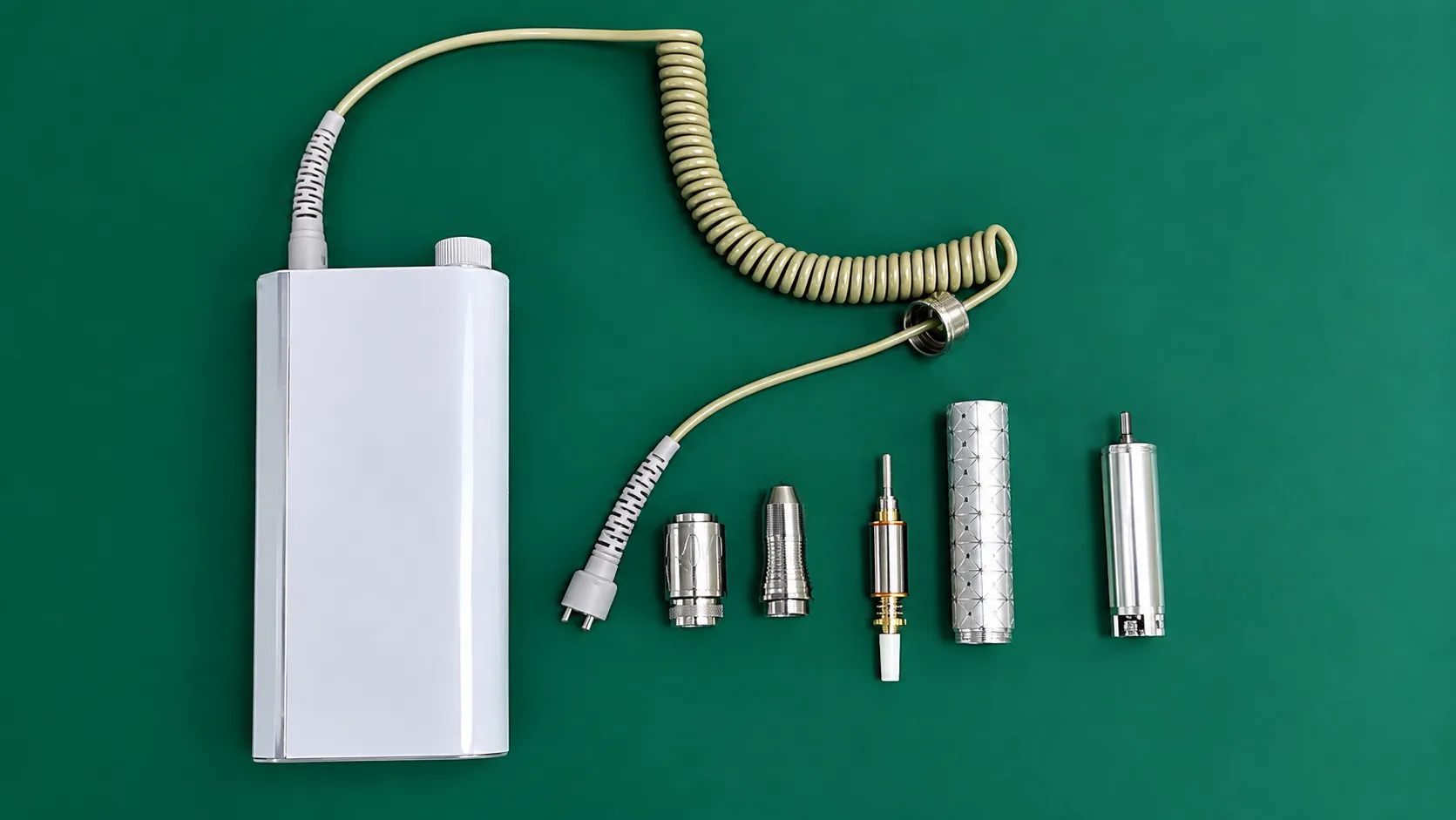

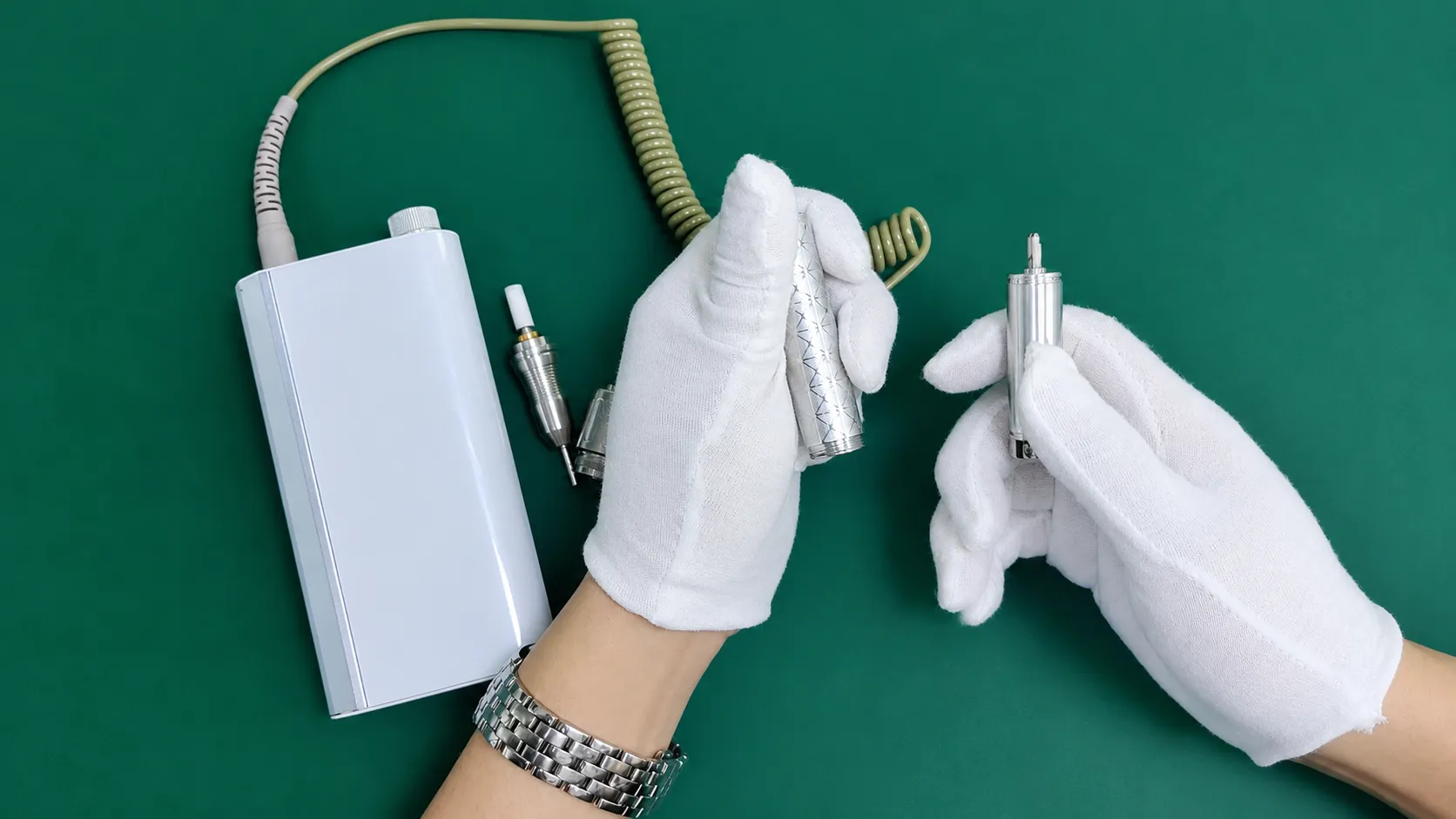

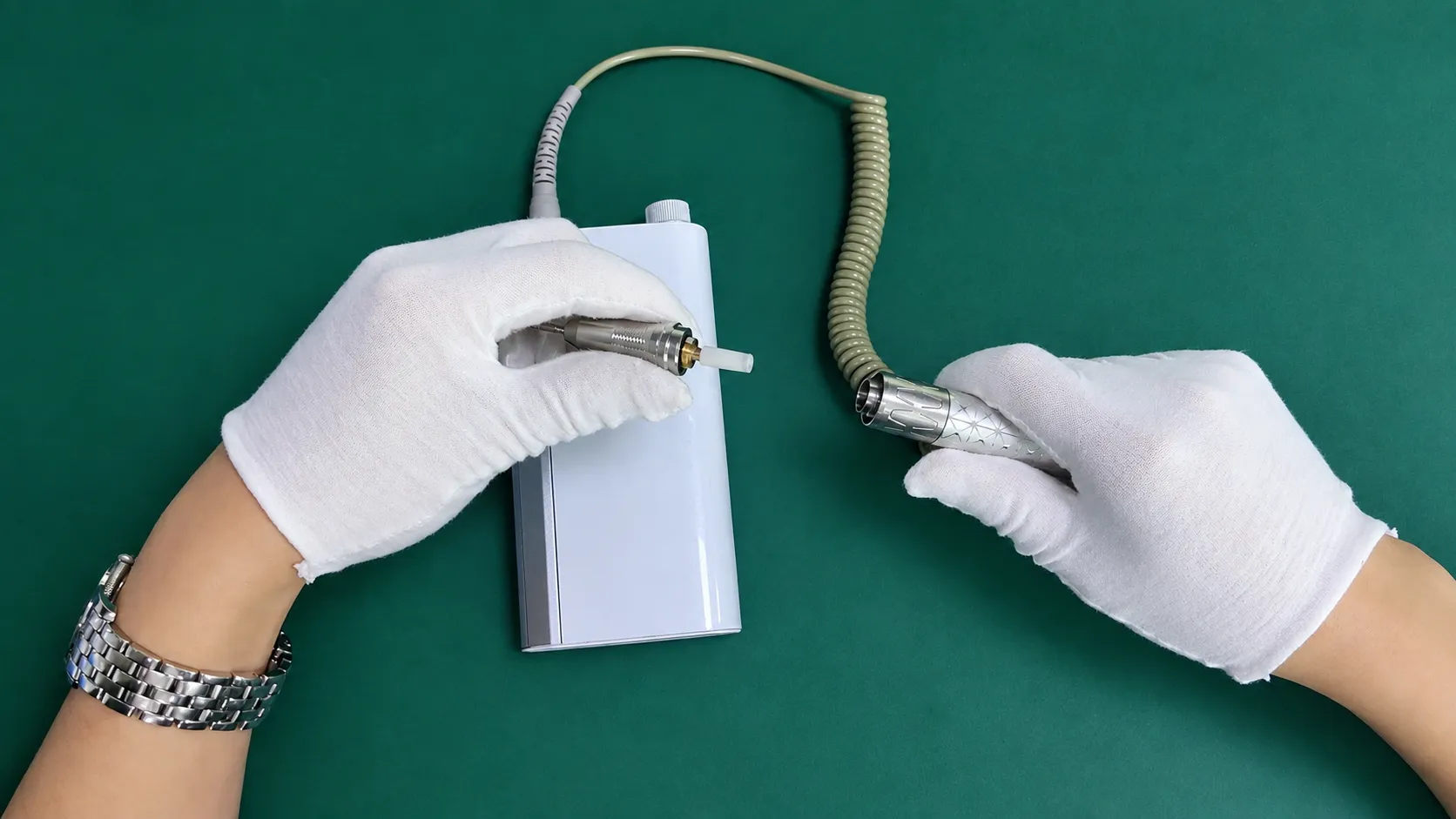

Detailed teardown photos of the electric grinder equipped with 1650NR-01A-24.0 brushless DC motor, showcasing its internal handpiece structure, precision bearings, rotor assembly, and compact housing setup. (Click image to enlarge)
× ![Enlarged Teardown Photo]()

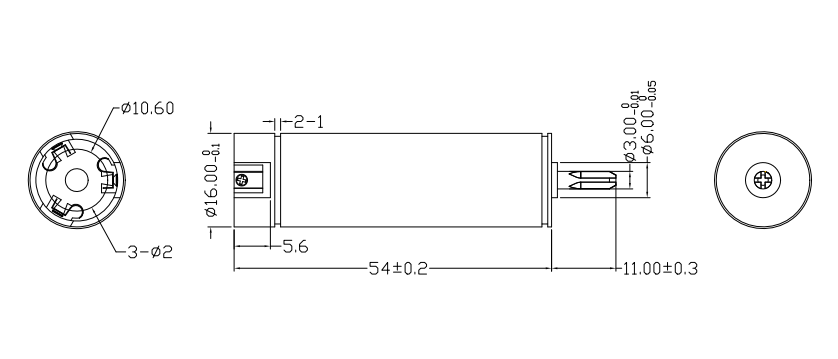

DC Brushless Motor 1650NR-01A-24.0 Dimensions & Mechanical Drawing
Detailed structural schematic and mechanical dimensions for the 1650NR-01A-24.0 high-speed 24V brushless DC motor. Engineered for high-speed precision equipment, medical ventilators, CPAP devices, and compact air blowers.
SPECIFICATION FOR APPROVAL
DC Brushless Motor 1650NR-01A-24.0 Electrical Characteristics
| Electrical Characteristics | ||||
|---|---|---|---|---|
| No. | ITEM | Specification | Unit | |
| 1 | Rated voltage | 24.0 | V | |
| 2 | No-load speed | 31000 ± 12% | rpm | |
| 3 | No-load current | 65 | mA | |
| 90 (Max) | mA Max | |||
| 4 | Rated speed | 28000 | rpm | |
| 5 | Rated torque | 110 | g.cm | |
| 6 | Rated current | 0.46 | A | |
| 0.7 (Max) | A Max | |||
| 7 | Stall torque | 550 ± 12% | g.cm | |
| 8 | Stall current | 7.2 | A | |
| 9 | Terminal resistance | 3.3 ± 12% | Ω | |
| 10 | Insulation resistance | 250VDC 10MΩ | - | |
| 11 | Rotation direction | CW (from the shaft end) | ||

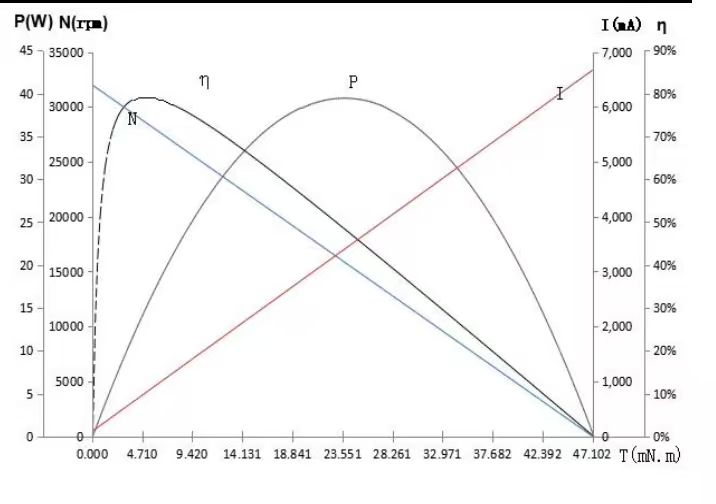

Brushless DC Motor 1650NR-01A-24.0 Motor Characteristic Curves
The performance curve graph above presents the comprehensive electromechanical performance analysis of the 1650NR-01A-24.0 Brushless DC Motor operating under a stable nominal supply voltage of 24.0V DC. It clearly illustrates the key relationships between torque, speed, current, output power, and overall motor efficiency.
Key technical performance characteristics shown in the curves include:
- Speed vs. Torque (N-T Curve): Demonstrates the linear torque-speed drop, maintaining a high free-running speed of 31,000 RPM at no-load and delivering a stable 28,000 RPM at the rated torque of 110 g.cm.
- Current vs. Torque (I-T Curve): Shows proportional electrical current consumption scaling linearly from a low no-load current of 65mA up to the peak stall current of 7.2A.
- Output Power & Efficiency Curves (P & η): Highlights the optimal efficiency zone where the motor maximizes energy conversion while minimizing heat generation, making it highly suitable for continuous duty in high-speed medical devices and compact blower modules.
Engineers can utilize these performance curves to determine the ideal operating point for optimal energy efficiency and long operational lifespan in custom OEM/ODM applications.
DC Brushless Motor 1650NR-01A-24.0 FAQs
Q1: What are the main applications of the 1650NR-01A-24.0 DC brushless motor?
The 1650NR-01A-24.0 high-speed BLDC motor is designed for CPAP ventilators, medical breathing devices, compact air blowers, and precision instruments requiring stable high-speed air pressure.
Q2: What is the rated speed and no-load speed for this motor?
The motor has an ultra-high no-load speed of 31,000 ± 12% rpm and operates at a rated speed of 28,000 rpm under standard load.
Q3: What are the current consumption ratings at no-load and rated load?
At no-load condition, the typical current is 65 mA (Max 90 mA). At rated load (28,000 rpm), the typical current draw is 0.46 A (Max 0.7 A).
Q4: What is the stall torque and stall current capacity?
Under 24.0V DC operation, the motor provides a high stall torque of 550 ± 12% g.cm with a peak stall current of 7.2 A.
Q5: What is the rotation direction of the 1650NR-01A-24.0 motor?
The motor rotates in a Clockwise (CW) direction when viewed directly from the output shaft end.
Q6: What is the insulation resistance specification for safe operation?
The motor features high insulation reliability with a specification of 250VDC 10MΩ, ensuring safe and long-term electrical insulation in medical and industrial applications.
Q7: What is the terminal resistance of the motor windings?
The terminal resistance of the motor windings is rated at 3.3 ± 12% Ω.
Q8: Does this high-speed motor require an external driver?
Yes, as a 24V brushless DC motor, it requires a dedicated BLDC controller circuit to regulate speed (via PWM or analog voltage) and manage Electronic Commutation.
Q9: Can custom shaft designs or wiring connectors be provided?
Yes, custom shaft lengths, modified mounting plates, custom lead wires, and specific connector interfaces are fully supported for OEM/ODM projects.
Q10: How do I request technical documentation or sample evaluation for 1650NR-01A-24.0?
You can send an inquiry directly through our website contact form or contact our sales team to request technical datasheets, CAD drawings, and test samples.
