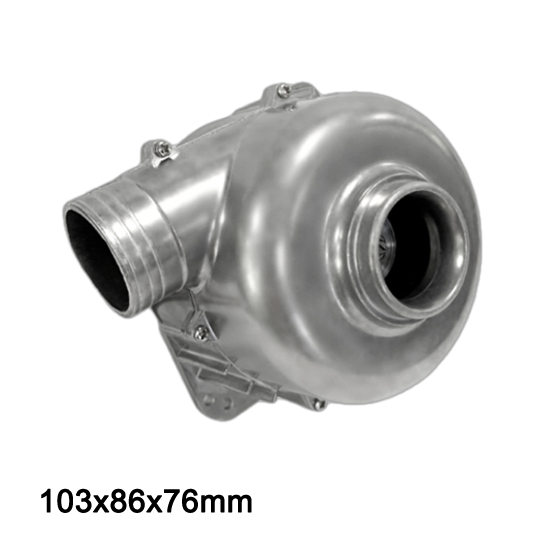

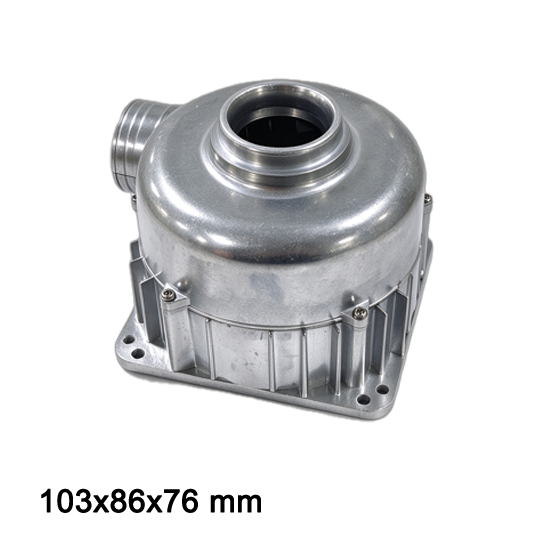

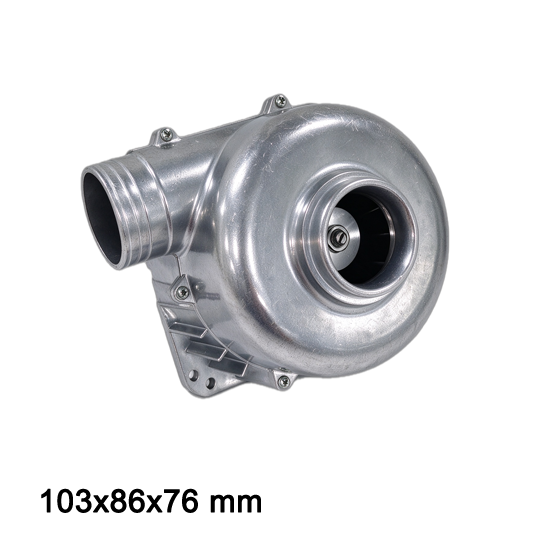

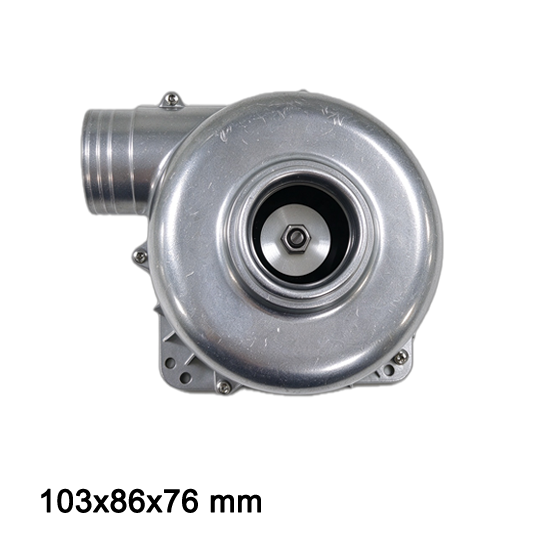

Waterproof blower BA9080H24B-A-Integrated
Integrated driver 24v
48000rpm/min
Max 72cfm,18kpa
Technical Specifications

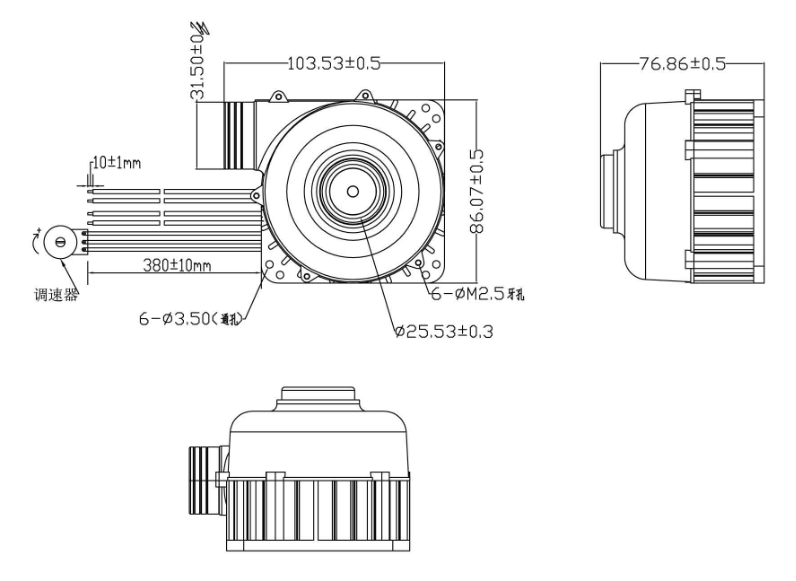

Waterproof blower BA9080H24B-A-Integrated Mechanical Structure Diagram
This comprehensive mechanical structure diagram illustrates the precise physical dimensions, robust sealing design, and mounting specifications of the waterproof BA9080H24B-A blower. Engineered with high-grade protective housing, it ensures superior resistance against moisture, dust, and harsh environmental elements while maintaining a compact form factor for reliable integration into demanding industrial or outdoor applications.

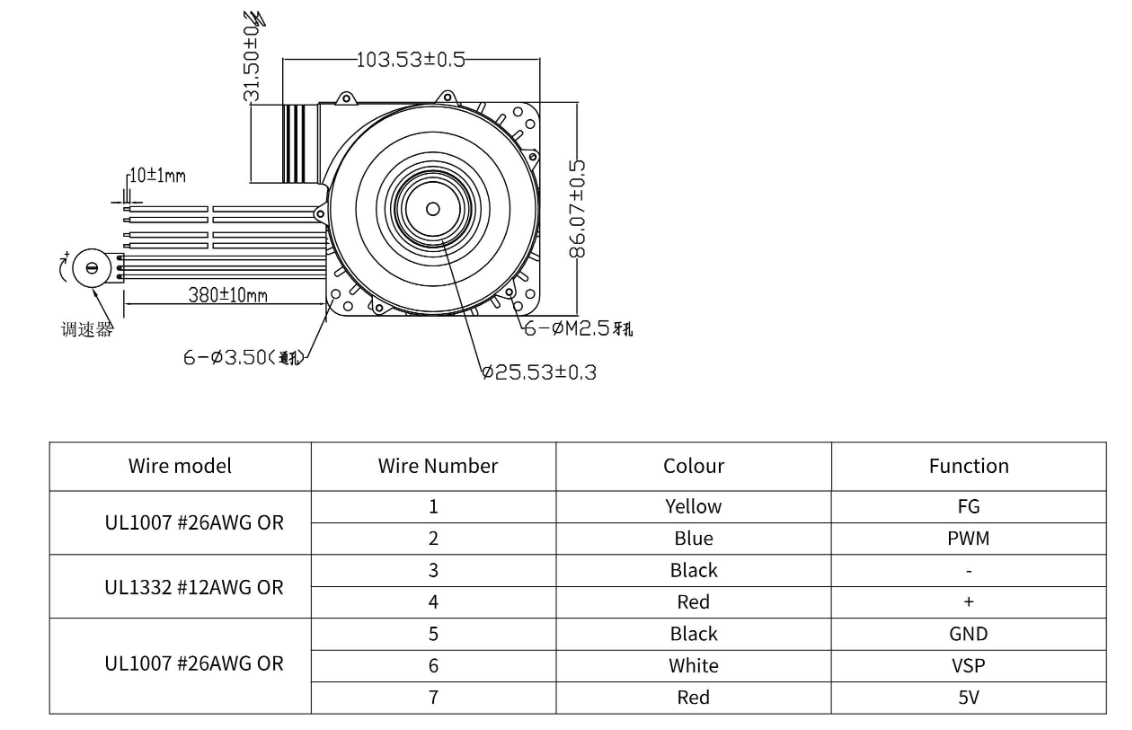

Waterproof blower BA9080H24B-A-Integrated Electrical Connection Diagram
The electrical connection diagram provides clear, standardized wiring guidelines for power supply input, PWM speed control, and status feedback signals. Specifically tailored for waterproof configurations, it highlights proper terminal sealing and circuit protection measures, ensuring safe installation, prevention of short circuits, and optimal electrical performance under humid or wet operating conditions.

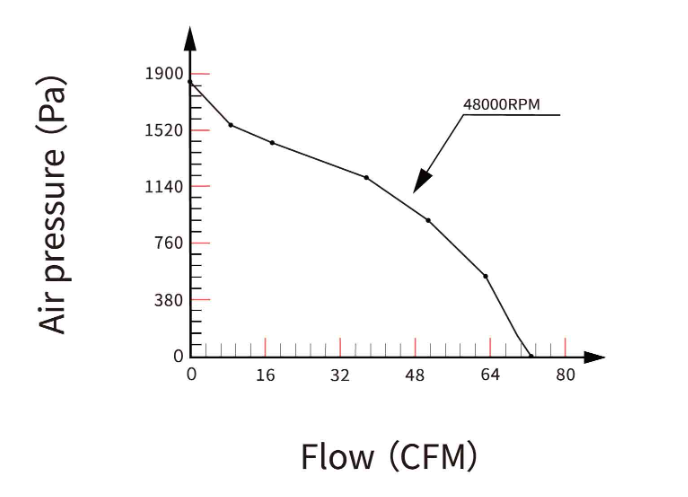

Waterproof blower BA9080H24B-A-Integrated P-Q Curve
The Pressure-Flow (P-Q) performance curve maps out the aerodynamic output, static pressure capabilities, and airflow efficiency of the waterproof BA9080H24B-A blower across varying load resistances. Engineers can reference this detailed curve to accurately select and match the blower for high-demand applications requiring consistent pneumatic performance in moisture-prone environments.
Watch Video: Practical operation and user guide for the BA9080H24B high-pressure 24V DC air blower. Learn how to connect, run, and optimize its performance in your application.
Looking for different sizes or specifications?
Explore our full range of Waterproof blower, or choose from similar models below.
Waterproof blower
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
