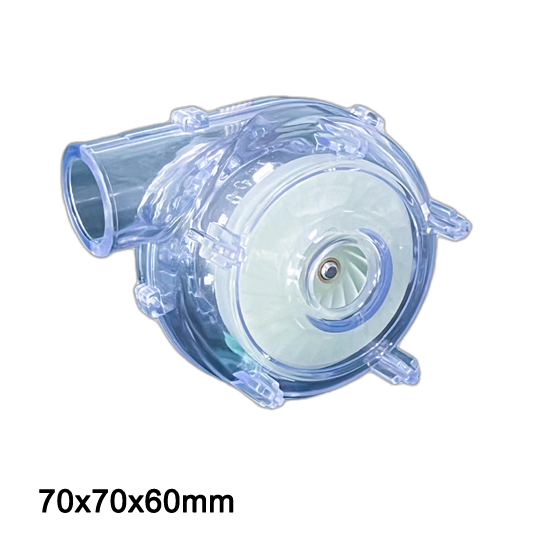

Waterproof blower BA7060H24B-K 251202
Waterproof blower BA7060H24B-K 251202

Waterproof blower BA7060H24B-K 251202

24v,36000rpm/min
Max 16.2 cfm,
7.4kpa

IP68-Rated Waterproof & Dustproof Excellence

Completely sealed motor with advanced eco-friendly coating prevents damage from water submersion, high humidity, and heavy dust, ensuring 100% reliable operation in the harshest environments.

High Pressure & Powerful Centrifugal Airflow

Designed with an optimized 70x70x60mm housing, this centrifugal blower delivers high static pressure and concentrated airflow, making it ideal for narrow spaces requiring heavy-duty cooling.

Ultra-Low Noise & High Energy Efficiency

Features aerodynamic impeller design and smart circuit optimization, ensuring superior cooling performance at 24V while minimizing operational noise and power consumption.

Industrial-Grade Dual Ball Bearings for Long Lifespan

Equipped with premium dual ball bearings that support continuous 24/7 operation, maintaining high stability and an extended service life even under high-temperature conditions.

Technical Specifications

ModelBA7060H24B-K 251202
Size70*70*60 mm
Operating Voltage24 VDC
Rated Current2.2 Amp
Rated Speed36000 RPM
Maximum Flow Rate16.2 CFM
Maximum Static Pressure7.4 kpa

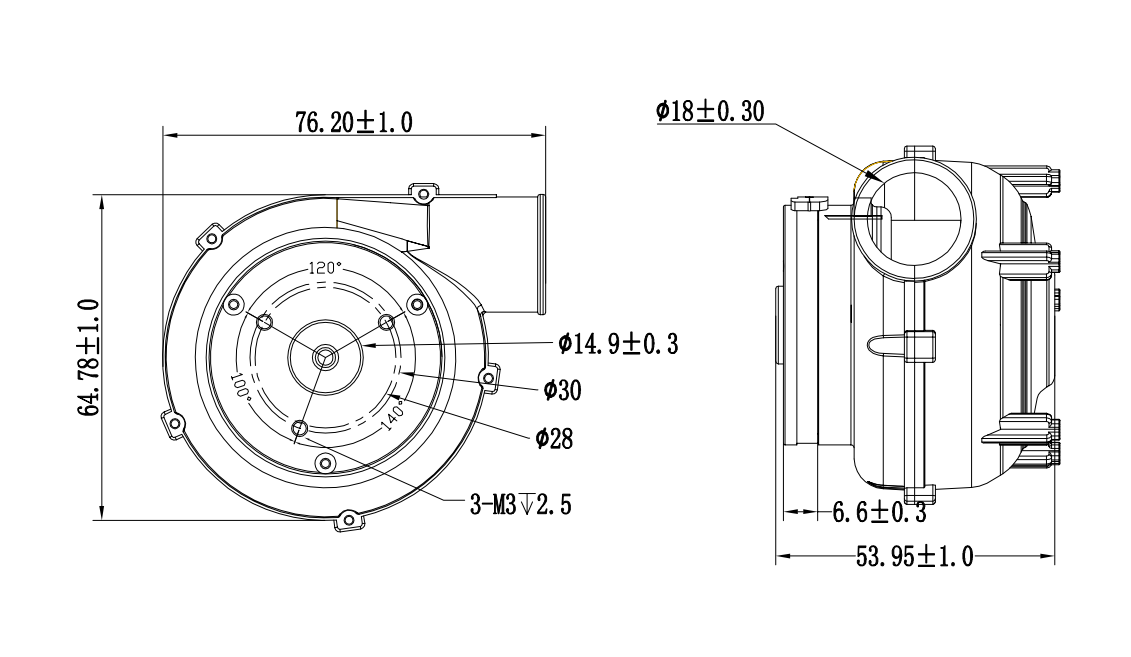

Waterproof blower BA7060H24B-K 251202 dimensions drawing

The detailed engineering outline and installation dimensions drawing of the Waterproof blower BA7060H24B-K 251202 provides precise mechanical specifications, mounting holes, and overall structural measurements. This ensures seamless integration into your demanding equipment, portable medical devices, and industrial ventilation systems while maintaining its specialized waterproof profile.

Technical dimensions drawing of Waterproof blower BA7060H24B-K 251202 showing structural size specifications

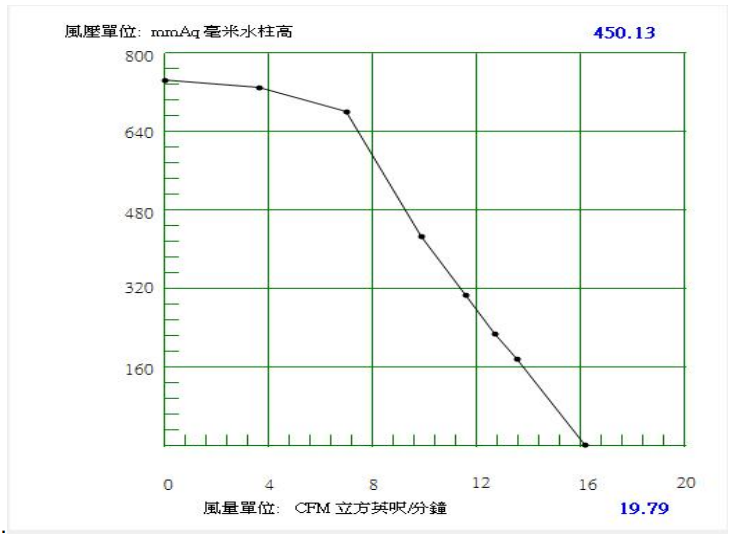

Waterproof blower BA7060H24B-K 251202 PQ curve

This comprehensive performance (PQ) curve graph illustrates the robust aerodynamic capabilities and pressure-flow characteristics of the Waterproof blower BA7060H24B-K 251202. It clearly maps out the precise correlation between static pressure and airflow output across varying operational conditions.

Engineered with advanced waterproof protection and high-efficiency brushless motor technology, this blower delivers exceptional head pressure and stable air volume even in wet, humid, or harsh environments. The curve serves as a critical reference for engineers designing optimized pneumatic systems, respiratory appliances, and specialized cooling solutions.

Pressure and airflow PQ curve performance graph for Waterproof blower BA7060H24B-K 251202

Video Guide: Watch the live demonstration and performance test of our Waterproof blower BA7060H24B-K 251202. This high-efficiency cooling fan is designed for outstanding durability in wet and harsh environments.

Looking for different sizes or specifications?

Explore our full range of Waterproof blower, or choose from similar models below.

Waterproof blower

Need a Custom Modification?

We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.

Contact Our Engineers
