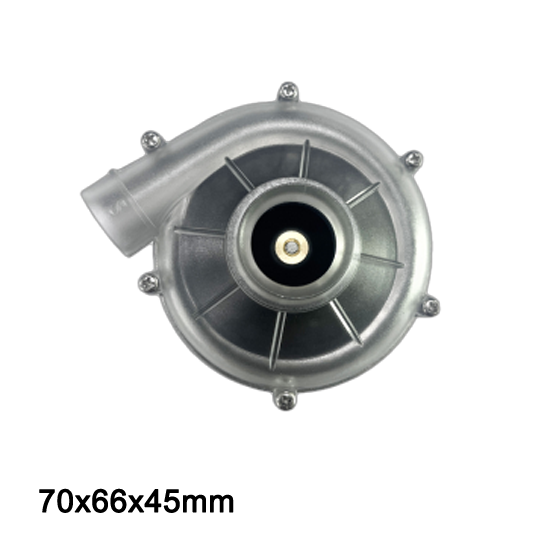

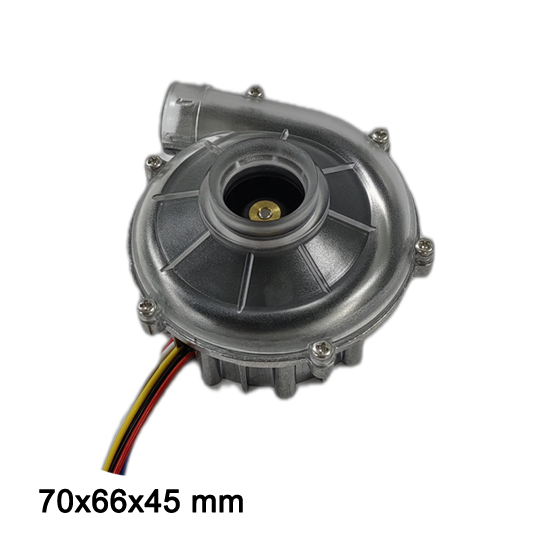

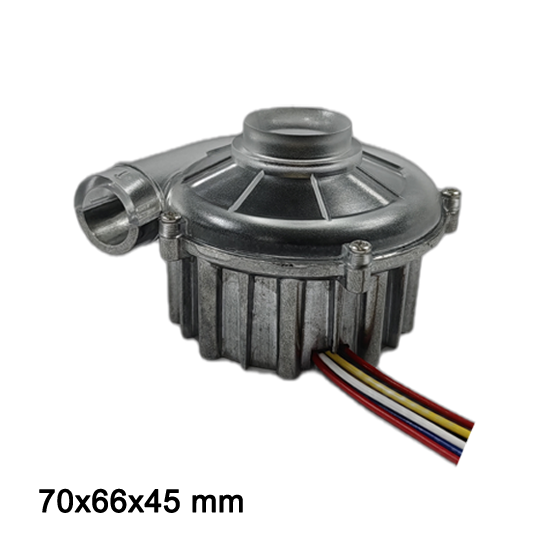

Waterproof blower BA7050H24B-B250807

Waterproof blower BA7050H24B-B250807 Mechanical Structure Diagram

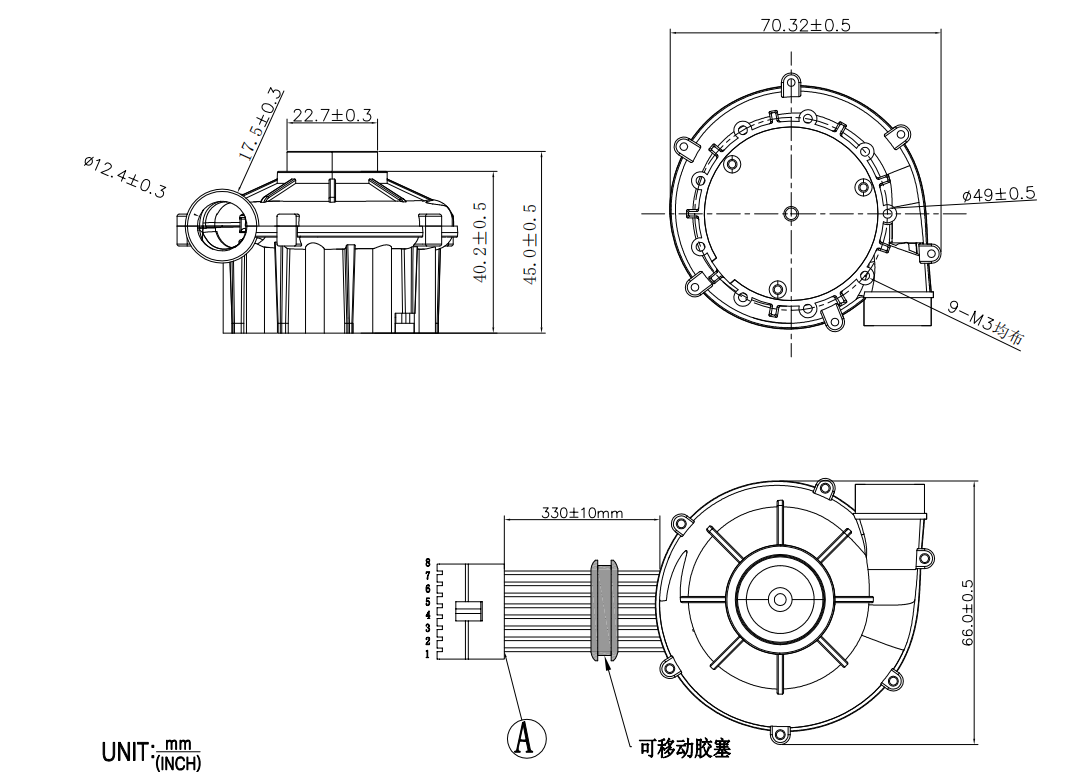

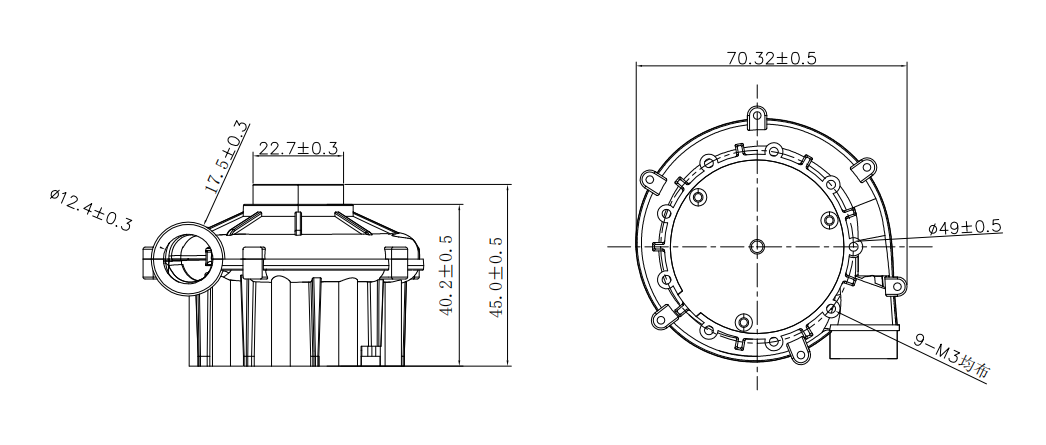

The mechanical structure diagram illustrates the precise physical dimensions, mounting hole layouts, and aerodynamic casing contours of the BA7050H24B-B250807 waterproof blower. Every component is engineered to comply with strict international industrial standards.

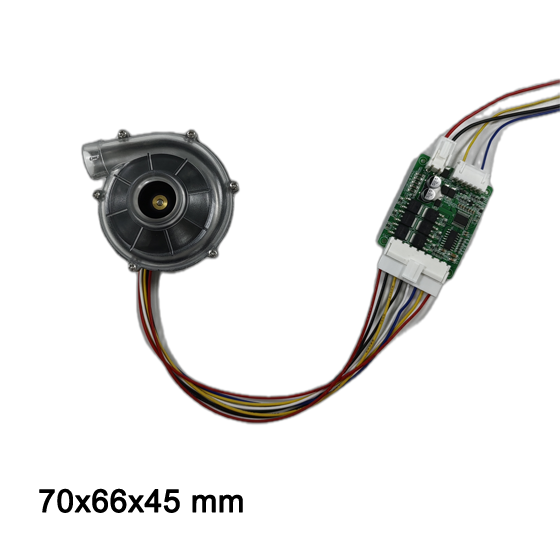

Waterproof blower BA7050H24B-B250807 Electrical Connection Diagram

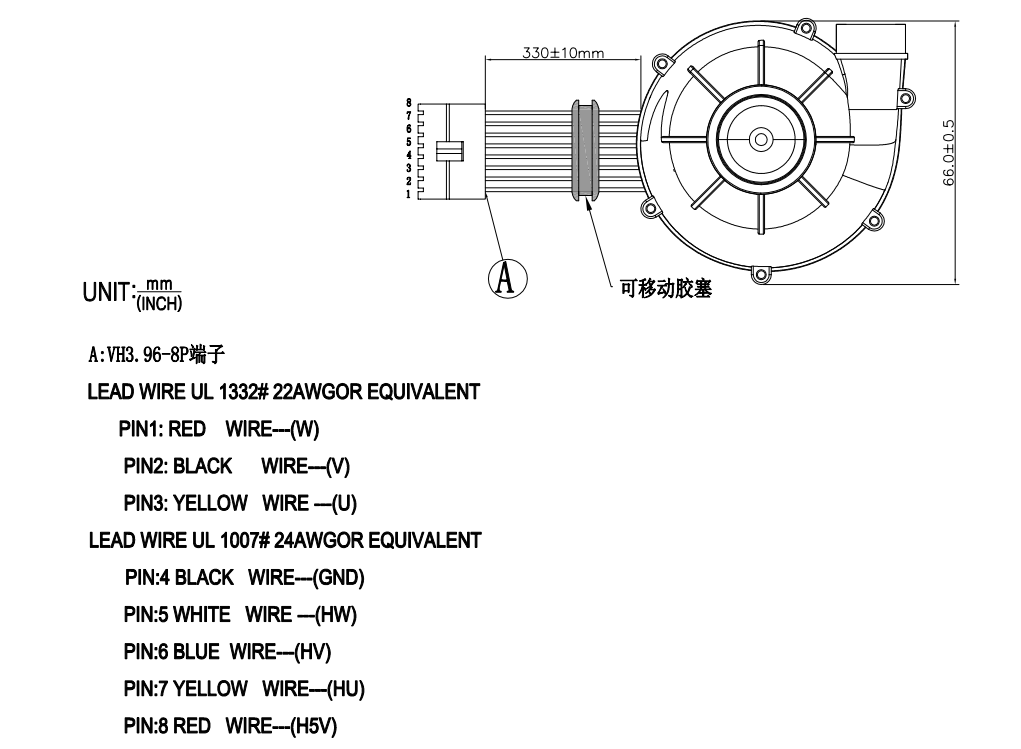

The electrical connection diagram clearly defines the wiring harness configuration, pinout assignments, and circuit interface standards for the BA7050H24B-B250807 blower. It ensures error-free integration with various control boards and power supplies.

Featuring integrated reverse polarity protection, locked rotor protection, and optional PWM speed control or Tachometer (FG) output signals, this wiring setup provides engineers with precise real-time monitoring and flexible performance regulation.

• Standard multi-color color-coded lead wires
• High-temperature resistant insulation jacketing
• Optional IP68 waterproof wire joint encapsulation

Waterproof blower BA7050H24B-B250807 P-Q Curve

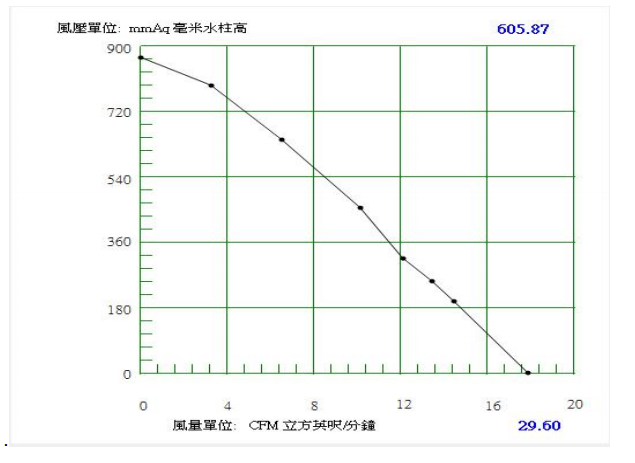

The Performance Curve (P-Q Curve) graph maps out the precise operational correlation between static air pressure and volumetric airflow rate. It serves as an indispensable tool for thermal engineers evaluating system impedance and cooling performance.

Designed with advanced centrifugal aerodynamics, the BA7050H24B-B250807 maintains stable, high-pressure output even under heavy backpressure conditions, making it an ideal choice for high-density electronic cooling and specialized pneumatic systems.

• Delivers high static pressure capability
• Maintains smooth airflow under high resistance
• Optimized for low acoustic noise at rated speeds
