Micro blower BA3510VH05B
Voltage 5V
10000rpm/min
Max 2.38 cfm,0.11 kpa
Request a Sample

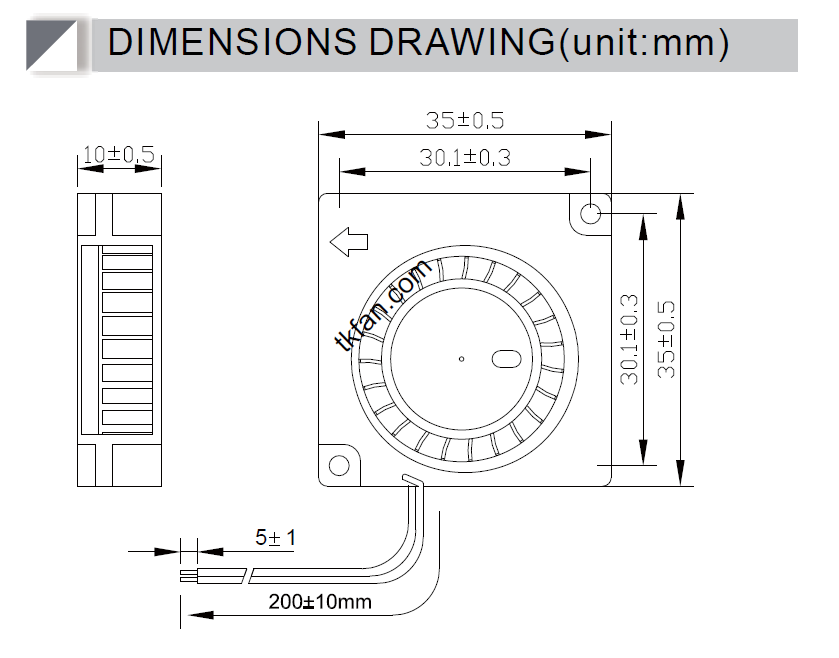

Structure Drawing

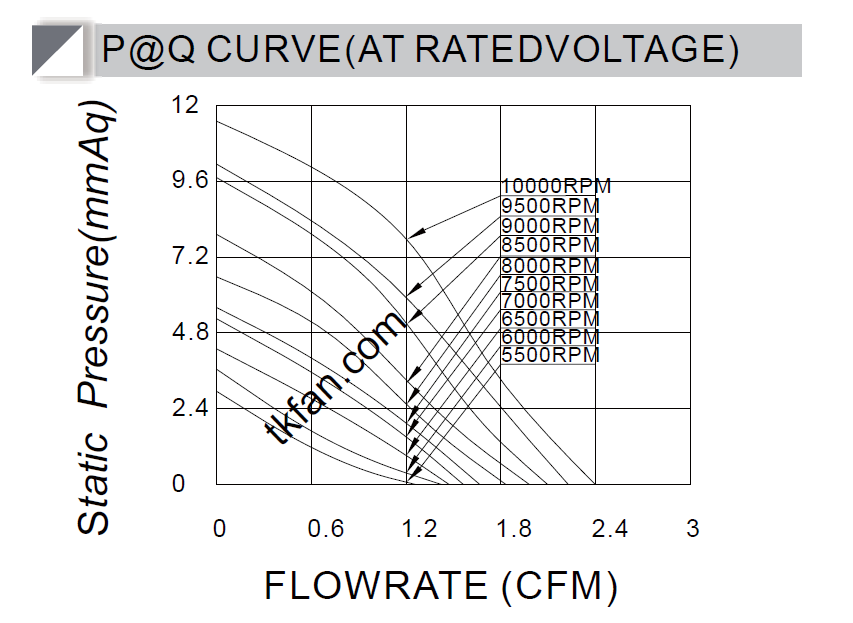

Technical Specifications
Micro blower BA3510-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect micro blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M³/min | CFM | mmH2O | InH2O | ||||||||
| PART.NO. | VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | |
| BA3510LL05X | AY | 5 | 1.8~3.6~6.8 | 0.1 | 0.5 | 5500 | 0.035 | 1.25 | 2.67 | 0.105 | 25.4 |
| BA3510L05X | 5 | 1.8~3.6~6.8 | 0.12 | 0.6 | 6000 | 0.040 | 1.42 | 3.62 | 0.143 | 27.5 | |
| BA3510LV05X | 5 | 1.8~3.6~6.8 | 0.13 | 0.65 | 6500 | 0.041 | 1.45 | 4.25 | 0.167 | 29.6 | |
| BA3510M05X | 5 | 1.8~3.6~6.8 | 0.14 | 0.7 | 7000 | 0.045 | 1.60 | 5.20 | 0.205 | 31.6 | |
| BA3510MV05X | 5 | 1.8~3.6~6.8 | 0.16 | 0.8 | 7500 | 0.047 | 1.67 | 5.87 | 0.231 | 33.5 | |
| BA3510VM05X | 5 | 1.8~3.6~6.8 | 0.18 | 0.9 | 8000 | 0.053 | 1.86 | 6.92 | 0.272 | 34.9 | |
| BA3510H05X | 5 | 1.8~3.6~6.8 | 0.2 | 1.0 | 8500 | 0.056 | 1.98 | 8.05 | 0.317 | 36.1 | |
| BA3510HH05X | 5 | 1.8~3.6~6.8 | 0.22 | 1.1 | 9000 | 0.061 | 2.14 | 9.10 | 0.358 | 37.4 | |
| BA3510HV05X | 5 | 1.8~3.6~6.8 | 0.25 | 1.25 | 9500 | 0.064 | 2.27 | 10.18 | 0.401 | 39.1 | |
| BA3510VH05X | 5 | 1.8~3.6~6.8 | 0.28 | 1.4 | 10000 | 0.067 | 2.38 | 11.58 | 0.456 | 40.0 | |
| BA3510LL12X | 12 | 7~13.5 | 0.042 | 0.5 | 5500 | 0.035 | 1.25 | 2.67 | 0.105 | 25.4 | |
| BA3510L12X | 12 | 7~13.5 | 0.05 | 0.6 | 6000 | 0.040 | 1.42 | 3.62 | 0.143 | 27.5 | |
Note: This video demonstrates the operation and performance of the BA3510VH05B 5v dc small blower.
Need a Custom Modification?
We can customize voltage (5V/12V), wire length, and connectors. Prototypes ready in 48 hours.
