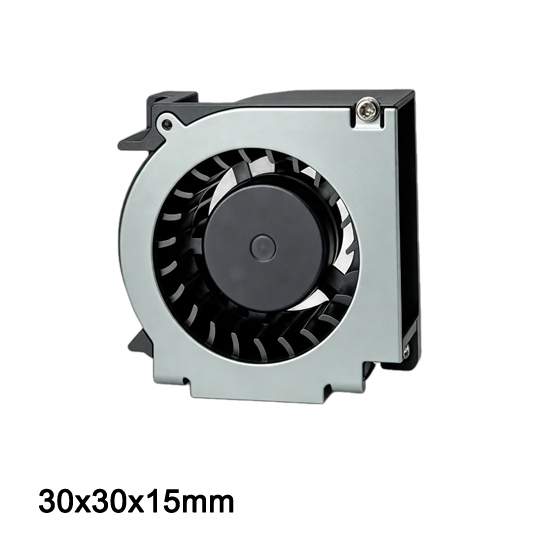

Micro blower BA3015H05X-A
Voltage 5V
6000rpm/min
Max 1.7 cfm,0.06 kpa
Request a Sample
Technical Specifications
Micro blower BA3015-A Selection Guide
Compare voltage, dimensions, speed, airflow, and static pressure to select the perfect micro blower for your equipment design.
| Model | P/N Code | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | Amp | Watt | R.P.M | M³/min | CFM | mmH2O | InH2O | dB-A | ||
| BA3015L05X | AY | 5 | 1.8~3.6~6.8 | 0.1 | 0.5 | 4000 | 0.030 | 1.07 | 2.18 | 0.086 | 17.9 |
| BA3015M05X | 5 | 1.8~3.6~6.8 | 0.12 | 0.6 | 5000 | 0.040 | 1.40 | 3.66 | 0.144 | 21.1 | |
| BA3015H05X | 5 | 1.8~3.6~6.8 | 0.13 | 0.65 | 6000 | 0.048 | 1.70 | 6.04 | 0.238 | 25.3 | |
| BA3015L12X | 12 | 7~13.5 | 0.042 | 0.5 | 4000 | 0.030 | 1.07 | 2.18 | 0.086 | 17.9 | |
| BA3015M12X | 12 | 7~13.5 | 0.05 | 0.6 | 5000 | 0.040 | 1.40 | 3.66 | 0.144 | 21.1 | |
| BA3015H12X | 12 | 7~13.5 | 0.054 | 0.65 | 6000 | 0.048 | 1.70 | 6.04 | 0.238 | 25.3 | |
